Three-Way Mixing Valve
The V5013P1028 is a three-way threaded globe valve designed for mixing service, directing flow from two inlet ports to a common outlet.

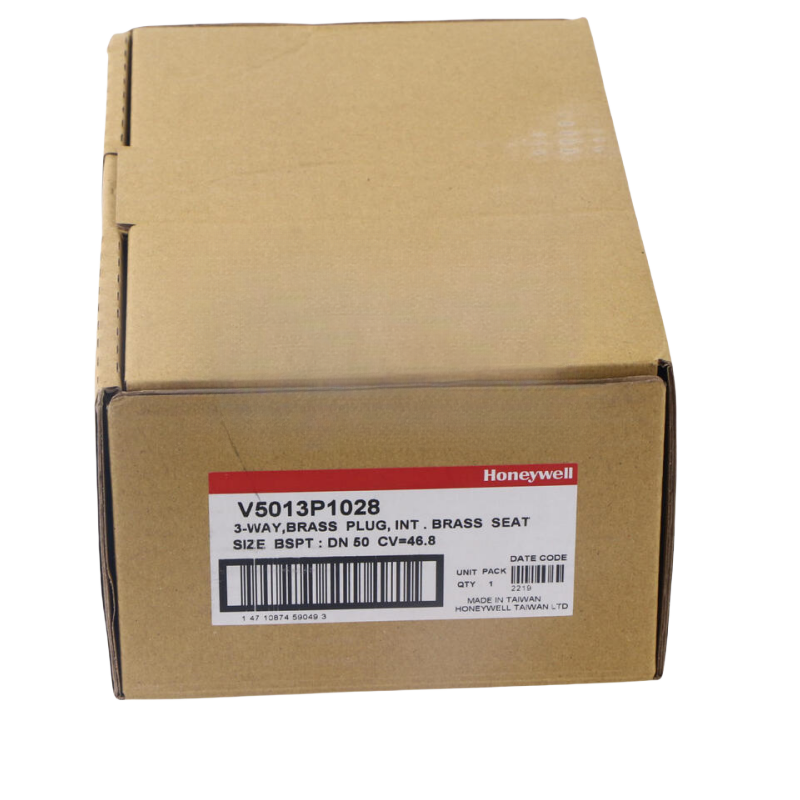

Honeywell V5013P1028 3-Way Globe Valve DN50 Kvs 40 20 bar
Available in stock (200)
Regular price
$320.00
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Honeywell |
| Model Number | V5013P1028 |
| Product Category | 3-Way Globe Valve |
| Valve Function | Three-Way Mixing |
| Valve Size | DN50 |
| Flow Coefficient | Kvs 40 |
| Nominal Pressure Rating | 20 bar |
| Pipe Connection | Internal BSPT Thread |
| Stroke | 20 mm |
| Rangeability | 50:1 |
| Leakage Rate | ≤0.05% of Kvs |
| Flow Characteristic Port A-AB | Equal Percentage |
| Flow Characteristic Port B-AB | Linear |
| Valve Body Material | Bronze |
| Plug Material | Brass |
| Stem Material | Stainless Steel |
| Operating Medium | Hot Water, Cold Water, Glycol Solutions up to 50% |
Key Features
DN50 Valve Size
The documented nominal valve size for V5013P1028 is DN50.
Kvs 40 Flow Capacity
The documented flow coefficient for the V5013P1028 configuration is Kvs 40.
20 bar Pressure Rating
The valve has a documented nominal pressure rating of 20 bar.
20 mm Stroke
The documented valve stem stroke is 20 mm for the V5013P series.
BSPT Threaded Connection
The valve body uses internal BSPT-threaded pipe connections for installation in supported piping systems.
Applications
- Heating water control
- Chilled water control
- HVAC mixing applications
- Glycol solution control
- Building heating systems
- Building cooling systems
- Domestic hot water control
- Open-circuit HVAC systems
Purchase Information
We support online purchase of the Honeywell V5013P1028 3-Way Globe Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Honeywell V5013P1028?
Honeywell V5013P1028 is a DN50 three-way threaded globe valve designed for mixing control in heating and cooling water systems.
What valve size is V5013P1028?
The documented valve size is DN50.
What is the flow coefficient of V5013P1028?
The documented flow coefficient is Kvs 40.
What is the nominal pressure rating?
The documented nominal pressure rating is 20 bar.
What connection type does V5013P1028 use?
The valve uses internal BSPT-threaded pipe connections.
What is the valve stroke?
The documented stem stroke is 20 mm.
What flow characteristics are specified?
Port A-AB has an equal-percentage flow characteristic, while port B-AB has a linear flow characteristic.
What materials are documented for the valve?
The valve body is bronze, the plug is brass and the stem is stainless steel.
What media can V5013P1028 control?
The V5013P series is documented for hot water, cold water and glycol solutions up to 50% concentration in heating or cooling applications.
What is the documented medium temperature range?
Water temperatures from 2°C to 120°C are specified at up to 20 bar, while temperatures above 120°C and up to 170°C are specified at reduced maximum pressure.
What applications can V5013P1028 be considered for?
It can be considered for three-way mixing control in heating, chilled-water, domestic-hot-water and related HVAC applications after system requirements have been checked.
What should be checked before ordering V5013P1028?
Check the complete model number, DN50 valve size, Kvs 40 flow requirement, BSPT connection, operating pressure, medium temperature, fluid type and actuator requirements against the existing HVAC system documentation before purchasing.
