±200 sccm Flow Range
The AWM2100V is flow calibrated for a documented full-scale bidirectional airflow range of ±200 sccm.

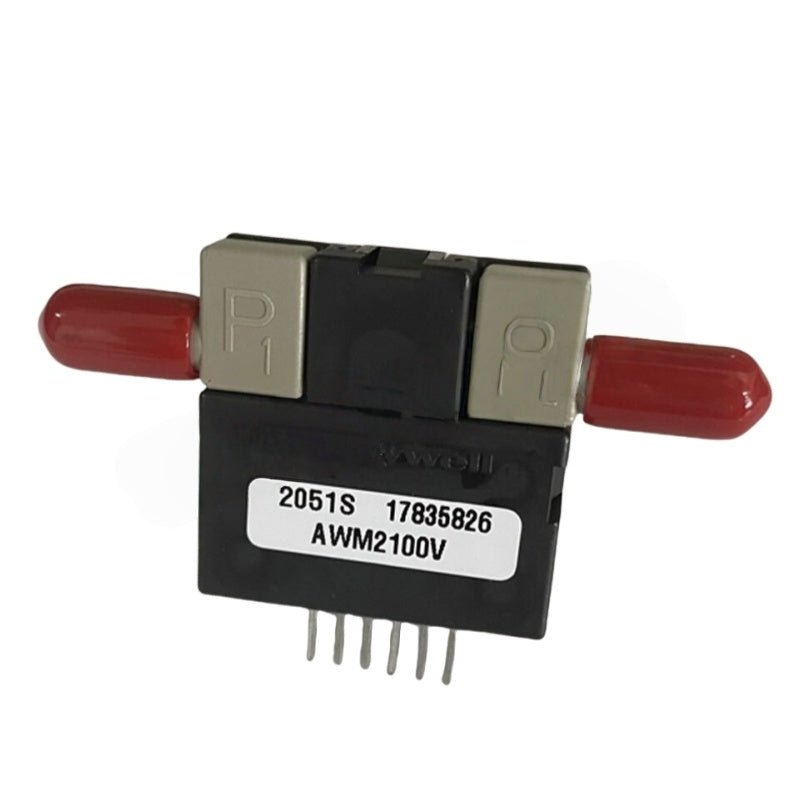

Honeywell AWM2100V Airflow Sensor ±200 sccm 10 VDC 3 ms
Available in stock (200)
Regular price
$123.75
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Honeywell |
| Model Number | AWM2100V |
| Product Category | Airflow Sensor |
| Product Series | AWM2000 |
| Sensor Type | Microbridge Mass Airflow Sensor, Unamplified |
| Flow Range | ±200 sccm |
| Output Voltage at Trim Point | 30 mV at 100 sccm |
| Recommended Excitation | 10 ±0.01 VDC |
| Maximum Excitation | 15 VDC |
| Power Consumption | 30 mW Typical, 50 mW Maximum |
| Null Voltage | 0.00 ±1.0 mV |
| Repeatability and Hysteresis | ±0.35% of Reading Maximum |
| Response Time | 3.0 ms Maximum |
| Common Mode Pressure | 25 psi Maximum |
| Weight | 10.8 g |
Key Features
Unamplified mV Output
The sensor provides an unamplified millivolt output, with a documented trim point of 30 mV at 100 sccm.
10 VDC Excitation
The documented recommended excitation is 10 ±0.01 VDC, with 15 VDC specified as the maximum excitation.
3 ms Response Time
The documented maximum response time is 3.0 ms for airflow measurement applications.
Bidirectional Flow Sensing
The AWM2000 Series supports bidirectional sensing, allowing the AWM2100V to measure airflow in both directions within its specified range.
Microbridge Mass Airflow Sensing
The sensor uses Honeywell microbridge mass-airflow sensing technology and requires external heater-control and sensing-bridge supply circuitry.
Applications
- Low-flow air measurement
- Bidirectional airflow monitoring
- Industrial airflow sensing
- Gas flow measurement systems
- Process airflow monitoring
- Instrumentation airflow measurement
- Equipment airflow monitoring
- Airflow measurement system integration
Purchase Information
We support online purchase of the Honeywell AWM2100V Airflow Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Honeywell AWM2100V?
Honeywell AWM2100V is an AWM2000 Series unamplified microbridge mass airflow sensor designed for bidirectional low-flow measurement.
What is the flow range of AWM2100V?
The documented full-scale flow range is ±200 sccm.
What output does AWM2100V provide?
The sensor provides an unamplified millivolt output, with a documented output of 30 mV at the 100 sccm trim point.
What excitation voltage does AWM2100V require?
The recommended excitation is 10 ±0.01 VDC, with a documented maximum of 15 VDC.
What is the power consumption of AWM2100V?
The documented power consumption is 30 mW typical and 50 mW maximum.
What is the response time of AWM2100V?
The documented maximum response time is 3.0 ms.
What repeatability and hysteresis are specified?
The documented maximum repeatability and hysteresis value is ±0.35% of reading.
What is the operating temperature range?
The documented operating temperature range is -25°C to +85°C.
Can AWM2100V measure airflow in both directions?
Yes. The AWM2000 Series provides bidirectional sensing, and the AWM2100V is specified with a ±200 sccm flow range.
Does AWM2100V contain the complete signal-conditioning circuitry?
No. The AWM2000 Series is a passive sensor design that requires external heater-control and sensing-bridge supply circuits for operation according to the documented specifications.
What applications can AWM2100V be considered for?
It can be considered for low-flow air and gas measurement, bidirectional airflow monitoring and related instrumentation applications after the flow range and electrical requirements have been checked.
What should be checked before ordering AWM2100V?
Check the complete model number, ±200 sccm flow range, excitation requirements, unamplified millivolt output, external interface circuitry, operating temperature and system pressure requirements before purchasing.
