PNP/NPN Switching Output
The SMT-8M-A-ZS-24V-E-5,0-OE provides a switching output for position detection in suitable pneumatic drive and automation control applications.

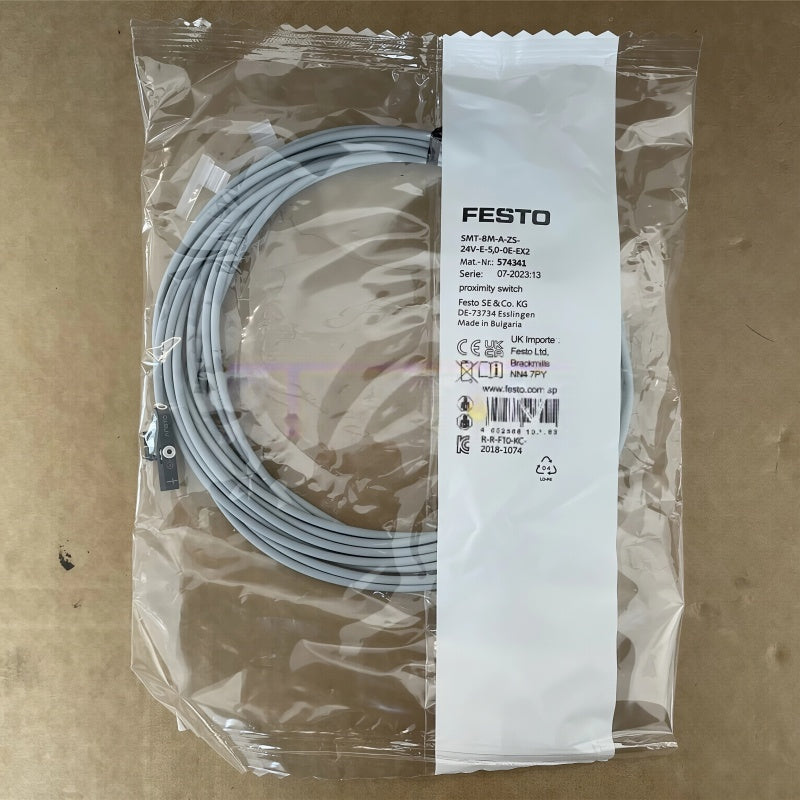

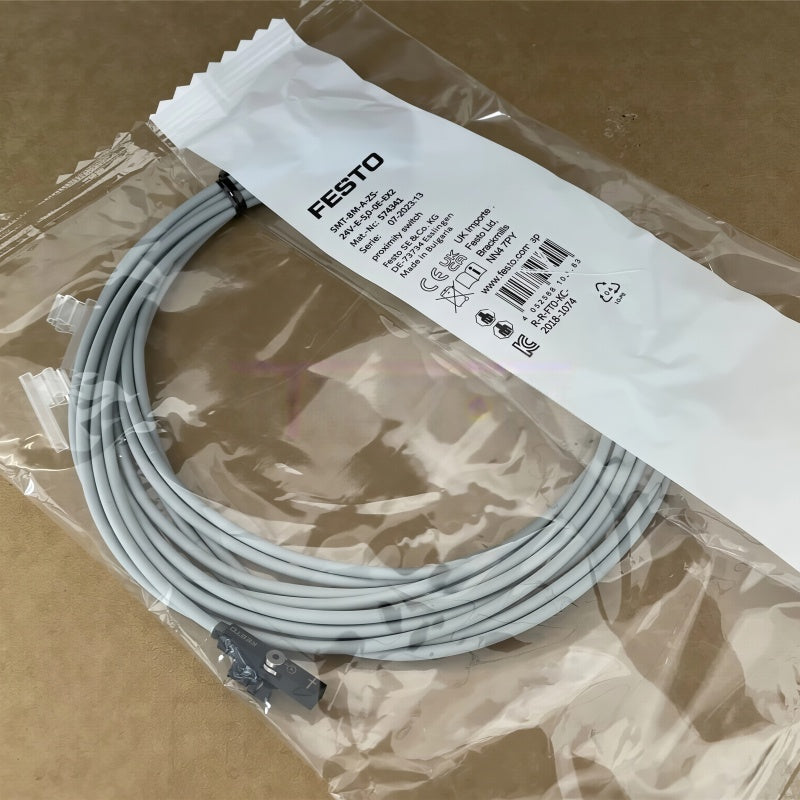

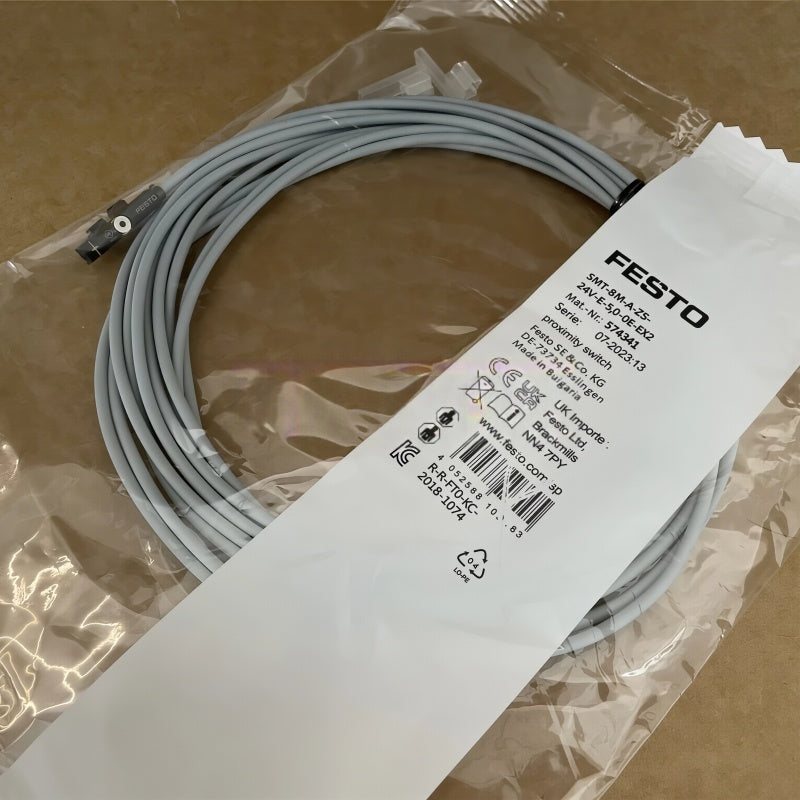

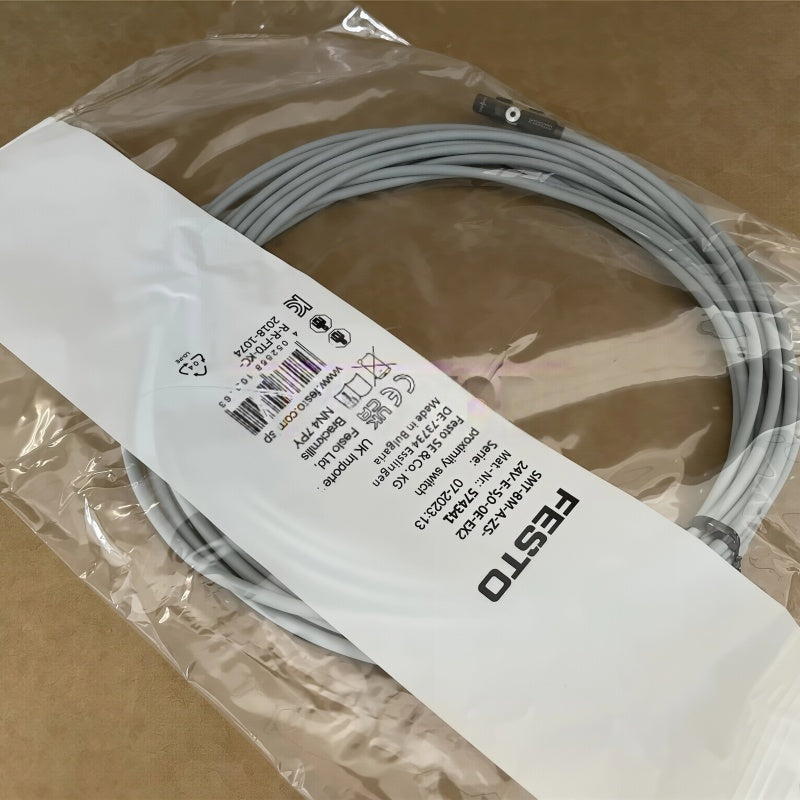

FESTO SMT-8M-A-ZS-24V-E-5,0-OE Cylinder Position Sensor PNP/NPN 24VDC 5m
Available in stock (400)
Regular price
$21.54
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | SMT-8M-A-ZS-24V-E-5,0-OE |
| Product Category | Cylinder Position Sensor |
| Design | For T-Slot |
| Measuring Principle | Magneto-Resistive |
| Rated Operating Voltage | 24 VDC |
| Operating Voltage Range | 5-30 VDC |
| Switching Output | PNP / NPN |
| Switching Element Function | N/O Contact |
| Repetition Accuracy | 0.2 mm |
| Maximum Output Current | 100 mA |
| Maximum Switching Frequency | 130 Hz |
| Electrical Connection | 3-Wire Cable, Open End |
| Cable Length | 5.0 m |
| Degree of Protection | IP65, IP68, IP69K |
Key Features
24VDC Rated Operation
The sensor has a rated operating voltage of 24 VDC with a documented operating voltage range of 5 to 30 VDC.
Magneto-Resistive Detection
The sensor uses a magneto-resistive measuring principle for detecting the position of a magnetic piston in suitable pneumatic drives.
5m Open-End Cable
This model is equipped with a 5.0 m cable with an open-end electrical connection for wiring into the control circuit.
T-Slot Installation
The SMT-8M-A series design is intended for installation in a suitable T-slot on pneumatic cylinders and drives.
0.2mm Repetition Accuracy
The documented repetition accuracy is 0.2 mm for position sensing applications.
Applications
- Pneumatic cylinder position detection
- Pneumatic drive position sensing
- End-position monitoring
- Machine position feedback
- Industrial automation systems
- Pneumatic handling equipment
- T-slot sensor applications
- Automated production equipment
Purchase Information
We support online purchase of the FESTO SMT-8M-A-ZS-24V-E-5,0-OE Cylinder Position Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO SMT-8M-A-ZS-24V-E-5,0-OE?
It is a cylinder position sensor designed for position detection in suitable pneumatic cylinders and drives.
What is the rated operating voltage?
The rated operating voltage is 24 VDC.
What is the operating voltage range?
The documented operating voltage range is 5 to 30 VDC.
What measuring principle does it use?
The sensor uses a magneto-resistive measuring principle for position detection.
How is SMT-8M-A-ZS-24V-E-5,0-OE mounted?
The sensor is designed for installation in a suitable T-slot on pneumatic drives.
What is the cable length?
This version is equipped with a 5.0 m cable with an open-end connection.
What is the repetition accuracy?
The documented repetition accuracy is 0.2 mm.
What is the maximum output current?
The documented maximum output current is 100 mA.
What is the maximum switching frequency?
The documented maximum switching frequency is 130 Hz.
What degree of protection does the sensor provide?
The documented protection ratings include IP65, IP68 and IP69K.
What is the ambient temperature range?
The documented ambient temperature range is -40°C to +85°C.
What should be checked before ordering?
Verify the complete SMT-8M-A-ZS-24V-E-5,0-OE model designation, switching output requirements, 24 VDC rating, 5.0 m open-end cable and the mounting requirements of the target pneumatic drive before purchasing.
