PNP Normally Open Output
The SMT-8M-A-PS-24V-E-5,0-OE uses a PNP switching output with a normally open contact function for position detection in suitable control circuits.

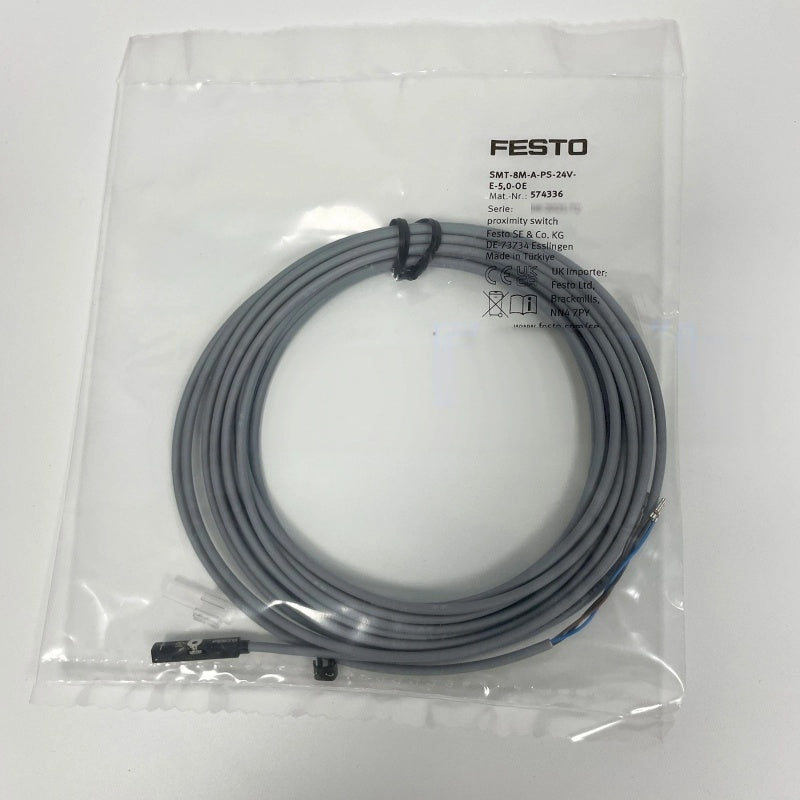

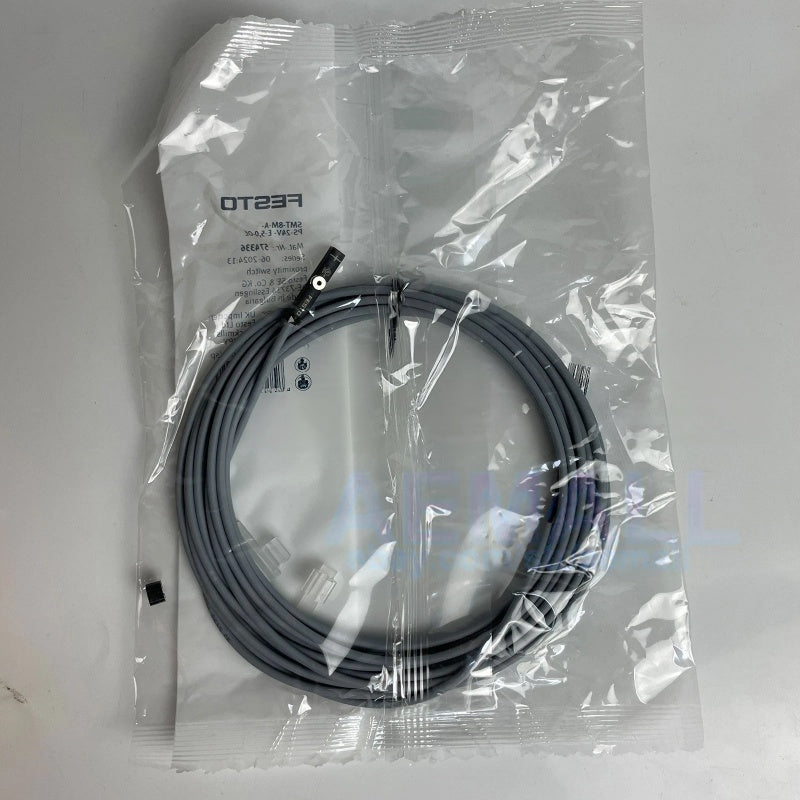

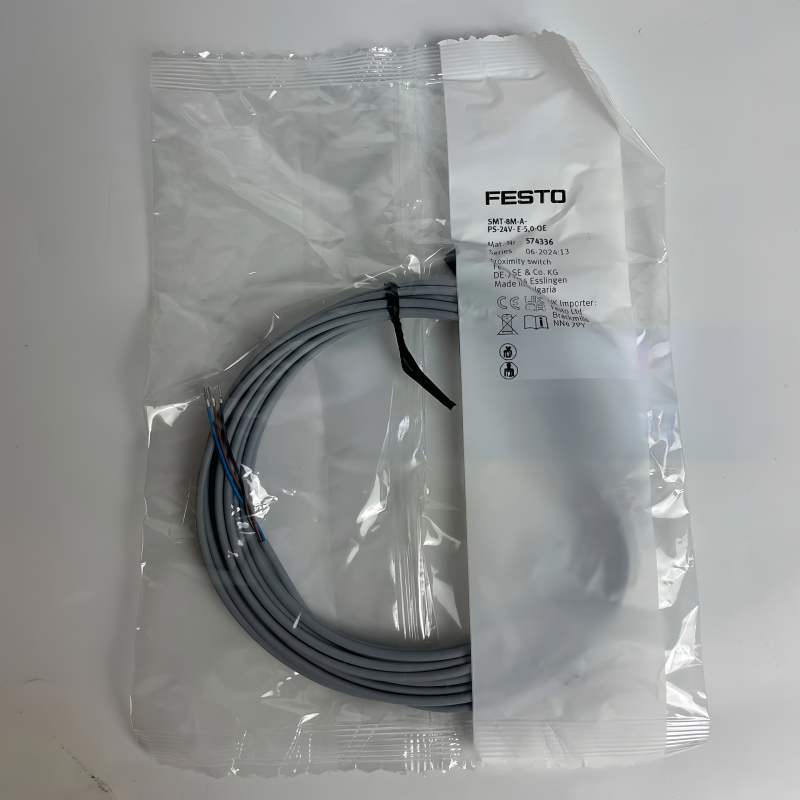

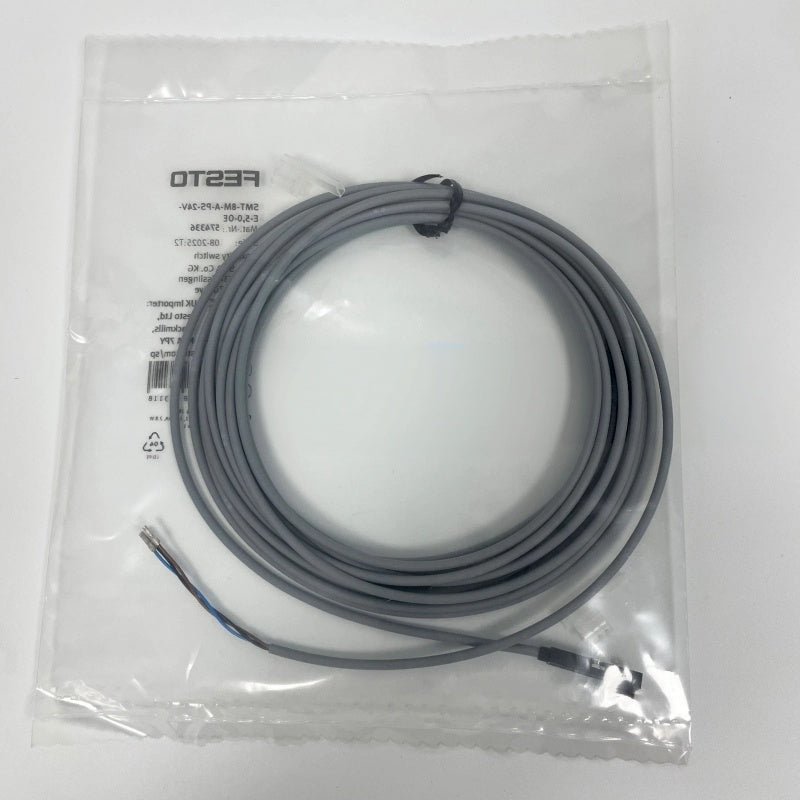

FESTO SMT-8M-A-PS-24V-E-5,0-OE Cylinder Position Sensor PNP NO 24VDC 5m
Available in stock (400)
Regular price
$24.47
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | SMT-8M-A-PS-24V-E-5,0-OE |
| Product Category | Cylinder Position Sensor |
| Part Number | 574336 |
| Design | For T-Slot |
| Measuring Principle | Magneto-Resistive |
| Rated Operating Voltage | 24 VDC |
| Operating Voltage Range | 5-30 VDC |
| Switching Output | PNP |
| Switching Element Function | Normally Open Contact |
| Repetition Accuracy | 0.2 mm |
| Maximum Output Current | 100 mA |
| Maximum Switching Frequency | 130 Hz |
| Electrical Connection | 3-Wire Cable, Open End |
| Cable Length | 5.0 m |
| Degree of Protection | IP65, IP68, IP69K |
Key Features
24VDC Rated Operation
The sensor has a rated operating voltage of 24 VDC and a documented operating voltage range of 5 to 30 VDC.
Magneto-Resistive Sensing
The sensor detects position using a magneto-resistive measuring principle and is designed for installation in a T-slot.
5m Open-End Cable
This version is equipped with a 5.0 m three-wire cable with an open-end electrical connection.
0.2mm Repetition Accuracy
The documented repetition accuracy is 0.2 mm for position sensing applications.
130Hz Switching Frequency
The sensor supports a documented maximum switching frequency of 130 Hz and a maximum output current of 100 mA.
Applications
- Pneumatic cylinder position detection
- Festo drive position sensing
- End-position monitoring
- Industrial automation systems
- Pneumatic handling equipment
- Machine position feedback
- T-slot sensor applications
- Automated production equipment
Purchase Information
We support online purchase of the FESTO SMT-8M-A-PS-24V-E-5,0-OE Cylinder Position Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO SMT-8M-A-PS-24V-E-5,0-OE?
It is a proximity sensor designed for T-slot mounting and used for position detection in suitable pneumatic drive and cylinder applications.
What is the part number of SMT-8M-A-PS-24V-E-5,0-OE?
The FESTO part number is 574336.
What type of output does this sensor use?
It uses a PNP switching output with a normally open contact function.
What is the rated operating voltage?
The rated operating voltage is 24 VDC.
What is the operating voltage range?
The documented DC operating voltage range is 5 V to 30 V.
What sensing principle does it use?
The SMT-8M-A-PS-24V-E-5,0-OE uses a magneto-resistive measuring principle to detect position.
What is the cable length?
This version has a 5.0 m cable with three conductors and an open-end connection.
What is the repetition accuracy?
The documented repetition accuracy is 0.2 mm.
What is the maximum output current?
The documented maximum output current is 100 mA.
What is the maximum switching frequency?
The documented maximum switching frequency is 130 Hz.
How is the sensor mounted?
The sensor is designed for installation in a T-slot. The mechanical requirements of the target cylinder or drive should be verified before selection.
What should be checked before ordering?
Verify the complete SMT-8M-A-PS-24V-E-5,0-OE model number, part number 574336, PNP normally open output, 24 VDC rating, 5.0 m open-end cable and the mounting requirements of the target pneumatic drive.
