NPN Normally Open Output
The SMT-8M-A-NS-24V-E-2,5-OE provides an NPN switching output with a normally open contact function for position sensing in suitable control circuits.

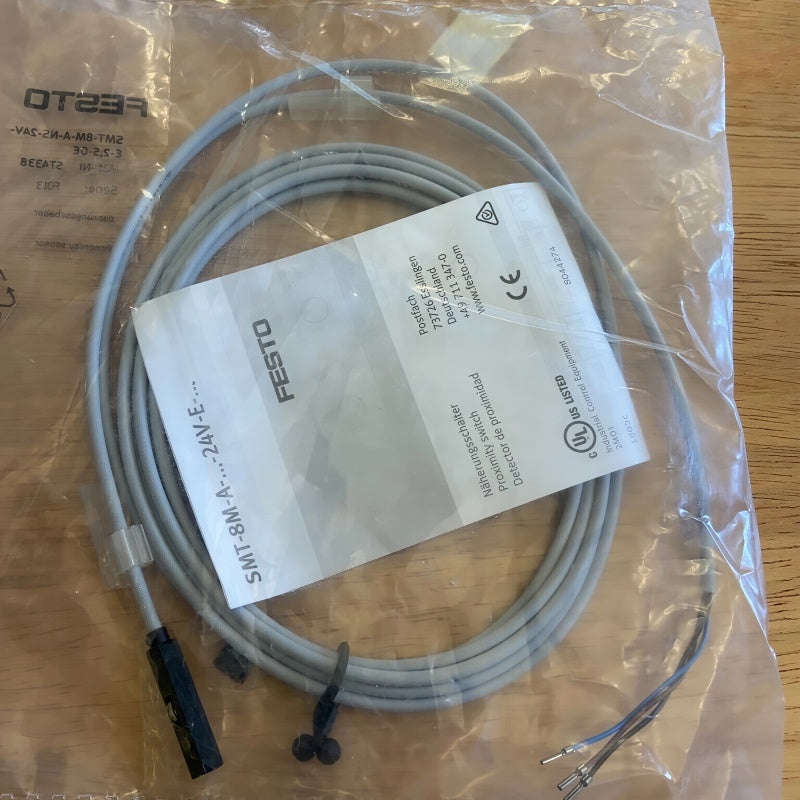

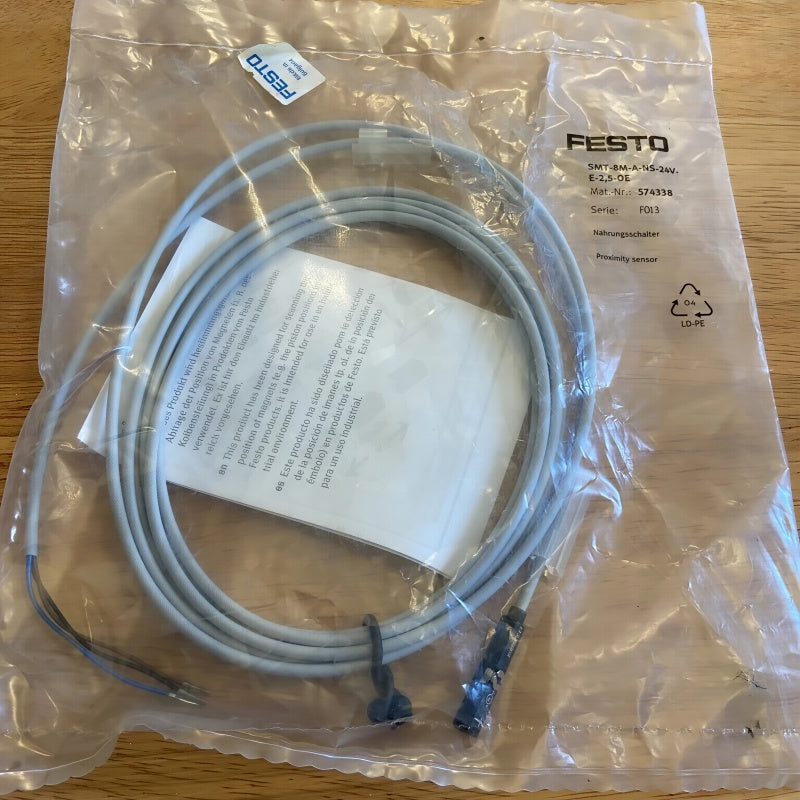

FESTO SMT-8M-A-NS-24V-E-2,5-OE Cylinder Position Sensor NPN NO 24VDC 2.5m
Available in stock (400)
Regular price
$14.63
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | SMT-8M-A-NS-24V-E-2,5-OE |
| Product Category | Cylinder Position Sensor |

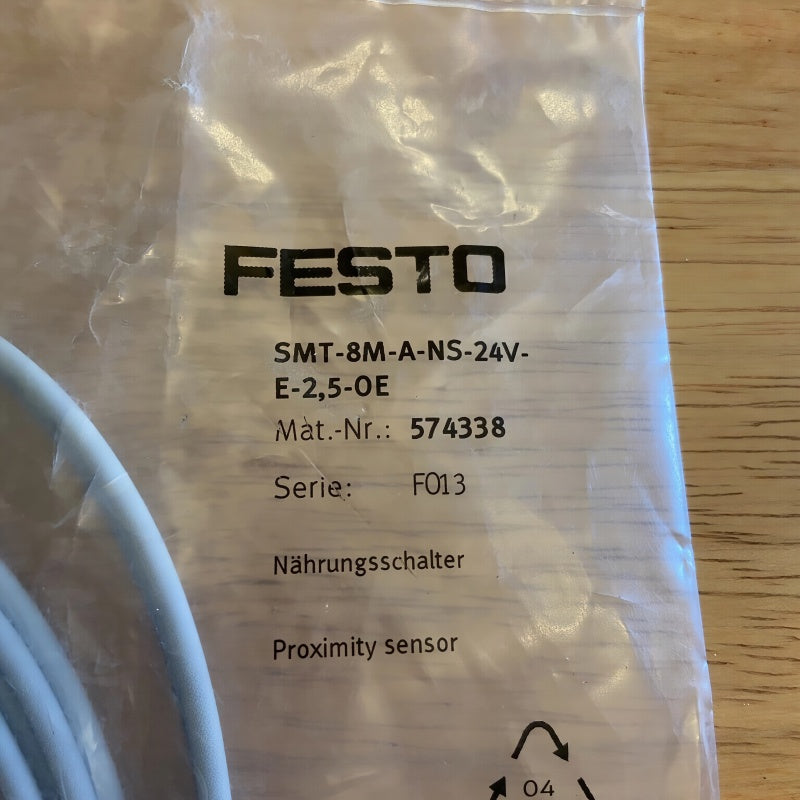

| Part Number | 574338 |
| Design | For T-Slot |
| Measuring Principle | Magneto-Resistive |
| Rated Operating Voltage | 24 VDC |
| Operating Voltage Range | 5-30 VDC |
| Switching Output | NPN |
| Switching Element Function | N/O Contact |
| Repetition Accuracy | 0.2 mm |
| Maximum Output Current | 100 mA |
| Maximum Switching Frequency | 130 Hz |
| Electrical Connection | 3-Wire Cable, Open End |
| Cable Length | 2.5 m |
| Degree of Protection | IP65, IP68, IP69K |
Key Features
24VDC Rated Operation
The sensor has a rated operating voltage of 24 VDC with a documented DC operating voltage range of 5 to 30 V.
Magneto-Resistive Detection
The sensor measures position using a magneto-resistive principle and is designed for installation in a T-slot.
2.5m Open-End Cable
This model is equipped with a 2.5 m three-wire cable and an open-end electrical connection.
0.2mm Repetition Accuracy
The documented repetition accuracy is 0.2 mm for position detection applications.
Protected Sensor Design
The documented degree of protection includes IP65, IP68 and IP69K for the specified product configuration.
Applications
- Pneumatic cylinder position detection
- Pneumatic drive position sensing
- End-position monitoring
- Machine position feedback
- Industrial automation systems
- Pneumatic handling equipment
- T-slot sensor applications
- Automated production equipment
Purchase Information
We support online purchase of the FESTO SMT-8M-A-NS-24V-E-2,5-OE Cylinder Position Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO SMT-8M-A-NS-24V-E-2,5-OE?
It is a magneto-resistive proximity sensor designed for T-slot mounting and position detection in suitable pneumatic drive applications.
What is the part number?
The FESTO part number is 574338.
What switching output does this sensor use?
It uses an NPN switching output with a normally open contact function.
What is the rated operating voltage?
The rated operating voltage is 24 VDC.
What is the operating voltage range?
The documented operating voltage range is 5 to 30 VDC.
What measuring principle does the sensor use?
It uses a magneto-resistive measuring principle to detect position.
What is the cable length?
This version has a 2.5 m three-wire cable with an open-end connection.
What is the repetition accuracy?
The documented repetition accuracy is 0.2 mm.
What is the maximum output current?
The documented maximum output current is 100 mA.
What is the maximum switching frequency?
The documented maximum switching frequency is 130 Hz.
What is the ambient temperature range?
The documented ambient temperature range is -40°C to +85°C.
What should be checked before ordering?
Verify the complete SMT-8M-A-NS-24V-E-2,5-OE model number, part number 574338, NPN normally open output, 24 VDC rating, 2.5 m open-end cable and mounting requirements of the target pneumatic drive.
