40 µm Filtration
The service unit combination uses a documented filtration grade of 40 µm for compressed-air preparation.

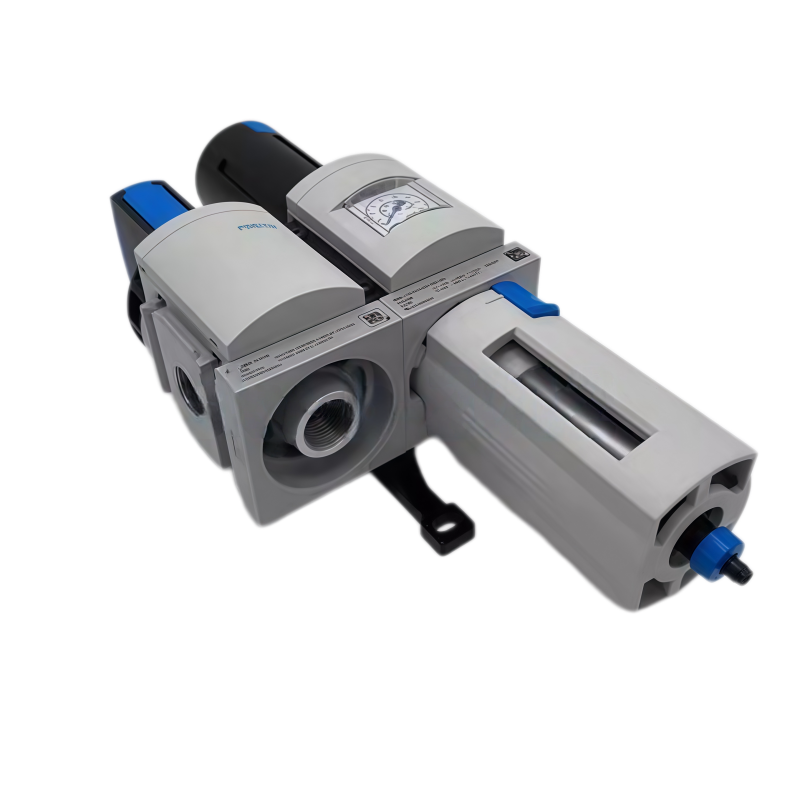

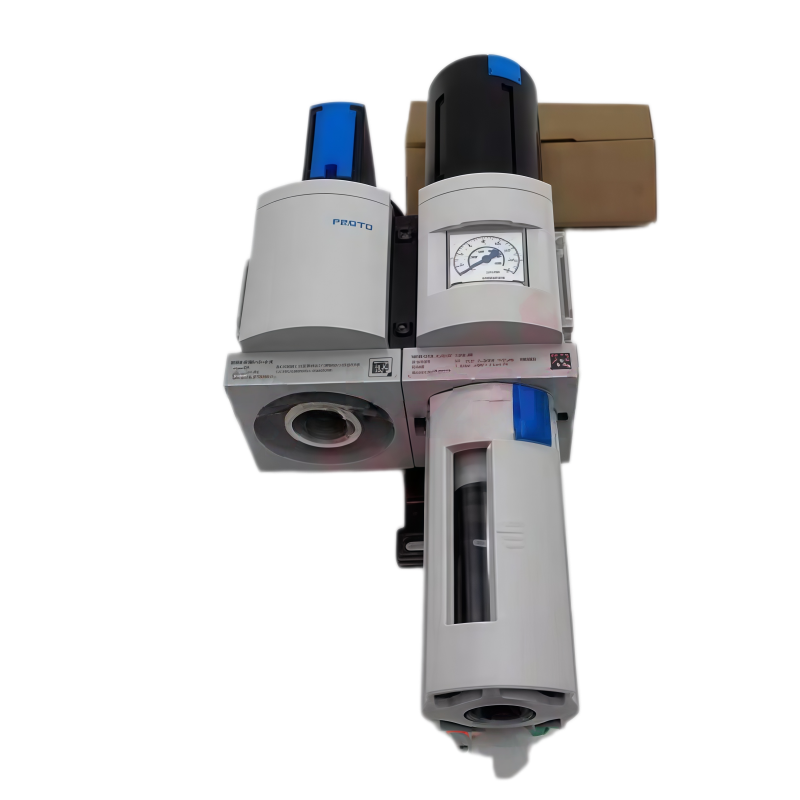

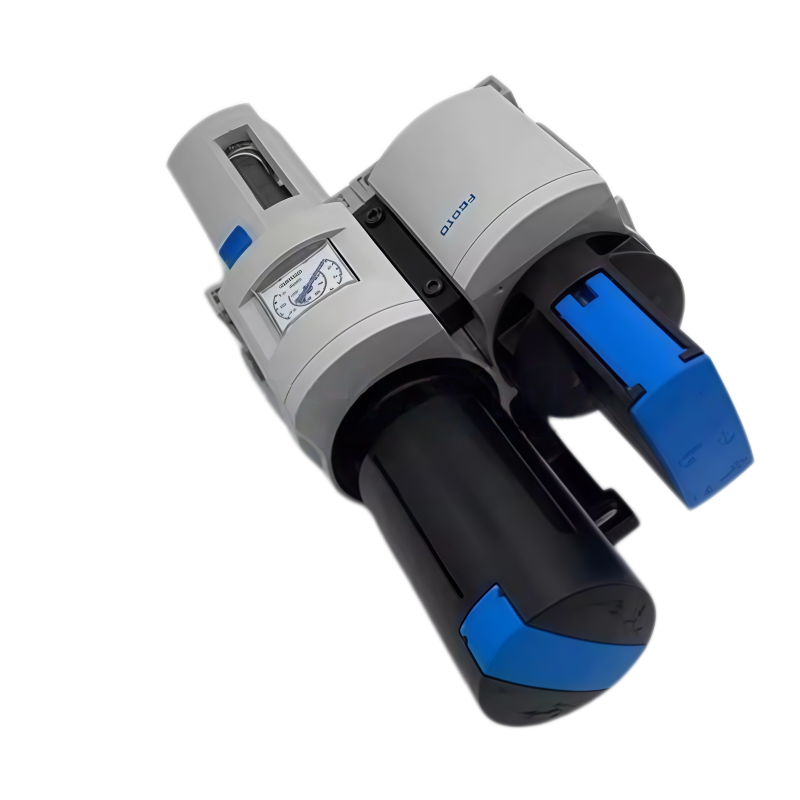

FESTO MSB4-1/4:C3J2-WP Service Unit Combination G1/4 40µm 1000 l/min
Available in stock (400)
Regular price
$214.39
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Festo |
| Model Number | MSB4-1/4:C3J2-WP |
| Product Category | Service Unit Combination |
| Part Number | 542298 |
| Series | MS |
| Size | 4 |
| Pneumatic Connection | G1/4 |
| Design Structure | On/Off Valve; Filter Regulator with Pressure Gauge |
| Grade of Filtration | 40 µm |
| Operating Pressure | 2-12 bar |
| Pressure Regulation Range | 0.5-12 bar |
| Standard Nominal Flow Rate | 1000 l/min |
| Condensate Drain | Fully Automatic |
| Pressure Gauge | With Pressure Gauge |
| Controller Function | Output Pressure Constant; Initial Pressure Compensation; Secondary Exhaust; Return Flow |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4]; Inert Gases |
| Mounting Position | Vertical ±5° |
| Housing Material | Die-Cast Aluminum |
| Bowl Material | PC |
| Product Weight | 1300 g |
Key Features
1000 l/min Nominal Flow
The standard nominal flow rate is specified as 1000 l/min.
G1/4 Pneumatic Connection
The documented pneumatic connections at ports 1, 2 and 3 are G1/4.
0.5-12 bar Regulation
The pressure regulation range is specified as 0.5 to 12 bar.
Fully Automatic Drain
The filter regulator configuration incorporates a fully automatic condensate drain.
Pressure Gauge Included
The documented configuration combines an on/off valve with a filter regulator equipped with a pressure gauge.
Applications
- Compressed air preparation systems
- Pneumatic pressure regulation
- Compressed air filtration
- Industrial pneumatic control systems
- Machine compressed air supply
- Pneumatic actuator air preparation
- Automation equipment air supply systems
- Industrial compressed air service units
Purchase Information
We support online purchase of the Festo MSB4-1/4:C3J2-WP Service Unit Combination. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Festo MSB4-1/4:C3J2-WP?
Festo MSB4-1/4:C3J2-WP is an MS series service unit combination comprising an on/off valve and a filter regulator with pressure gauge.
What is the part number of MSB4-1/4:C3J2-WP?
The documented Festo part number is 542298.
What pneumatic connection does MSB4-1/4:C3J2-WP use?
The documented pneumatic connections at ports 1, 2 and 3 are G1/4.
What is the filtration grade?
The specified filtration grade is 40 µm.
What is the operating pressure range?
The documented operating pressure range is 2 to 12 bar.
What is the pressure regulation range?
The specified pressure regulation range is 0.5 to 12 bar.
What is the standard nominal flow rate?
The standard nominal flow rate is specified as 1000 l/min.
What type of condensate drain is provided?
The documented configuration uses a fully automatic condensate drain.
Does MSB4-1/4:C3J2-WP include a pressure gauge?
Yes. The filter regulator is configured with a pressure gauge.
What operating media are specified?
The documented operating media are compressed air to ISO 8573-1:2010 [7:4:4] and inert gases.
What is the ambient temperature range?
The specified ambient temperature range is 5°C to 60°C.
What should be checked before ordering MSB4-1/4:C3J2-WP?
Check the complete model number, G1/4 connection requirements, filtration grade, operating pressure, pressure regulation range, nominal flow, condensate drain configuration and installation requirements before ordering.
