0.3-7 bar Regulation
The documented pressure regulation range is 0.3 to 7 bar for pneumatic pressure adjustment.

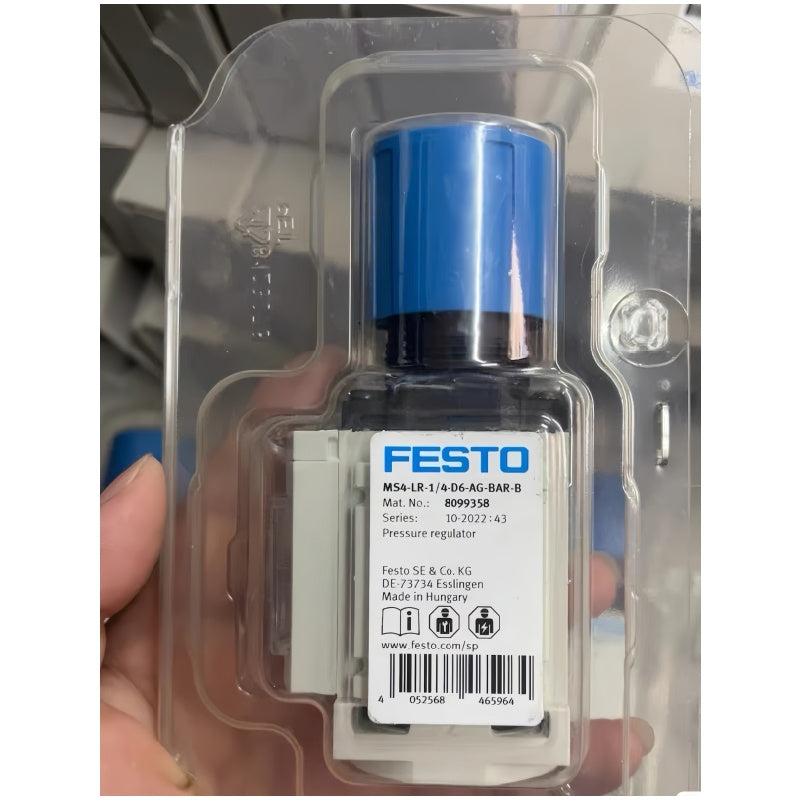

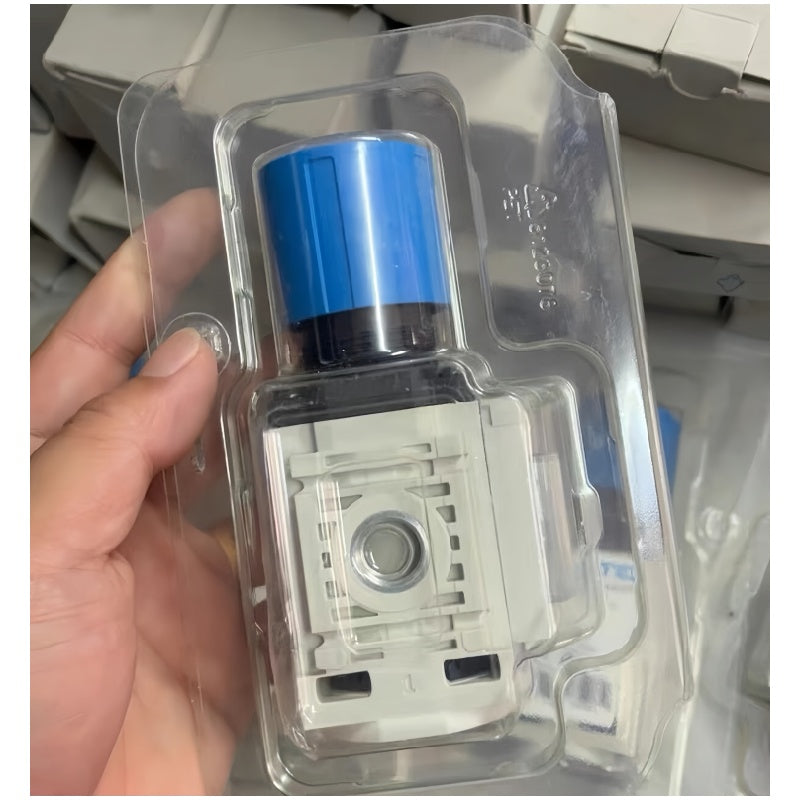

FESTO MS4-LR-1/4-D6-AG-BAR-B Pressure Regulator G1/4 0.3-7 bar
Available in stock (400)
Regular price
$139.98
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Festo |
| Model Number | MS4-LR-1/4-D6-AG-BAR-B |
| Product Category | Pressure Regulator |
| Part Number | 8099358 |
| Series | MS |
| Size | 4 |
| Design | Directly Actuated Piston Regulator |
| Controller Function | Output Pressure Constant; Secondary Exhausting; Return Flow Function |
| Actuator Lock | Rotary Knob with Detent |
| Pressure Gauge | With Pressure Gauge |
| Displayable Units | bar / psi |
| Operating Pressure | 1-10 bar |
| Pressure Regulation Range | 0.3-7 bar |
| Standard Nominal Flow Rate | 1800 l/min |
| Pneumatic Connection, Port 1 | G1/4 |
| Pneumatic Connection, Port 2 | G1/4 |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4]; Inert Gas |
| Product Weight | 165 g |
| Mounting Position | Any |
Key Features
1800 l/min Nominal Flow
The standard nominal flow rate is specified as 1800 l/min under the documented test conditions.
G1/4 Connections
Ports 1 and 2 use G1/4 pneumatic connections.
Integrated Pressure Gauge
The regulator is equipped with a pressure gauge with bar and psi display units.
Secondary Exhausting
The controller function includes constant output pressure, secondary exhausting and a return flow function.
Rotary Knob with Detent
Pressure adjustment is operated through a rotary knob with detent actuator lock.
Applications
- Compressed air pressure regulation
- Pneumatic preparation systems
- Industrial pneumatic control systems
- Machine compressed air supply
- Pneumatic actuator supply pressure regulation
- Automation equipment air preparation
- Pressure regulation in pneumatic circuits
- Inert gas pressure regulation within specified operating requirements
Purchase Information
We support online purchase of the Festo MS4-LR-1/4-D6-AG-BAR-B Pressure Regulator. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Festo MS4-LR-1/4-D6-AG-BAR-B?
Festo MS4-LR-1/4-D6-AG-BAR-B is an MS series pressure regulator with a directly actuated piston regulator design and pressure gauge.
What is the part number of MS4-LR-1/4-D6-AG-BAR-B?
The documented Festo part number is 8099358.
What is the pressure regulation range?
The specified pressure regulation range is 0.3 to 7 bar.
What operating pressure does this regulator support?
The documented operating pressure range is 1 to 10 bar.
What is the standard nominal flow rate?
The standard nominal flow rate is specified as 1800 l/min.
What pneumatic connections are used?
Both port 1 and port 2 use G1/4 pneumatic connections.
Does MS4-LR-1/4-D6-AG-BAR-B include a pressure gauge?
Yes. The documented configuration includes a pressure gauge with bar and psi display units.
What operating media can be used?
The documented operating media are compressed air to ISO 8573-1:2010 [7:4:4] and inert gas.
What is the ambient temperature range?
The specified ambient temperature range is -5°C to +50°C.
What controller functions are provided?
The regulator maintains constant output pressure and includes secondary exhausting and a return flow function.
What should be checked before ordering?
Check the complete model number, G1/4 connection requirements, operating pressure, required regulation range, nominal flow requirement, operating medium and installation requirements before ordering.
Can this regulator be considered for an existing pneumatic system?
It can be considered after the complete model number and the pneumatic, pressure, flow, connection and installation requirements have been checked against the existing system.
