5/3 Closed Valve Function
The documented valve function is 5/3 closed for pneumatic directional control applications.

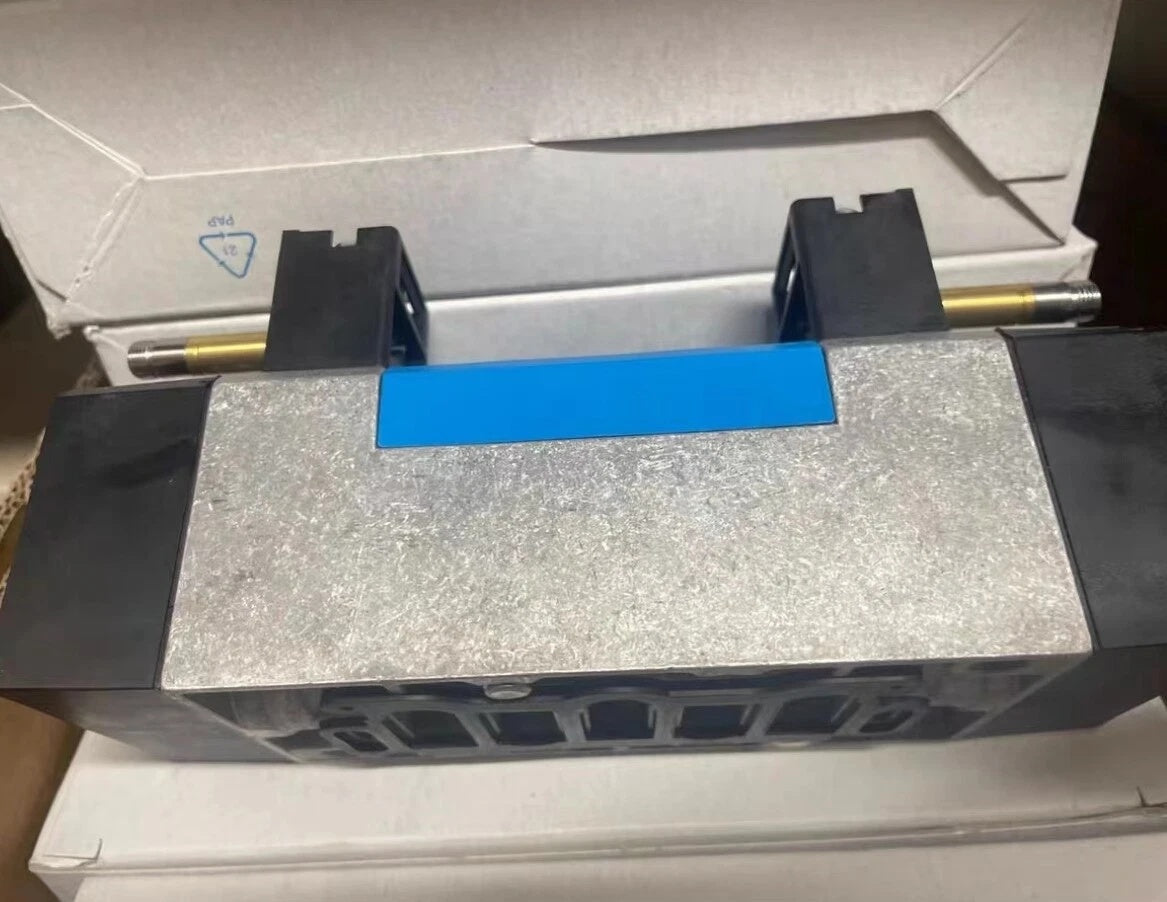

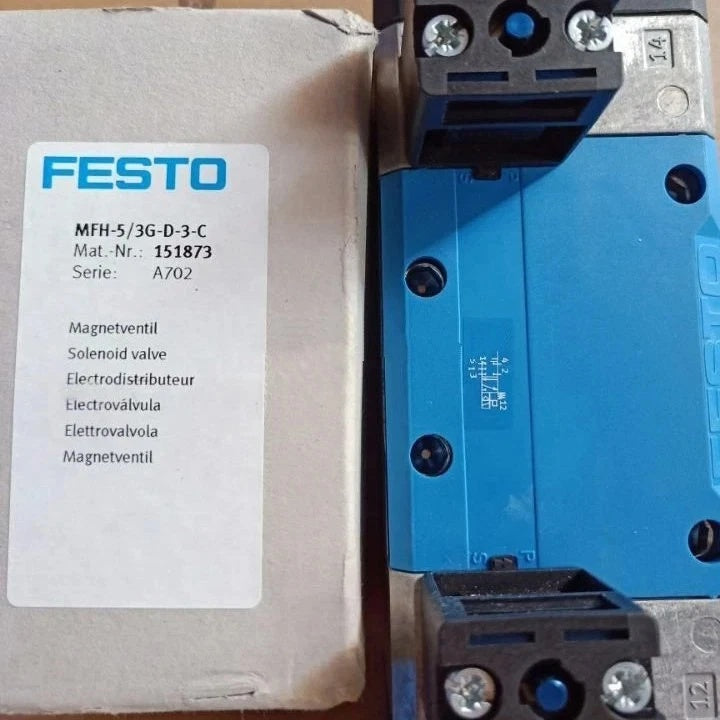

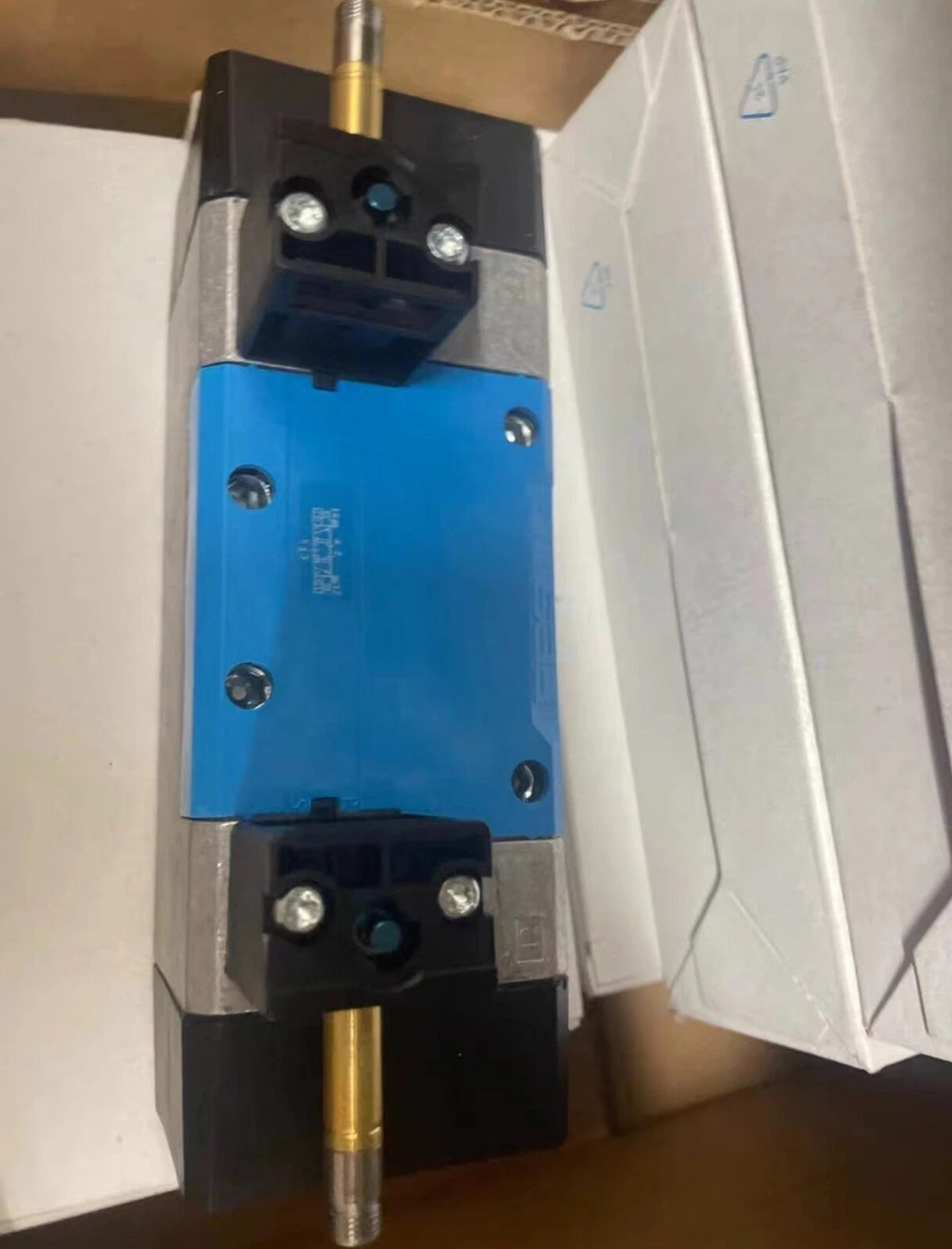

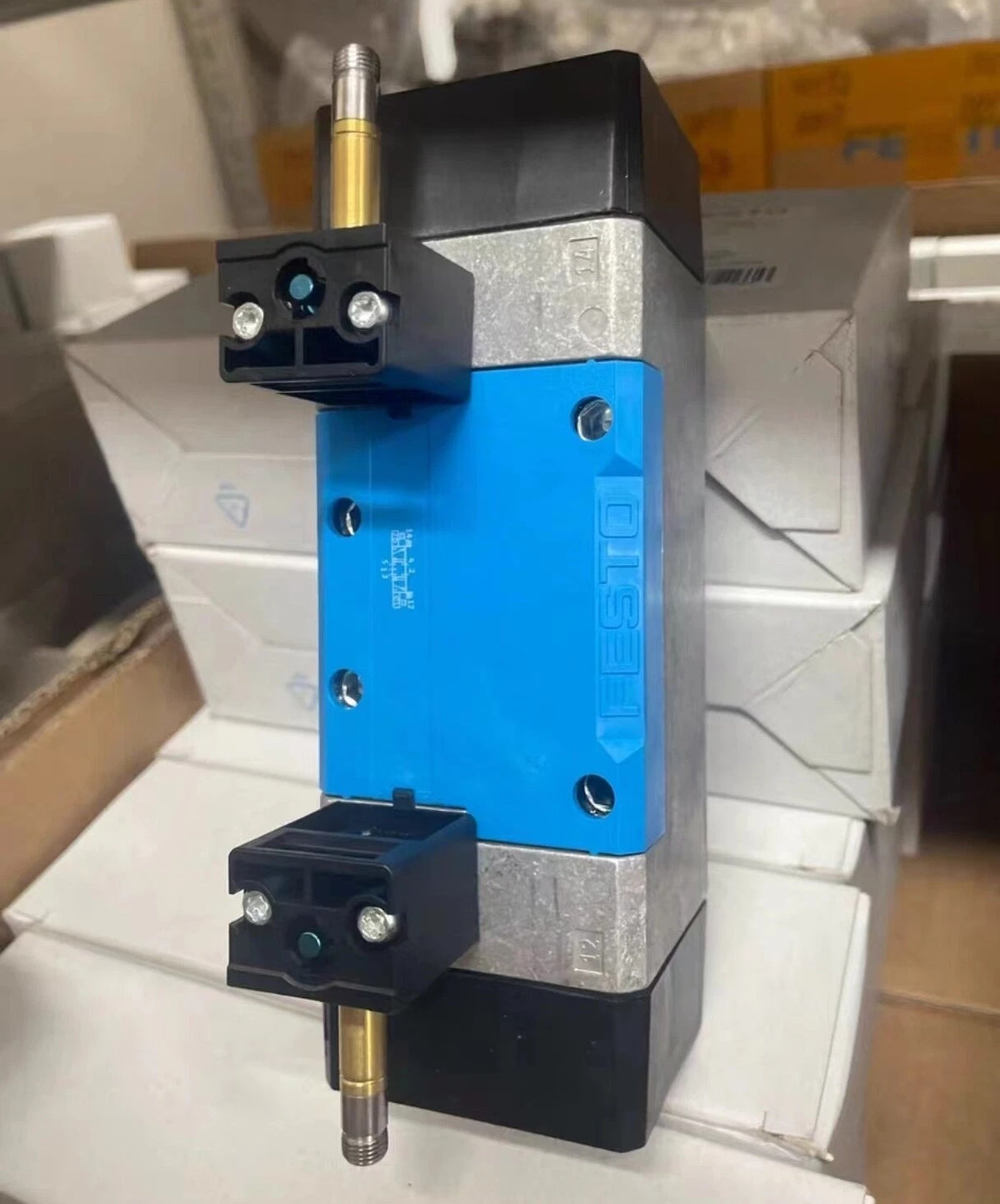

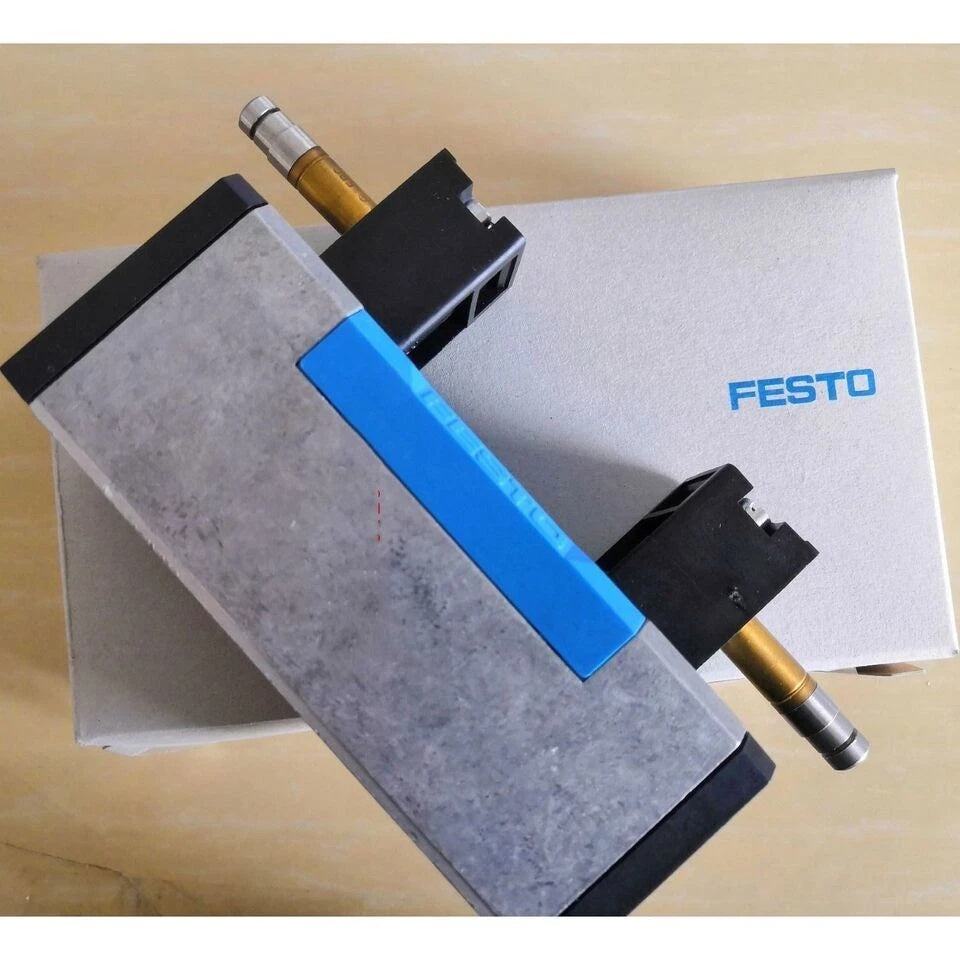

FESTO MFH-5/3G-D-3-C Solenoid Valve 5/3 Closed 4100 l/min 3-10 bar
Available in stock (400)
Regular price
$160.27
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | MFH-5/3G-D-3-C |
| Product Category | Solenoid Valve |
| Part Number | 151873 |
| Valve Function | 5/3 Closed |
| Type of Actuation | Electric |
| Construction Width | 65 mm |
| Standard Nominal Flow Rate | 4100 l/min |

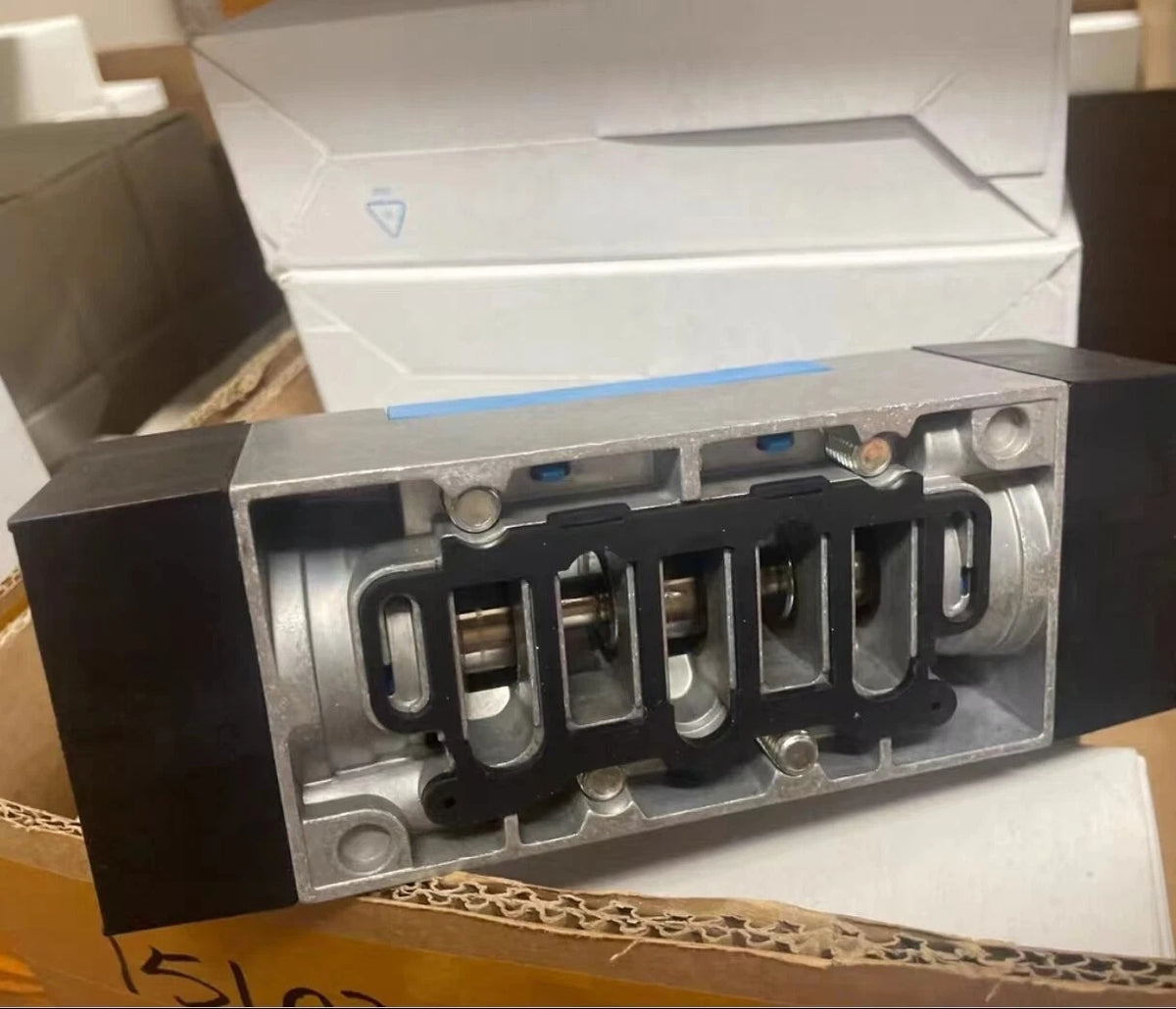

| Pneumatic Working Port | Sub-base size 3 to ISO 5599-1; G1/2 |
| Operating Pressure | 3-10 bar |
| Design | Piston Gate Valve |
| Type of Reset | Mechanical Spring |
| Degree of Protection | IP65 |
| Nominal Size | 14.5 mm |
| Conforms to Standard | ISO 5599-1 |
| Type of Piloting | Pilot Actuated |
| Pilot Air Supply | Internal |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -5°C to +40°C |
| Media Temperature | -10°C to +60°C |
Key Features
4100 l/min Nominal Flow
The specified standard nominal flow rate is 4100 l/min, standardised according to DIN 1343.
3-10 bar Operation
The documented operating pressure range is 3 to 10 bar.
ISO 5599-1 Interface
The pneumatic working port uses sub-base size 3 to ISO 5599-1 with G1/2 connection.
Pilot Actuated Design
The valve is electrically actuated and pilot actuated, with internal pilot air supply and mechanical spring reset.
IP65 Degree of Protection
The documented degree of protection is IP65.
Applications
- Pneumatic directional control systems
- Compressed-air automation circuits
- Industrial machinery pneumatic control
- Pneumatic actuator control
- Automated production equipment
- Machine control air circuits
- ISO 5599-1 valve installations
- Pneumatic system maintenance projects
Purchase Information
We support online purchase of the FESTO MFH-5/3G-D-3-C Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO MFH-5/3G-D-3-C?
FESTO MFH-5/3G-D-3-C, part number 151873, is an electrically actuated pneumatic solenoid valve with a documented 5/3 closed valve function.
What is the valve function of MFH-5/3G-D-3-C?
The documented valve function is 5/3 closed.
What is the nominal flow rate?
The standard nominal flow rate is 4100 l/min, standardised according to DIN 1343.
What operating pressure does MFH-5/3G-D-3-C support?
The documented operating pressure range is 3 to 10 bar.
What pneumatic connection does the valve use?
The pneumatic working port is specified as sub-base size 3 to ISO 5599-1 with G1/2 connection.
What is the nominal size of MFH-5/3G-D-3-C?
The documented nominal size is 14.5 mm.
What type of piloting is used?
The valve is pilot actuated and uses an internal pilot air supply.
What operating medium is specified?
The specified operating medium is compressed air to ISO 8573-1:2010 [7:4:4].
What is the ambient temperature range?
The documented ambient temperature range is -5°C to +40°C.
What is the media temperature range?
The documented media temperature range is -10°C to +60°C.
Does the valve have a fixed operating voltage?
The operating voltage is determined by the separately selected solenoid coil, so the required coil and electrical requirements should be checked before ordering.
What should be checked before ordering MFH-5/3G-D-3-C?
Check the complete model number, valve function, operating pressure, pneumatic interface, required solenoid coil, electrical requirements and installation requirements against the existing pneumatic system before ordering.
