ISO 15552 Design

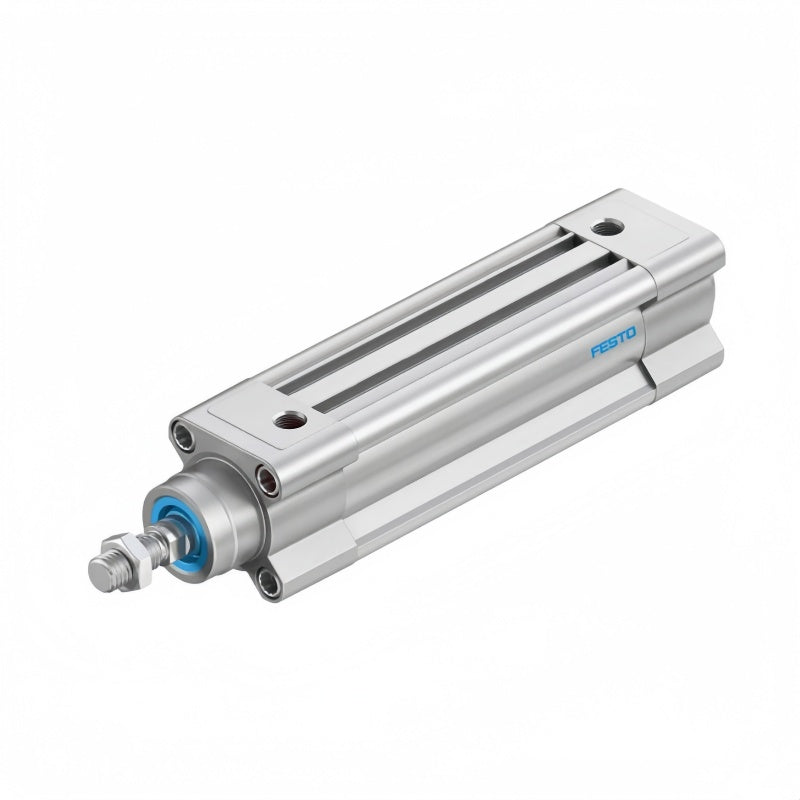

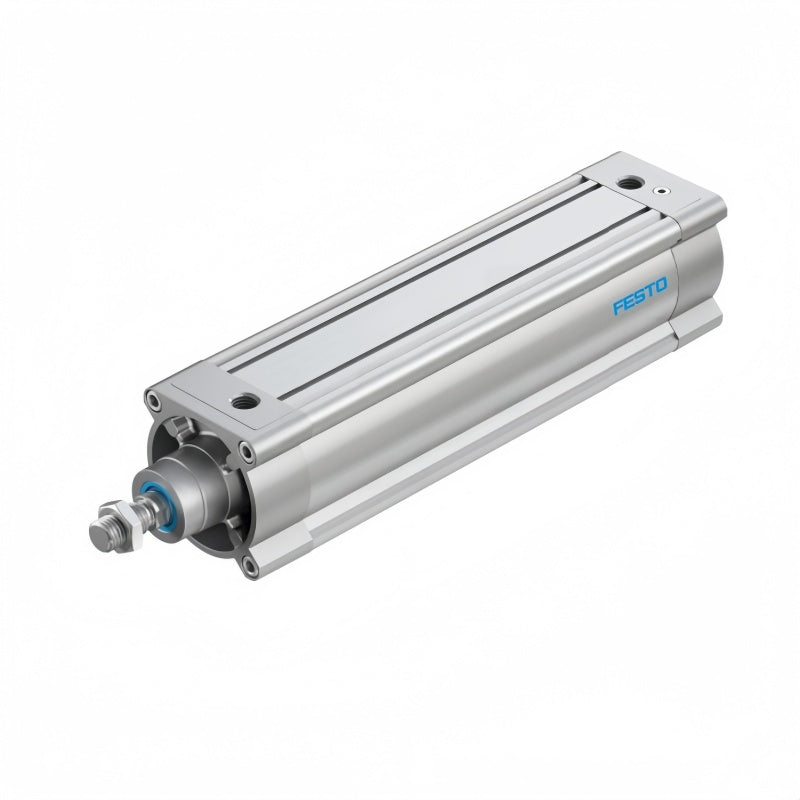

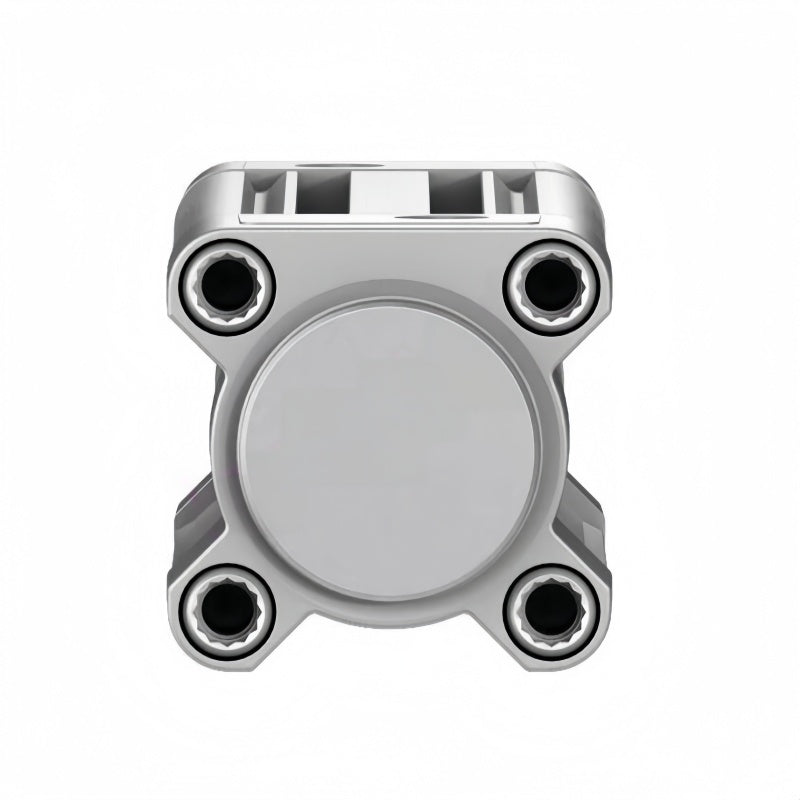

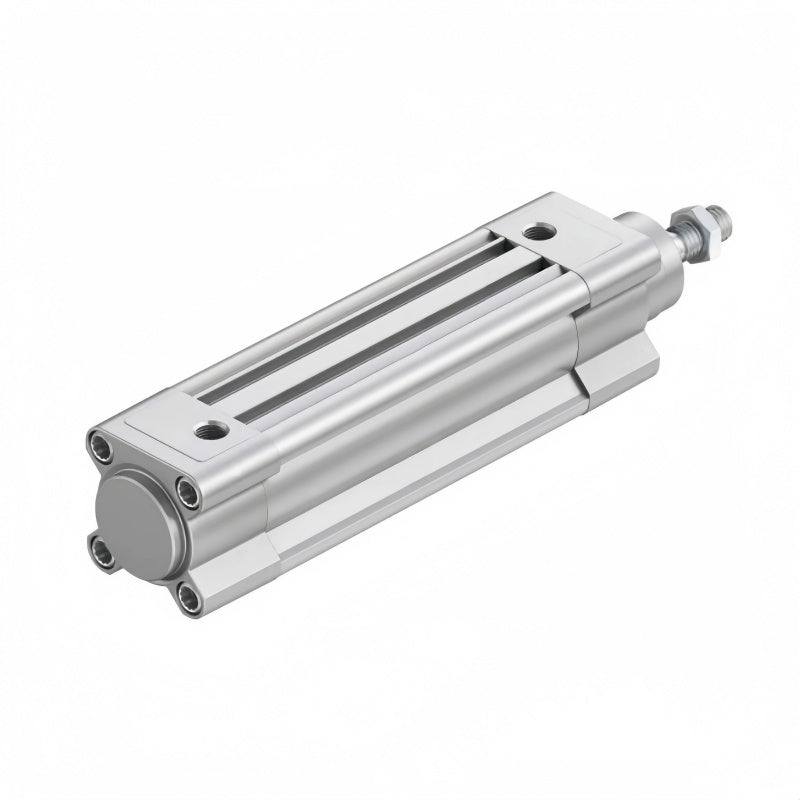

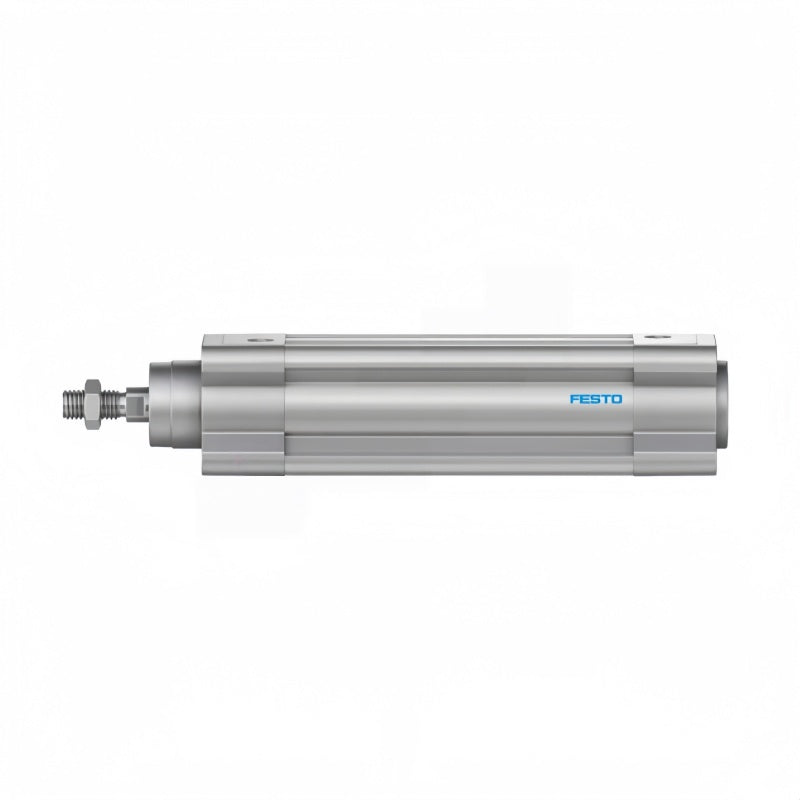

The DSBC-100-320-PPSA-N3 is a standards-based pneumatic cylinder designed according to ISO 15552 for industrial linear-motion applications.
FESTO DSBC-100-320-PPSA-N3 ISO Cylinder 100mm Bore 320mm Stroke 12bar
Available in stock (400)
Regular price
$399.98
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | DSBC-100-320-PPSA-N3 |
| Product Category | ISO Cylinder |
| Series | DSBC |
| Conforms to Standard | ISO 15552 |
| Stroke | 320 mm |
| Piston Diameter | 100 mm |
| Mode of Operation | Double-Acting |
| Cushioning | PPS: Self-Adjusting Pneumatic End-Position Cushioning |
| Piston Rod Thread | M20x1.5 |
| Pneumatic Connection | G1/2 |
| Operating Pressure | 0.4-12 bar |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4] |
| Position Detection | For Proximity Sensor |
| Mounting Position | Any |
| Theoretical Force at 6 bar, Advance Stroke | 4712 N |
| Theoretical Force at 6 bar, Return Stroke | 4418 N |
Key Features
100 mm Bore and 320 mm Stroke
The cylinder combines a 100 mm piston diameter with a 320 mm stroke for applications requiring extended pneumatic linear movement.
Double-Acting Operation
Compressed air acts on both sides of the piston to provide controlled advance and return movements.
Self-Adjusting Cushioning
PPS self-adjusting pneumatic end-position cushioning provides end-position deceleration without requiring manual cushioning adjustment.
Up to 12 Bar Operation
The documented operating pressure range extends from 0.4 to 12 bar for suitable compressed-air systems.
Position Detection
The cylinder is designed for position detection using suitable proximity sensors in automated pneumatic systems.
Applications
- Industrial linear motion
- Automated assembly equipment
- Pneumatic handling systems
- Packaging machinery
- Material positioning equipment
- Machine automation
- Clamping and pushing mechanisms
- Production line equipment
Purchase Information
We support online purchase of the FESTO DSBC-100-320-PPSA-N3 ISO Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DSBC-100-320-PPSA-N3?
It is a double-acting ISO cylinder from the FESTO DSBC series with a 100 mm piston diameter and 320 mm stroke.
What are the bore and stroke dimensions?
The piston diameter is 100 mm and the stroke is 320 mm.
What standard does the cylinder conform to?
The DSBC series cylinder conforms to ISO 15552.
What type of cushioning is used?
It uses PPS self-adjusting pneumatic end-position cushioning.
Is DSBC-100-320-PPSA-N3 double-acting?
Yes. Its documented mode of operation is double-acting.
What is the operating pressure range?
The documented operating pressure range is 0.4 to 12 bar.
What pneumatic connection does it use?
The pneumatic connection is G1/2.
What piston rod thread is provided?
The piston rod has an M20x1.5 male thread.
Does the cylinder support position detection?
Yes. It is designed for position detection using suitable proximity sensors.
What is the ambient temperature range?
The documented ambient temperature range is -20°C to +80°C.
What theoretical force does it provide at 6 bar?
The theoretical force is approximately 4712 N on the advance stroke and 4418 N on the return stroke at 6 bar.
What should be checked before ordering?
Verify the complete DSBC-100-320-PPSA-N3 model designation, 100 mm piston diameter, 320 mm stroke, G1/2 pneumatic connection, M20x1.5 piston rod thread and the mechanical and pneumatic requirements of the target application.
