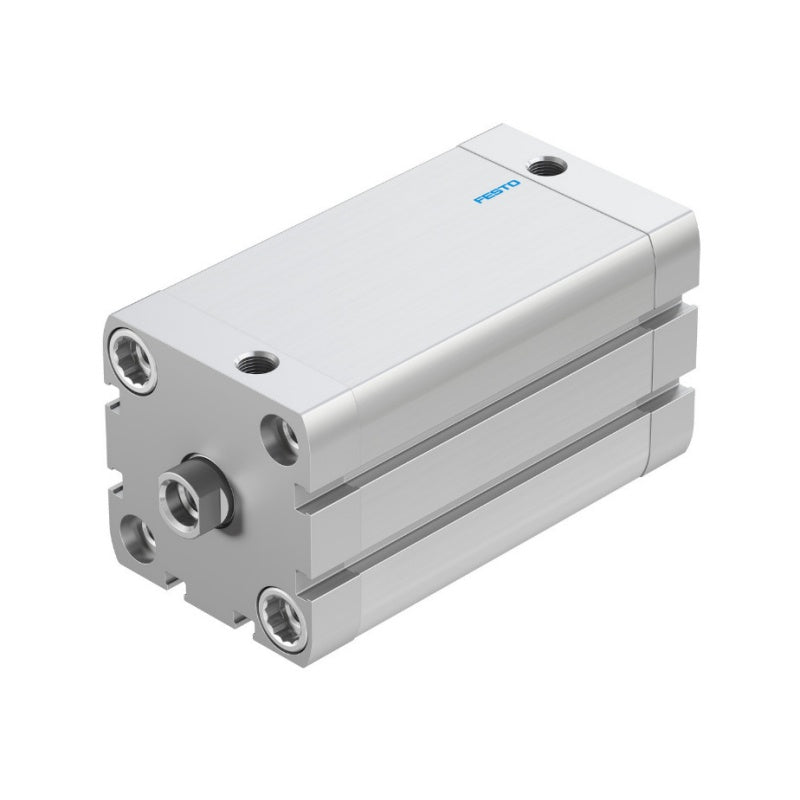

FESTO ADN-50-80-I-P-A Compact Cylinder 50mm Bore 80mm Stroke 0.6-10bar

FESTO ADN-50-80-I-P-A Compact Cylinder 50mm Bore 80mm Stroke 0.6-10bar

Fast Quote
Global Shipping
Bulk Order Support

Available in stock (400)

$76.99

Shipping calculated at checkout.

Bulk Purchase Inquiry

In Stock
Free Returns And Exchanges Within 30 days
Bulk purchases are eligible for price discounts.

Brand	Festo
Model Number	ADN-50-80-I-P-A
Product Category	Compact Cylinder
Standard	ISO 21287
Stroke	80 mm
Piston Diameter	50 mm
Mode of Operation	Double-Acting
Cushioning	Elastic Cushioning Rings/Plates at Both Ends
Position Detection	Via Proximity Switch
Operating Pressure	0.6-10 bar
Pneumatic Connection	G1/8
Theoretical Force at 6 bar, Advance Stroke	1178 N
Theoretical Force at 6 bar, Return Stroke	1057 N

Key Features

50 mm Piston Diameter

The ADN-50-80-I-P-A has a documented piston diameter of 50 mm.

80 mm Stroke

The documented cylinder stroke for this configuration is 80 mm.

Double-Acting Operation

The cylinder uses a documented double-acting mode of operation.

0.6-10 bar Operating Pressure

The documented operating pressure range is 0.6 to 10 bar.

G1/8 Pneumatic Connection

The documented pneumatic connection for the ADN-50-80-I-P-A is G1/8.

Proximity Switch Position Detection

The documented configuration supports position detection via a proximity switch.

Applications

Pneumatic linear motion
Industrial machine automation
Workpiece positioning
Clamping mechanisms
Material handling equipment
Assembly automation
Pneumatic actuator systems
Machine positioning mechanisms

Purchase Information

We support online purchase of the Festo ADN-50-80-I-P-A Compact Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Festo ADN-50-80-I-P-A?
Festo ADN-50-80-I-P-A is an ISO 21287 compact pneumatic cylinder with a 50 mm piston diameter and 80 mm stroke.

What stroke does ADN-50-80-I-P-A have?
The documented stroke is 80 mm.

What piston diameter does ADN-50-80-I-P-A use?
The documented piston diameter is 50 mm.

What operating mode does ADN-50-80-I-P-A use?
The documented mode of operation is double acting.

What operating pressure is specified?
The documented operating pressure range is 0.6 to 10 bar.

What pneumatic connection does ADN-50-80-I-P-A use?
The documented pneumatic connection is G1/8.

What piston rod end does ADN-50-80-I-P-A use?
The documented configuration uses a female-thread piston rod end.

Can ADN-50-80-I-P-A support position detection?
Yes. The documented configuration supports position detection via a proximity switch.

What cushioning is specified?
The documented configuration uses elastic cushioning rings or plates at both ends.

What theoretical force is specified at 6 bar?
The documented theoretical force is 1178 N on the advance stroke and 1057 N on the return stroke.

What applications can ADN-50-80-I-P-A be considered for?
It can be considered for pneumatic linear motion, positioning, clamping and machine automation after the pneumatic, mechanical and installation requirements have been checked.

What should be checked before ordering ADN-50-80-I-P-A?
Check the complete model number, 50 mm piston diameter, 80 mm stroke, double-acting operation, 0.6-10 bar operating pressure, G1/8 pneumatic connection and installation requirements before purchasing.
