8 A Current Rating
The Ferraz ATQR8 is rated for 8 A, suitable for circuit protection in industrial control applications.

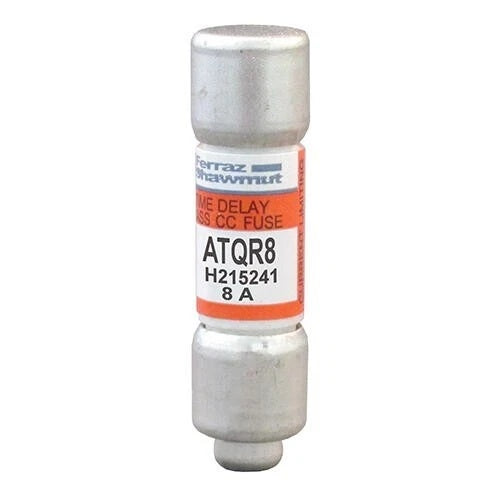

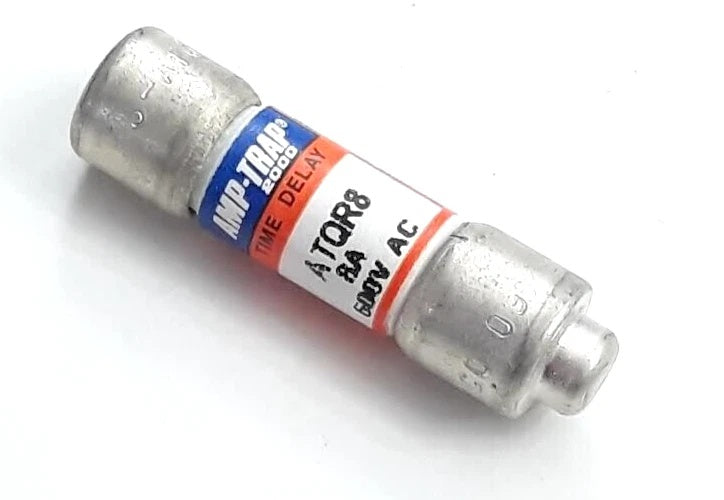

Ferraz ATQR8 Class CC Time-Delay Fuse 600VAC 8A
Available in stock (2000)
Regular price
$6.72
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ferraz |
| Model Number | ATQR8 |
| Product Category | Class CC Time-Delay Fuse |
| Voltage Rating | 600 VAC |
| Current Rating | 8 A |
| Interrupting Rating | 200 kA |
| Class | CC |
| Time-Delay | Yes |
| Rejection Style | Rejection (Non-Interchangeable) |
| Approvals | UL, CSA |
Key Features
600 VAC Voltage Rating
This Class CC fuse is rated for 600 VAC operation, supporting common industrial voltage levels.
Time-Delay Characteristics
The time-delay feature allows the fuse to withstand temporary inrush currents without nuisance opening.
High Interrupting Rating
With a 200 kA interrupting rating, the ATQR8 provides protection against high fault currents.
Class CC Rejection Design
The rejection-style non-interchangeable construction ensures proper fuse replacement and system safety.
UL and CSA Approved
This fuse is UL listed and CSA certified, meeting North American safety standards.
Applications
- Industrial control panel protection
- Motor control circuit protection
- Branch circuit protection
- Lighting circuit protection
- General-purpose industrial equipment
- Transformer primary protection
- Control power transformer protection
- Heating and ventilation equipment
Purchase Information
We support online purchase of the Ferraz ATQR8 Class CC Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ferraz ATQR8?
Ferraz ATQR8 is a Class CC time-delay fuse with a current rating of 8 A and voltage rating of 600 VAC.
What type of fuse is ATQR8?
ATQR8 is a Class CC time-delay fuse designed with rejection-style non-interchangeable construction.
What is the voltage rating of ATQR8?
The Ferraz ATQR8 fuse is rated for 600 VAC operation.
What is the current rating of ATQR8?
The ATQR8 has a current rating of 8 A.
What is the interrupting rating of ATQR8?
The Ferraz ATQR8 has a 200 kA interrupting rating.
Is ATQR8 a time-delay fuse?
Yes, the ATQR8 is a time-delay fuse suitable for circuits with temporary inrush currents.
What approvals does ATQR8 have?
The Ferraz ATQR8 is UL listed and CSA certified.
What is the rejection feature on ATQR8?
The ATQR8 has a rejection-style design, meaning it is non-interchangeable to prevent the use of incorrect fuse classes.
What applications is ATQR8 suitable for?
ATQR8 can be considered for branch circuit protection, motor control circuits, control panel protection, and industrial equipment requiring Class CC protection.
What should be checked before ordering ATQR8?
Before ordering, verify the voltage and current ratings, Class CC rejection style, fuse holder compatibility, and the protection requirements of your application.
