Time-Delay Characteristics
Designed to withstand temporary inrush currents while providing protection against sustained overloads and short circuits.

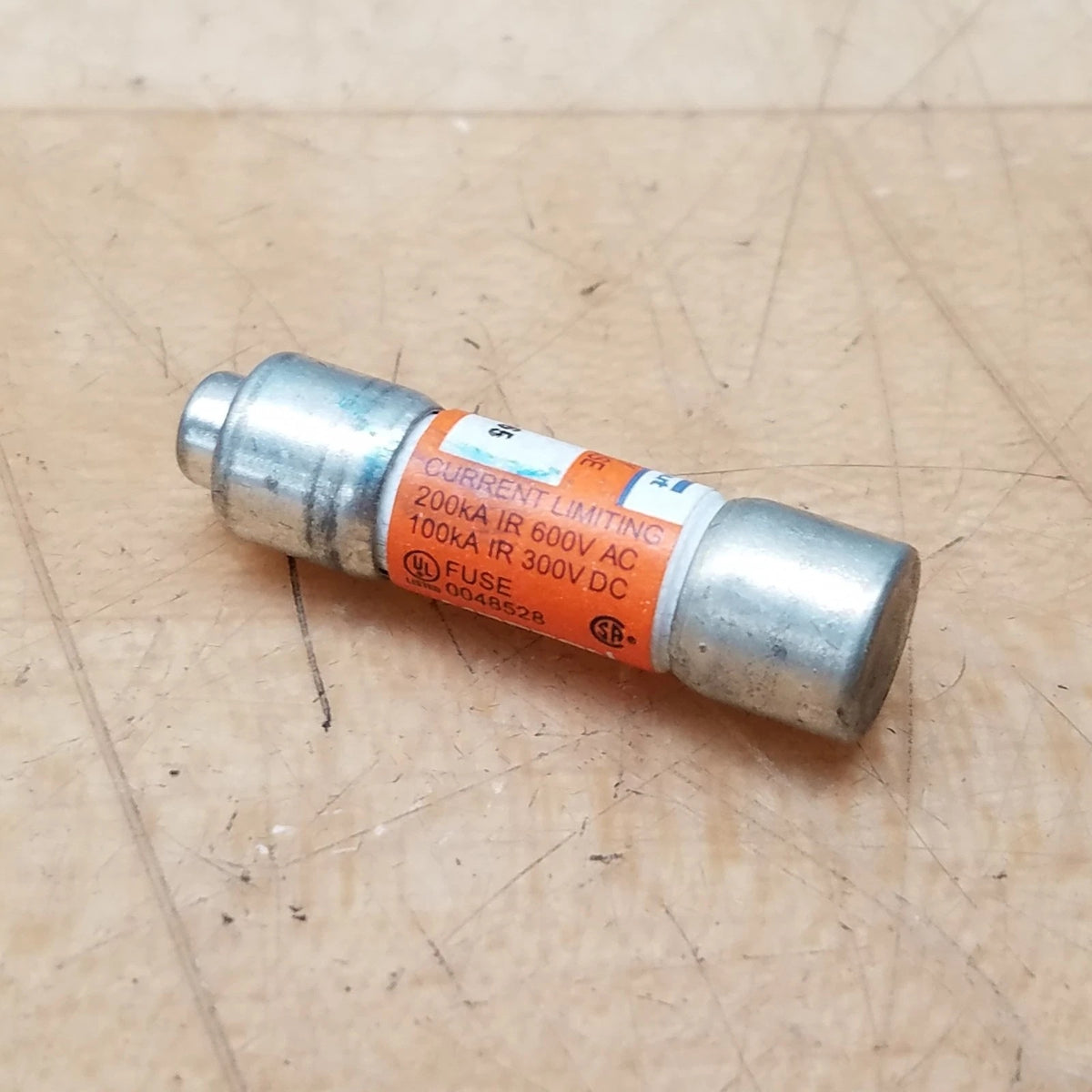

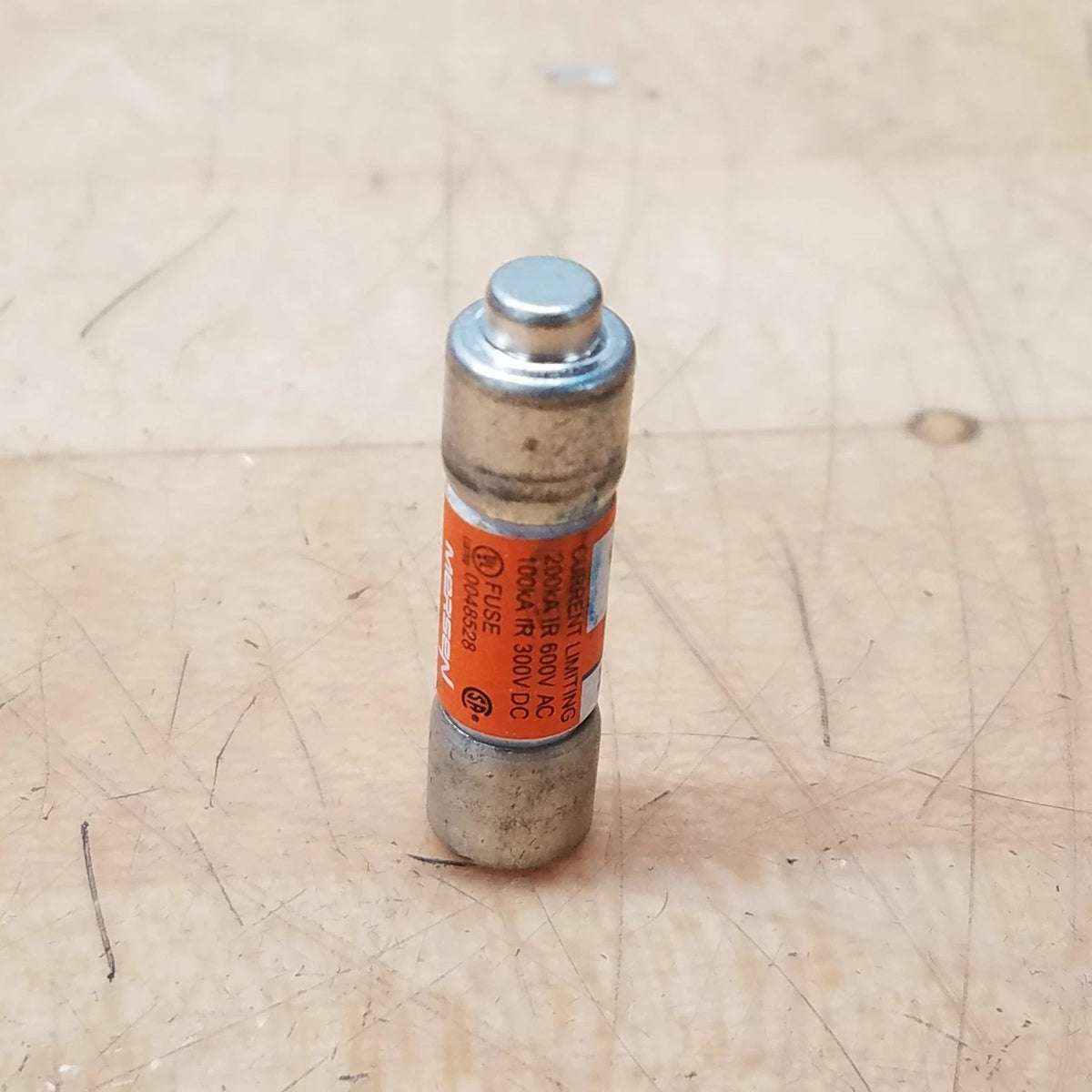

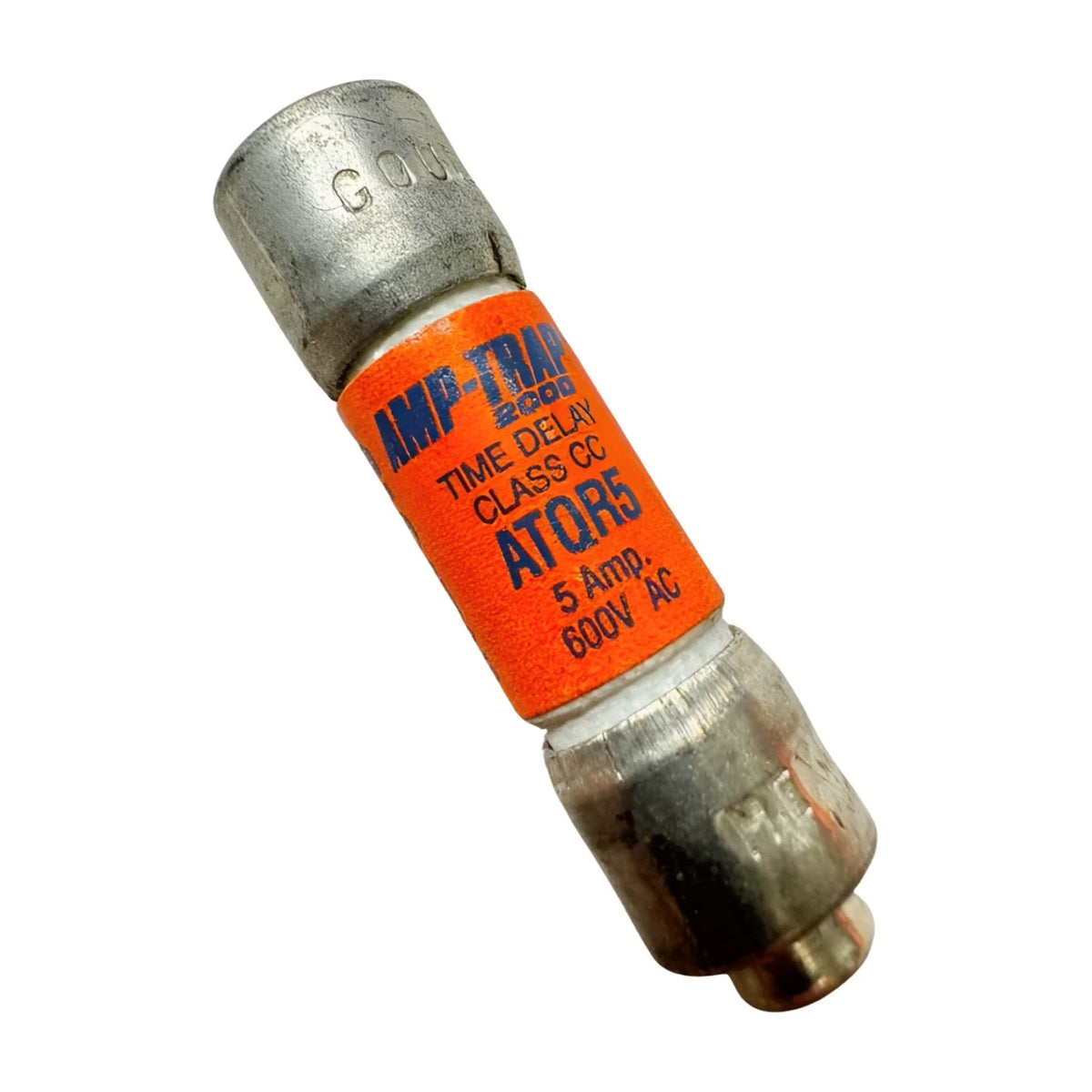

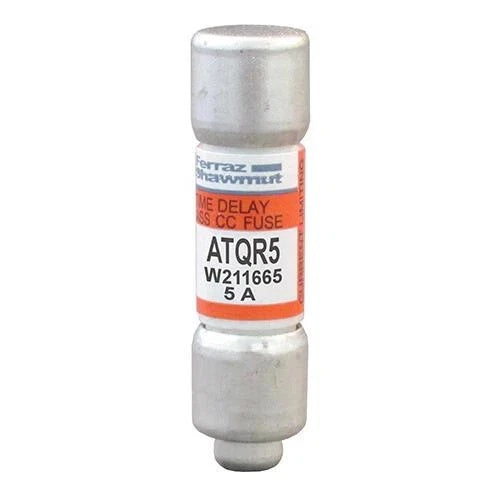

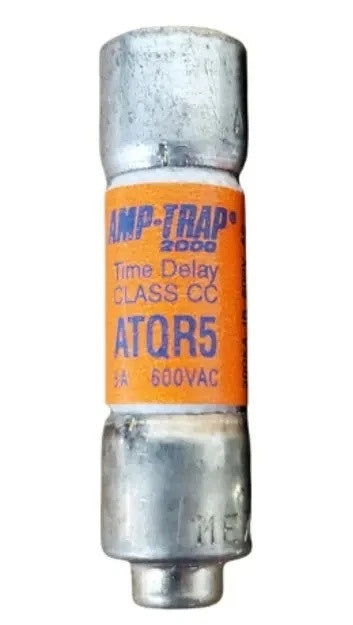

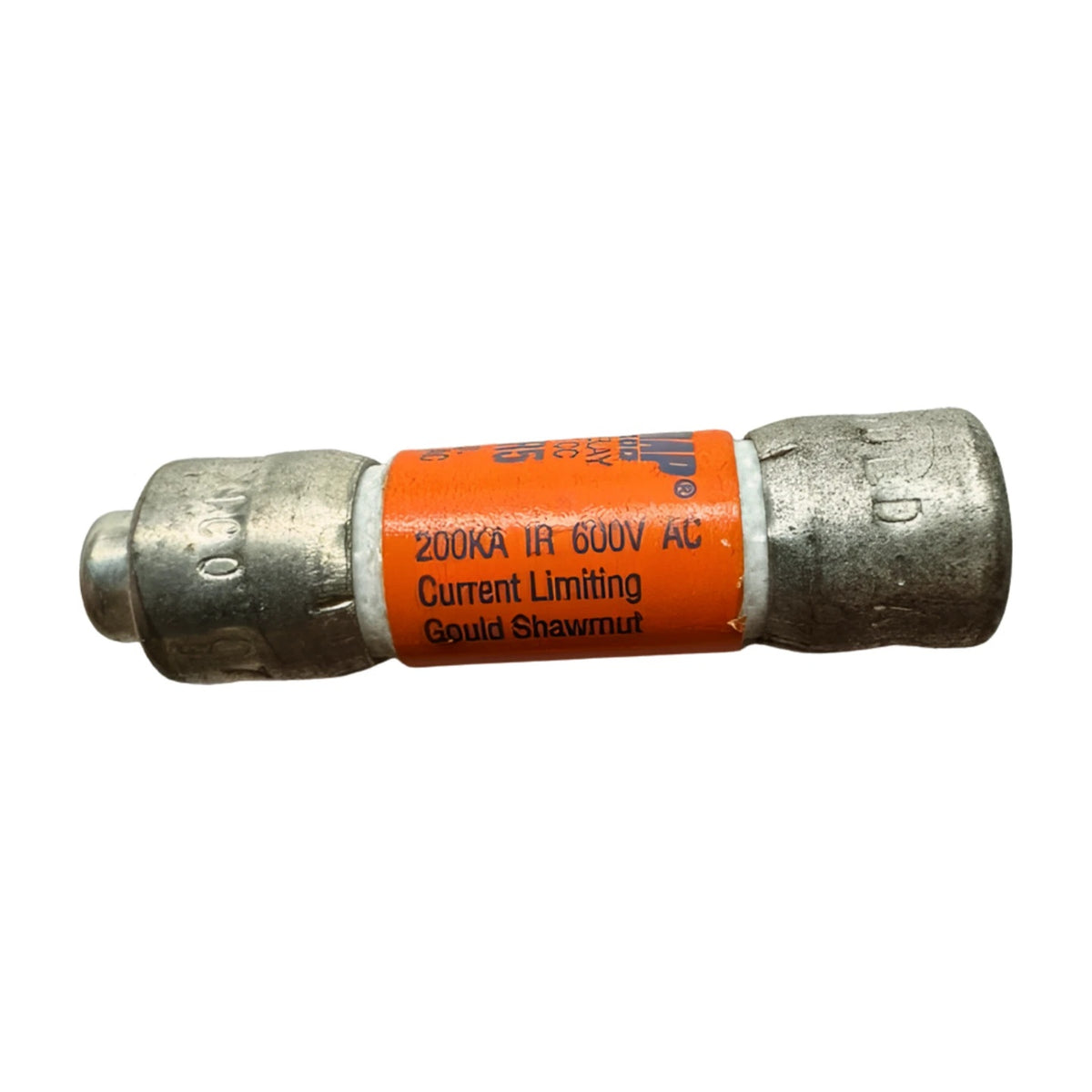

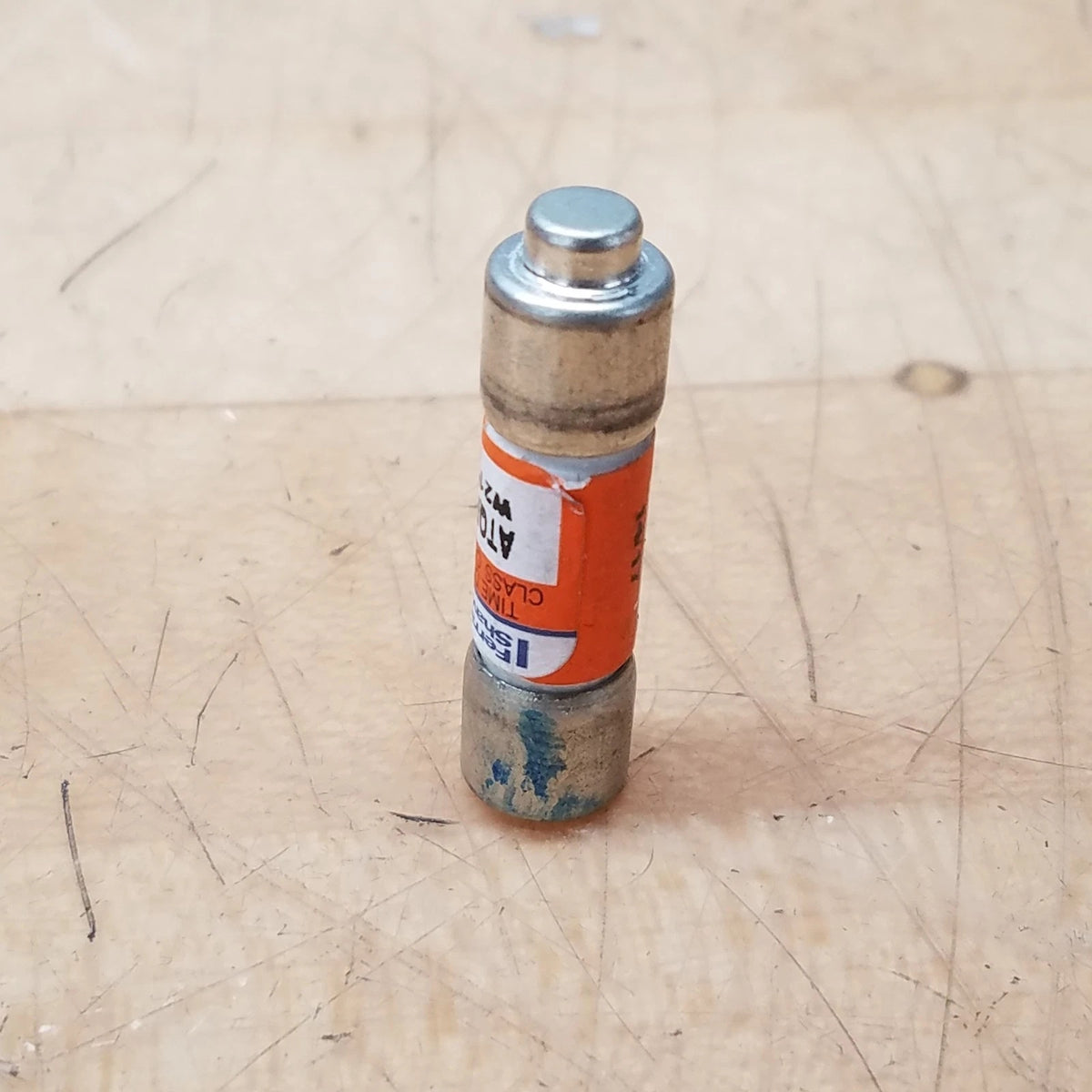

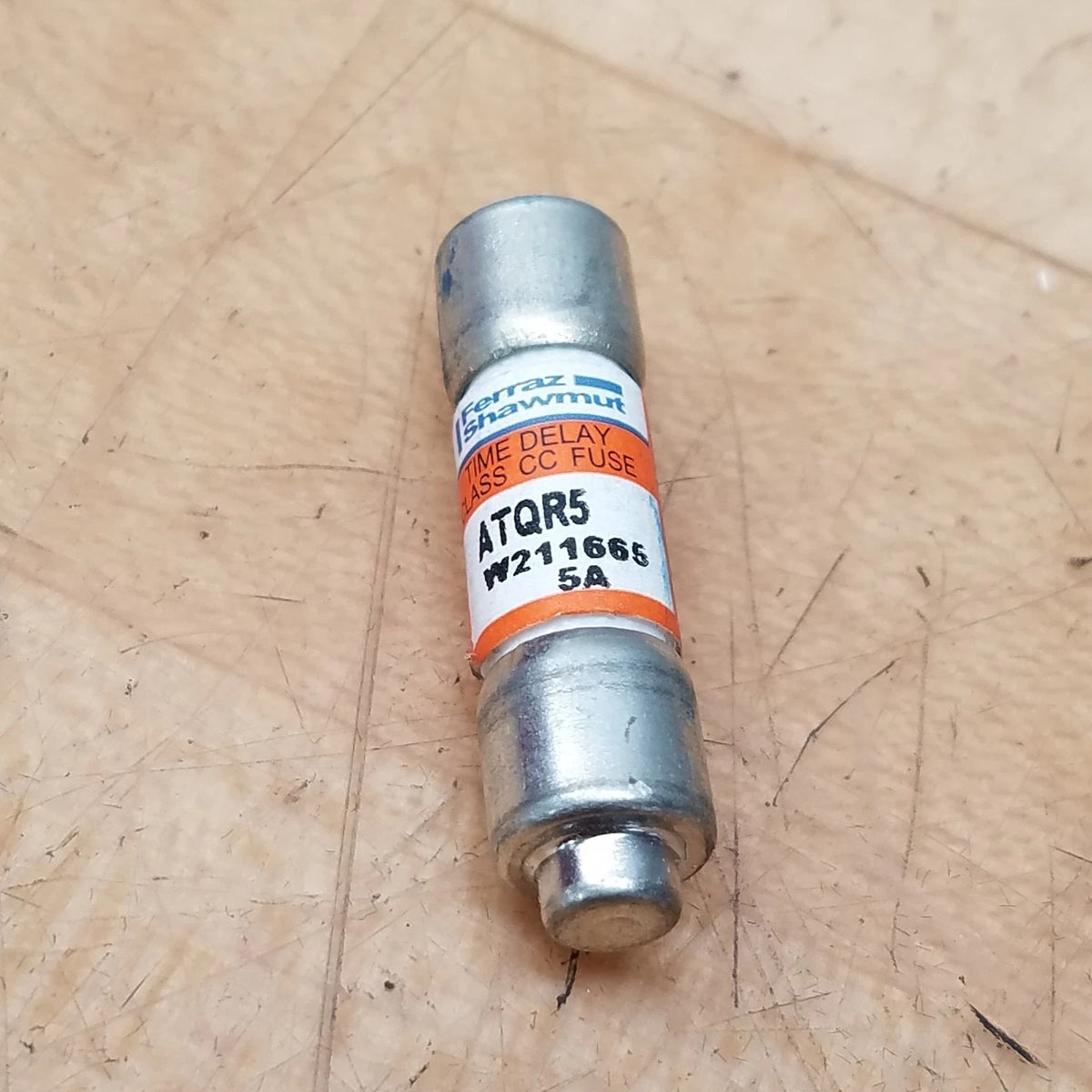

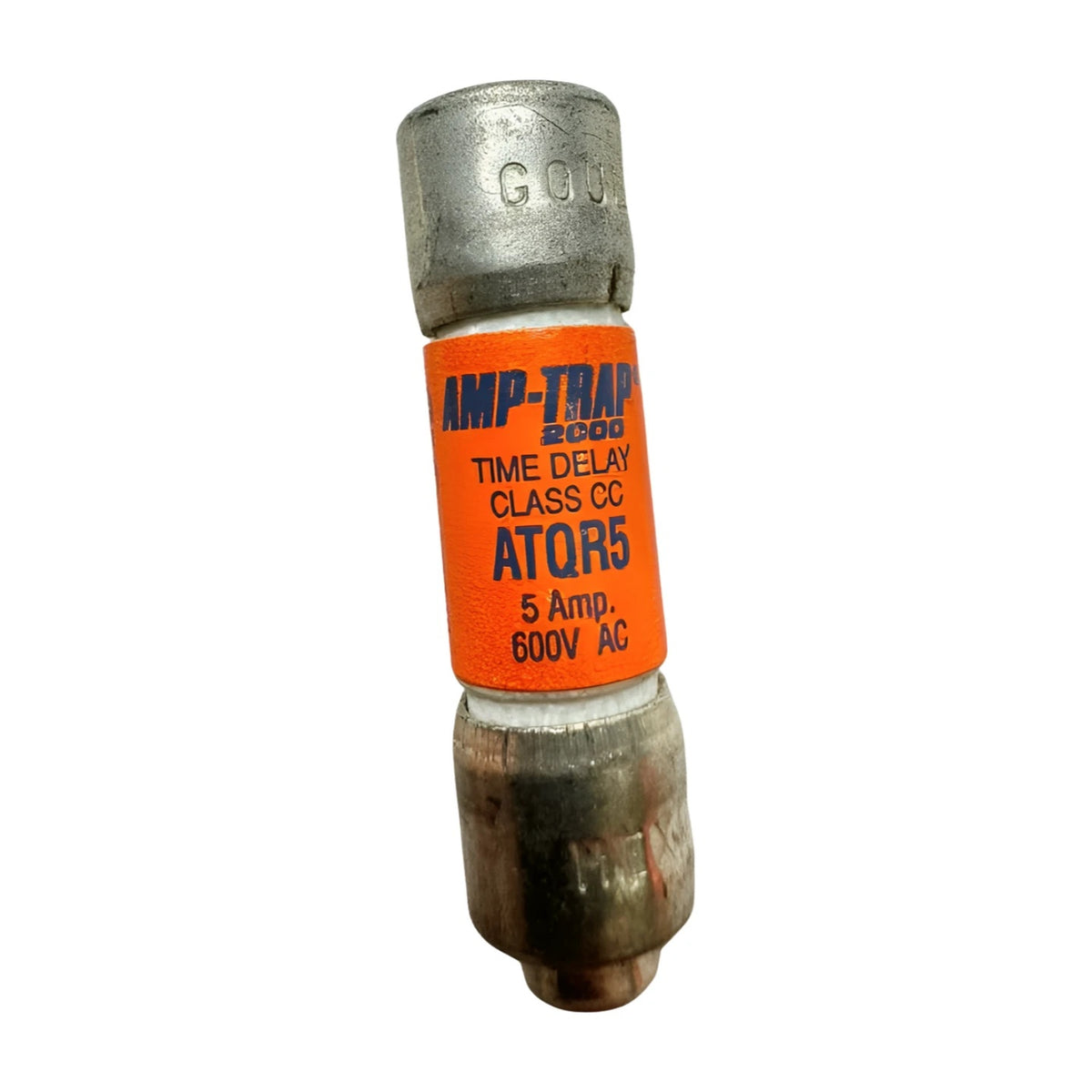

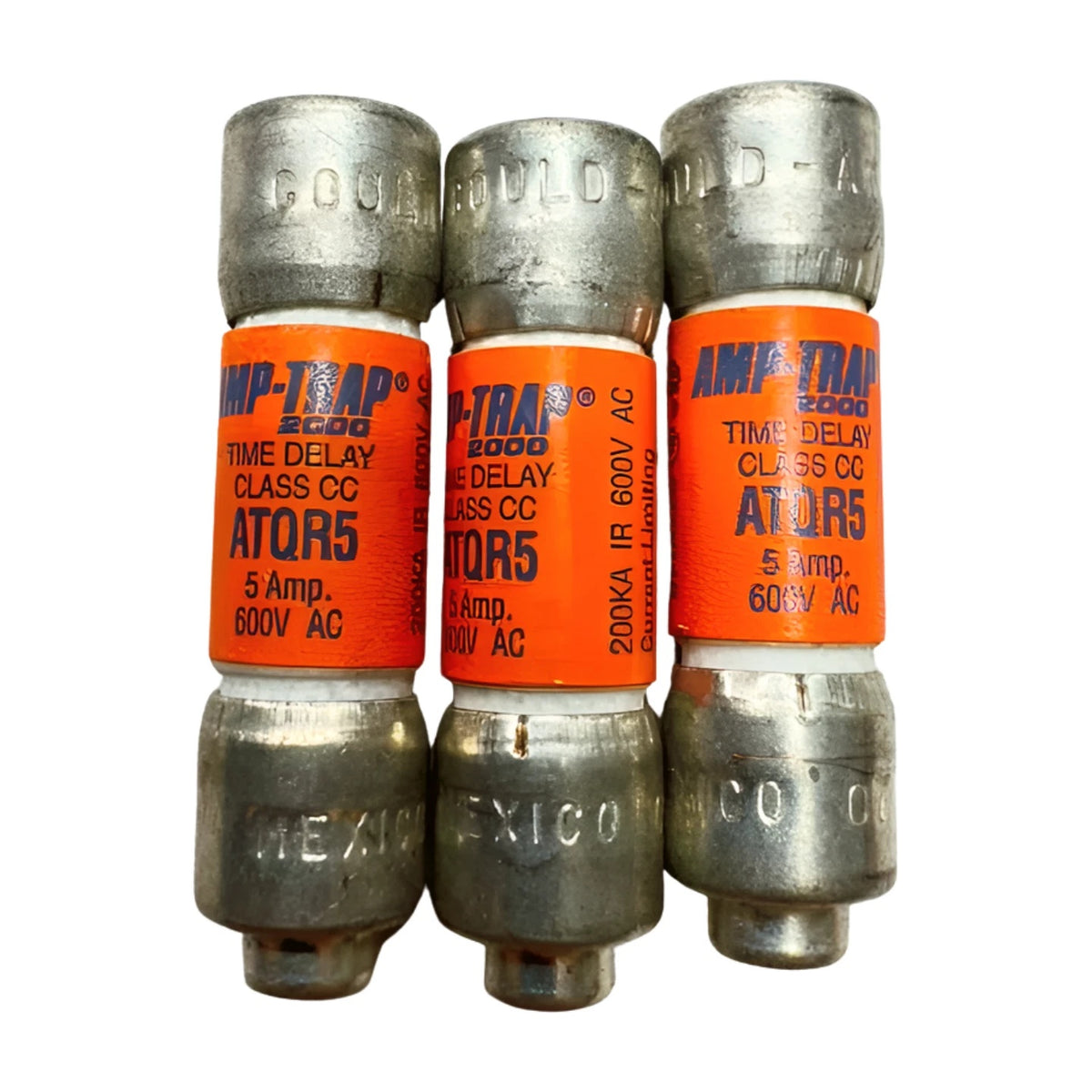

Ferraz ATQR5 Class CC Time-Delay Fuse 5A 600VAC
Available in stock (2000)
Regular price
$6.72
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ferraz |
| Model Number | ATQR5 |
| Product Category | Class CC Time-Delay Fuse |
| Ampere Rating | 5 A |
| Voltage Rating | 600 VAC |
| Interrupting Rating | 200 kA RMS Sym. |
| Approvals | UL Listed, CSA Certified |
Key Features
5A Ampere Rating
Rated for 5A continuous current, suitable for branch circuit protection in industrial control applications.
600VAC Voltage Rating
Rated for 600VAC systems, meeting the needs of many industrial power distribution and control circuits.
Class CC Protection
Class CC fuses are current-limiting and provide high interrupting capacity in a compact 10x38mm package.
High Interrupting Rating
200 kA RMS symmetrical interrupting rating for reliable protection in high-fault-current industrial environments.
Compact 10x38mm Form Factor
The compact size allows installation in Class CC fuse holders and blocks for efficient use of panel space.
Applications
- Branch circuit protection in industrial control panels
- Protection of motor control circuits
- Control transformer protection
- General-purpose equipment protection
- Lighting circuit protection in industrial facilities
- Small motor branch circuit protection
- Protection of solenoid and relay control circuits
- Industrial power distribution equipment protection
Purchase Information
We support online purchase of the Ferraz ATQR5 Class CC Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ferraz ATQR5?
Ferraz ATQR5 is a Class CC time-delay fuse with a 5A ampere rating and 600VAC voltage rating, designed for branch circuit protection.
What are the voltage and current ratings of ATQR5?
Ferraz ATQR5 has a voltage rating of 600VAC and an ampere rating of 5A.
What is the interrupting rating of Ferraz ATQR5?
The interrupting rating of Ferraz ATQR5 is 200 kA RMS symmetrical.
Is Ferraz ATQR5 UL listed?
Yes. Ferraz ATQR5 is UL Listed and CSA Certified.
What type of fuse is ATQR5?
ATQR5 is a Class CC time-delay fuse intended for branch circuit protection applications.
What are typical applications for Ferraz ATQR5?
Typical applications include branch circuit protection in industrial control panels, motor control circuits, and control transformer protection.
What is the physical size of ATQR5?
Ferraz ATQR5 is a 10x38mm fuse, the standard size for Class CC fuse series.
Is ATQR5 a current-limiting fuse?
Class CC fuses, including ATQR5, are current-limiting type fuses.
Can Ferraz ATQR5 be used for motor protection?
It can be considered for small motor branch circuit protection after the motor full-load current and starting characteristics have been checked against the existing installation requirements.
What should be checked before ordering Ferraz ATQR5?
Before ordering, verify the voltage rating, ampere rating, Class CC fuse holder type, interrupting rating, and application requirements of the existing system.
