15A Current Rating
Provides a 15-ampere current rating suitable for branch circuit protection in industrial control panels and equipment.

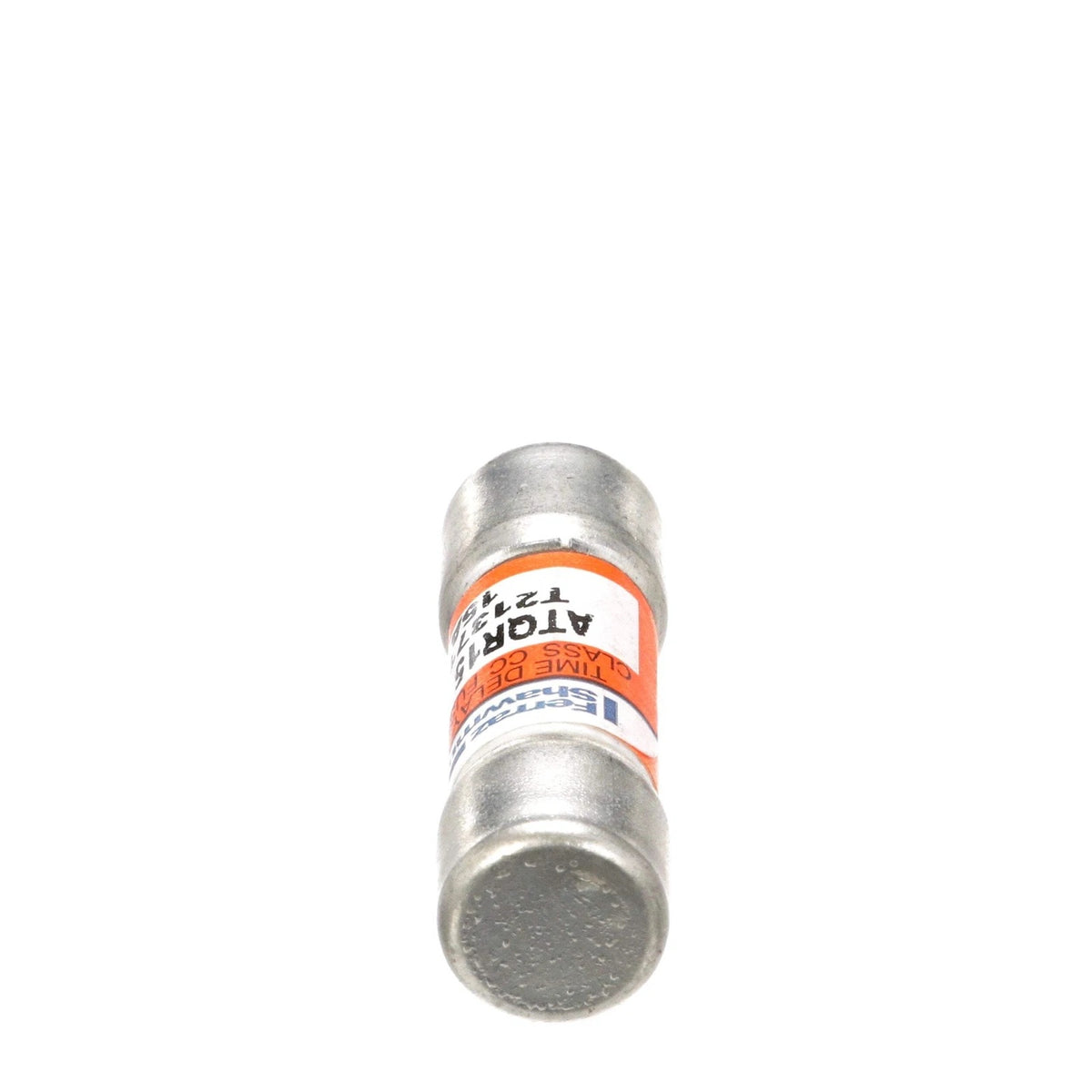

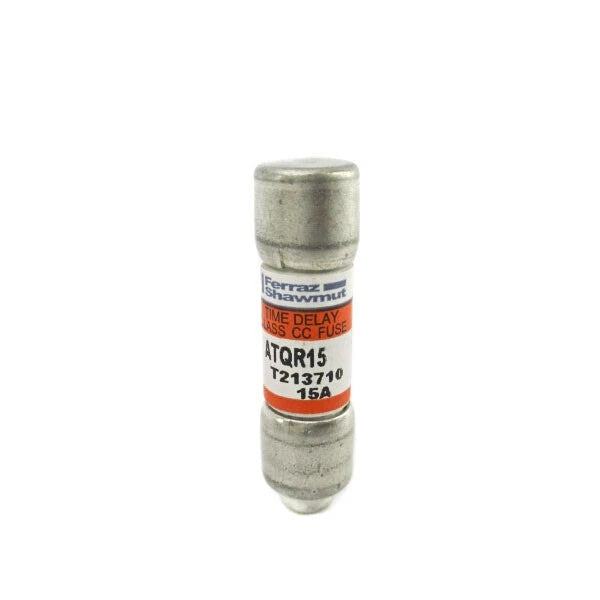

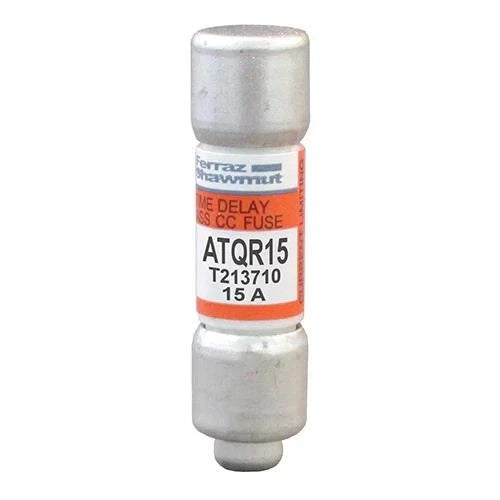

Ferraz ATQR15 Fuse Class CC 600 VAC 15A Time-Delay Fuse
Available in stock (2000)
Regular price
$6.72
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ferraz |
| Model Number | ATQR15 |
| Product Category | Class CC Time-Delay Fuse |
| Voltage Rating | 600 VAC |
| Current Rating | 15 A |
| Interrupting Rating | 200 kA |
| Class | CC |
| Time-Delay | Yes |
Key Features
600 VAC Voltage Rating
Rated for 600 VAC operation, compatible with standard industrial voltage systems.
Time-Delay
Time-delay characteristic allows temporary inrush currents to pass while providing protection against sustained overloads.
Class CC
Class CC fuse design for branch circuit protection with high interrupting capacity in a compact package.
200 kA Interrupting Rating
Provides a 200 kA interrupting rating at 600 VAC for effective fault current protection.
High Interrupting Capacity
Designed with a high interrupting capacity to handle severe fault conditions in industrial power distribution systems.
Applications
- Branch circuit protection in industrial control panels
- Motor branch circuit protection
- Transformer protection
- Control circuit protection
- Industrial power distribution systems
- Equipment protection in manufacturing facilities
- Machine tool electrical protection
- System expansion and maintenance projects
Purchase Information
We support online purchase of the Ferraz ATQR15 Class CC Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ferraz ATQR15?
Ferraz ATQR15 is a Class CC time-delay fuse with a 15A current rating and 600 VAC voltage rating.
What voltage is the ATQR15 rated for?
The ATQR15 is rated for 600 VAC operation.
What is the current rating of ATQR15?
The fuse has a current rating of 15 amperes.
What is the interrupting rating of ATQR15?
The ATQR15 provides a 200 kA interrupting rating at 600 VAC.
Is ATQR15 a time-delay fuse?
Yes. The ATQR15 has a time-delay characteristic.
What class is the ATQR15 fuse?
The ATQR15 is a Class CC fuse.
What applications is ATQR15 suitable for?
The ATQR15 can be considered for branch circuit protection, motor branch circuits, transformer protection, and general industrial equipment protection.
What should be verified before using ATQR15 in an existing panel?
Voltage rating, current rating, interrupting capacity, and physical dimensions should be checked against the existing system requirements.
What should be checked before ordering ATQR15?
Verify the complete catalog number, required current rating, voltage rating, and Class CC fuse holder compatibility before purchasing.
