1.6 A Current Rating
The ATQR1-6/10 is an ATQR series Class CC fuse with a documented current rating of 1.6 A.

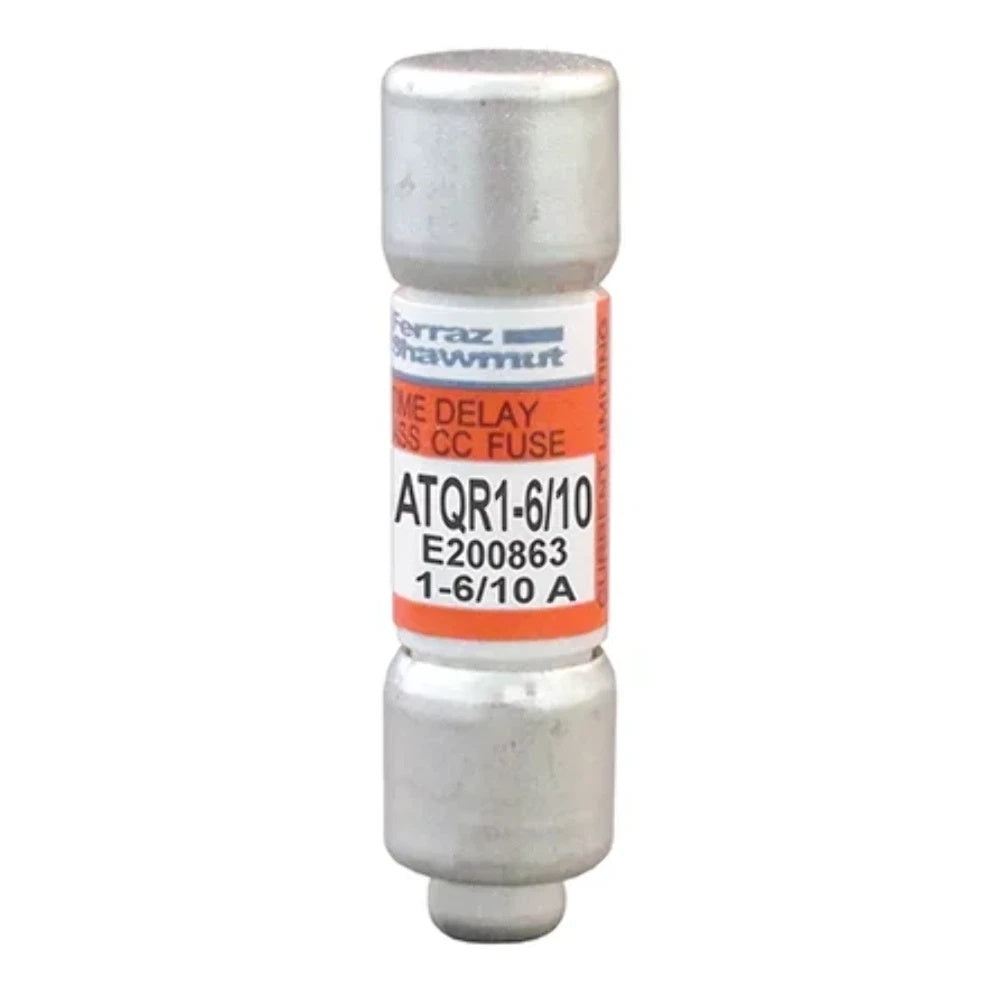

Ferraz ATQR1-6/10 Class CC Fuse 1.6A 600VAC 300VDC Time-Delay
Available in stock (2000)
Regular price
$6.72
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ferraz |
| Model Number | ATQR1-6/10 |
| Product Category | Class CC Fuse |
| Series | ATQR |
| Fuse Type | Time-Delay |
| Fuse Class | Class CC |
| Current Rating | 1.6 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 300 VDC |
| Frequency | 50/60 Hz |
| Connection | Ferrule |
| Indication System | No |
| Product Weight | 0.0077 kg |
| Fuse Family | Amp-Trap 2000 |
Key Features
600 VAC and 300 VDC
The documented voltage ratings for ATQR1-6/10 are 600 VAC and 300 VDC.
Time-Delay Characteristic
The ATQR series uses a time-delay characteristic designed to accommodate temporary inrush currents associated with control transformers and similar inductive loads.
Class CC Configuration
The ATQR1-6/10 is classified as a Class CC fuse and uses a ferrule connection format.
Current-Limiting Design
The ATQR series uses a highly current-limiting design intended to reduce peak let-through current during applicable fault conditions.
Rejection-Style Design
The Class CC rejection-style configuration helps prevent incorrect fuse substitution when used with the specified Class CC fuse blocks.
Applications
- Control transformer protection
- Solenoid circuit protection
- Inductive load protection
- Lighting circuits
- Heating circuits
- General-purpose electrical loads
- Industrial control panels
- Branch circuit protection
Purchase Information
We support online purchase of the Ferraz ATQR1-6/10 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ferraz ATQR1-6/10?
Ferraz ATQR1-6/10 is an ATQR series Class CC time-delay fuse with a documented current rating of 1.6 A.
What is the current rating of ATQR1-6/10?
The documented current rating is 1.6 A.
What is the AC voltage rating of ATQR1-6/10?
The documented AC voltage rating is 600 VAC.
What is the DC voltage rating of ATQR1-6/10?
Current manufacturer product information specifies a 300 VDC rating for ATQR1-6/10.
Is ATQR1-6/10 a time-delay fuse?
Yes. The ATQR series is classified as Class CC time-delay fuses.
What frequency is specified for ATQR1-6/10?
The documented frequency is 50/60 Hz.
What connection does ATQR1-6/10 use?
The documented connection type is ferrule.
Does ATQR1-6/10 include an indication system?
No. The manufacturer identifies this configuration as non-indicating.
What applications are associated with the ATQR series?
Manufacturer documentation identifies control transformers, solenoids, inductive loads, lighting, heating and general-purpose loads as applications for the ATQR series.
What is the Amp-Trap 2000 designation?
ATQR1-6/10 is part of the Mersen Amp-Trap 2000 ATQR fuse family.
What should be checked when selecting a fuse holder?
Verify that the fuse holder or fuse block supports the required Class CC configuration and the electrical ratings of the application.
What should be checked before ordering ATQR1-6/10?
Check the complete ATQR1-6/10 catalog number, 1.6 A current rating, 600 VAC and 300 VDC ratings, Class CC classification, time-delay characteristic and circuit protection requirements before purchasing.
