15 A Current Rating
The ATM15 is an ATM series midget fuse with a documented ampere rating of 15 A.

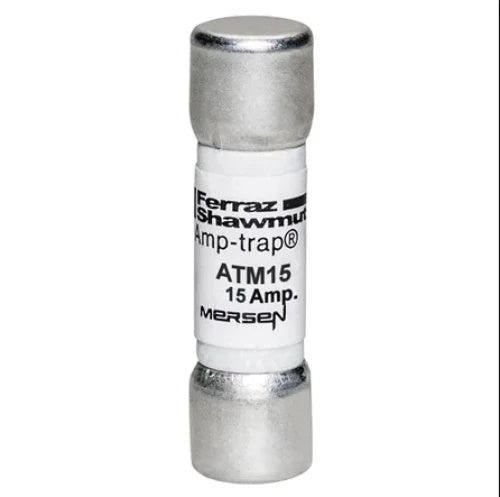

Ferraz ATM15 Midget Fuse 15A 600VAC/DC Fast-Acting
Available in stock (1000)
Regular price
$7.94
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Ferraz |
| Model Number | ATM15 |
| Product Category | Midget Fuse |
| Series | ATM |
| Fuse Type | Fast-Acting |
| Current Rating | 15 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 600 VDC |
| Frequency | 50/60 Hz |
| Interrupting Rating | 100 kA |
| Fuse Class | Midget |
| Dimensions | 10 × 38 mm (13/32 × 1-1/2 in) |
| Connection | Ferrule |
| Product Weight | 0.0077 kg |
Key Features
600 VAC/DC Rating
The ATM15 is rated for circuits up to 600 VAC and 600 VDC according to Mersen product documentation.
Fast-Acting Characteristic
The ATM series uses a fast-acting operating characteristic for supplemental circuit protection applications.
100 kA Interrupting Rating
Mersen specifies a 100 kA interrupting rating for ATM midget fuses at their rated voltage.
10 × 38 mm Midget Size
The ATM series uses the 10 × 38 mm midget fuse format with ferrule connections.
Supplemental Circuit Protection
The ATM series is specified for supplemental protection of circuits, including applicable small motors and transformers.
Applications
- Supplemental industrial circuit protection
- Small motor protection circuits
- Control transformer protection
- Industrial control equipment
- Electrical control panels
- 600 VAC supplemental circuits
- 600 VDC supplemental circuits
- Applicable photovoltaic and DC circuits
Purchase Information
We support online purchase of the Ferraz ATM15 Midget Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ferraz ATM15?
Ferraz ATM15 is an ATM series 15 A fast-acting midget fuse rated for 600 VAC and 600 VDC.
What is the current rating of ATM15?
The documented ampere rating is 15 A.
What is the AC voltage rating of ATM15?
The documented AC voltage rating is 600 VAC.
What is the DC voltage rating of ATM15?
The documented DC voltage rating is 600 VDC.
Is ATM15 a fast-acting fuse?
Yes. The ATM series is classified as fast-acting.
What is the interrupting rating of the ATM series?
Mersen specifies a 100 kA interrupting rating for the ATM series.
What size is ATM15?
The ATM series uses the midget 10 × 38 mm format, approximately 13/32 × 1-1/2 inches.
What type of connection does ATM15 use?
ATM15 uses ferrule connections.
Does ATM15 have an indication system?
No. Mersen product information identifies ATM15 as a non-indicating fuse.
What applications are associated with ATM fuses?
Mersen identifies supplemental protection of circuits, small motors and transformers among the applications for the ATM series.
Is ATM15 intended for branch circuit protection?
No. Mersen identifies the ATM series as supplemental protection and states that it is not for branch circuit protection.
What should be checked before ordering ATM15?
Check the 15 A current rating, 600 VAC/DC voltage rating, fast-acting characteristic, 10 × 38 mm dimensions, interrupting requirements and the protection requirements of the circuit before purchasing.
