1 A Current Rating
The ATDR-1 corresponds to the ATDR1 rating in the ATDR series, with a documented current rating of 1 A.

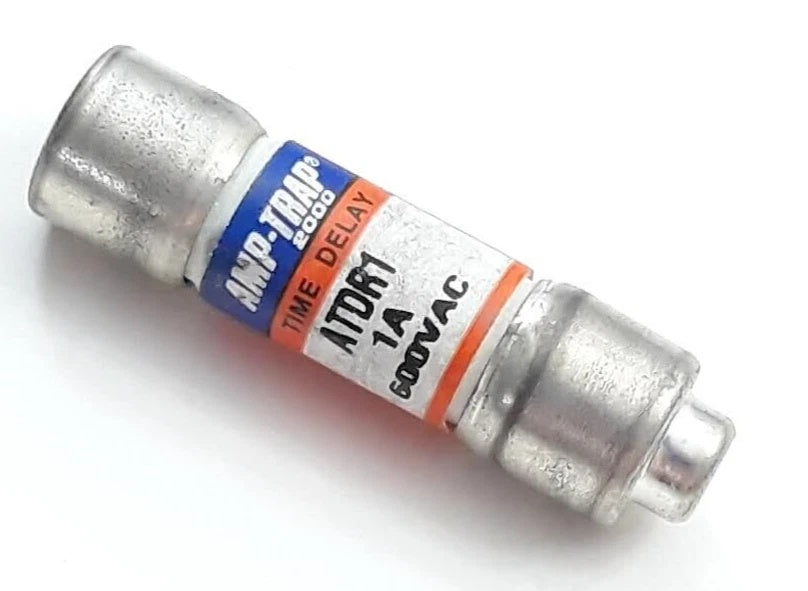

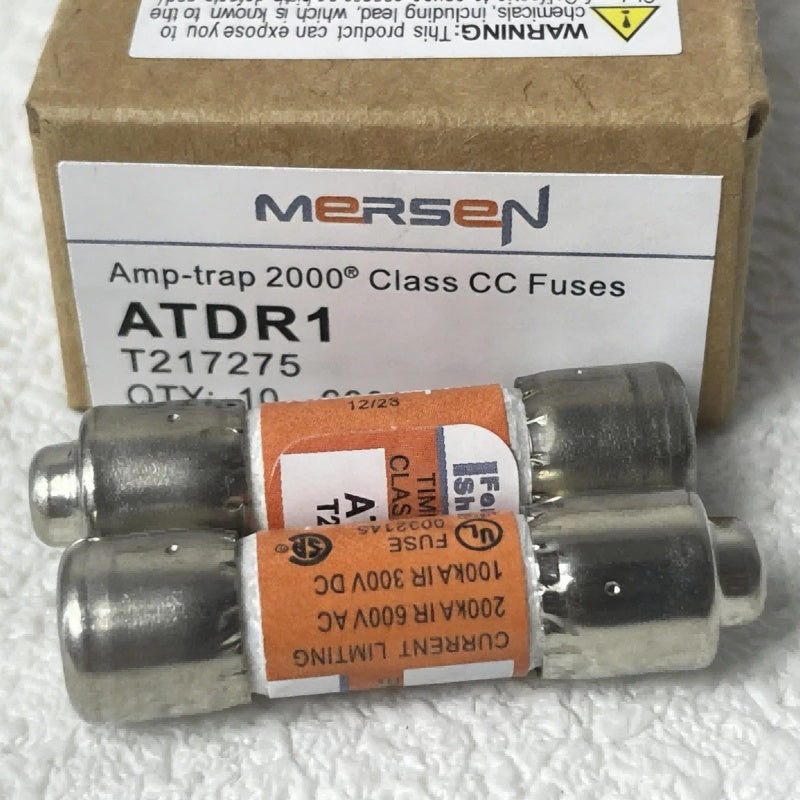

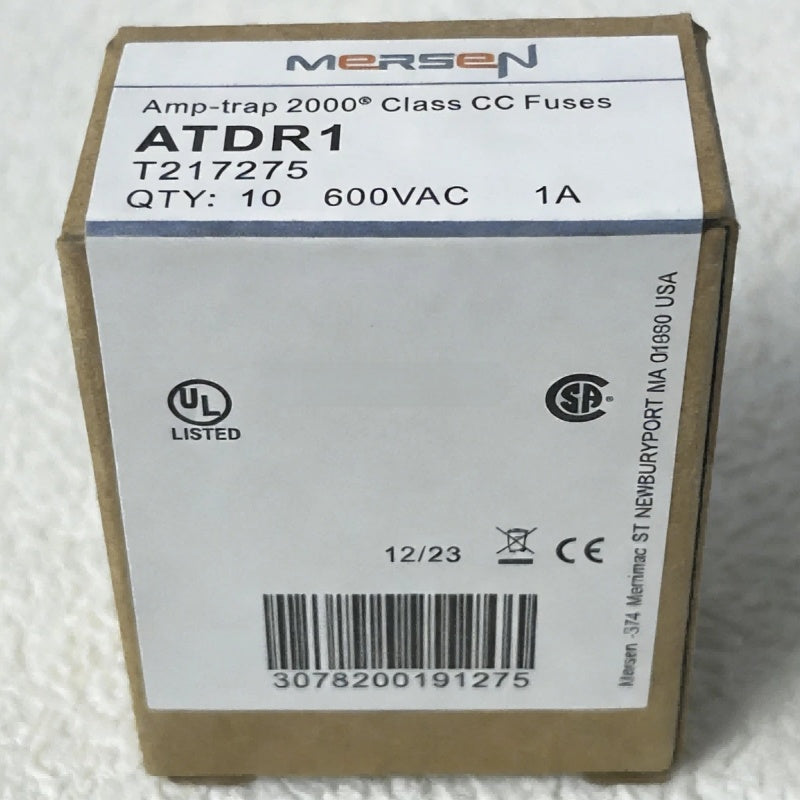

Ferraz ATDR-1 Class CC Fuse 1A 600VAC 300VDC Time-Delay
Available in stock (1000)
Regular price
$6.19
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ferraz |
| Model Number | ATDR-1 |
| Product Category | Class CC Fuse |
| Series | ATDR |
| Fuse Type | Time-Delay |
| Fuse Class | Class CC |
| Current Rating | 1 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 300 VDC |
| Frequency | 50/60 Hz |
| AC Interrupting Rating | 200 kA |
| DC Interrupting Rating | 100 kA |
| Fuse Size | 10.4 × 38.1 mm |
| Connection | Ferrule |
| Indication System | No |
| Product Weight | 0.0077 kg |
| Fuse Family | Amp-Trap 2000 |
Key Features
600 VAC and 300 VDC
The ATDR1 is rated for 600 VAC and 300 VDC applications.
Time-Delay Characteristic
The ATDR series uses a time-delay characteristic designed to accommodate motor starting inrush currents.
Class CC Configuration
The ATDR series is classified as Class CC and uses a compact ferrule-style cartridge configuration.
Current-Limiting Design
The ATDR series uses a highly current-limiting design intended to reduce peak let-through current during applicable fault conditions.
High Interrupting Capacity
The documented interrupting ratings are 200 kA for AC applications and 100 kA for DC applications.
Applications
- Small motor protection
- Contactor circuits
- Lighting circuits
- Heating circuits
- General electrical loads
- Industrial control panels
- Motor branch circuits
- Branch circuit protection
Purchase Information
We support online purchase of the Ferraz ATDR-1 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ferraz ATDR-1?
Ferraz ATDR-1 corresponds to the ATDR1 Amp-Trap 2000 Class CC time-delay fuse with a documented current rating of 1 A.
What is the current rating of ATDR-1?
The documented current rating is 1 A.
What is the AC voltage rating of ATDR-1?
The documented AC voltage rating is 600 VAC.
What is the DC voltage rating of ATDR-1?
The documented DC voltage rating is 300 VDC.
Is ATDR-1 a time-delay fuse?
Yes. The ATDR series is classified as Class CC time-delay fuses.
What is the AC interrupting rating?
The documented AC interrupting rating for the ATDR series is 200 kA.
What is the DC interrupting rating?
The documented DC interrupting rating for the ATDR series is 100 kA.
What are the dimensions of ATDR-1?
The ATDR1 cartridge measures approximately 10.4 mm in diameter and 38.1 mm in length.
What connection type does ATDR-1 use?
The documented connection type is ferrule.
What applications are associated with ATDR fuses?
Manufacturer documentation identifies small motors, contactors, lighting, heating, general loads and branch circuit protection as applications for the ATDR series.
What should be checked when selecting a fuse holder?
Verify that the selected fuse holder or fuse block supports Class CC fuses and meets the electrical ratings required by the application.
What should be checked before ordering ATDR-1?
Check the ATDR-1 model reference against ATDR1, the 1 A current rating, 600 VAC and 300 VDC ratings, Class CC configuration, time-delay characteristic and circuit protection requirements before purchasing.
