18-30 VDC Input
The IC695ACC402 Energy Pack operates over a documented input voltage range of 18-30 VDC.
1 / 8
Emerson

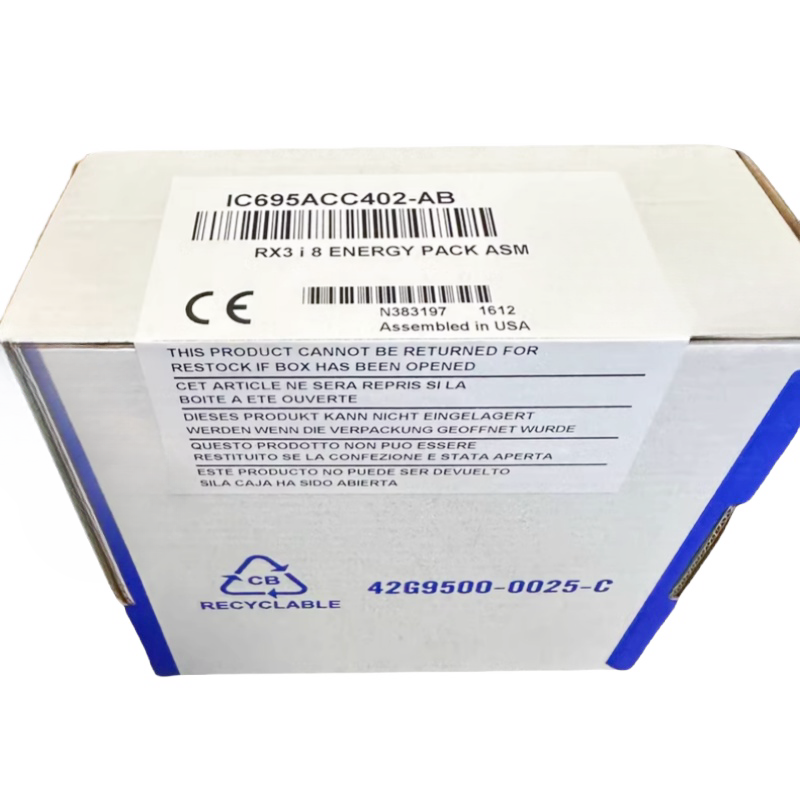

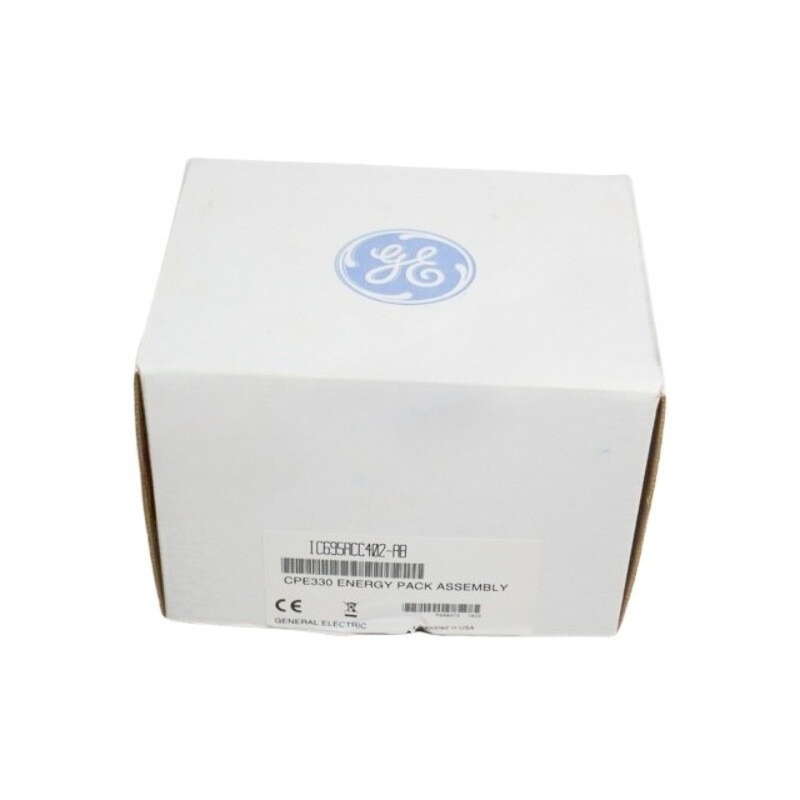

Emerson IC695ACC402-AB Energy Pack 18-30 VDC 45 W 2.25 A
PRODUCT PRICE
USD
$384.60
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Emerson |
| Model Number | IC695ACC402-AB |
| Product Category | Energy Pack |
| Product Platform | PACSystems RX3i |
| Base Catalog Number | IC695ACC402 |
| Revision | AB |
| Input Voltage Range | 18-30 VDC |
| Maximum Input Power | 24 W |
| Output Voltage Range | 18-30 VDC |
| Maximum Output Power | 45 W |
| Maximum Output Current | 2.25 A |
| Backup Trip Voltage | 16.7 VDC ±4% |
| Dimensions | 114.05 x 77.47 x 63.75 mm |
Key Features
45 W Maximum Output
The documented maximum output power is 45 W, with a maximum output current of 2.25 A.
Controller Memory Backup
The Energy Pack maintains power long enough for the connected controller to write user memory contents to non-volatile memory when system power is lost.
16.7 VDC Backup Trip
The documented backup trip voltage is 16.7 VDC with a tolerance of ±4%.
PACSystems RX3i Platform
The IC695ACC402 is documented as an Energy Pack for the PACSystems RX3i controller platform.
IC695ACC402-AB Revision
The AB catalog revision is documented in Emerson product release information for the IC695ACC402 Energy Pack.
Applications
- PACSystems RX3i controller backup power
- Controller user-memory preservation
- Industrial automation control systems
- PLC power-loss management
- Control system shutdown sequencing
- Machine automation controller systems
- Industrial control cabinet applications
- Automation system maintenance projects
Purchase Information
We support online purchase of the Emerson IC695ACC402-AB Energy Pack. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Emerson IC695ACC402-AB?
Emerson IC695ACC402-AB is an AB revision of the IC695ACC402 PACSystems RX3i Energy Pack used to provide temporary backup power for controller memory preservation during power loss.
What is the input voltage range of IC695ACC402-AB?
The documented input voltage range for the IC695ACC402 Energy Pack is 18-30 VDC.
What is the maximum input power?
The documented maximum input power is 24 W.
What is the output voltage range?
The documented output voltage range is 18-30 VDC.
What is the maximum output power of IC695ACC402?
The documented maximum output power is 45 W.
What is the maximum output current?
The documented maximum output current is 2.25 A.
What is the backup trip voltage?
The documented backup trip voltage is 16.7 VDC ±4%.
What are the dimensions of the IC695ACC402 Energy Pack?
The documented dimensions are 114.05 x 77.47 x 63.75 mm.
What is the operating temperature range?
The documented surrounding-air operating temperature range is -25°C to +60°C.
What does the Energy Pack do during a power loss?
When system power is lost, the Energy Pack maintains power long enough for the connected controller to transfer user memory contents to non-volatile memory.
What applications can IC695ACC402-AB be considered for?
It can be considered for PACSystems RX3i controller backup-power and memory-preservation applications after the controller model and system requirements have been checked.
What should be checked before ordering IC695ACC402-AB?
Check the complete catalog number and revision, required input voltage, output requirements, controller configuration, cable requirements, mounting space and environmental conditions against the existing system documentation before purchasing.
