630mm Axial Fan
The published technical documentation identifies S6D630-AN01-01 as an AC axial fan with a 630 mm size.

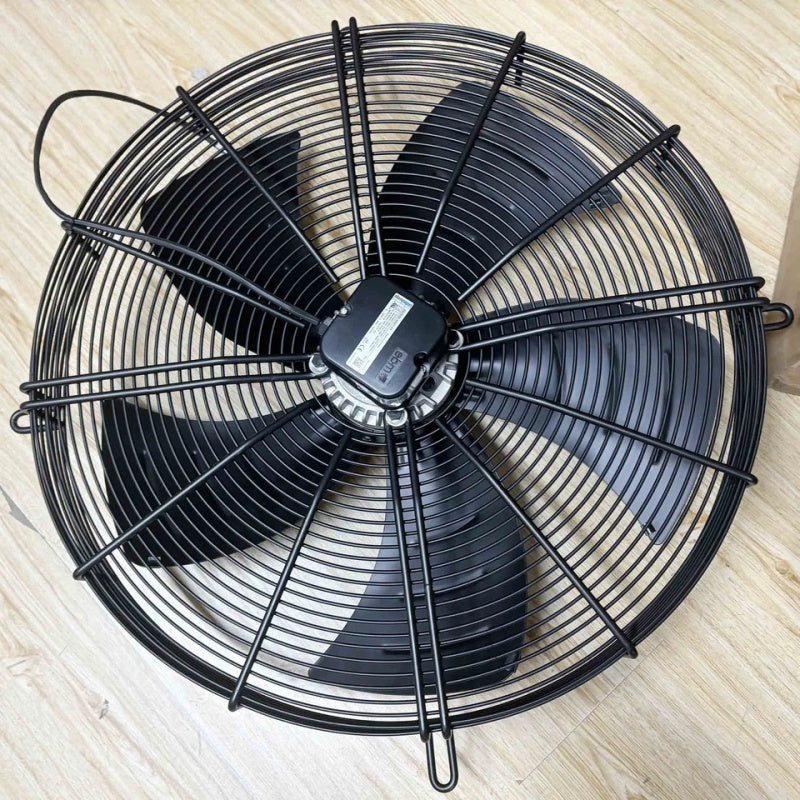

Ebmpapst S6D630-AN01-01 Axial Fan 400/480VAC 630mm 50/60Hz
Available in stock (200)
Regular price
$657.31
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | S6D630-AN01-01 |
| Product Category | Axial Fan |
| Fan Type | AC Axial Fan |
| Motor | M6D110-GF |
| Phase | 3~ |
| Nominal Voltage | 400 / 480 VAC |
| Frequency | 50 / 60 Hz |
| Speed | 690-1070 min-1 depending on voltage, frequency and connection |
| Power Input | 400-810 W depending on voltage, frequency and connection |
| Current Draw | 0.68-1.35 A depending on voltage, frequency and connection |
| Size | 630 mm |
| Number of Blades | 5 |
| Protection Rating | IP54 |
| Motor Bearing | Ball Bearing |
| Mass | 14 kg |
| Motor Protection | Thermal Overload Protector |
Key Features
Three-Phase AC Operation
The fan uses a three-phase AC motor with documented operating data for 400 VAC and 480 VAC supply configurations.
50/60Hz Operation
Published nominal data covers 50 Hz and 60 Hz operating configurations according to the specified voltage and connection.
Five-Blade Design
The technical documentation specifies five blades and identifies the direction of rotation as counter-clockwise when viewed on the rotor.
IP54 Protection
The documented protection rating for the S6D630-AN01-01 is IP54.
Thermal Motor Protection
The motor incorporates a brought-out thermal overload protector for integration into the required control circuit.
Applications
- Industrial air-moving systems
- Industrial machinery ventilation
- HVAC equipment air circulation
- Equipment enclosure ventilation
- Process equipment airflow
- Stationary ventilation systems
- Industrial cooling airflow systems
- Machinery maintenance projects
Purchase Information
We support online purchase of the Ebmpapst S6D630-AN01-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst S6D630-AN01-01?
Ebmpapst S6D630-AN01-01 is a three-phase AC axial fan with a documented size of 630 mm.
What nominal voltages are specified for S6D630-AN01-01?
Published nominal data specifies 400 VAC and 480 VAC operating configurations. The required connection and frequency should be checked before installation.
What frequencies does S6D630-AN01-01 support?
The technical documentation provides nominal operating data for 50 Hz and 60 Hz configurations.
What is the documented speed range?
Published nominal data lists speeds from 690 to 1070 min-1 depending on voltage, frequency and delta or star connection.
What is the documented power input range?
The published nominal data lists power input values from 400 W to 810 W depending on the electrical operating configuration.
What is the protection rating of S6D630-AN01-01?
The technical documentation specifies an IP54 protection rating.
What bearing type is used?
The motor bearing is specified as a ball bearing.
How many blades does S6D630-AN01-01 have?
The technical documentation specifies five blades.
What motor is specified for S6D630-AN01-01?
The documented motor designation is M6D110-GF.
What applications can S6D630-AN01-01 be considered for?
It can be considered for stationary industrial air-moving, ventilation and equipment airflow applications after electrical, mechanical and installation requirements have been checked.
Can S6D630-AN01-01 be considered for an existing ventilation system?
It can be considered after the complete model number, supply voltage, frequency, connection, dimensions, airflow requirements and installation conditions have been checked against the existing system requirements.
What should be checked before ordering?
Check the complete S6D630-AN01-01 model number, required voltage and frequency, electrical connection, installation dimensions, mounting position, airflow requirements and applicable system documentation before purchasing.
