Backward-Curved Design

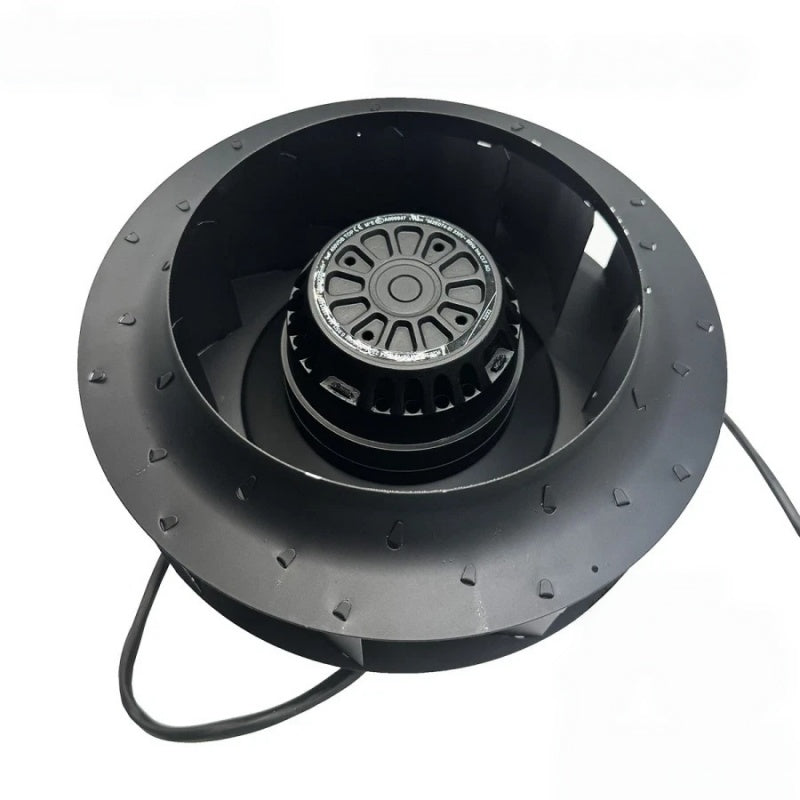

The R2E250-AT06-19 is an AC centrifugal fan with a backward-curved, single-inlet configuration for industrial air-moving applications.
Ebmpapst R2E250-AT06-19 Fan 230 VAC 250 mm 2800/3200 min-1
Available in stock (200)
Regular price
$197.36
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E250-AT06-19 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan, Backward Curved, Single Inlet |
| Motor Model | M2E074-EI |
| Power Supply | 1-Phase |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 215 W at 50 Hz / 345 W at 60 Hz |
| Rated Current | 0.95 A at 50 Hz / 1.51 A at 60 Hz |
| Speed | 2800 RPM at 50 Hz / 3200 RPM at 60 Hz |
| Motor Capacitor | 5 µF |
| Capacitor Voltage | 450 VDB |
| Minimum Back Pressure | 0 Pa |
| Starting Current | 3.1 A at 50 Hz / 2.75 A at 60 Hz |
Key Features
230 VAC Operation
The documented electrical configuration uses a single-phase 230 VAC supply and supports both 50 Hz and 60 Hz operation.
Dual-Frequency Ratings
Nominal data specifies 215 W and 0.95 A at 50 Hz, with 345 W and 1.51 A at 60 Hz.
2800/3200 RPM Speed
The documented rotational speed is 2800 RPM at 50 Hz and 3200 RPM at 60 Hz.
M2E074-EI Motor
The exact R2E250-AT06-19 configuration is documented with the M2E074-EI single-phase AC motor.
5 µF Motor Capacitor
The documented electrical configuration specifies a 5 µF motor capacitor with a 450 VDB capacitor voltage rating.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Variable frequency drive cooling
- Power electronics cooling
- Control panel thermal management
- Industrial machinery cooling
- Industrial ventilation equipment
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst R2E250-AT06-19 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst R2E250-AT06-19?
It is a single-phase AC centrifugal fan with a backward-curved, single-inlet design.
What voltage does R2E250-AT06-19 use?
The documented nominal voltage is 230 VAC.
Does R2E250-AT06-19 support 50 Hz and 60 Hz?
Yes. The nominal data covers operation at both 50 Hz and 60 Hz.
What is the power input?
The documented power input is 215 W at 50 Hz and 345 W at 60 Hz.
What is the rated current?
The documented current draw is 0.95 A at 50 Hz and 1.51 A at 60 Hz.
What is the fan speed?
The documented speed is 2800 RPM at 50 Hz and 3200 RPM at 60 Hz.
What motor does R2E250-AT06-19 use?
The exact-model documentation identifies the motor as M2E074-EI.
What capacitor is specified?
The documented motor capacitor is 5 µF with a 450 VDB rating.
What is the minimum back pressure?
The nominal data specifies a minimum back pressure of 0 Pa.
What is the maximum ambient temperature?
The documented maximum ambient temperature for the listed 60 Hz operating points is 50°C.
Where can R2E250-AT06-19 be used?
Typical applications include industrial equipment cooling, electrical cabinet ventilation, power electronics cooling and industrial ventilation systems.
What should be checked before ordering R2E250-AT06-19?
Check the complete model number, 230 VAC supply, 50/60 Hz frequency, electrical ratings, capacitor specification, mounting arrangement and equipment requirements before purchasing.
