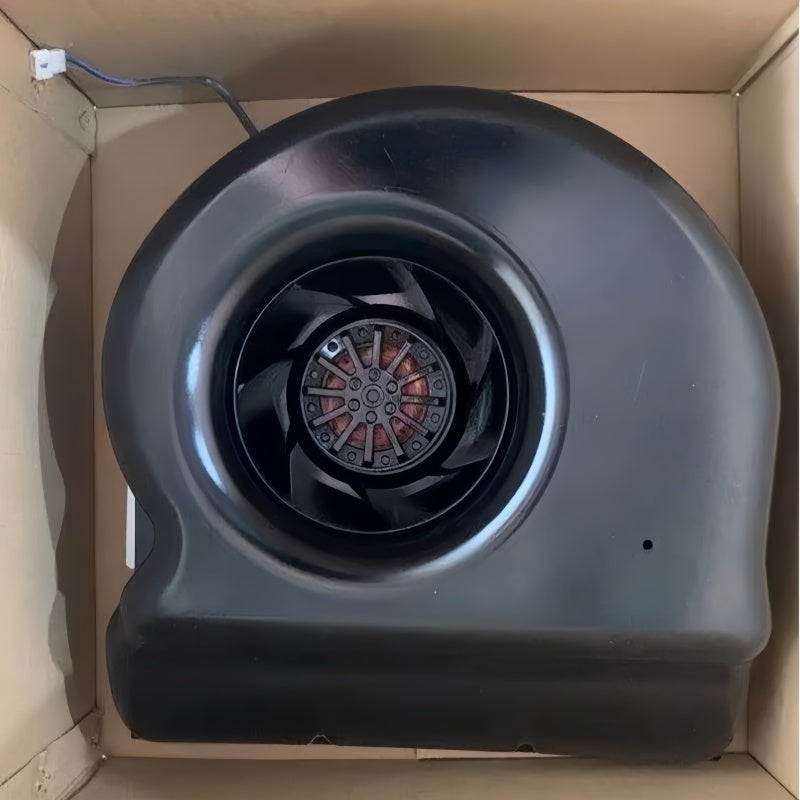

250 mm Centrifugal Fan
The K2E250-AA01-09 is an Ebmpapst AC centrifugal fan with a 250 mm backward-curved impeller for industrial equipment cooling.
Ebmpapst K2E250-AA01-09 Fan 230 V 195 W 2450 rpm
Available in stock (200)
Regular price
$487.63
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | K2E250-AA01-09 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan |
| Impeller Design | Backward-Curved |
| Motor Model | M2E068-EC |
| Impeller Size | 250 mm |
| Power Supply | 1-Phase |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 195 W at 50 Hz / 265 W at 60 Hz |
| Rated Current | 0.86 A at 50 Hz / 1.16 A at 60 Hz |
| Speed | 2450 RPM at 50 Hz / 2500 RPM at 60 Hz |
| Motor Capacitor | 5 µF |
| Capacitor Voltage | 400 VDB |
| Bearing Type | Ball Bearing |
| Impeller Material | Galvanized Sheet Steel |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
| Weight | 5.4 kg |
Key Features
230 VAC Operation
The documented electrical configuration uses a single-phase 230 VAC supply and supports both 50 Hz and 60 Hz operation.
Dual-Frequency Ratings
Documented input power is 195 W at 50 Hz and 265 W at 60 Hz, with corresponding current ratings of 0.86 A and 1.16 A.
2450/2500 RPM Speed
The documented rotational speed is 2450 RPM at 50 Hz and 2500 RPM at 60 Hz.
Backward-Curved Impeller
The centrifugal fan uses a backward-curved galvanized sheet-steel impeller with a nominal size of 250 mm.
Inverter Cooling Application
The K2E250-AA01-09 is documented for inverter and variable-frequency-drive cooling applications, including references associated with Siemens 6SY7000-0AB67.
Applications
- Variable frequency drive cooling
- Industrial inverter cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Industrial machinery cooling
- Power electronics cooling
- Industrial ventilation equipment
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst K2E250-AA01-09 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst K2E250-AA01-09?
It is a single-phase AC centrifugal fan with a 250 mm backward-curved impeller.
What voltage does K2E250-AA01-09 use?
The documented nominal voltage is 230 VAC.
Does K2E250-AA01-09 support 50 Hz and 60 Hz?
Yes. Published technical data specifies operation at both 50 Hz and 60 Hz.
What is the power input?
The documented power input is 195 W at 50 Hz and 265 W at 60 Hz.
What is the rated current?
The documented current is 0.86 A at 50 Hz and 1.16 A at 60 Hz.
What is the fan speed?
The documented speed is 2450 RPM at 50 Hz and 2500 RPM at 60 Hz.
What is the impeller size?
The K2E250-AA01-09 has a nominal impeller size of 250 mm.
What motor is used?
Published technical data identifies the motor as M2E068-EC.
What capacitor is specified?
The documented motor capacitor is 5 µF with a capacitor voltage rating of 400 VDB.
What material is the impeller?
Published technical data identifies the impeller material as galvanized sheet steel.
What is the documented weight?
The documented fan weight is 5.4 kg.
What should be checked before ordering K2E250-AA01-09?
Check the complete model number, 230 VAC supply, 50/60 Hz frequency, 250 mm impeller size, electrical ratings, mounting arrangement and equipment requirements before purchasing.
