Forward-Curved Centrifugal Design

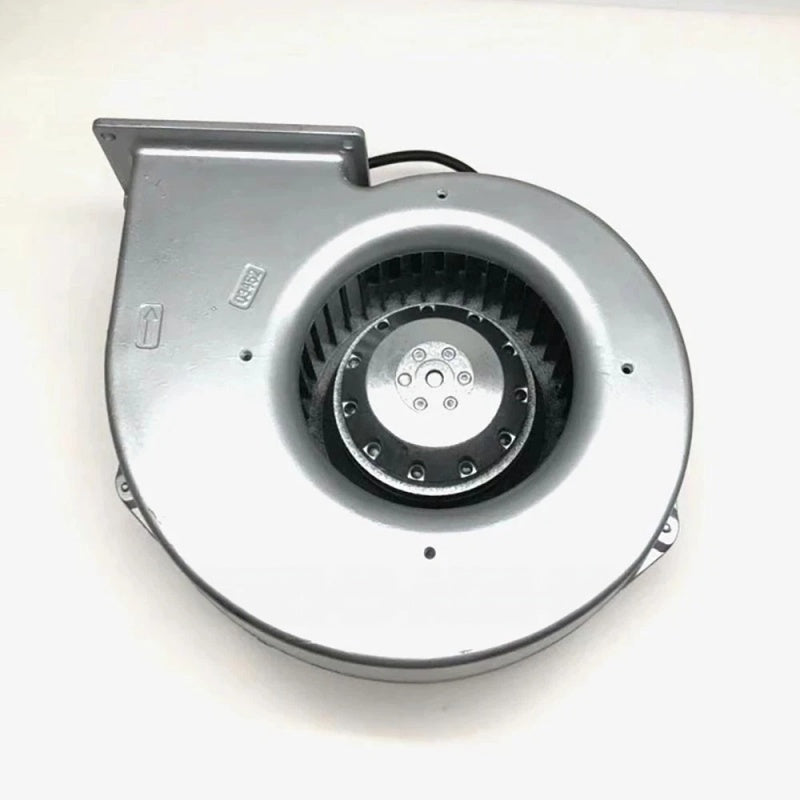

The G2E140-AI28-01 is an Ebmpapst AC centrifugal fan with a forward-curved, single-inlet impeller and integrated housing flange.
Ebmpapst G2E140-AI28-01 Fan 230 VAC 160/205 W 2400/2350 RPM
Available in stock (200)
Regular price
$349.51
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | G2E140-AI28-01 |
| Product Category | Centrifugal Fan |
| Series | G2E140 |
| Fan Type | AC Centrifugal Fan |
| Motor Model | M2E068-DF |
| Phase | 1-Phase |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 160 W at 50 Hz / 205 W at 60 Hz |
| Current Draw | 0.7 A at 50 Hz / 0.9 A at 60 Hz |
| Speed | 2400 RPM at 50 Hz / 2350 RPM at 60 Hz |
| Motor Capacitor | 4 µF |
| Capacitor Voltage | 400 VDB |
| Degree of Protection | IP44 |
| Bearing Type | Ball Bearing |
| Housing Material | Die-Cast Aluminum |
| Impeller Material | Galvanized Sheet Steel |
| Direction of Rotation | Clockwise, Viewed from Suction Side |
Key Features
230 VAC Operation
The manufacturer nominal data specifies a single-phase 230 VAC supply with operating ratings for both 50 Hz and 60 Hz.
160/205 W Power Input
Documented power input is 160 W at 50 Hz and 205 W at 60 Hz under free-air operating conditions.
2400/2350 RPM Speed
The documented rotational speed is 2400 RPM at 50 Hz and 2350 RPM at 60 Hz.
485/480 m³/h Airflow
Manufacturer nominal data lists free-air airflow of 485 m³/h at 50 Hz and 480 m³/h at 60 Hz.
Metal Fan Construction
The fan uses a galvanized sheet-steel impeller within a die-cast aluminum housing and incorporates a ball-bearing motor configuration.
Applications
- HVAC equipment
- Industrial equipment cooling
- Electrical cabinet ventilation
- Power electronics cooling
- Industrial machinery ventilation
- Control system thermal management
- Equipment air circulation
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst G2E140-AI28-01 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst G2E140-AI28-01?
It is a single-phase AC centrifugal fan with a forward-curved, single-inlet impeller and housing flange.
What voltage does G2E140-AI28-01 use?
The manufacturer nominal data specifies 230 VAC.
Does G2E140-AI28-01 support 50 Hz and 60 Hz?
Yes. Manufacturer technical data provides operating ratings for both frequencies.
What is the power input?
The documented power input is 160 W at 50 Hz and 205 W at 60 Hz.
What is the current draw?
The documented current draw is 0.7 A at 50 Hz and 0.9 A at 60 Hz.
What is the fan speed?
The documented speed is 2400 RPM at 50 Hz and 2350 RPM at 60 Hz.
What is the airflow?
Manufacturer nominal data lists 485 m³/h at 50 Hz and 480 m³/h at 60 Hz under free-air conditions.
What motor is used?
The manufacturer datasheet identifies the motor as M2E068-DF.
What capacitor is specified?
The documented motor capacitor is 4 µF with a capacitor voltage rating of 400 VDB.
What is the protection rating?
Published exact-model technical data identifies IP44 protection.
What materials are used?
The fan uses a galvanized sheet-steel impeller and a die-cast aluminum housing.
What should be checked before ordering G2E140-AI28-01?
Check the complete model number, 230 VAC supply, 50/60 Hz frequency, electrical ratings, airflow requirement, housing dimensions and mounting arrangement before purchasing.
