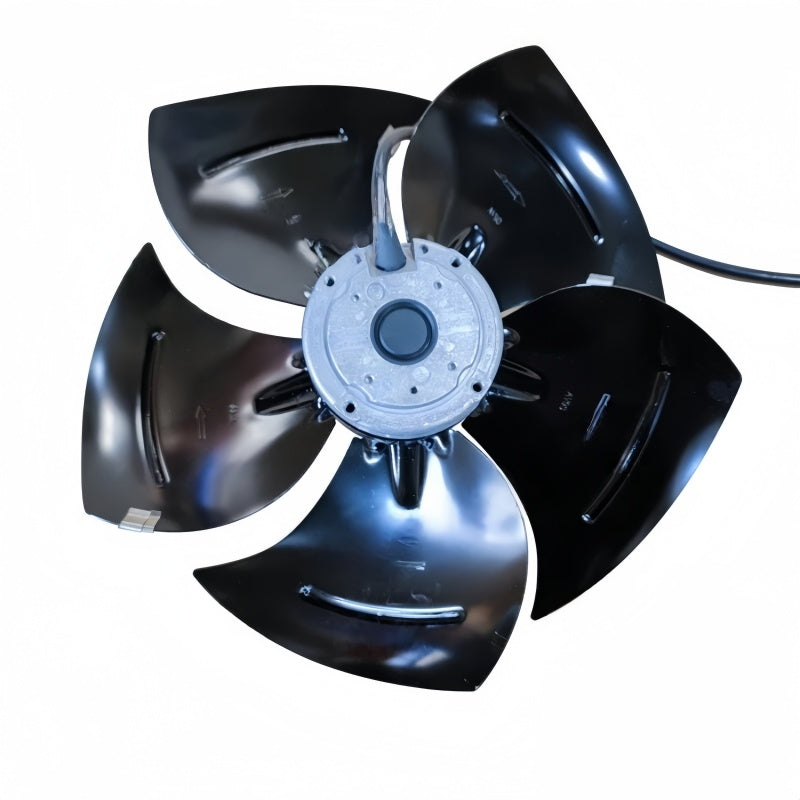

Ebmpapst A4D350-AP08-16 Axial Fan 230/400VAC 350mm 130/180W

Ebmpapst A4D350-AP08-16 Axial Fan 230/400VAC 350mm 130/180W

Fast Quote
Global Shipping
Bulk Order Support

Available in stock (200)

$247.35

Shipping calculated at checkout.

Bulk Purchase Inquiry

In Stock
Free Returns And Exchanges Within 30 days
Bulk purchases are eligible for price discounts.

Brand	Ebmpapst
Model Number	A4D350-AP08-16
Product Category	Axial Fan
Fan Type	AC Axial Fan with Sickle-Shaped Blades
Motor Model	M4D074-DF
Fan Size	350 mm
Phase	3-Phase
Rated Voltage	230/400 VAC
Connection	Delta at 230 VAC / Star at 400 VAC
Frequency	50/60 Hz
Power Input	130 W at 50 Hz / 180 W at 60 Hz
Rated Current at 400 VAC	0.35 A at 50 Hz / 0.34 A at 60 Hz
Speed	1410 RPM at 50 Hz / 1600 RPM at 60 Hz
Maximum Air Flow at 400 VAC 50 Hz	3280 m³/h
Maximum Back Pressure	90 Pa
Blade Material	Sheet Steel, Coated Black
Degree of Protection	IP44
Bearing Type	Ball Bearing

Key Features

350 mm Axial Design

The A4D350-AP08-16 is a three-phase AC axial fan with a 350 mm impeller and sickle-shaped blade design.

230/400 VAC Configuration

The motor supports 230 VAC delta and 400 VAC star connection with documented ratings for both 50 Hz and 60 Hz.

130/180 W Power Input

Manufacturer nominal data specifies 130 W at 50 Hz and 180 W at 60 Hz.

1410/1600 RPM Speed

The documented nominal speed is 1410 RPM at 50 Hz and 1600 RPM at 60 Hz.

3280 m³/h Airflow

Manufacturer performance data records 3280 m³/h at 400 VAC, 50 Hz and zero static pressure.

IP44 Protection

Published technical data specifies IP44 protection and a ball-bearing motor configuration.

Applications

Industrial equipment cooling
Condenser cooling systems
Refrigeration equipment ventilation
HVAC equipment
Heat exchanger airflow
Industrial machinery cooling
Electrical equipment ventilation
Axial fan system maintenance

Purchase Information

We support online purchase of the Ebmpapst A4D350-AP08-16 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Ebmpapst A4D350-AP08-16?
It is a three-phase AC axial fan with a 350 mm impeller and sickle-shaped blades.

What voltage does A4D350-AP08-16 use?
Manufacturer data specifies 230 VAC with delta connection and 400 VAC with star connection.

What frequency does A4D350-AP08-16 support?
The documented operating frequencies are 50 Hz and 60 Hz.

What is the power input?
The nominal power input is 130 W at 50 Hz and 180 W at 60 Hz.

What is the current at 400 VAC?
The documented current is 0.35 A at 50 Hz and 0.34 A at 60 Hz with star connection.

What is the fan speed?
The documented speed is 1410 RPM at 50 Hz and 1600 RPM at 60 Hz.

What is the maximum airflow?
Manufacturer performance data records 3280 m³/h at 400 VAC, 50 Hz and zero static pressure.

What is the maximum back pressure?
The manufacturer nominal data specifies 90 Pa.

What is the fan size?
The documented fan size is 350 mm.

What motor is used?
The manufacturer datasheet identifies the motor as M4D074-DF.

What is the protection rating?
Published technical data specifies IP44 protection.

What should be checked before ordering A4D350-AP08-16?
Check the complete model number, 230/400 VAC three-phase supply, delta or star connection, frequency, 350 mm fan size, electrical ratings, airflow requirement and mounting arrangement before purchasing.
