24 VDC Operation
Rated voltage of 24 VDC with a current draw of 0.45 A for standard industrial DC power systems.

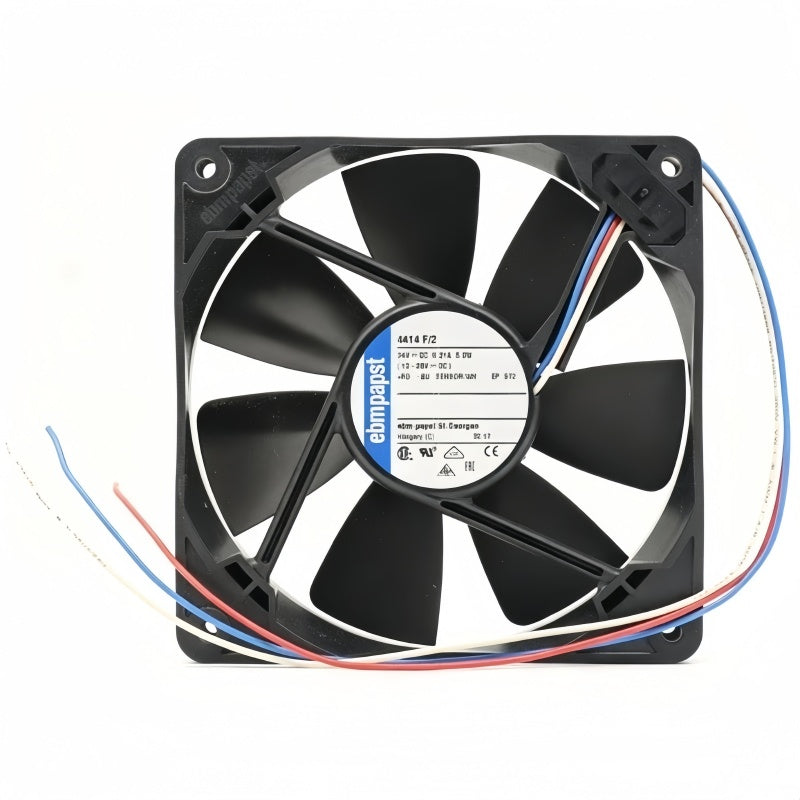

Ebmpapst 4414F/2 DC Fan 24VDC 119x119x38mm
Available in stock (200)
Regular price
$23.88
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4414F/2 |
| Product Category | DC Fan |
| Fan Type | Axial Fan |
| Rated Voltage | 24 VDC |
| Rated Current | 0.45 A |
| Power Input | 10.8 W |
| Speed | 3500 RPM |
| Air Flow | 103 CFM (175 m³/h) |
| Dimensions | 119 x 119 x 38 mm |
| Bearing Type | Ball Bearing |
| Protection Rating | IP20 |
Key Features
103 CFM Airflow
Capable of delivering 103 CFM (175 m³/h) airflow for effective cooling of industrial equipment.
Ball Bearing Construction
Ball bearing design provides reliable operation over the specified temperature range.
Axial Fan Design
Axial configuration provides airflow parallel to the fan axis for equipment ventilation applications.
IP20 Protection Rating
IP20 rated housing provides protection against solid objects larger than 12.5 mm.
119 x 119 x 38 mm Frame
Standard 119 mm square frame with 38 mm depth for compatibility with common fan mounting configurations.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control cabinet thermal management
- Power supply cooling
- Industrial machinery ventilation
- Rack and enclosure cooling
- HVAC equipment
- Automation system cooling
Purchase Information
We support online purchase of the Ebmpapst 4414F/2 DC Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst 4414F/2?
Ebmpapst 4414F/2 is a 24 VDC axial fan from the 4400 series product family, with a 119 x 119 x 38 mm frame size.
What is the voltage rating of 4414F/2?
The fan has a rated voltage of 24 VDC.
What is the current draw of 4414F/2?
The rated current is 0.45 A.
What is the power input of 4414F/2?
The power input is 10.8 W.
What is the airflow rating of 4414F/2?
The fan provides 103 CFM (175 m³/h) of airflow.
What are the dimensions of 4414F/2?
The dimensions are 119 x 119 x 38 mm.
What bearing type does 4414F/2 use?
The fan uses ball bearings.
What is the operating temperature range of 4414F/2?
The operating temperature range is -20°C to +70°C.
What is the protection rating of 4414F/2?
The IP rating is IP20.
What applications can 4414F/2 be considered for?
The fan can be considered for cooling industrial equipment, electrical cabinets, control panels, power supplies, and industrial machinery after mechanical and electrical requirements have been verified.
What should be checked before ordering 4414F/2?
Check the complete catalog number, voltage, current, airflow, dimensions, mounting configuration, and operating temperature requirements before ordering.
What should be verified before using 4414F/2 in an existing system?
Electrical supply voltage, current capacity, mounting dimensions, and airflow requirements should be verified against the existing system before installation.
