14 mm Sensing Distance
The E2E-X14MD1-M1G provides a documented sensing distance of 14 mm ±10% for ferrous-metal detection.

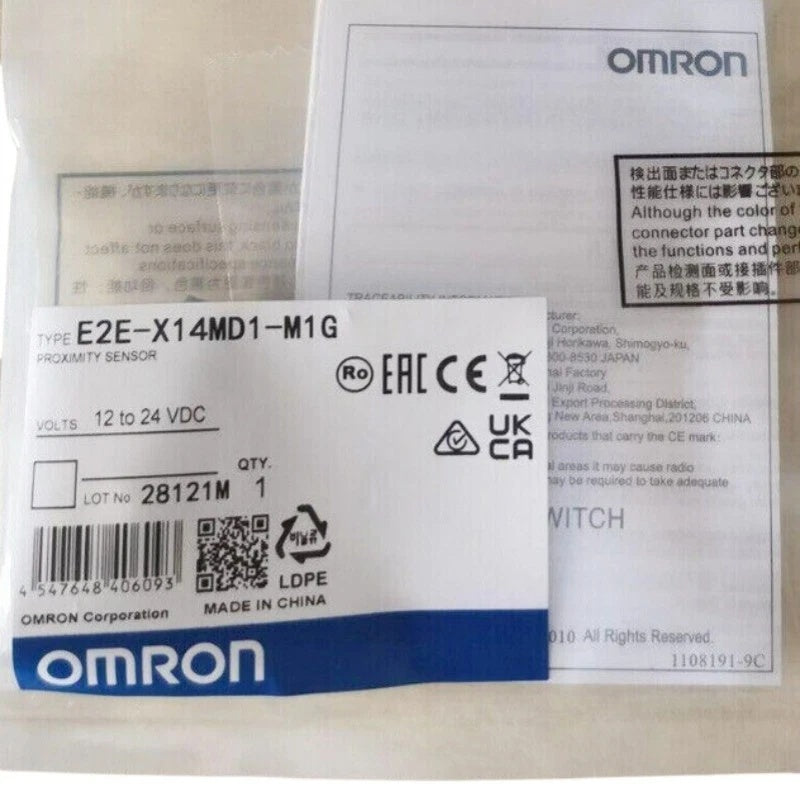

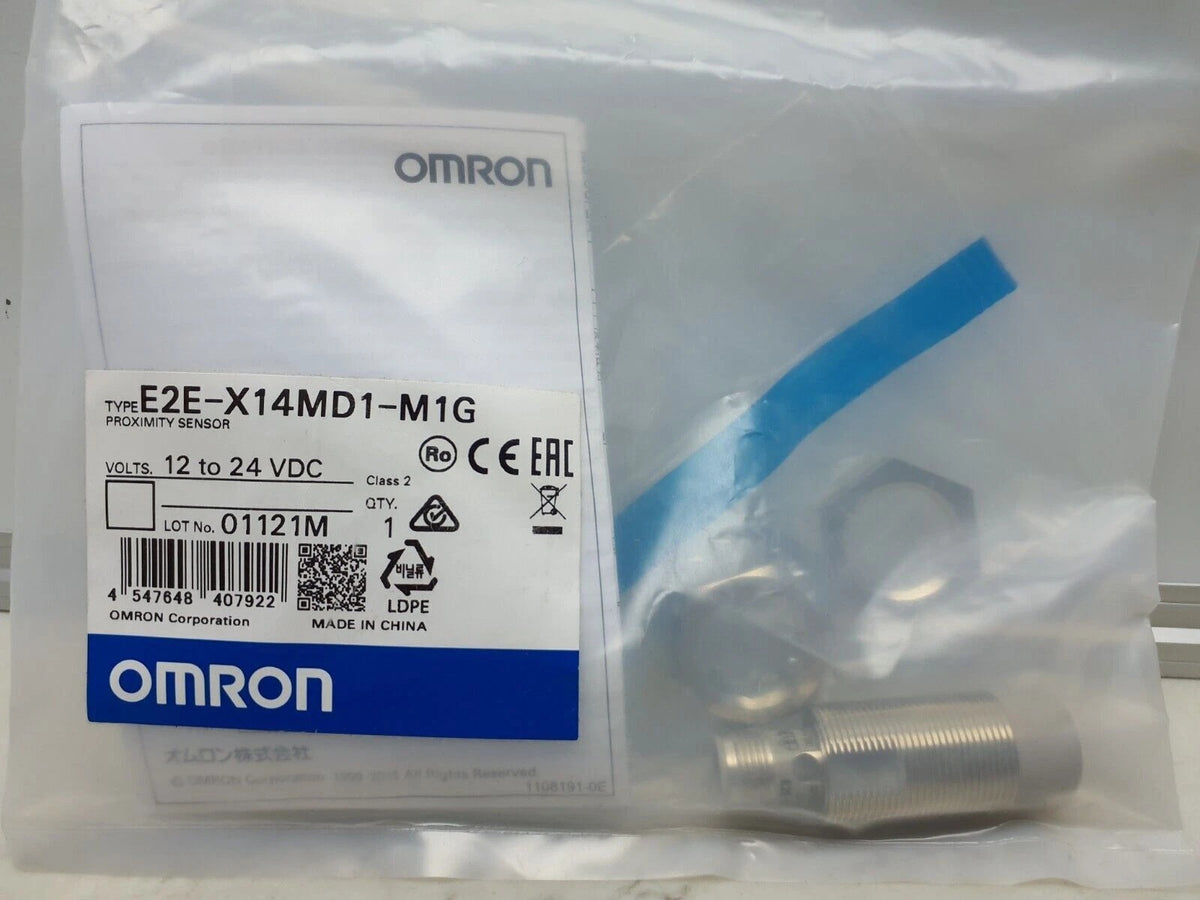

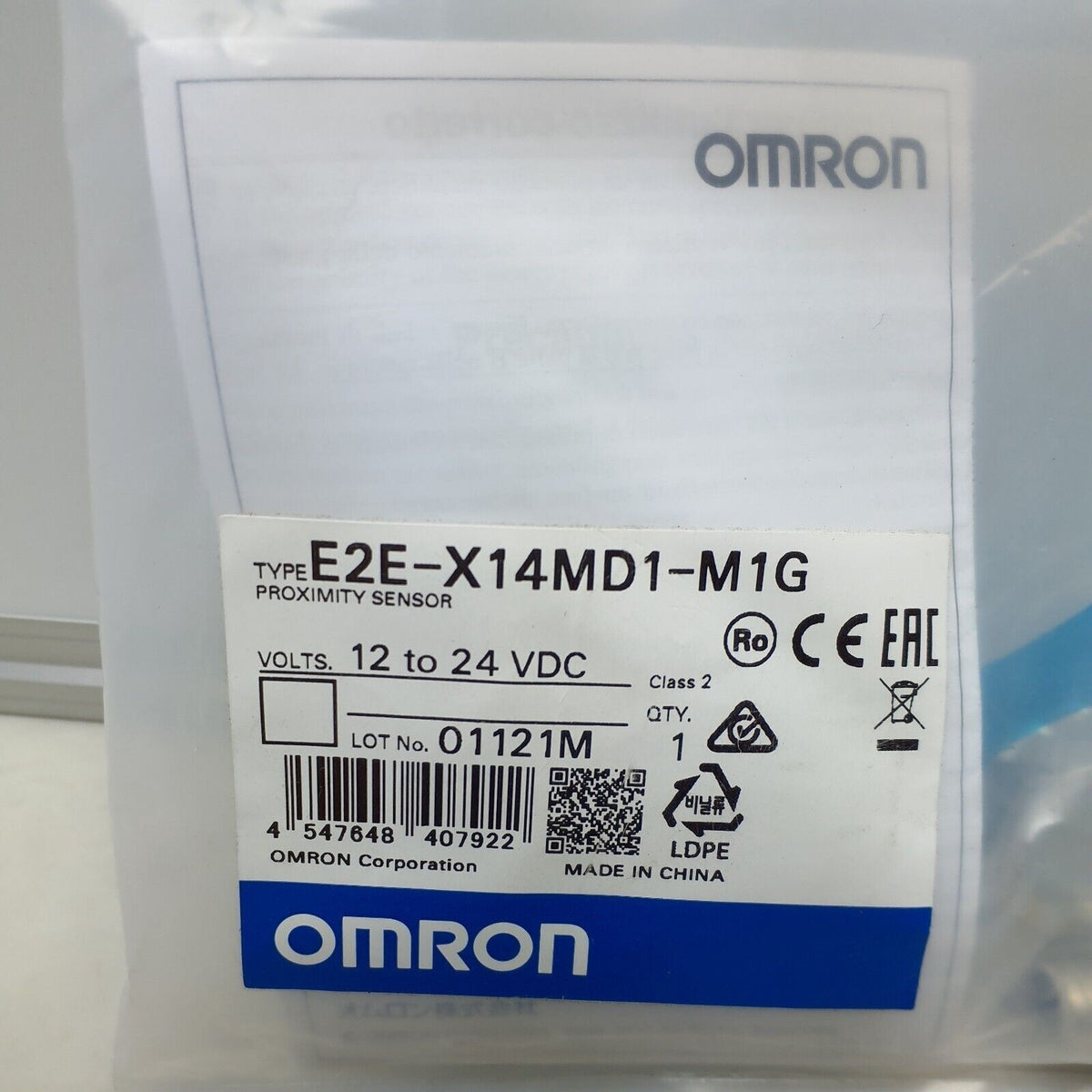

Omron E2E-X14MD1-M1G Proximity Sensor 14mm NO 10-30VDC M18
Available in stock (200)
Regular price
$16.30
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | E2E-X14MD1-M1G |
| Product Category | Proximity Sensor |
| Series | E2E NEXT |
| Sensor Type | Inductive |
| Body Size | M18 |
| Body Type | Cylindrical Threaded, Unshielded |
| Sensing Distance | 14 mm ±10% |
| Setting Distance | 0 to 11.2 mm |
| Detectable Object | Ferrous Metal |
| Standard Sensing Object | Iron, 30 × 30 × 1 mm |
| Power Supply | DC 2-Wire |
| Operating Voltage | 10 to 30 VDC |
Key Features
M18 Unshielded Body
The sensor uses a cylindrical threaded M18 body with an unshielded sensing configuration.
DC 2-Wire NO Output
The E2E-X14MD1-M1G uses a polarized DC two-wire circuit with normally open operation.
10 to 30 VDC Operation
The documented operating voltage range is 10 to 30 VDC with ripple within the specified limit.
M12 Connector
The -M1G configuration uses an M12 connector with IEC pin arrangement for electrical connection.
400 Hz Response Frequency
The documented response frequency is 400 Hz for the E2E-X14MD1-M1G configuration.
Applications
- Ferrous metal object detection
- Machine position sensing
- Conveyor object detection
- Industrial automation equipment
- Machine tool position detection
- Material handling systems
- Assembly equipment sensing
- Production line position monitoring
Purchase Information
We support online purchase of the Omron E2E-X14MD1-M1G Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron E2E-X14MD1-M1G?
Omron E2E-X14MD1-M1G is an E2E NEXT inductive proximity sensor with an M18 unshielded body, 14 mm sensing distance and M12 connector.
What is the sensing distance?
The documented sensing distance is 14 mm ±10%.
What is the setting distance?
The documented setting distance is 0 to 11.2 mm.
What type of objects can it detect?
The sensor is specified for ferrous-metal detection. The sensing distance decreases when detecting non-ferrous metals.
What is the output mode?
E2E-X14MD1-M1G uses a polarized DC two-wire circuit with normally open operation.
What is the operating voltage?
The documented operating voltage range is 10 to 30 VDC.
What is the load current range?
The documented control-output load current is 3 to 100 mA.
What is the response frequency?
The documented response frequency is 400 Hz.
What connector does E2E-X14MD1-M1G use?
It uses an M12 connector with IEC pin arrangement.
What indicators are provided?
The D1 configuration has an orange operation indicator and a green setting indicator.
What is the protection rating?
The documented enclosure protection rating is IP67.
What should be checked before ordering E2E-X14MD1-M1G?
Check the complete E2E-X14MD1-M1G model number, 14 mm sensing distance, M18 unshielded body, DC two-wire normally open operation, 10 to 30 VDC operating range and M12 IEC connector arrangement before purchasing.
