2A Current Rating
The EDCC 2 ampere catalog rating is specified for branch-circuit overcurrent protection applications.

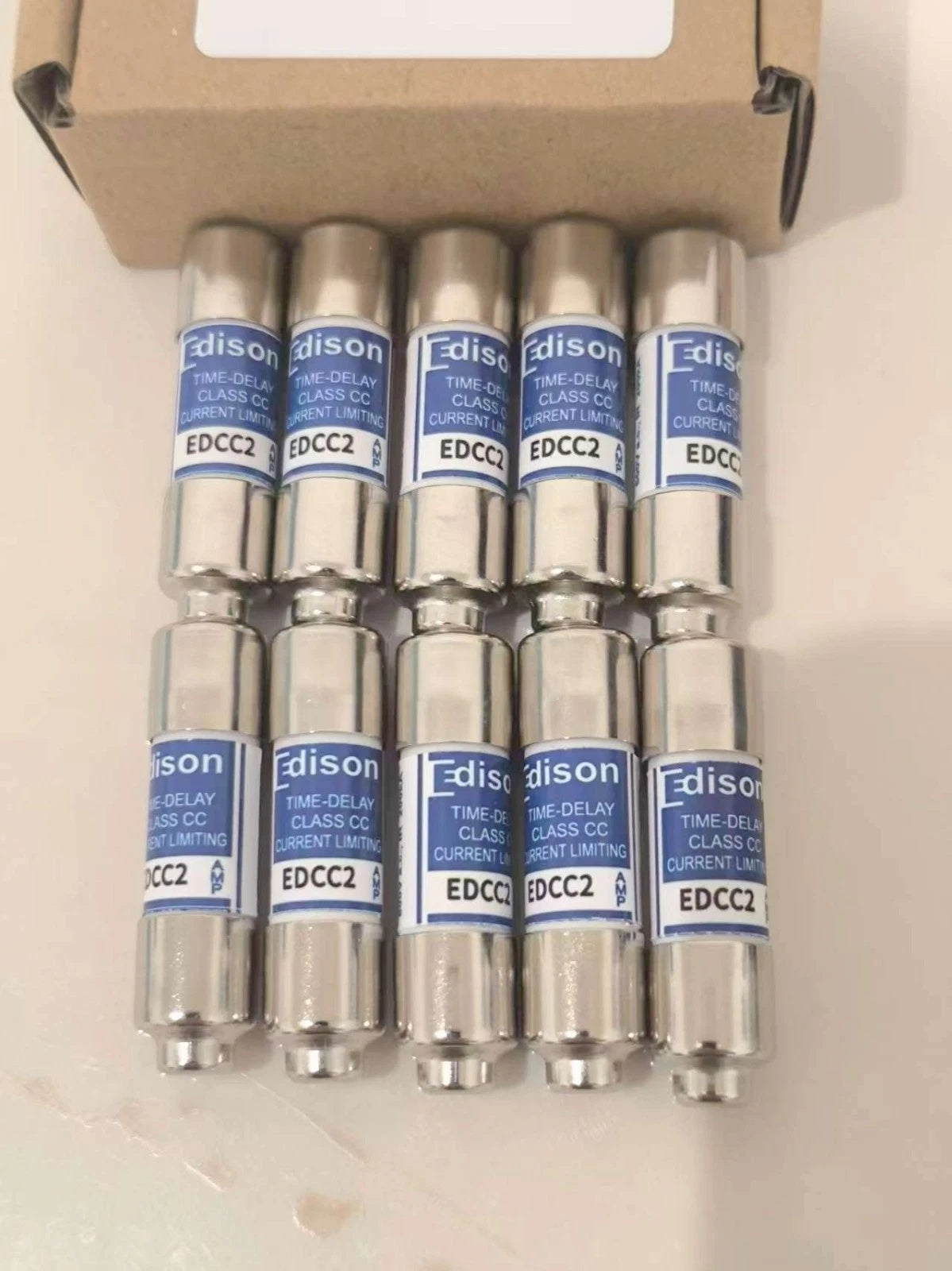

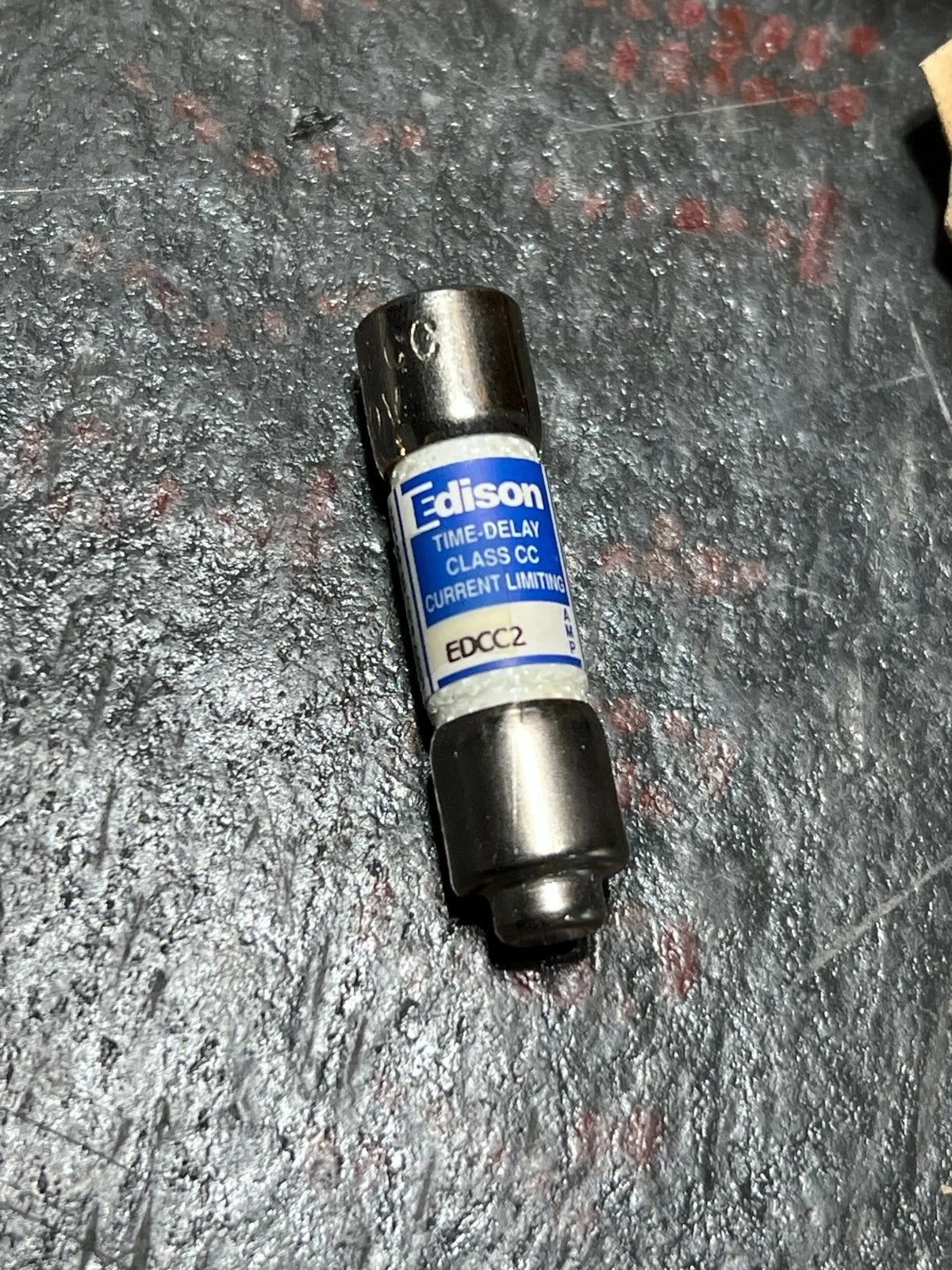

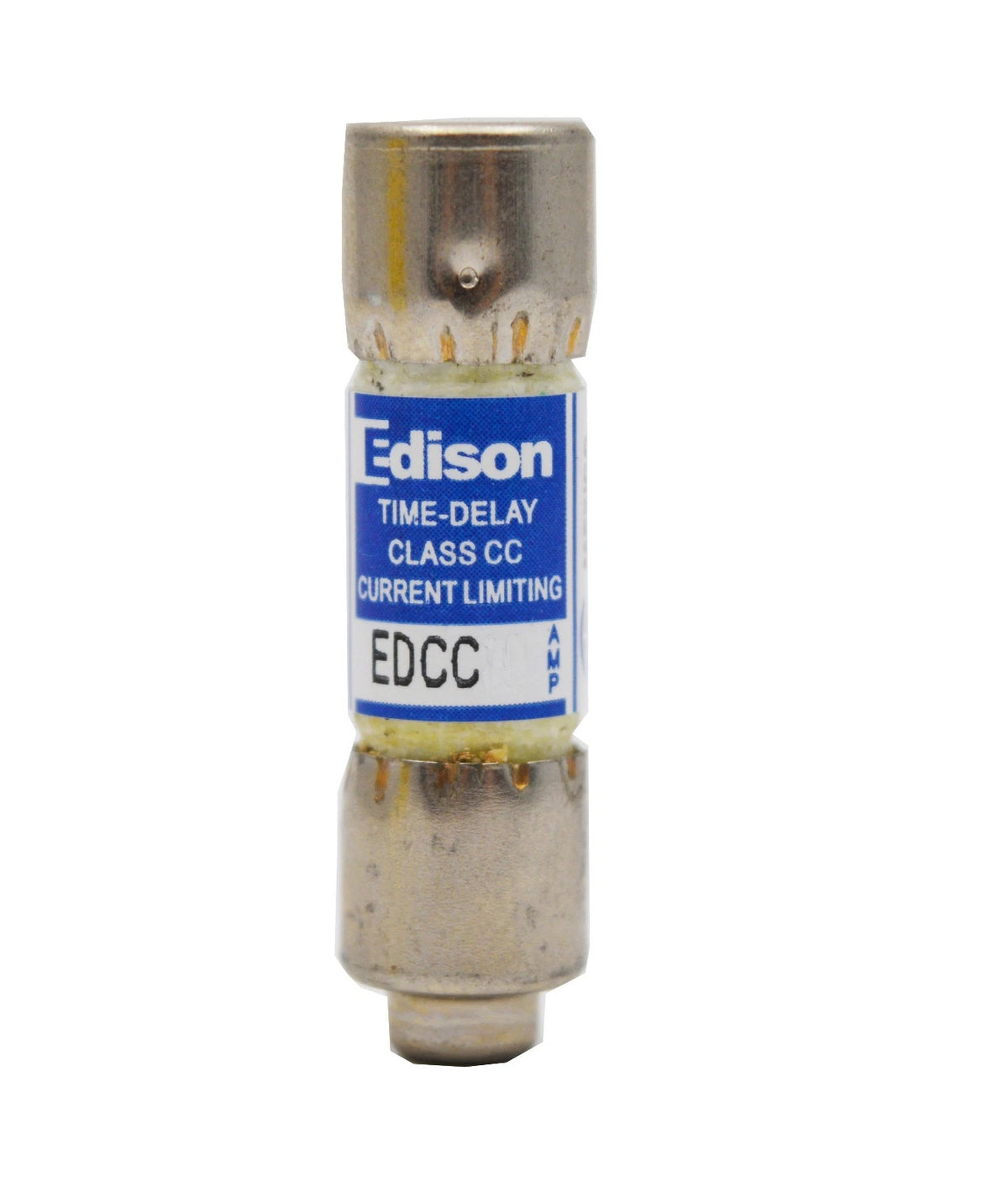

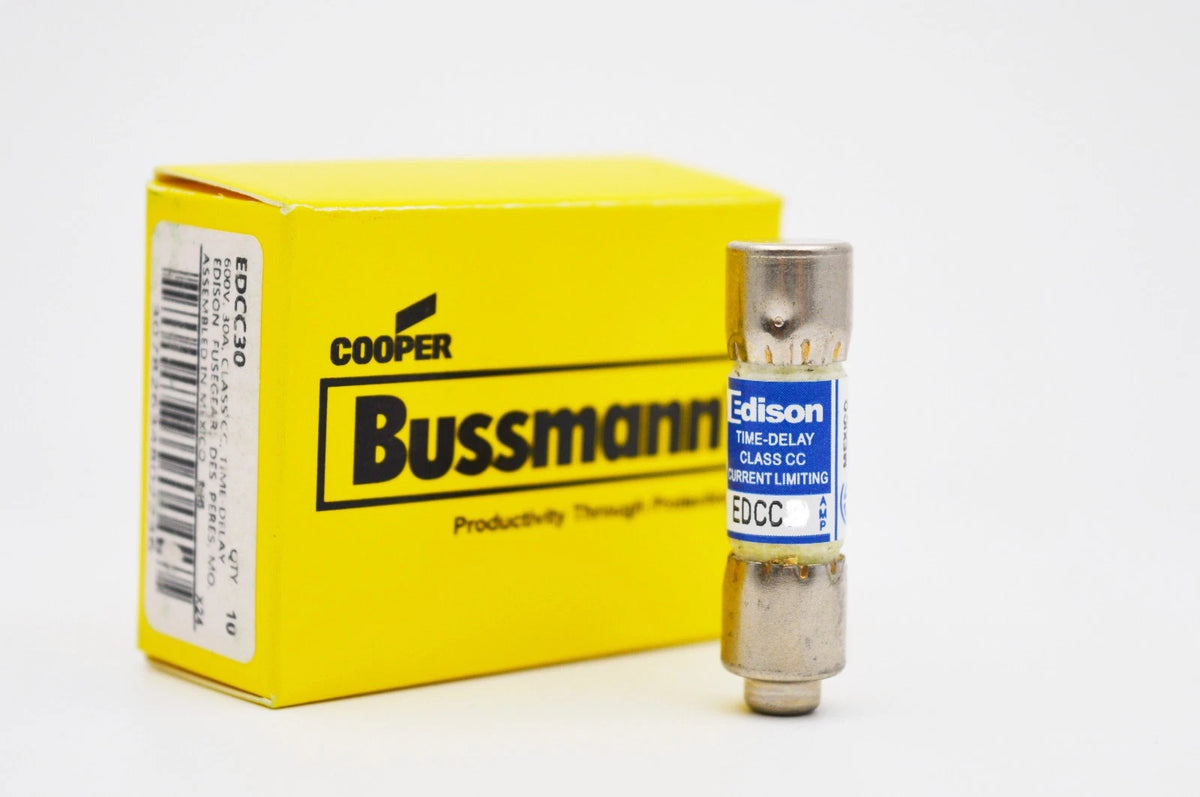

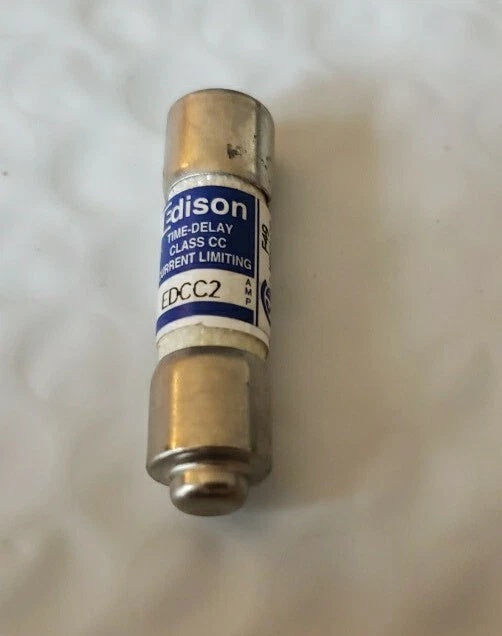

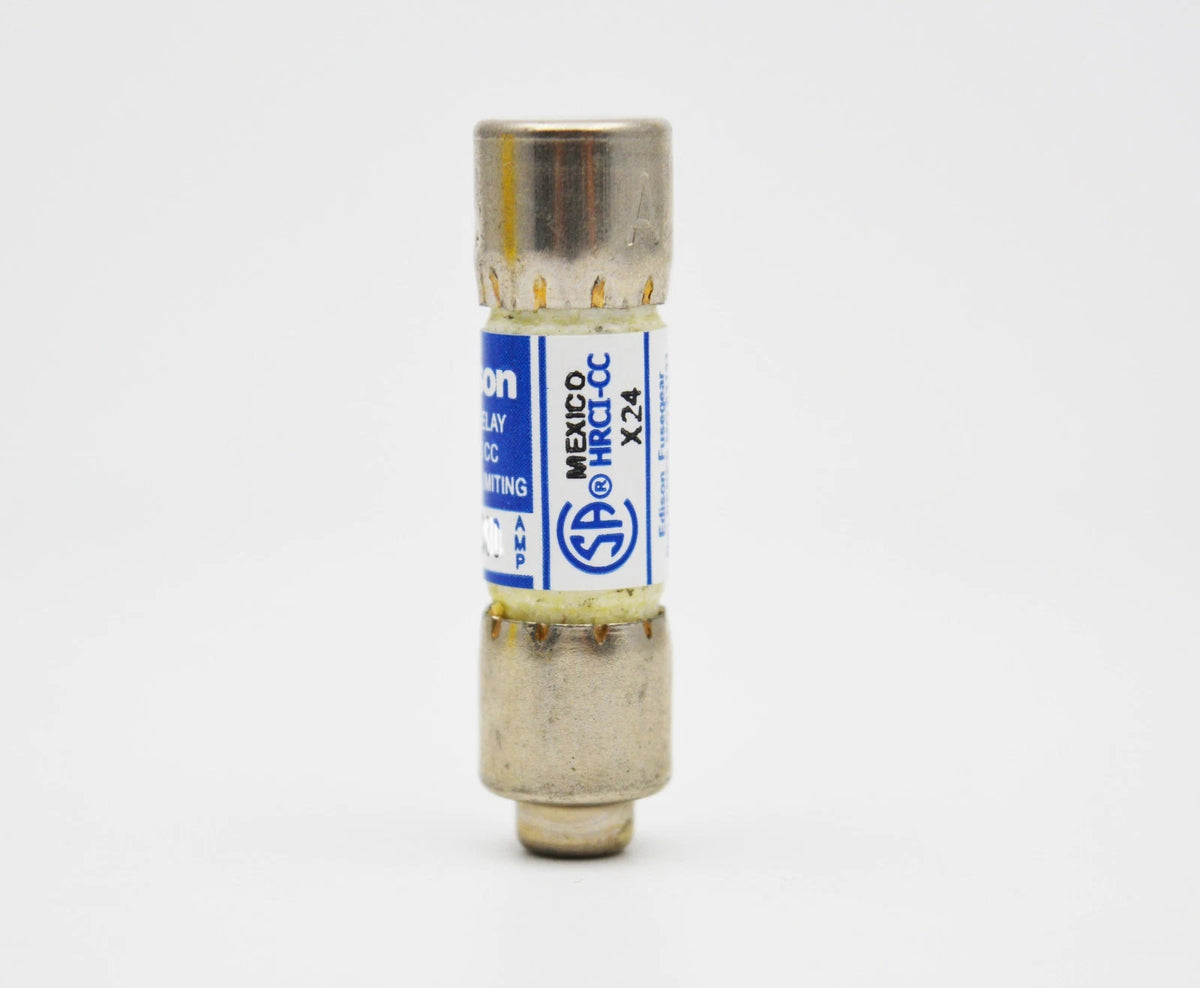

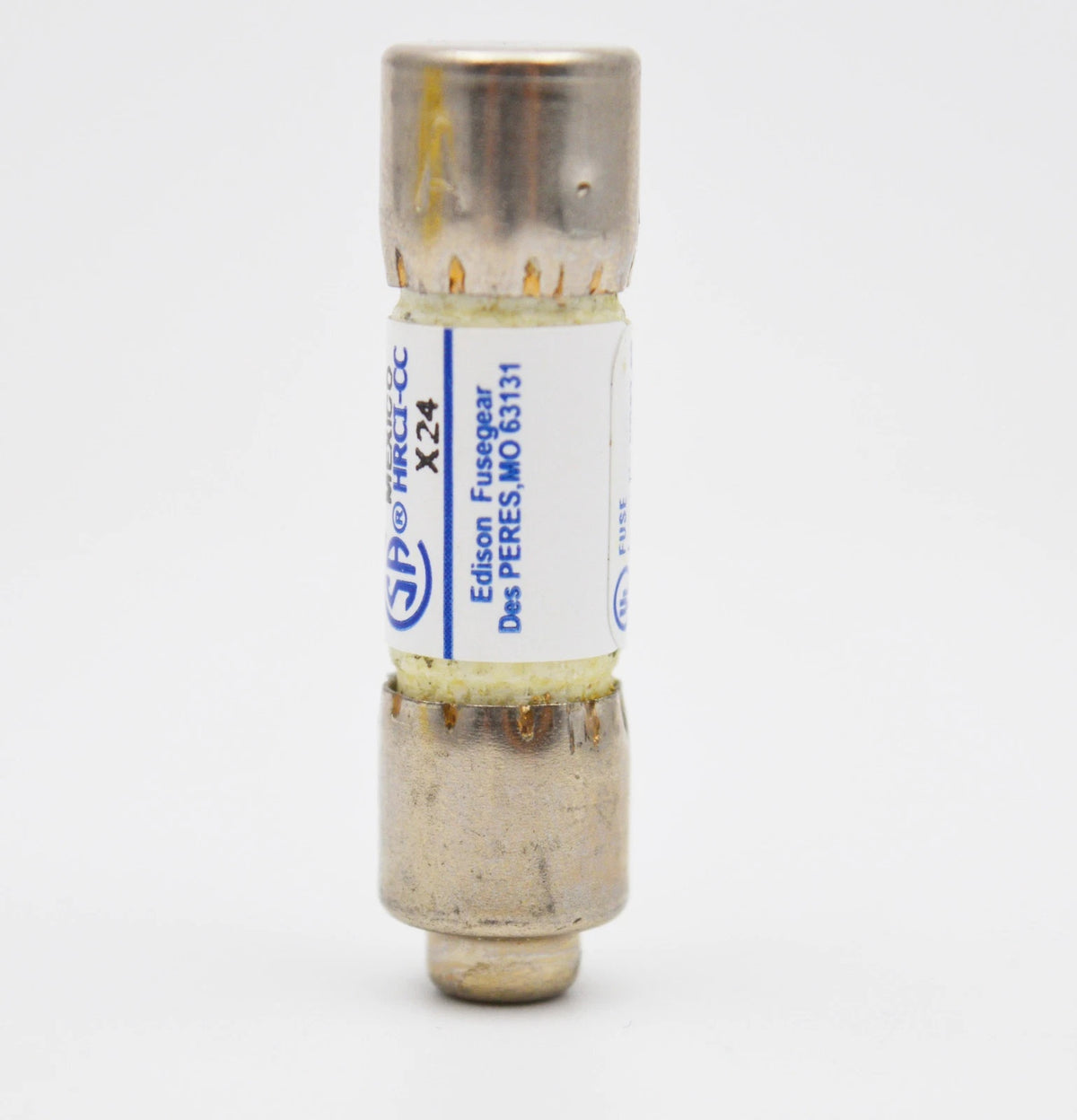

Bussmann EDCC-2 Class CC Time-Delay Fuse 2A 600VAC 300VDC
Available in stock (2000)
Regular price
$8.53
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | EDCC-2 |
| Product Category | Class CC Time-Delay Fuse |
| Current Rating | 2 A |
| Voltage Rating | 600 VAC / 300 VDC |
| Fuse Class | Class CC |
| Interrupting Rating | 200 kA RMS Symmetrical |
| Fuse Type | Time-Delay |
| Indicator | Non-Indicating |
| Dimensions | 0.41 in diameter × 1.5 in length |
Key Features
600VAC / 300VDC Rating
Published EDCC data identifies a 600 VAC rating and a 300 VDC rating for this Class CC fuse.
Time-Delay Operation
The EDCC series uses time-delay characteristics to withstand temporary surge currents while providing overcurrent protection.
Class CC Format
EDCC is a current-limiting Class CC fuse series intended for Class CC fuse applications.
200kA Interrupting Rating
The EDCC series is specified with a maximum 200 kA RMS symmetrical interrupting rating.
Non-Indicating Design
Eaton product information identifies the EDCC2 catalog item as a non-indicating fuse.
Applications
- Branch circuit protection
- Motor control circuits
- Small horsepower motor circuits
- Electrical distribution equipment
- OEM electrical equipment
- Control panels using Class CC fuse protection
- Circuits subject to temporary surge currents
- Overcurrent and short-circuit protection
Purchase Information
We support online purchase of the Bussmann EDCC-2 Class CC Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann EDCC-2?
Bussmann EDCC-2 is a 2 A Class CC time-delay fuse in the EDCC fuse series.
What is the current rating of EDCC-2?
The current rating is 2 A.
What voltage ratings apply to EDCC-2?
Published product information specifies 600 VAC and 300 VDC ratings.
What fuse class is EDCC-2?
EDCC-2 is a Class CC fuse.
Is EDCC-2 a time-delay fuse?
Yes. The EDCC series is specified as a Class CC time-delay fuse series.
What is the interrupting rating?
Published EDCC series data specifies a maximum interrupting rating of 200 kA RMS symmetrical.
Does EDCC-2 have a fuse indicator?
Eaton product information identifies the EDCC2 catalog item as non-indicating.
What are the physical dimensions?
Published EDCC series data lists a diameter of 0.41 in and a length of 1.5 in.
What applications can EDCC-2 be considered for?
It can be considered for Class CC branch-circuit protection, motor control circuits, electrical distribution equipment, and OEM electrical equipment after the circuit requirements have been checked.
Can EDCC-2 be used in motor circuits?
The EDCC series is documented for motor protection applications, including small horsepower motor circuits. Fuse sizing and coordination should be checked for the specific circuit.
What should be verified before using EDCC-2 in an existing system?
Verify the complete catalog number, 2 A current rating, voltage rating, Class CC fuse requirements, available fault current, fuse holder, and applicable circuit-protection requirements.
What should be checked before ordering EDCC-2?
Check the complete model designation and confirm that the required fuse class, current rating, voltage rating, interrupting rating, and physical format match the application requirements.
