10 A Current Rating
Rated for 10 A continuous current, suitable for branch circuit and control power protection applications.

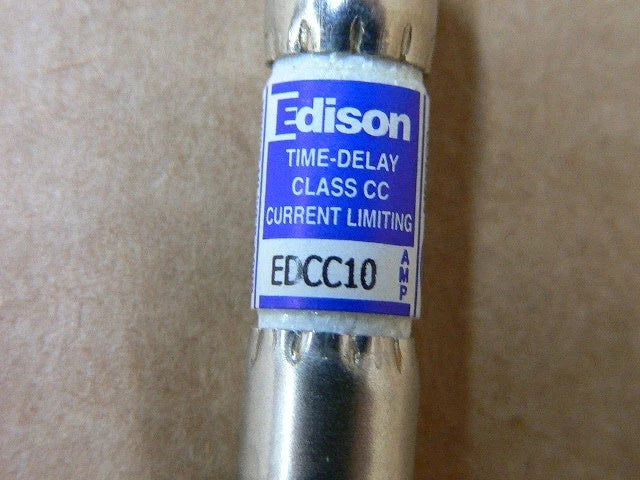

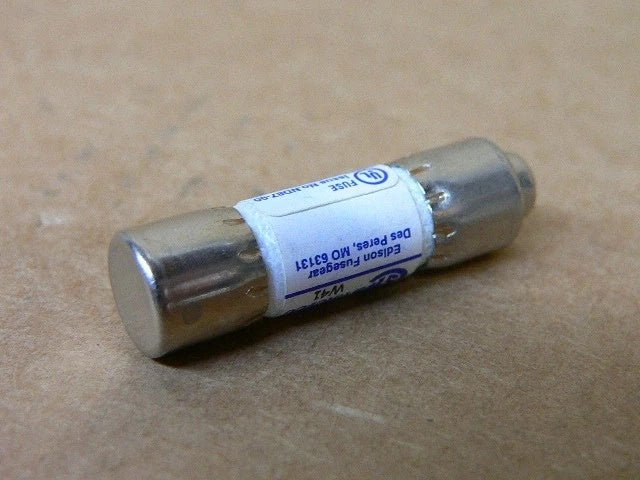

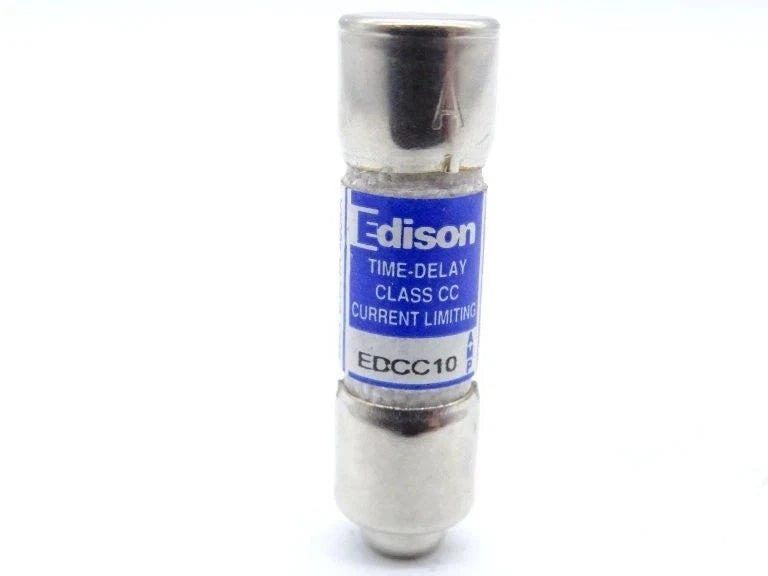

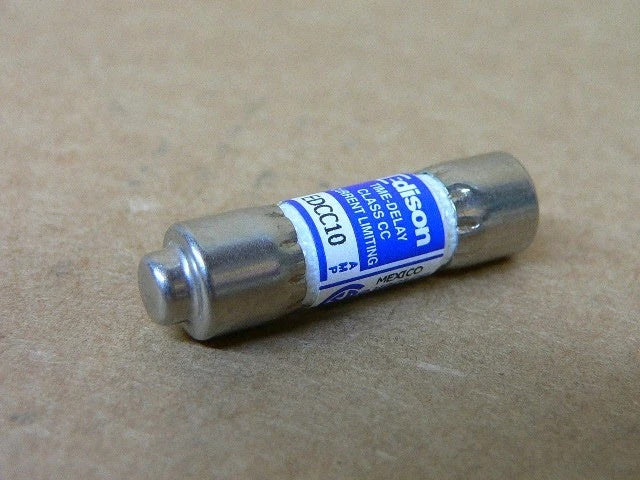

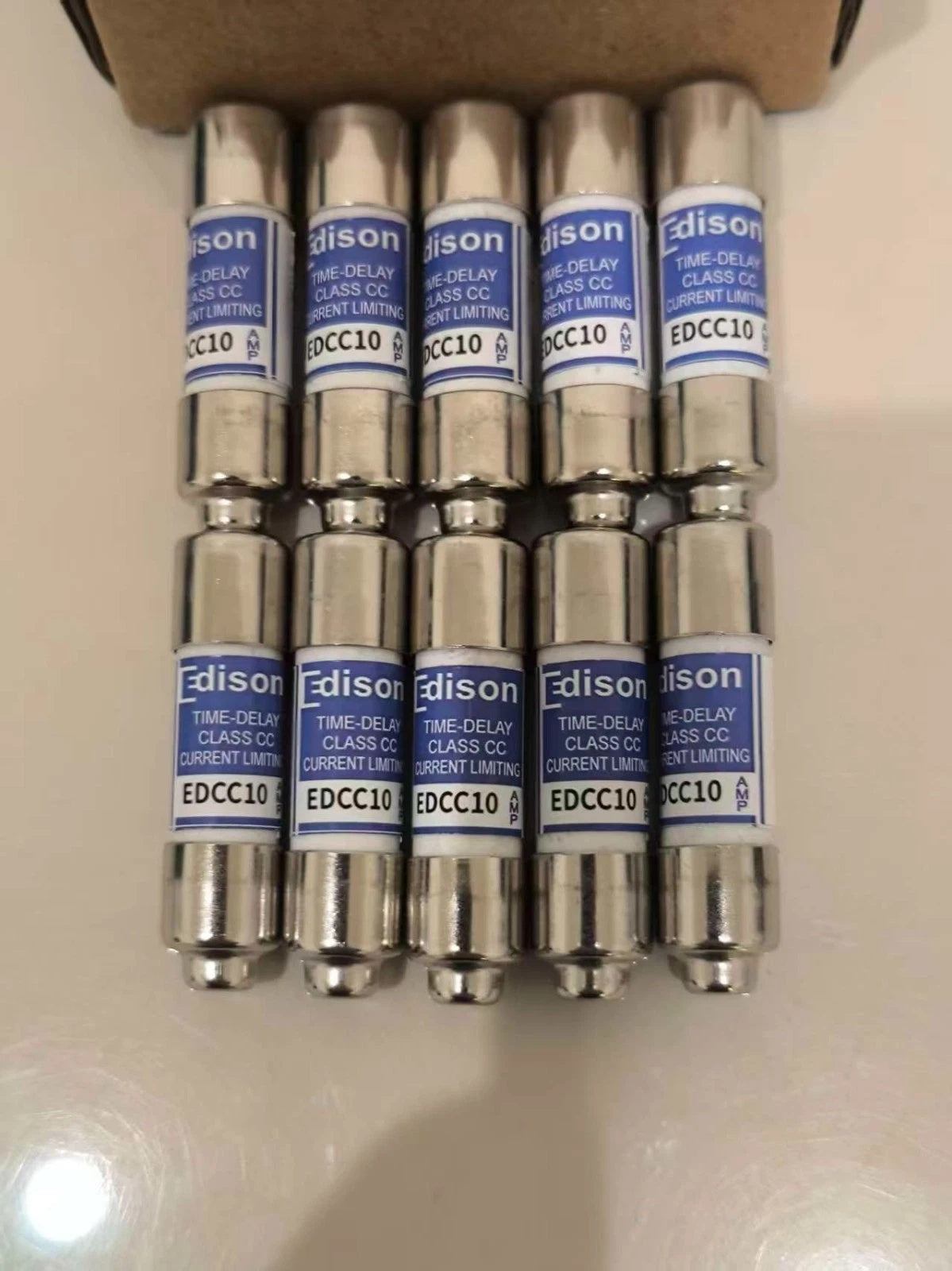

Bussmann EDCC-10 Class CC Time-Delay Fuse 10A 600VAC/300VDC
Available in stock (2000)
Regular price
$8.53
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | EDCC-10 |
| Product Category | Class CC Time-Delay Fuse |
| Current Rating | 10 A |
| Voltage Rating | 600 VAC / 300 VDC |
| Interrupting Rating | 200 kA (AC), 100 kA (DC) |
| Time-Delay Type | Dual Element |
| Class | Class CC |
| Dimensions | 13/16 in x 1-1/2 in (Diameter x Length) |
Key Features
600 VAC / 300 VDC Voltage Rating
Listed with voltage ratings of 600 VAC and 300 VDC, offering flexibility across AC and DC circuits.
Time-Delay Dual Element
Includes dual-element time-delay construction, designed to handle temporary inrush currents without nuisance opening.
Class CC Design
Manufactured in the Class CC format, a compact 10 x 38 mm style fuse for industrial control panels and OEM equipment.
High Interrupting Capacity
Provides interrupting ratings of 200 kA for AC circuits and 100 kA for DC circuits, supporting high-fault-current applications.
Rejection-Type Construction
Features rejection-type construction to prevent improper replacement with fuses of different current or voltage ratings.
Applications
- Branch circuit protection
- Control panel power protection
- Machine tool circuits
- Motor branch circuit protection
- Industrial control transformer protection
- Power supply input protection
- General industrial electrical distribution
- OEM equipment protection
Purchase Information
We support online purchase of the Bussmann EDCC-10 Class CC Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann EDCC-10?
Bussmann EDCC-10 is a 10 A Class CC time-delay fuse designed for industrial and control circuit protection.
What is the current rating of EDCC-10?
The fuse is rated for 10 A continuous current.
What is the voltage rating of EDCC-10?
EDCC-10 has a voltage rating of 600 VAC and 300 VDC.
Is EDCC-10 a time-delay fuse?
Yes. The EDCC-10 is a time-delay dual-element fuse designed to provide protection against sustained overloads while accommodating transient current surges.
What is the interrupting rating of EDCC-10?
The interrupting rating is 200 kA for AC circuits and 100 kA for DC circuits.
What is the physical size of EDCC-10?
The physical dimensions are 13/16 inch diameter and 1-1/2 inch length, matching the Class CC fuse format.
What types of applications is EDCC-10 used for?
The Bussmann EDCC-10 can be used in branch circuits, control panels, machine tools, motor branch circuits, and control transformer protection.
What should be verified before installing EDCC-10 in an existing panel?
Before installation, the complete circuit voltage, current, available fault current, and fuse holder or block compatibility should be checked against system requirements.
What should be checked before ordering EDCC-10?
Verify the required current rating, voltage rating, fuse class, physical dimensions, and rejection-type holder compatibility before placing an order.
