400 A Current Rating
The 170M5808D high speed square body fuse has a documented current rating of 400 A.

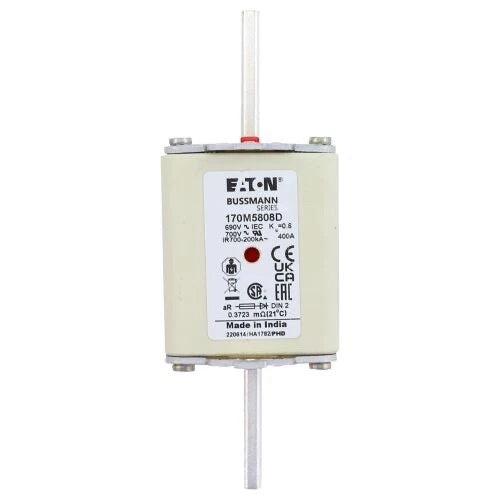

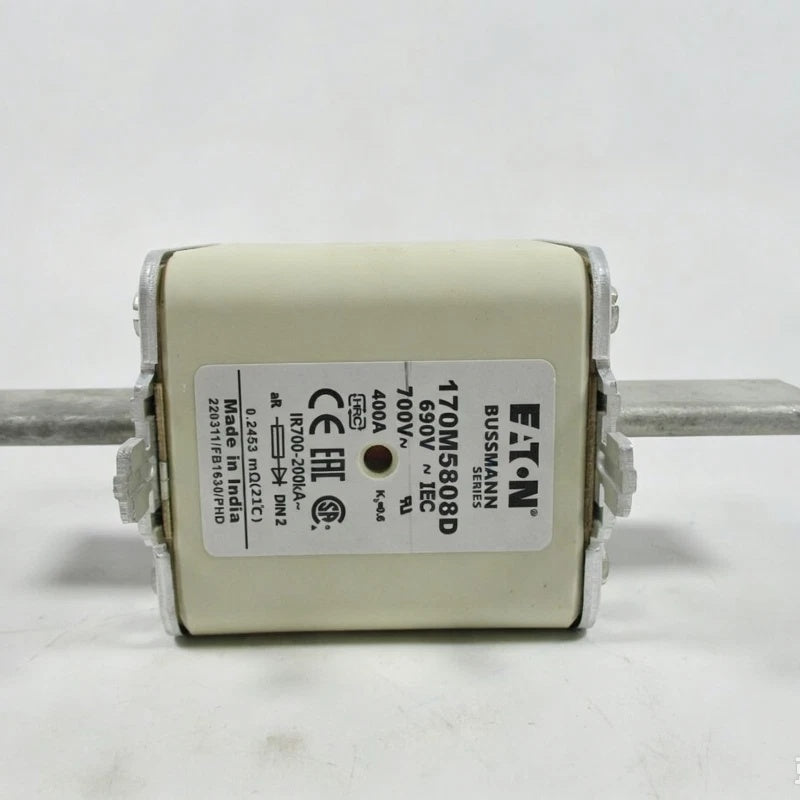

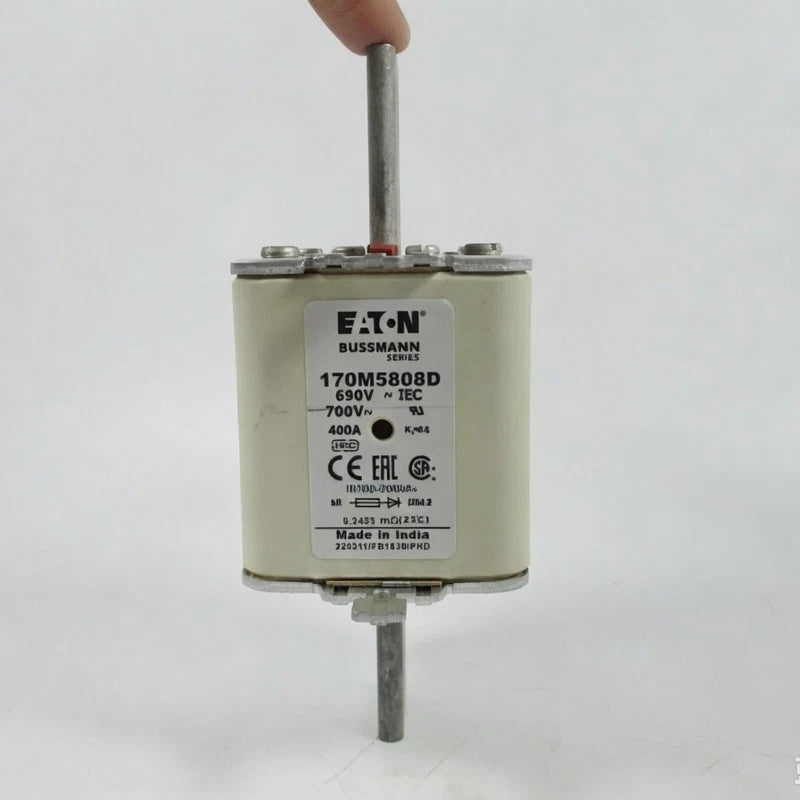

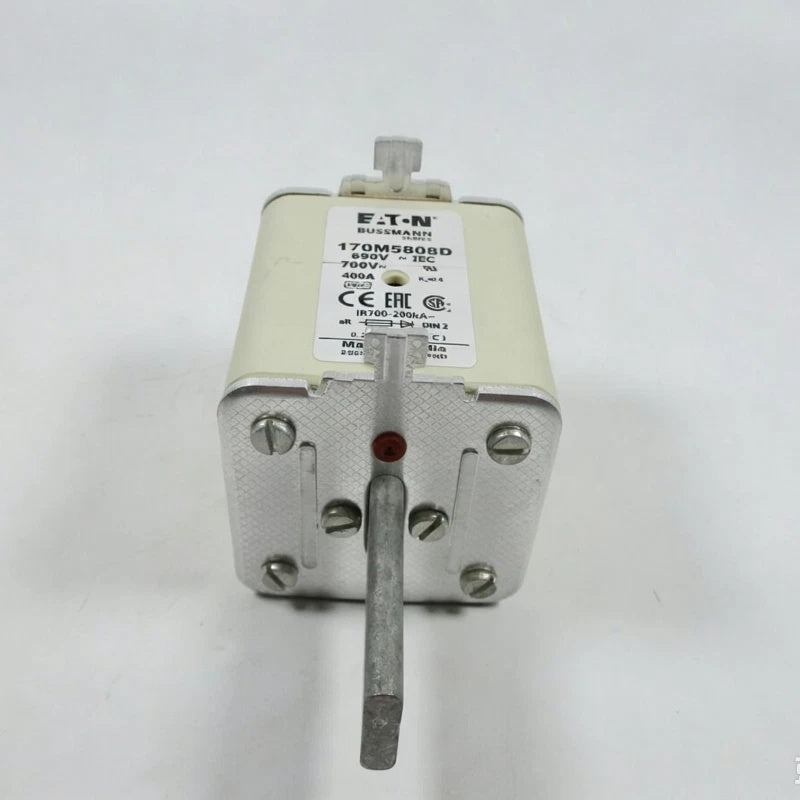

Bussmann 170M5808D High Speed Fuse 400A 690V Class aR
Available in stock (2000)
Regular price
$52.75
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | 170M5808D |
| Product Category | High Speed Fuse |
| Fuse Class | Class aR |
| Utilization Category | aR Semiconductor Protection |
| Current Rating | 400 A |
| Voltage Rating | 690 V AC IEC / 700 V AC UL |
| Breaking Capacity | 200 kA |
| Fuse Size | 2 |
| Construction Size | 2 |
| Fuse Type | DIN 43620 Bladed |
| Fuse Shape | Square Body, Knife Blade Contacts |
| Connection | DIN 43-620 Blade End × DIN 43-620 Blade End |
| Fuse Indicator | Combination Fuse Status Indicator |
| Indicator Configuration | Dual Indicator |
| Pre-Arcing I²t | 11000 |
| Clearing I²t | 79000 at 660 V |
| Watt Losses | 29 W |
| Dimensions | 150 × 54 × 72 mm |
| Product Weight | 666 g |
| Compliance | CE Marked, RoHS Compliant |
| Certifications | IEC Rated, UL Recognized |
Key Features
690 V IEC Rating
The fuse is rated at 690 V AC under IEC specifications and 700 V AC under UL specifications.
Class aR Protection
The 170M5808D has an aR utilization category for semiconductor protection applications.
200 kA Breaking Capacity
The documented breaking capacity and interrupt rating is 200 kA.
DIN Size 2 Construction
The fuse uses DIN 43620 bladed size 2 square body construction with knife blade contacts.
Dual Indicator
The 170M5808D is fitted with a dual indicator and combination fuse status indication.
Applications
- Semiconductor protection
- DC common bus systems
- DC drive systems
- Power converter protection
- Rectifier protection
- Industrial power electronics
Purchase Information
We support online purchase of the Bussmann 170M5808D High Speed Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann 170M5808D?
Bussmann 170M5808D is a high speed square body fuse with a Class aR utilization category for semiconductor protection.
What is the current rating of 170M5808D?
The documented current rating is 400 A.
What is the voltage rating of 170M5808D?
The documented rating is 690 V AC under IEC specifications and 700 V AC under UL specifications.
What fuse class is 170M5808D?
The documented fuse class is Class aR.
What is the breaking capacity of 170M5808D?
The documented breaking capacity is 200 kA.
What fuse size is 170M5808D?
The documented fuse and construction size is DIN size 2.
What type of fuse construction does 170M5808D use?
It uses DIN 43620 bladed square body construction with knife blade contacts.
What indicator configuration does 170M5808D use?
The fuse is fitted with a dual indicator and uses a combination fuse status indicator.
What are the dimensions of 170M5808D?
The documented dimensions are 150 mm length, 54 mm width and 72 mm height.
What are the documented I²t values?
The documented pre-arcing I²t value is 11000 and the clearing I²t value is 79000 at 660 V.
What applications are specified for 170M5808D?
Eaton identifies semiconductor protection, DC common bus systems, DC drives, power converters and rectifiers as applications for this fuse.
What should be checked before ordering 170M5808D?
Check the complete 170M5808D catalog number, 400 A current rating, required 690 V IEC or 700 V UL AC rating, Class aR utilization category, DIN size 2 construction and equipment protection requirements before purchasing.
