USB Programming Connection
The USB-1761-CBL-PM02 provides a USB interface for computer-based programming and communication with applicable MicroLogix PLC systems.

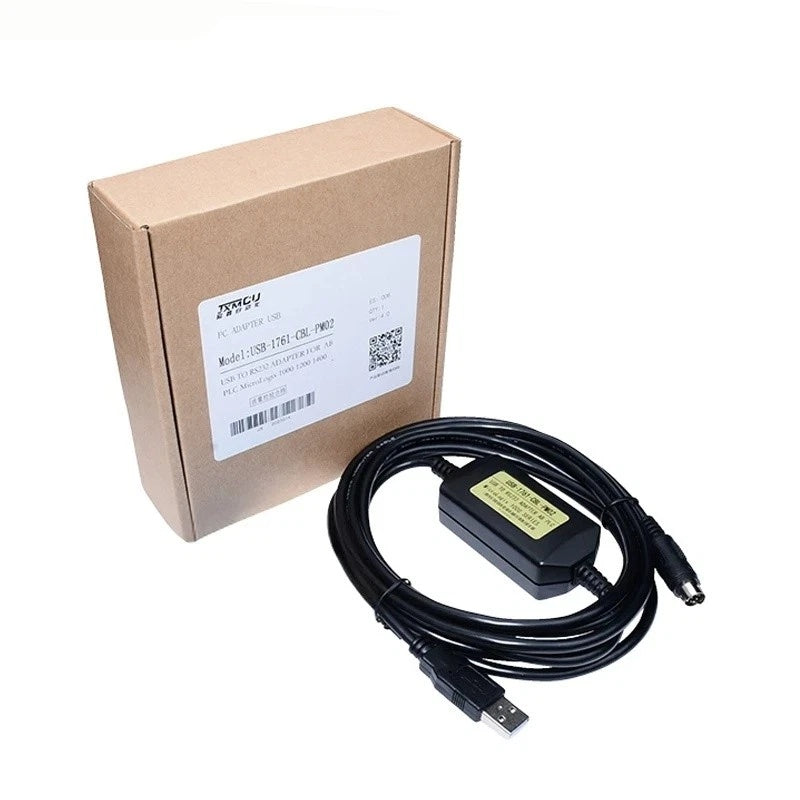

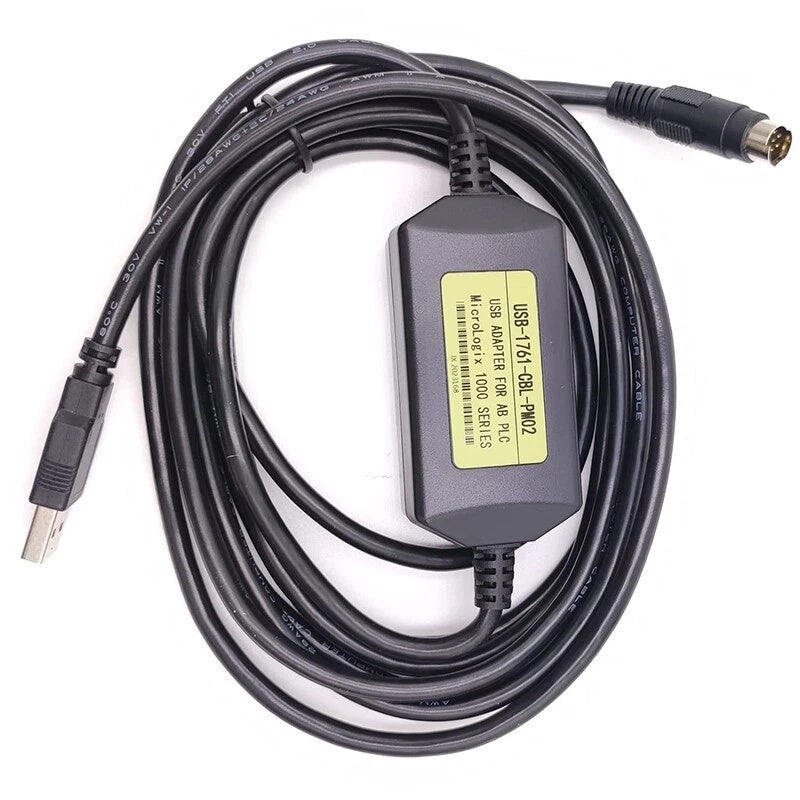

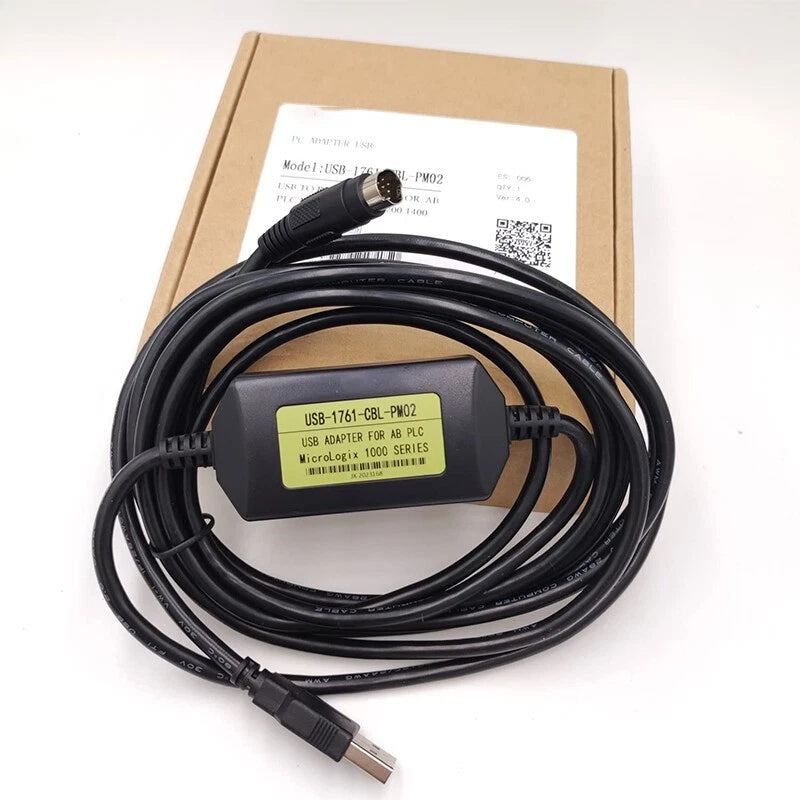

Allen-Bradley USB-1761-CBL-PM02 PLC Programming Cable USB 8-Pin Mini-DIN
Available in stock (400)
Regular price
$19.62
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | USB-1761-CBL-PM02 |
| Product Category | PLC Programming Cable |
| Application | MicroLogix PLC Programming and Communication |
| Computer Interface | USB |
| Controller Interface | 8-Pin Mini-DIN |
| Cable Length | 3 m |
| Communication | USB-to-Serial |
| Driver | USB Device Driver Required |
Key Features

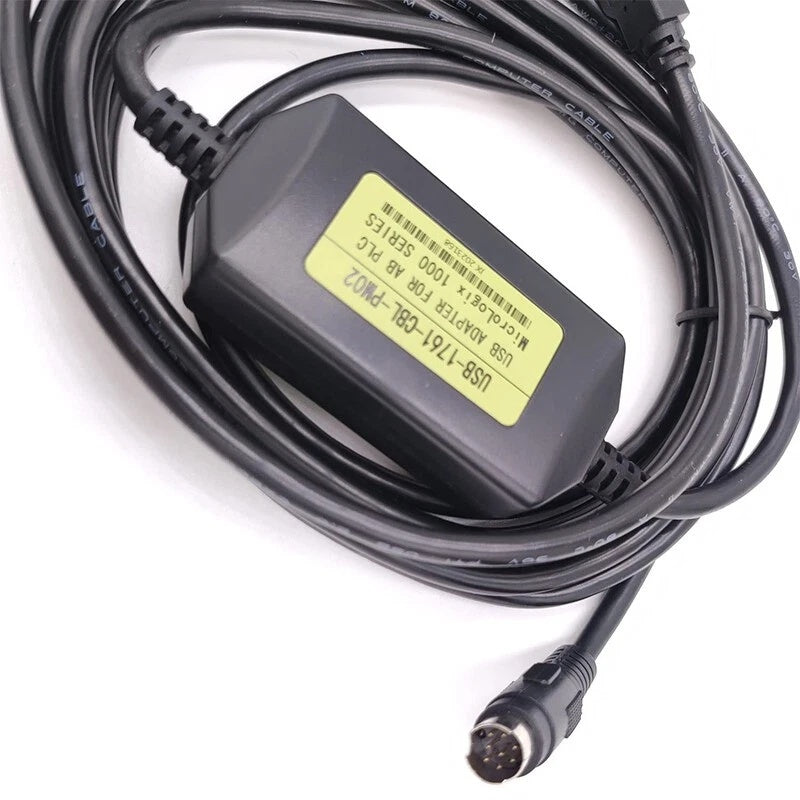

8-Pin Mini-DIN Interface
The controller end uses an 8-pin Mini-DIN connection for applicable MicroLogix serial communication ports.

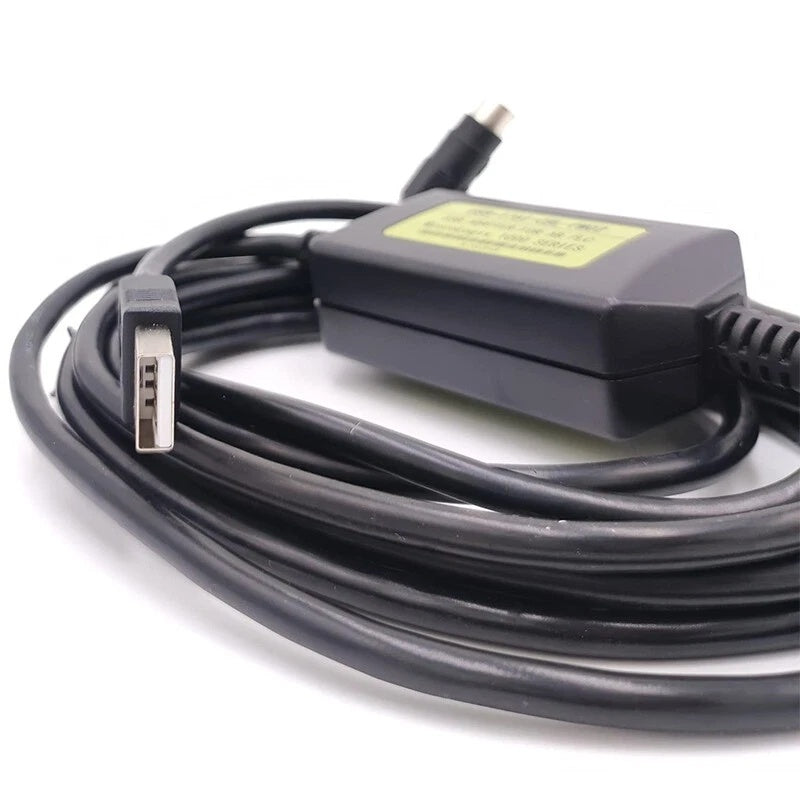

USB-to-Serial Communication
The cable converts the computer USB connection for use with the serial communication interface required by supported PLC applications.
3 Meter Cable
Published specifications for the USB-1761-CBL-PM02 designation identify a cable length of approximately 3 meters.
Programming and Diagnostics
The cable can be used for programming, configuration and diagnostic communication when the controller, driver and software requirements have been verified.
MicroLogix Applications
The USB-1761-CBL-PM02 designation is used for programming cables intended for applicable Allen-Bradley MicroLogix controller applications.
Applications
- MicroLogix PLC programming
- PLC program upload and download
- Machine commissioning
- Automation system maintenance
- PLC diagnostics and troubleshooting
- Controller configuration
- Industrial equipment servicing
- Serial PLC communication
Purchase Information
We support online purchase of the Allen-Bradley USB-1761-CBL-PM02 PLC Programming Cable. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the USB-1761-CBL-PM02?
It is a USB programming cable designation used for computer communication with applicable Allen-Bradley MicroLogix PLC systems.
What connector does the computer side use?
The computer side uses a USB connection.
What connector does the controller side use?
The controller side uses an 8-pin Mini-DIN connection.
How long is the USB-1761-CBL-PM02 cable?
Published specifications for this USB cable designation list a length of approximately 3 meters.
Does USB-1761-CBL-PM02 require a driver?
Yes. A suitable USB device driver is required for the computer to establish the communication interface.
Can the cable be used for PLC programming?
Yes. Its intended applications include programming and communication with supported MicroLogix controllers.
Is USB-1761-CBL-PM02 the same connection configuration as 1761-CBL-PM02?
No. Rockwell Automation specifies 1761-CBL-PM02 as a 2 m cable with an 8-pin Mini-DIN and 9-pin D-shell connection. The USB-1761-CBL-PM02 designation uses a USB computer interface.
Can this cable be used with every MicroLogix controller?
Compatibility can be considered after the complete controller model, communication port, protocol, driver and programming software requirements have been checked.
Can it replace an existing programming cable?
Replacement suitability should be verified against existing system requirements, including the computer interface and PLC communication port.
What should be checked before ordering?
The complete model number, electrical, communication, connector, software and installation requirements should be checked before ordering.
