Low-Inertia Servo Design
The MPL-A310P-MJ22AA is a Kinetix MPL low-inertia permanent magnet rotary servo motor for industrial motion-control applications.

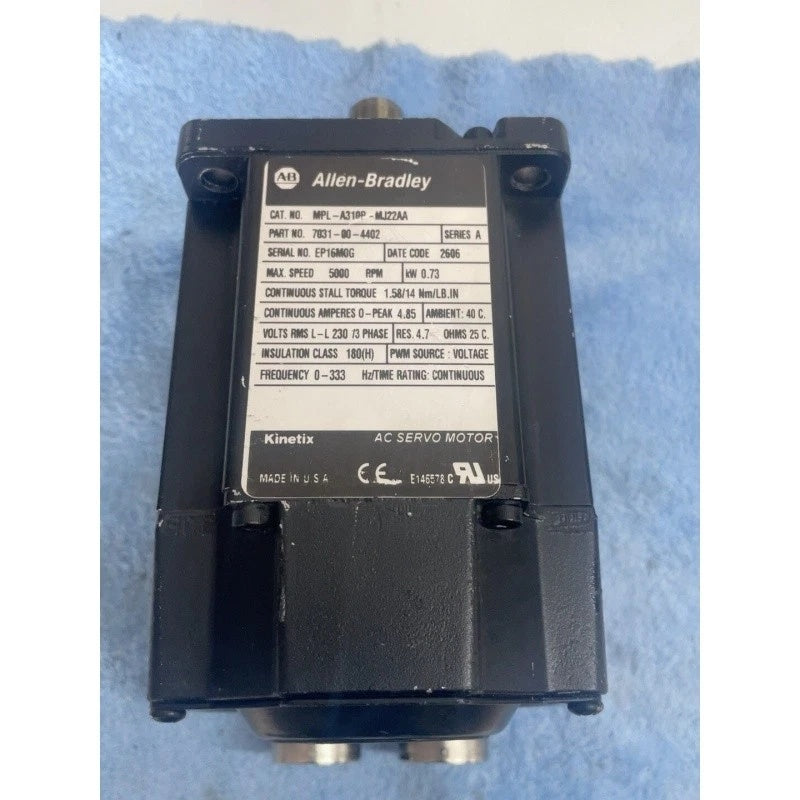

Allen-Bradley MPL-A310P-MJ22AA Servo Motor 230V 5000RPM 100mm Frame
Available in stock (400)
Regular price
$1,687.90
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | MPL-A310P-MJ22AA |
| Product Category | Servo Motor |
| Product Family | Kinetix MPL Low-Inertia Servo Motors |
| Motor Type | Low-Inertia Permanent Magnet Rotary Servo Motor |
| Voltage Class | 200 V Class / 230 V System |
| Frame Size | 100 mm |
| Magnet Stack Length | 25.4 mm (1.0 in.) |
| Rated Speed | 5000 RPM |
| Rated Torque | 4.18 Nm |
| Feedback | Multi-turn High-resolution Encoder, Absolute Feedback |
| Shaft | Keyed Shaft, No Shaft Seal |
| Connector | Circular Bayonet, Facing Shaft |
| Brake | No Brake |
| Mounting | IEC Metric, Free Mounting Holes Type FF |
Key Features
5000 RPM Rated Speed
This motor configuration is specified for a rated speed of 5000 RPM and a rated torque of 4.18 Nm.
100 mm Frame
The motor uses a 100 mm frame with a 25.4 mm magnet stack length, providing the mechanical configuration defined for this catalog number.
Absolute Encoder Feedback
A multi-turn high-resolution encoder provides absolute feedback for closed-loop positioning and servo-control applications.
Bayonet Connection
The motor uses a circular bayonet connector facing the shaft for its electrical connection configuration.
Keyed Shaft Without Brake
This configuration combines a keyed shaft without a shaft seal, no holding brake, and IEC metric Type FF mounting.
Applications
- Industrial motion-control systems
- Packaging machinery
- Automated assembly equipment
- Material handling systems
- Converting machinery
- Precision positioning equipment
- Production line automation
- Low-inertia servo applications
Purchase Information
We support online purchase of the Allen-Bradley MPL-A310P-MJ22AA Servo Motor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Allen-Bradley MPL-A310P-MJ22AA?
It is a Kinetix MPL low-inertia permanent magnet rotary servo motor for industrial motion-control applications.
What voltage class is MPL-A310P-MJ22AA?
This catalog number belongs to the 200 V motor class and is commonly specified for 230 V servo systems.
What is the rated speed?
The MPL-A310P-MJ22AA is specified for a rated speed of 5000 RPM.
What is the rated torque?
Published technical data specifies a rated torque of 4.18 Nm for this motor configuration.
What is the frame size?
The motor uses a 100 mm frame with a 25.4 mm (1.0 in.) magnet stack length.
What feedback device does this motor use?
It uses a multi-turn high-resolution encoder with absolute feedback.
Does MPL-A310P-MJ22AA include a brake?
No. This catalog configuration is specified without a brake.
What shaft and connector configurations are used?
The motor has a keyed shaft without a shaft seal and uses a circular bayonet connector facing the shaft.
Can MPL-A310P-MJ22AA replace another servo motor?
It can be considered after the complete model number and technical requirements have been checked, including voltage class, speed, torque, frame size, feedback, shaft, connector and brake configuration.
What should be checked before ordering?
Electrical, mechanical and installation requirements should be checked before ordering, including the servo drive, voltage class, feedback type, mounting, shaft and connector requirements.
