Lever-Type Operation
The 802T-A uses a rotary lever arm with spring-return operation for mechanical position and travel detection.

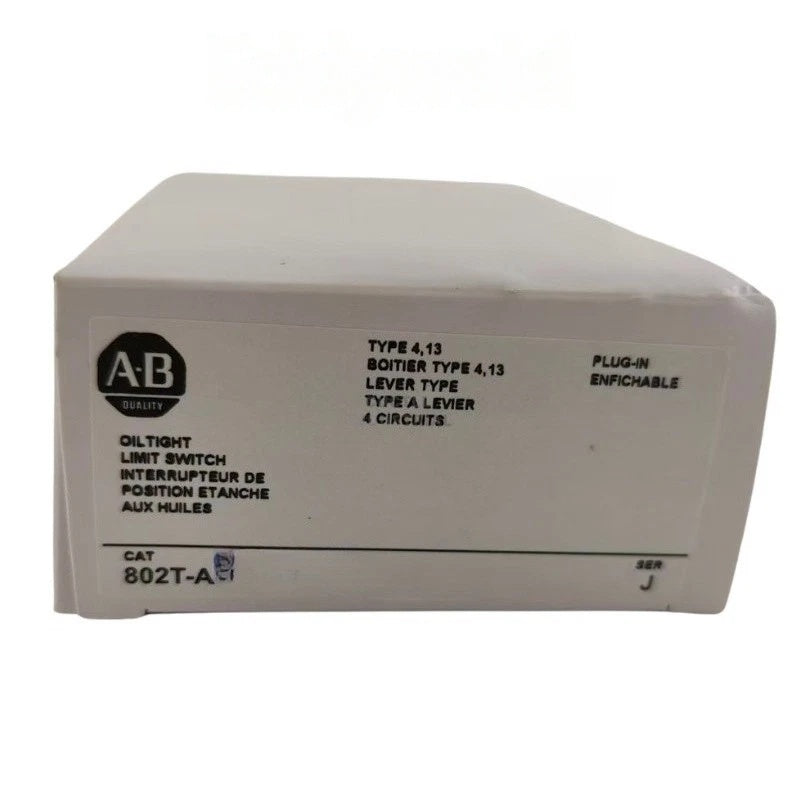

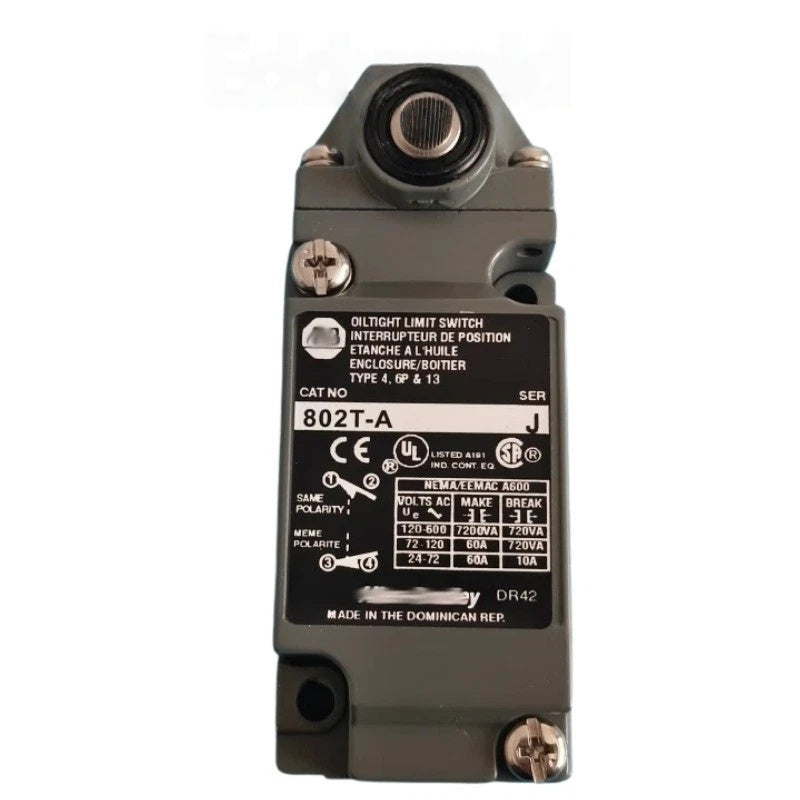

Allen-Bradley 802T-A Limit Switch Lever Type 2-Circuit NEMA 4/13
Available in stock (400)
Regular price
$96.52
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 802T-A |
| Product Category | Limit Switch |
| Product Type | Standard Limit Switch |
| Construction | NEMA Type 4 and 13 Oiltight |
| Style | Standard Non-Plug-In |
| Switch Components | Whole Switch |
| Actuation Type | Lever Type, Spring Return, Standard Operating Torque |
| Actuator | Rotary Lever Arm |
| Number of Circuits | 2-Circuit |
| Mode of Operation | CW and CCW |
| Contact Action | Snap Acting, Standard Contacts |
| Enclosure | Metal |
Key Features
2-Circuit Configuration
The complete switch is configured with two circuits for integration into applicable industrial machine control systems.
CW and CCW Operation
The operating mechanism supports both clockwise and counterclockwise actuation.
Non-Plug-In Construction
The 802T-A is specified as a standard non-plug-in limit switch configuration.
Snap-Acting Contacts
The documented switching mechanism uses snap-acting standard contacts for mechanical switching applications.
NEMA Type 4 and 13
The 802T-A uses NEMA Type 4 and 13 oiltight construction for applicable industrial environments.
Applications
- Machine position detection
- Mechanical end-of-travel detection
- Conveyor control systems
- Transfer machines
- Material handling equipment
- Industrial machinery control
- Production equipment monitoring
- Factory automation systems
Purchase Information
We support online purchase of the Allen-Bradley 802T-A Limit Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 802T-A?
The 802T-A is a standard non-plug-in limit switch with lever-type spring-return actuation, two circuits and clockwise or counterclockwise operation.
What actuator does 802T-A use?
The documented actuator is a rotary lever arm.
How many circuits does 802T-A have?
The 802T-A has a documented 2-circuit configuration.
Is 802T-A a plug-in limit switch?
No. The documented size and construction are standard non-plug-in.
Is 802T-A a complete switch?
Yes. The catalog description identifies this configuration as a whole switch.
Can 802T-A operate in both directions?
Yes. The documented mode of operation supports both clockwise and counterclockwise actuation.
What contact action does 802T-A use?
The switch uses snap-acting standard contacts.
What enclosure does 802T-A use?
The documented enclosure is metal with NEMA Type 4 and 13 oiltight construction.
What is the operating temperature range of 802T-A?
The documented operating temperature range is -18 to 54 °C.
What applications can 802T-A be considered for?
It can be considered for machine position, travel and end-position detection where its mechanical and electrical configuration meets the application requirements.
Can 802T-A be considered for an existing limit switch installation?
It can be considered after the complete catalog number, non-plug-in construction, rotary lever actuation, 2-circuit configuration, mounting and electrical requirements have been checked against the existing installation.
What should be checked before ordering 802T-A?
Check the complete catalog number, lever requirements, 2-circuit configuration, CW and CCW operation, non-plug-in construction, mounting arrangement and electrical requirements of the intended application.
