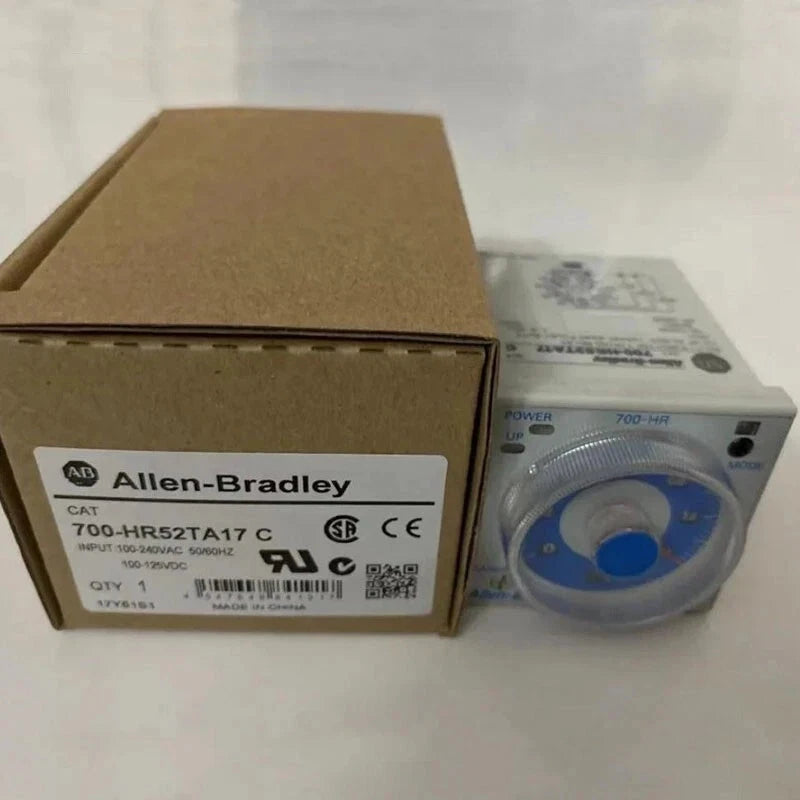

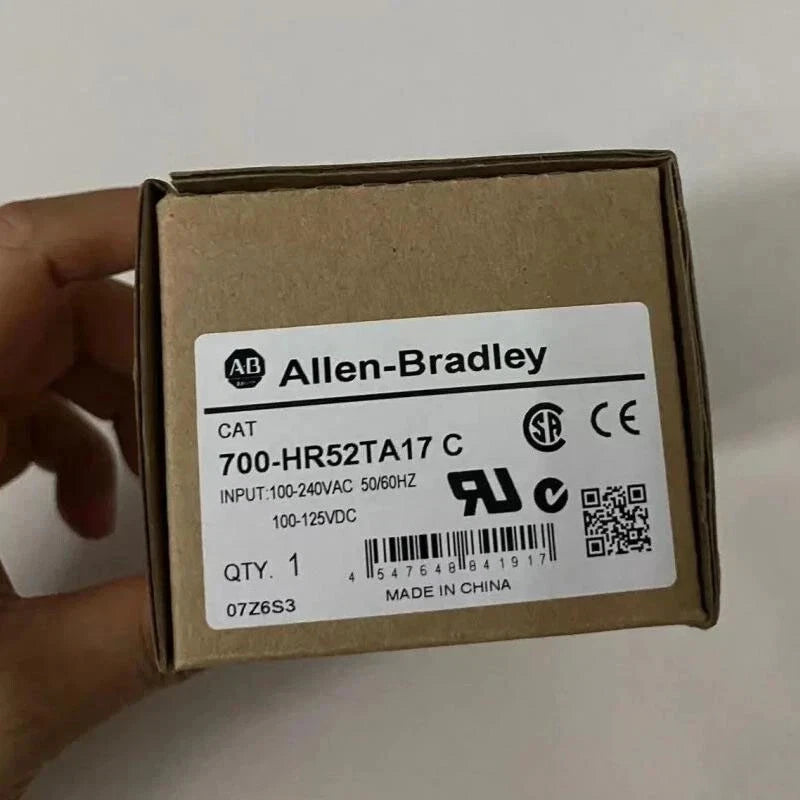

Allen-Bradley 700-HR52TA17 Timing Relay On-Delay DPDT 0.1s-30h

Allen-Bradley 700-HR52TA17 Timing Relay On-Delay DPDT 0.1s-30h

Fast Quote
Global Shipping
Bulk Order Support

Available in stock (400)

$42.50

Shipping calculated at checkout.

Bulk Purchase Inquiry

In Stock
Free Returns And Exchanges Within 30 days
Bulk purchases are eligible for price discounts.

Brand	Allen-Bradley
Model Number	700-HR52TA17
Product Category	Timing Relay
Series	700-HR
Product Type	Tube Base Dial Timing Relay
Timing Function	On-Delay
Contact Configuration	DPDT
Timed Contacts	2
Timing Range	0.1 Seconds to 30 Hours
Supply Voltage	100–240 V AC 50/60 Hz / 100–125 V DC
Connection Type	Plug-In
Nominal Contact Current	5 A
Contact Type	Timed Changeover Contacts

Key Features

On-Delay Function

The 700-HR52TA17 provides an on-delay timing function for time-controlled switching and sequencing in industrial control circuits.

0.1s to 30h Timing Range

The adjustable timing range covers 0.1 seconds through 30 hours for applications requiring different delay periods.

DPDT Timed Contacts

Two timed changeover contacts provide a DPDT arrangement for applicable control circuit switching requirements.

Wide AC/DC Supply Range

The documented supply range supports 100–240 V AC at 50/60 Hz and 100–125 V DC.

Plug-In Design

The relay uses a plug-in connection for installation with a suitable socket selected for the application.

Dial Time Adjustment

The Bulletin 700-HR design uses dial-based time adjustment for setting the required on-delay period.

Applications

Machine sequence timing
Industrial control panels
Process delay circuits
Conveyor timing controls
Motor control sequences
Production equipment controls
Factory automation systems
Time-dependent switching circuits

Purchase Information

We support online purchase of the Allen-Bradley 700-HR52TA17 Timing Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Allen-Bradley 700-HR52TA17?
The 700-HR52TA17 is a Bulletin 700-HR timing relay with an on-delay function, plug-in connection and two timed changeover contacts.

What timing function does 700-HR52TA17 provide?
The documented timing function is on-delay.

What is the timing range of 700-HR52TA17?
The documented adjustable timing range extends from 0.1 seconds to 30 hours.

What contact configuration does 700-HR52TA17 use?
The relay uses two timed changeover contacts in a DPDT configuration.

What supply voltage does 700-HR52TA17 support?
The documented supply range is 100–240 V AC at 50/60 Hz or 100–125 V DC.

What connection type does 700-HR52TA17 use?
The timing relay uses a plug-in connection and should be installed with a suitable socket selected according to the system requirements.

What is the nominal contact current?
The documented nominal contact current is 5 A.

How is the timing period adjusted?
The Bulletin 700-HR configuration uses dial-based time adjustment for setting the required delay period.

Can 700-HR52TA17 be used in AC and DC control systems?
It can be considered for systems within its documented 100–240 V AC or 100–125 V DC supply ranges after the complete circuit requirements have been checked.

Is a socket required for 700-HR52TA17?
The relay uses a plug-in connection, so the required socket arrangement should be selected and verified against the intended installation.

Can 700-HR52TA17 be considered for an existing timing relay installation?
It can be considered after the complete model number, timing function, 0.1-second to 30-hour range, DPDT contact arrangement, supply voltage and socket requirements have been checked against the existing installation.

What should be checked before ordering 700-HR52TA17?
Check the complete catalog number, on-delay timing function, required timing range, DPDT contact arrangement, supply voltage, contact current and plug-in socket requirements of the intended application.

Specifications
