24V DC Electromechanical Relay
The 700-HLT2Z24 uses a 24 V DC electromechanical relay output for industrial control and interface circuits.

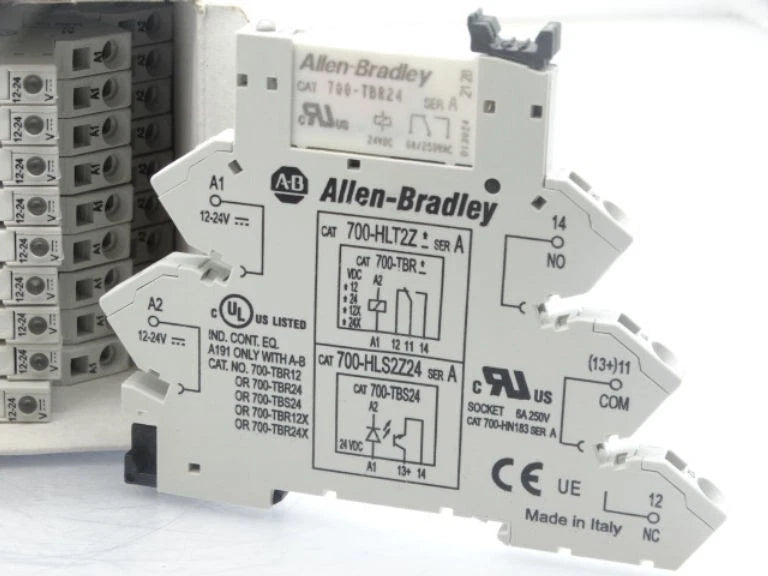

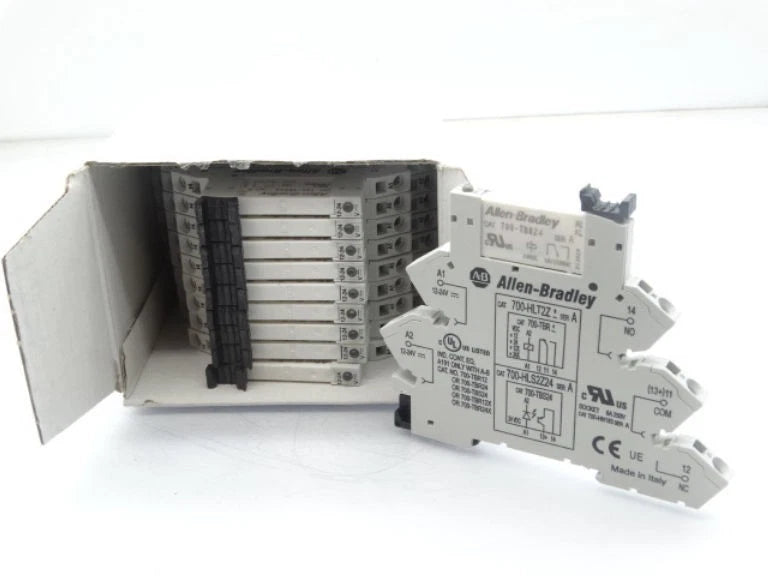

Allen-Bradley 700-HLT2Z24 Relay 24V DC SPDT 6A Spring Clamp
Available in stock (400)
Regular price
$23.58
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 700-HLT2Z24 |
| Product Category | Relay |
| Series | 700-HL |
| Product Type | General Purpose Terminal Block Relay |
| Output Relay Type | Electromechanical |
| Contact Configuration | SPDT (1 C/O) |
| Coil Voltage | 24 V DC |
| Nominal Current | 6 A |
| Connection Type | Spring Clamp |
| Contact Type | Standard Silver Contacts |
| Contact Material | AgSnO2 |
| Construction | Touch-Safe Terminal Construction |
| LED Indication | Yes |
| Complete with Socket | Yes |
| Degree of Protection | IP20 |
| Spring Terminal Wire Range | 0.2–2.5 mm² (24–14 AWG) |
| Leakage Current Suppression Circuit | Not Included |
Key Features
SPDT Contact Output
The relay provides one SPDT changeover contact, also identified as 1 C/O, for switching between two circuit paths.
6A Nominal Current
The documented nominal current is 6 A for the relay output configuration.
Spring Clamp Connections
The 700-HLT2Z24 uses spring clamp terminals with a documented conductor range of 0.2 to 2.5 mm².
Touch-Safe Construction
The terminal block relay assembly uses touch-safe terminal construction for installation in applicable industrial control panels.
LED Indication
The documented configuration includes LED indication for visual status reference in control applications.
Applications
- PLC interface circuits
- Industrial control panels
- Interposing relay applications
- Machine automation systems
- Signal isolation circuits
- Control cabinet assemblies
- Production equipment controls
- General industrial switching circuits
Purchase Information
We support online purchase of the Allen-Bradley 700-HLT2Z24 Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 700-HLT2Z24?
The 700-HLT2Z24 is a Bulletin 700-HL general purpose terminal block relay with an electromechanical output.
What coil voltage does 700-HLT2Z24 use?
The documented coil voltage is 24 V DC.
What contact configuration does 700-HLT2Z24 have?
The relay has one SPDT changeover contact, identified as 1 C/O.
What is the nominal current of 700-HLT2Z24?
The documented nominal current is 6 A.
What connection type does 700-HLT2Z24 use?
The relay assembly uses spring clamp connections.
What contact type does 700-HLT2Z24 use?
The documented configuration uses standard silver contacts.
Does 700-HLT2Z24 include LED indication?
Yes. LED indication is included in the documented configuration.
Is 700-HLT2Z24 supplied as a relay and socket assembly?
Rockwell Automation product data identifies this configuration as complete with socket.
What wire range is specified for the spring terminals?
The documented spring-terminal conductor range is 0.2 to 2.5 mm², equivalent to 24 to 14 AWG.
What degree of protection is specified for 700-HLT2Z24?
The documented degree of protection is IP20.
Can 700-HLT2Z24 be considered for an existing terminal block relay application?
It can be considered after the complete catalog number, 24 V DC coil, SPDT contact arrangement, 6 A current requirement, spring clamp connection and mounting requirements have been checked.
What should be checked before ordering 700-HLT2Z24?
Check the complete catalog number, 24 V DC control voltage, SPDT 1 C/O output, 6 A nominal current, spring clamp terminals, conductor size and the electrical requirements of the intended control circuit.
