FLEX 5000 Terminal Block
The 5094-RTB3W is a relay removable terminal block designed for use as part of the Allen-Bradley FLEX 5000 I/O terminal base architecture.

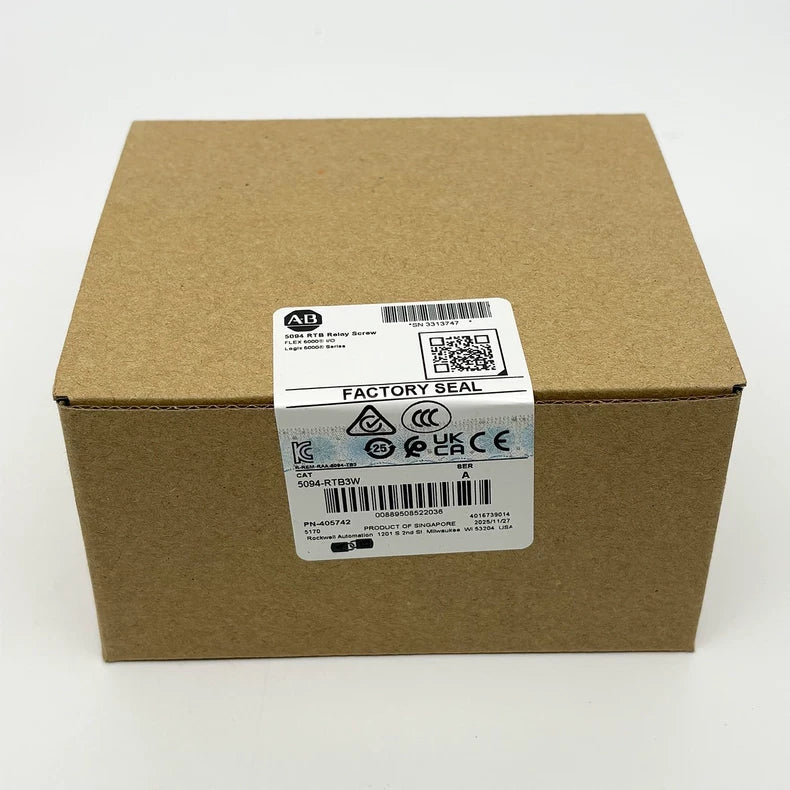

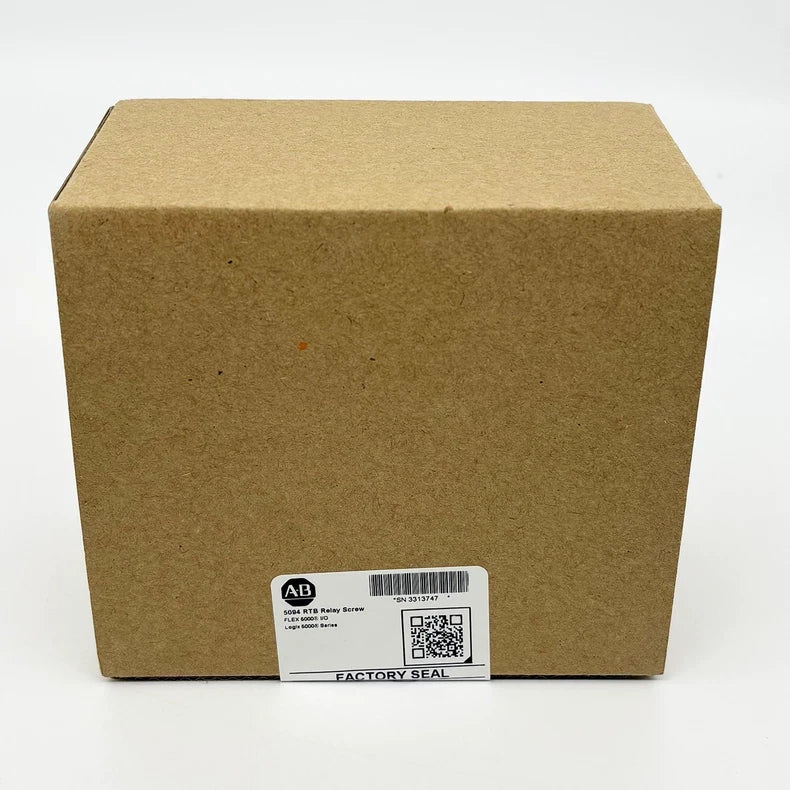

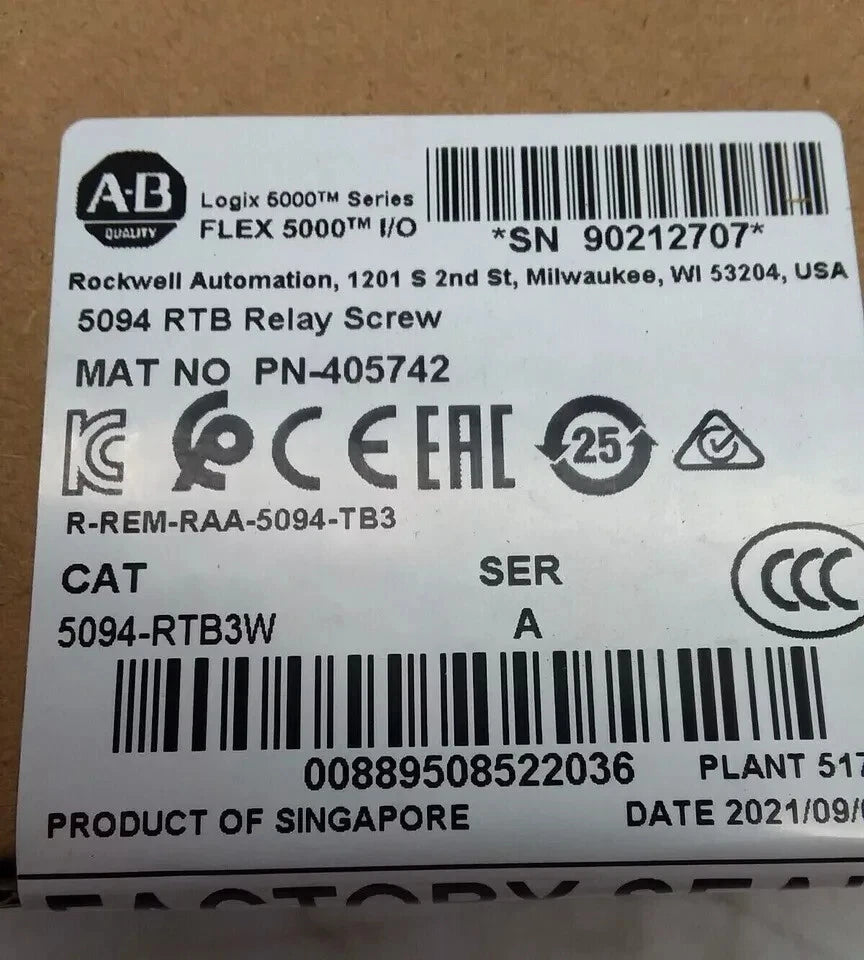

Allen-Bradley 5094-RTB3W Terminal Block Relay Screw 2A 240V AC
Available in stock (400)
Regular price
$237.58
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5094-RTB3W |
| Product Category | Terminal Block |
| Series | FLEX 5000 |
| Product Type | Relay Removable Terminal Block |
| Terminal Type | Screw |
| Maximum Output Rating | 2 A at 125 V DC; 2 A at 240 V AC, 50/60 Hz |
| Sensor Actuator Power | 10 A at 18–32 V DC Maximum |
| Isolation Voltage | 250 V Continuous |
| Wire Type | Copper |
| Wire Size | 0.34–2.5 mm² (22–14 AWG), Solid or Stranded |
| Insulation Stripping Length | 12 ±1 mm (0.47 ±0.04 in.) |
| Terminal Torque | 0.4 N·m (3.5 lb·in) |
| Dimensions | 53 × 94 × 76 mm (2.08 × 3.70 × 3.00 in.) Approx. |
| Weight | 202 g (0.45 lb) Approx. |
| Enclosure Type | Open-Style |
| Temperature Code | T4 |
Key Features
Screw-Type Terminals
This catalog number uses screw-type terminals with a documented terminal tightening torque of 0.4 N·m.
Relay Output Connections
The terminal block supports maximum output ratings of 2 A at 125 V DC and 2 A at 240 V AC, 50/60 Hz.
18–32V DC SA Power
The documented Sensor Actuator power rating is up to 10 A across an 18 to 32 V DC supply range.
22–14 AWG Wiring
The screw terminals accept 0.34 to 2.5 mm², or 22 to 14 AWG, solid or stranded copper conductors.
Removable Terminal Design
The RTB design provides the field-side wiring interface used with the applicable FLEX 5000 mounting base and I/O module configuration.
Applications
- FLEX 5000 I/O systems
- Industrial relay output wiring
- PLC control panels
- Machine automation systems
- Factory automation equipment
- Distributed I/O installations
- Industrial control cabinets
- Field-side signal and power wiring
Purchase Information
We support online purchase of the Allen-Bradley 5094-RTB3W Terminal Block. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5094-RTB3W?
The 5094-RTB3W is a FLEX 5000 relay removable terminal block with screw-type terminals.
What type of terminals does 5094-RTB3W use?
This catalog number uses screw-type terminals. FLEX 5000 RTB catalog numbers with an S suffix identify spring-type versions.
What are the maximum output ratings of 5094-RTB3W?
The documented maximum output ratings are 2 A at 125 V DC and 2 A at 240 V AC, 50/60 Hz.
What is the Sensor Actuator power rating?
The documented maximum SA power rating is 10 A at 18 to 32 V DC. The actual passthrough current depends on the system configuration.
What wire size can be used with 5094-RTB3W?
The documented range is 0.34 to 2.5 mm², or 22 to 14 AWG, solid or stranded copper wire.
What is the specified terminal torque?
The screw-type terminal block has a documented torque specification of 0.4 N·m, or 3.5 lb·in.
What stripping length is specified for the conductors?
For the 0.34 to 2.5 mm² screw-terminal wire range, the documented stripping length is 12 ±1 mm.
What are the approximate dimensions of 5094-RTB3W?
The documented approximate dimensions are 53 × 94 × 76 mm, equivalent to 2.08 × 3.70 × 3.00 inches.
What is the approximate weight?
The documented approximate weight is 202 g, or 0.45 lb.
Is 5094-RTB3W a complete FLEX 5000 terminal base assembly?
The 5094-RTB3W is the removable terminal block component. FLEX 5000 terminal base assemblies consist of a mounting base and a removable terminal block, which are selected according to the system requirements.
Can 5094-RTB3W be considered for an existing FLEX 5000 installation?
It can be considered after the complete catalog number, installed I/O module, terminal base requirements, output ratings, SA power requirements and wiring configuration have been checked.
What should be checked before ordering 5094-RTB3W?
Check the complete model number, FLEX 5000 module requirements, screw-terminal connection, field wiring, output ratings, SA power requirements and required mounting base configuration.
