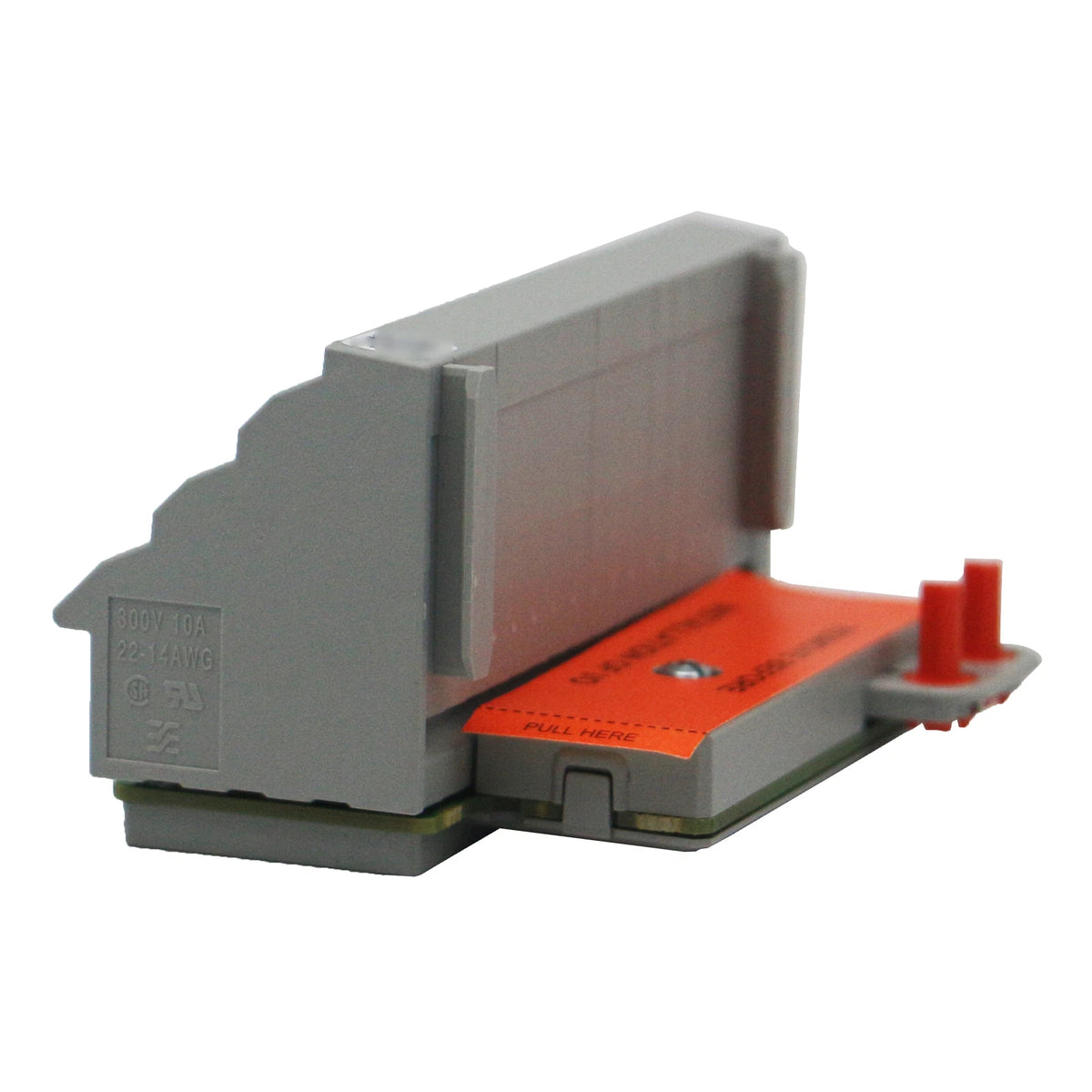

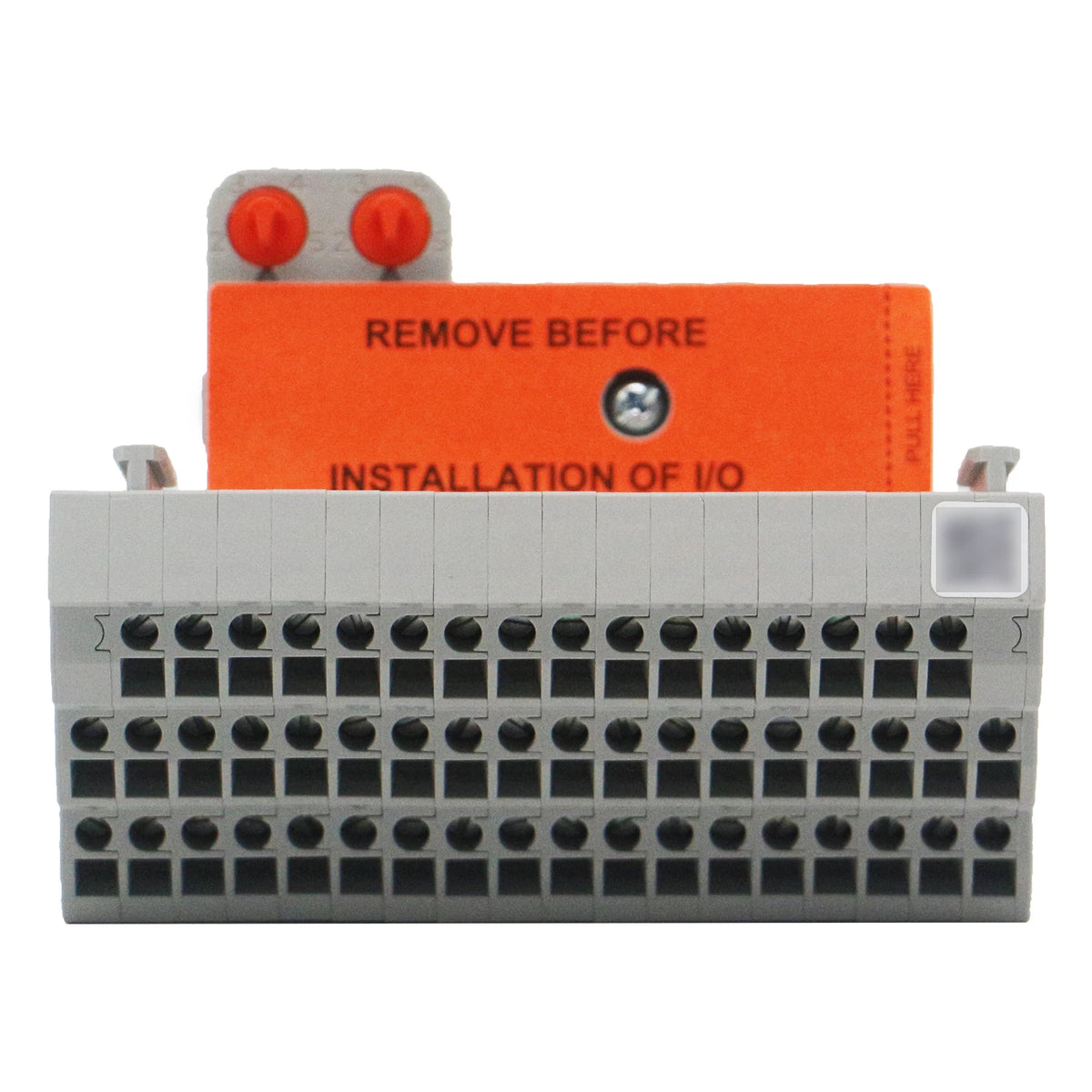

FLEX 5000 Removable Terminal Block
The 5094-RTB3S is a removable terminal block used as part of the FLEX 5000 terminal base architecture for field-side wiring.
Allen-Bradley 5094-RTB3S Terminal Block Spring-Type 2A 32V DC
Available in stock (400)
Regular price
$447.15
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5094-RTB3S |
| Product Category | Terminal Block |
| Series | FLEX 5000 |
| Product Type | Removable Terminal Block |
| Terminal Type | Spring-Type |
| Maximum I/O Rating | 2 A at 32 V DC |
| Sensor Actuator Power | 10 A at 18–32 V DC Maximum |
| Isolation Voltage | 250 V Continuous, Basic Insulation |
| Wire Type | Copper |
| Wire Size | 0.34–2.5 mm² (22–14 AWG), Solid or Stranded |
| Stripping Length, 22–16 AWG | 10 ±1 mm (0.39 ±0.04 in.) |
| Stripping Length, 14 AWG | 15 ±1 mm (0.59 ±0.04 in.) |
| Dimensions | 76 × 94 × 53 mm Approx. |
| Weight | 202 g (0.45 lb) Approx. |
| Enclosure Type | Open-Style |
| Temperature Code | T4 |
Key Features
Spring-Type Terminals
The S suffix identifies the spring-type terminal configuration, distinguishing it from the corresponding screw-type RTB version.
2A at 32V DC I/O Rating
The documented maximum input/output rating for the 5094-RTB3S terminal block is 2 A at 32 V DC.
18–32V DC SA Power
The documented maximum Sensor Actuator power passthrough rating is 10 A across an 18 to 32 V DC range.
22–14 AWG Copper Wiring
The terminal block accepts 0.34 to 2.5 mm², or 22 to 14 AWG, solid or stranded copper conductors.
Field-Side Wiring Interface

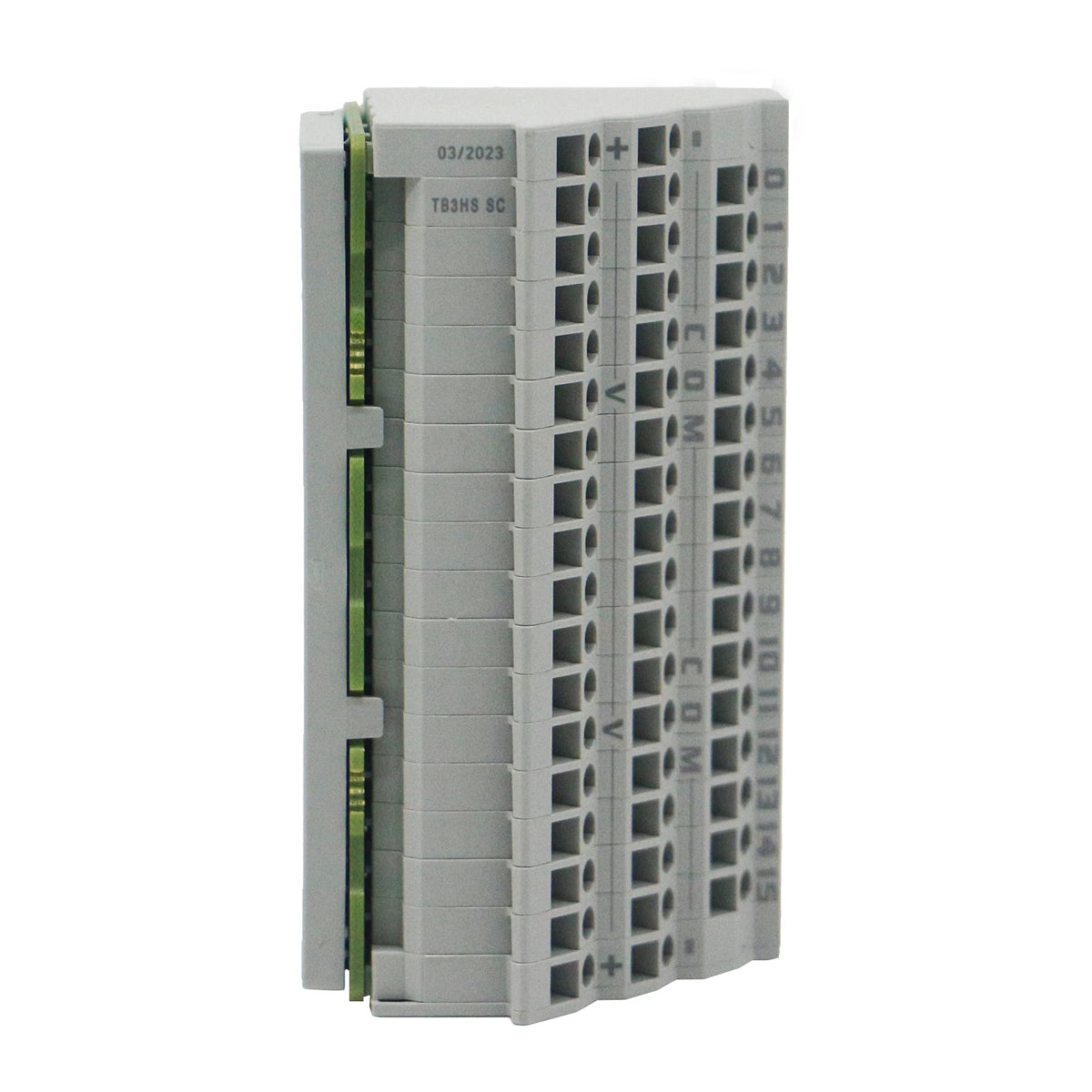

The removable terminal block provides terminal strips for input and output wiring, commons, power connections and customer power supplies in applicable FLEX 5000 configurations.
Applications
- FLEX 5000 I/O systems
- Industrial field wiring
- PLC control panels
- Distributed I/O installations
- Machine automation systems
- Factory automation equipment
- Industrial control cabinets
- Input and output signal wiring
Purchase Information
We support online purchase of the Allen-Bradley 5094-RTB3S Terminal Block. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5094-RTB3S?
The 5094-RTB3S is a FLEX 5000 removable terminal block with spring-type terminals for field-side wiring.
What does the S suffix in 5094-RTB3S indicate?
Rockwell Automation identifies FLEX 5000 RTB catalog numbers with an S suffix as spring-type terminal blocks.
What is the maximum I/O rating of 5094-RTB3S?
The documented maximum input/output rating is 2 A at 32 V DC.
What is the Sensor Actuator power rating?
The documented maximum SA power passthrough rating is 10 A at 18 to 32 V DC. The actual current passed through depends on the system configuration.
What wire sizes can be used with 5094-RTB3S?
The documented range is 0.34 to 2.5 mm², or 22 to 14 AWG, solid or stranded copper wire.
What stripping length is specified for spring terminals?
For 0.34 to 1.5 mm² conductors, the documented stripping length is 10 ±1 mm. For 2.5 mm² conductors, it is 15 ±1 mm.
What isolation voltage is specified?
The documented isolation voltage is 250 V continuous with basic insulation for applicable circuits to chassis.
What are the approximate dimensions of 5094-RTB3S?
The documented approximate dimensions are 76 mm high, 94 mm wide and 53 mm deep.
What is the approximate weight of 5094-RTB3S?
The documented approximate weight is 202 g, or 0.45 lb.
Is 5094-RTB3S a complete FLEX 5000 terminal base assembly?
No. FLEX 5000 terminal base assemblies consist of a mounting base and a removable terminal block selected according to the installed I/O module requirements.
Which FLEX 5000 modules can use 5094-RTB3S?
Rockwell documentation lists 5094-RTB3S as an RTB option for multiple FLEX 5000 modules. The exact terminal block requirement should be checked against the catalog number of the installed I/O module.
What should be checked before ordering 5094-RTB3S?
Check the complete catalog number, FLEX 5000 I/O module requirements, spring-terminal preference, field conductor sizes, I/O ratings, SA power requirements and mounting base configuration.
