FLEX 5000 Removable Terminal Block
The 5094-RTB3 is a removable terminal block used as part of the Allen-Bradley FLEX 5000 terminal base architecture for field-side wiring.

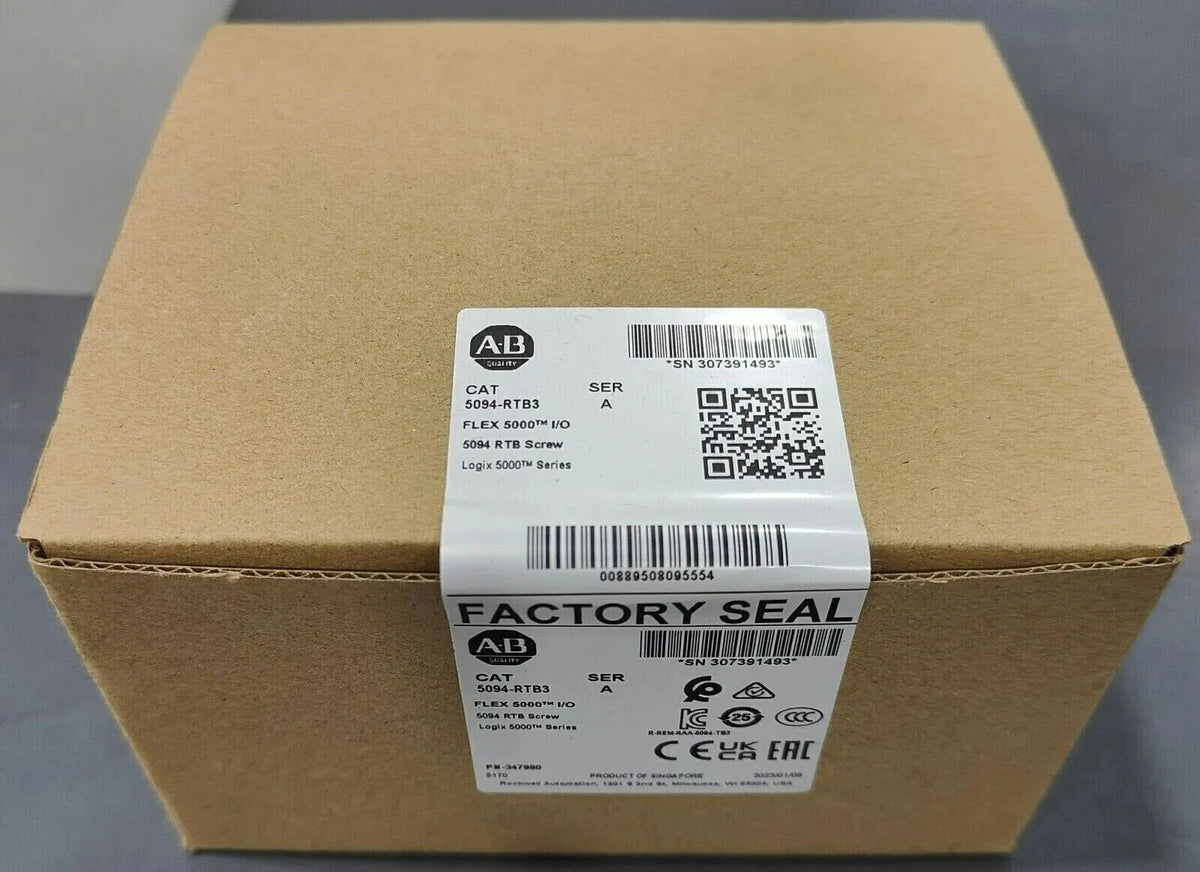

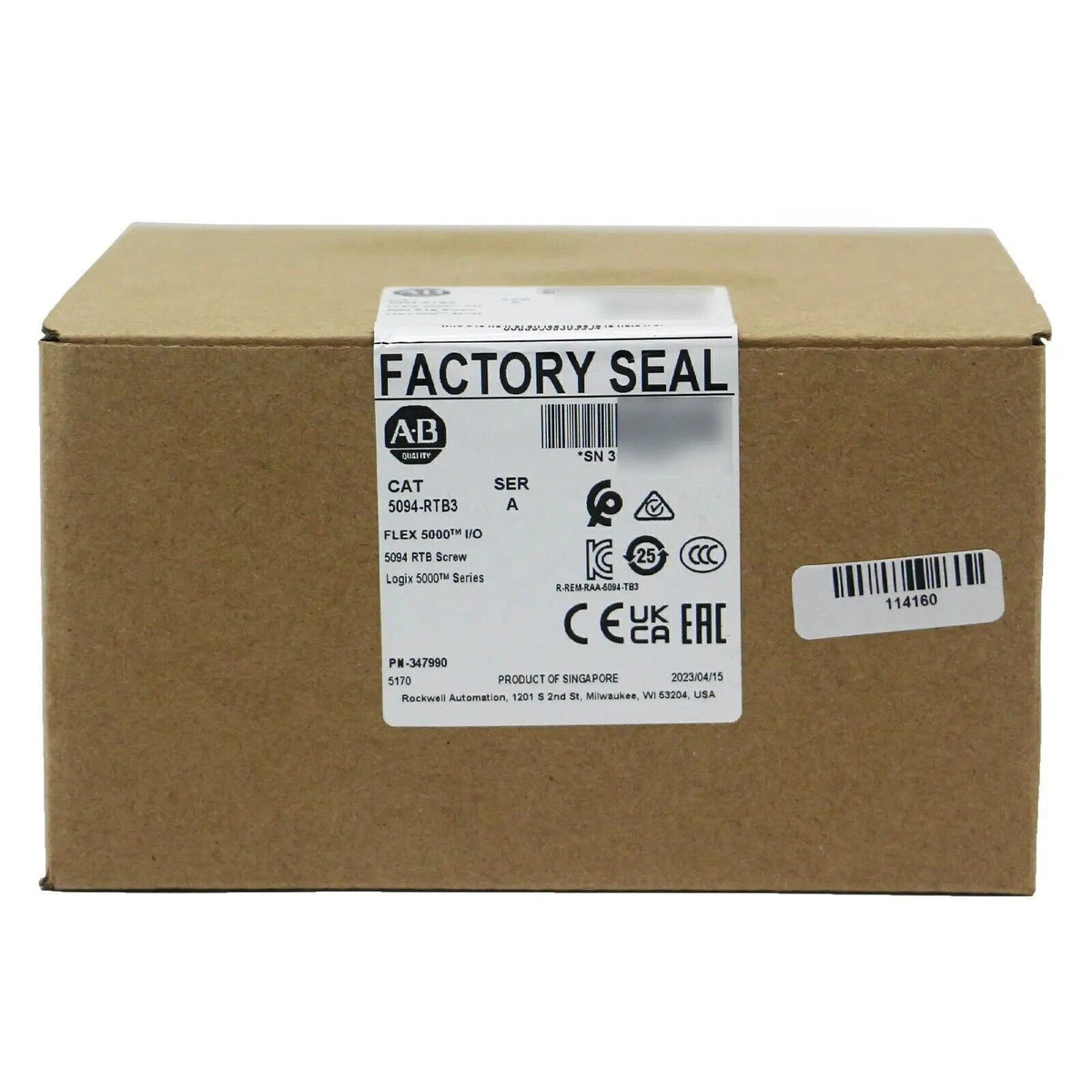

Allen-Bradley 5094-RTB3 Terminal Block Screw-Type 2A 32V DC
Available in stock (400)
Regular price
$255.42
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5094-RTB3 |
| Product Category | Terminal Block |
| Series | FLEX 5000 |
| Product Type | Removable Terminal Block |
| Terminal Type | Screw-Type |
| Maximum I/O Rating | 2 A at 32 V DC |
| Sensor Actuator Power | 10 A at 18–32 V DC Maximum |
| Isolation Voltage | 250 V Continuous, Basic Insulation |
| Wire Type | Copper |
| Wire Size | 0.34–2.5 mm² (22–14 AWG), Solid or Stranded |
| Insulation Stripping Length | 12 ±1 mm (0.47 ±0.04 in.) |
| Terminal Torque | 0.4 N·m (3.5 lb·in) |
| Dimensions | 76 × 94 × 53 mm Approx. |
| Weight | 202 g (0.45 lb) Approx. |
| Enclosure Type | Open-Style |
| Temperature Code | T4 |
Key Features
Screw-Type Terminals
The 5094-RTB3 uses screw-type terminals with a documented tightening torque of 0.4 N·m for applicable field conductors.
2A at 32V DC I/O Rating
The documented maximum input/output rating for the terminal block is 2 A at 32 V DC.
18–32V DC SA Power
The documented maximum Sensor Actuator power passthrough rating is 10 A across an 18 to 32 V DC range.
22–14 AWG Copper Wiring
The screw terminals accept 0.34 to 2.5 mm², or 22 to 14 AWG, solid or stranded copper conductors.
Field-Side Wiring Interface
The removable terminal block provides the field-side electrical interface used with applicable FLEX 5000 mounting bases and I/O modules.
Applications
- FLEX 5000 I/O systems
- Industrial field wiring
- PLC control panels
- Distributed I/O installations
- Machine automation systems
- Factory automation equipment
- Industrial control cabinets
- Input and output signal wiring
Purchase Information
We support online purchase of the Allen-Bradley 5094-RTB3 Terminal Block. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5094-RTB3?
The 5094-RTB3 is a FLEX 5000 removable terminal block with screw-type terminals for field-side wiring.
What terminal type does 5094-RTB3 use?
The 5094-RTB3 uses screw-type terminals. Terminal type should be checked against the selected FLEX 5000 system configuration before ordering.
What is the maximum I/O rating of 5094-RTB3?
The documented maximum input/output rating is 2 A at 32 V DC.
What is the Sensor Actuator power rating?
The documented maximum SA power passthrough rating is 10 A at 18 to 32 V DC. Actual passthrough current depends on the system configuration.
What wire sizes can be used with 5094-RTB3?
The documented conductor range is 0.34 to 2.5 mm², equivalent to 22 to 14 AWG, solid or stranded copper wire.
What is the specified stripping length?
The documented insulation stripping length for the screw-terminal conductor range is 12 ±1 mm.
What is the terminal tightening torque?
The documented screw-terminal torque is 0.4 N·m, equivalent to 3.5 lb·in.
What isolation voltage is specified?
The documented isolation voltage is 250 V continuous with basic insulation for applicable circuits to chassis.
What are the approximate dimensions of 5094-RTB3?
The documented approximate dimensions are 76 mm high, 94 mm wide and 53 mm deep.
Is 5094-RTB3 a complete FLEX 5000 terminal base assembly?
The 5094-RTB3 is the removable terminal block component. A FLEX 5000 terminal base assembly combines an appropriate mounting base and removable terminal block according to the I/O module requirements.
Can 5094-RTB3 be considered for an existing FLEX 5000 system?
It can be considered after the installed I/O module, mounting base, RTB catalog number, wiring requirements, I/O ratings and SA power requirements have been checked.
What should be checked before ordering 5094-RTB3?
Check the complete catalog number, FLEX 5000 I/O module requirements, screw-terminal configuration, conductor sizes, I/O ratings, SA power requirements and mounting base selection.
