6-Pin RTB Design

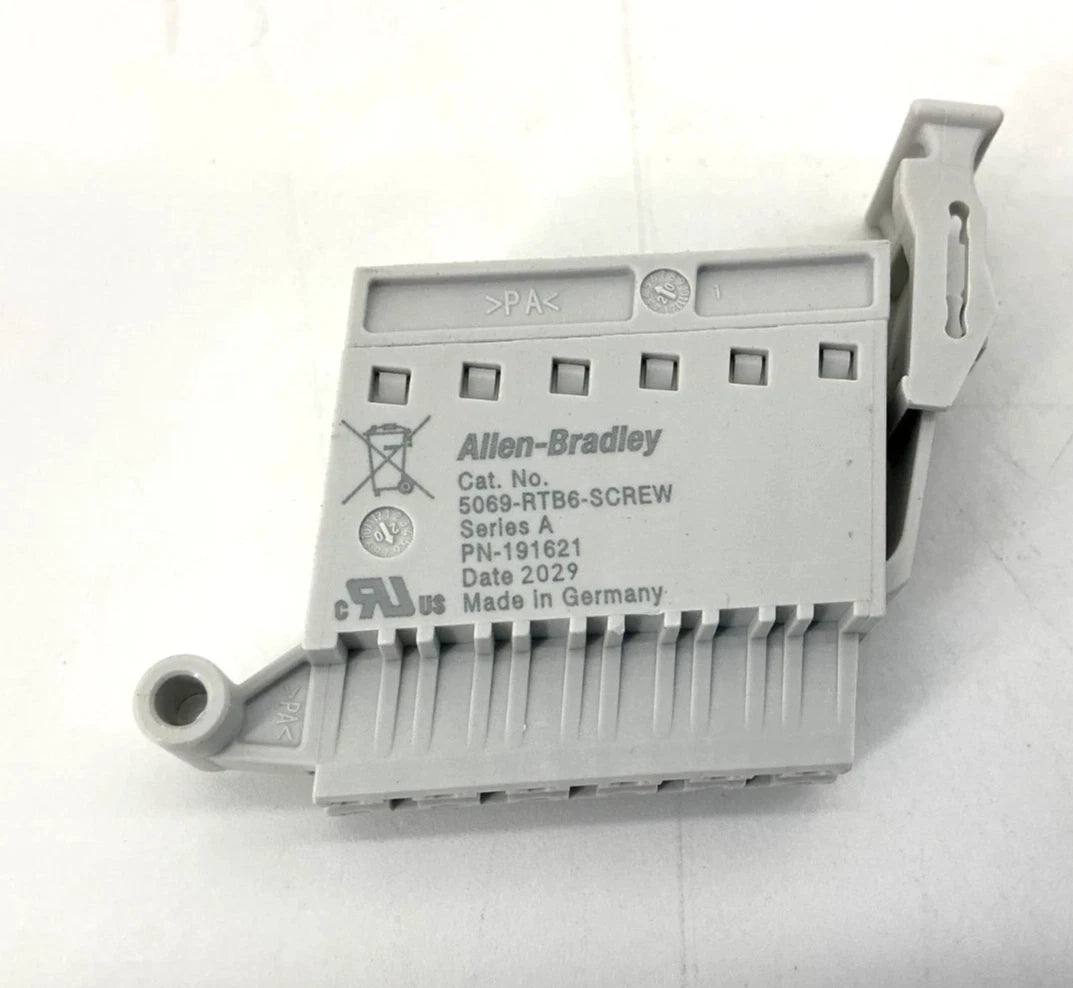

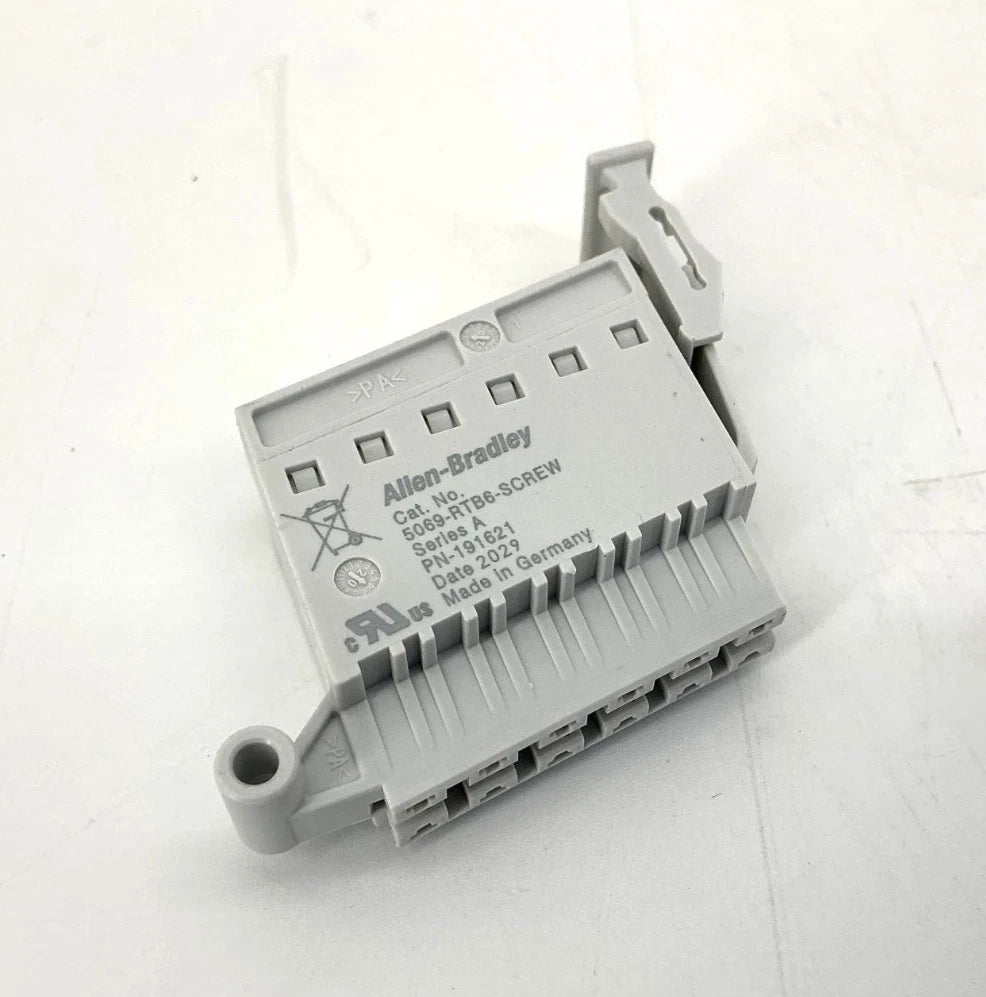

The 5069-RTB6-SCREW is a six-pin removable terminal block designed for applicable Allen-Bradley Compact 5000 and 5069 platform devices.

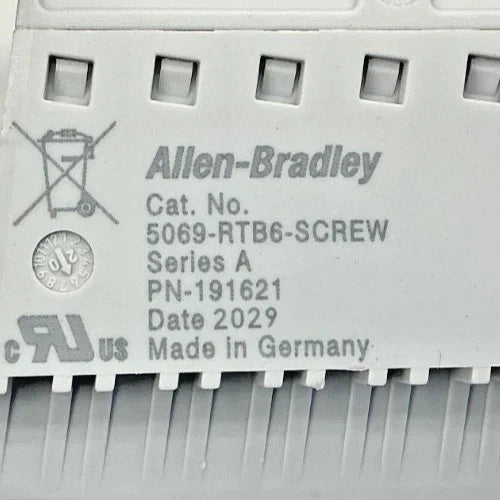

Allen-Bradley 5069-RTB6-SCREW Terminal Block 6-Pin 300V AC 10A
Available in stock (400)
Regular price
$41.46
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-RTB6-SCREW |
| Product Category | Terminal Block |
| Series | Compact 5000 |
| Product Type | Removable Terminal Block |
| Number of Pins | 6 |
| Terminal Type | Screw-Type |
| Maximum Voltage | 300 V AC |
| Maximum Current | 10 A |
| Wire Type | Solid or Stranded Copper |
| Wire Size | 0.5–1.5 mm² (22–16 AWG) |
| Maximum Insulated Wire Diameter | 3.5 mm (9/64 in.) |
| Maximum Wire Strip Length | 12 mm (0.47 in.) |
| Terminal Torque | 0.4 N·m (3.5 lb·in) |
Key Features
Screw-Type Connections
The terminal block uses screw-type field wiring connections with a documented tightening torque of 0.4 N·m.
300V AC Rating
Rockwell Automation specifies a maximum voltage rating of 300 V AC for the 5069 removable terminal block family.
10A Maximum Current
The documented maximum current rating is 10 A, subject to the electrical requirements of the connected 5069 device and system.
22–16 AWG Wiring
The screw terminals accept 0.5 to 1.5 mm², or 22 to 16 AWG, solid or stranded copper conductors.
Removable Wiring Interface
The RTB provides a detachable field-wiring interface for applicable Compact 5000 controllers, communication devices and related 5069 equipment.
Applications
- Compact 5000 control systems
- CompactLogix 5380 controller wiring
- 5069 communication adapter wiring
- Industrial control panels
- Machine automation systems
- Factory automation equipment
- Field power connections
- Industrial signal wiring
Purchase Information
We support online purchase of the Allen-Bradley 5069-RTB6-SCREW Terminal Block. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-RTB6-SCREW?
The 5069-RTB6-SCREW is a six-pin screw-type removable terminal block for applicable Allen-Bradley 5069 and Compact 5000 equipment.
How many pins does 5069-RTB6-SCREW have?
The terminal block has six pins.
What terminal connection does 5069-RTB6-SCREW use?
It uses screw-type terminals for field wiring connections.
What is the maximum voltage rating?
Rockwell Automation documents a maximum voltage rating of 300 V AC for this removable terminal block specification.
What is the maximum current rating?
The documented maximum current rating is 10 A.
What wire sizes can be used?
The documented conductor range is 0.5 to 1.5 mm², equivalent to 22 to 16 AWG, solid or stranded copper wire.
What is the maximum wire strip length?
The documented maximum stripping length for the screw-type RTB is 12 mm, or 0.47 inch.
What is the required screw-terminal torque?
The documented tightening torque is 0.4 N·m, equivalent to 3.5 lb·in.
What wire temperature rating is specified?
Rockwell Automation specifies copper conductors rated for at least 105 °C, or 221 °F.
Can 5069-RTB6-SCREW be used with CompactLogix 5380 controllers?
Rockwell Automation documentation identifies the 5069-RTB6-SCREW as an RTB used with applicable CompactLogix 5380 controller configurations. The exact controller catalog number and wiring requirements should be checked before selection.
Can 5069-RTB6-SCREW replace another 5069 RTB?
It can be considered after the required number of terminals, screw or spring connection type, connected device catalog number and electrical requirements have been checked.
What should be checked before ordering 5069-RTB6-SCREW?
Check the complete catalog number, six-pin requirement, screw-terminal configuration, connected 5069 device, conductor size, voltage and current requirements before ordering.
