18-Pin RTB Configuration

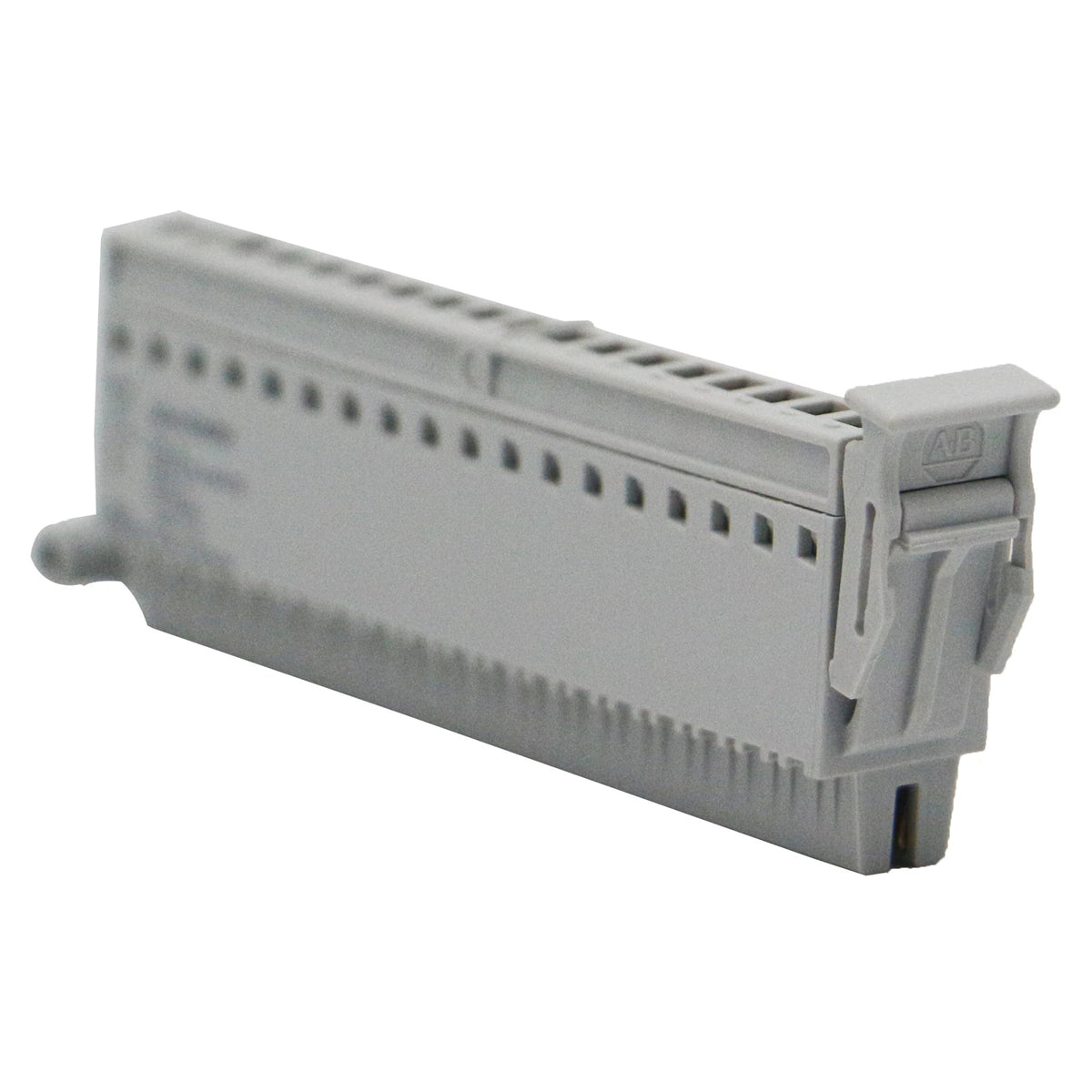

The 5069-RTB18-SPRING is an 18-pin removable terminal block kit for field wiring on applicable Allen-Bradley 5069 Compact I/O equipment.
Allen-Bradley 5069-RTB18-SPRING Terminal Block 18-Pin Spring 300V AC 10A
Available in stock (400)
Regular price
$55.86
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-RTB18-SPRING |
| Product Category | Terminal Block |
| Series | Compact 5000 |
| Product Type | Removable Terminal Block Kit |
| Number of Pins | 18 |
| Terminal Type | Spring-Type |
| Maximum Voltage | 300 V AC |
| Maximum Current | 10 A |
| Wire Type | Solid or Stranded Copper |
| Wire Size | 0.5–1.5 mm² (22–16 AWG) |
| Maximum Insulated Wire Diameter | 2.9 mm (0.11 in.) |
| Maximum Wire Strip Length | 10 mm (0.39 in.) |
Key Features
Spring-Type Terminals
The spring terminal design accepts supported conductors by pushing the prepared wire into the terminal, providing a spring-clamp field connection.
300V AC Maximum
Rockwell Automation specifies a maximum voltage rating of 300 V AC for the spring-type 5069 removable terminal block.
10A Maximum Current
The documented maximum current rating is 10 A, with actual circuit requirements determined by the connected Compact 5000 device.
22–16 AWG Copper Wiring
The RTB accepts 0.5 to 1.5 mm², or 22 to 16 AWG, solid or stranded copper conductors rated at 105 °C or greater.
Compact 5000 Wiring Interface
The removable design provides the field-side wiring interface for compatible Compact 5000 I/O modules while allowing the RTB to be separated from the module.
Applications
- Compact 5000 I/O systems
- CompactLogix automation systems
- Industrial field signal wiring
- PLC control panels
- Distributed I/O installations
- Machine automation equipment
- Factory automation systems
- Industrial control cabinets
Purchase Information
We support online purchase of the Allen-Bradley 5069-RTB18-SPRING Terminal Block. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-RTB18-SPRING?
The 5069-RTB18-SPRING is an 18-pin spring-type removable terminal block kit for applicable Allen-Bradley 5069 Compact I/O equipment.
How many pins does 5069-RTB18-SPRING have?
The removable terminal block has 18 pins.
What connection type does 5069-RTB18-SPRING use?
It uses spring-type terminals for field wiring connections.
What is the maximum voltage rating?
Rockwell Automation specifies a maximum voltage rating of 300 V AC.
What is the maximum current rating?
The documented maximum current rating is 10 A.
What wire sizes can be used with 5069-RTB18-SPRING?
The documented conductor range is 0.5 to 1.5 mm², equivalent to 22 to 16 AWG, solid or stranded copper wire.
What wire temperature rating is required?
Rockwell Automation specifies copper conductors rated at 105 °C, or 221 °F, or greater.
What is the maximum insulated wire diameter?
The documented maximum diameter, including insulation, is 2.9 mm or 0.11 inch.
What is the wire stripping length?
The documented maximum stripping length for the spring-type RTB is 10 mm, or 0.39 inch.
What is the temperature rating of 5069-RTB18-SPRING?
The documented product temperature rating is 0 to 60 °C, equivalent to 32 to 140 °F.
Can 5069-RTB18-SPRING replace a screw-type RTB?
It can be considered after the connected module catalog number, required 18-pin configuration, terminal style, conductor specifications and system wiring requirements have been checked.
What should be checked before ordering 5069-RTB18-SPRING?
Check the complete catalog number, 18-pin requirement, spring-terminal configuration, connected 5069 module, conductor size and applicable voltage and current requirements.
