14-Pin RTB Configuration

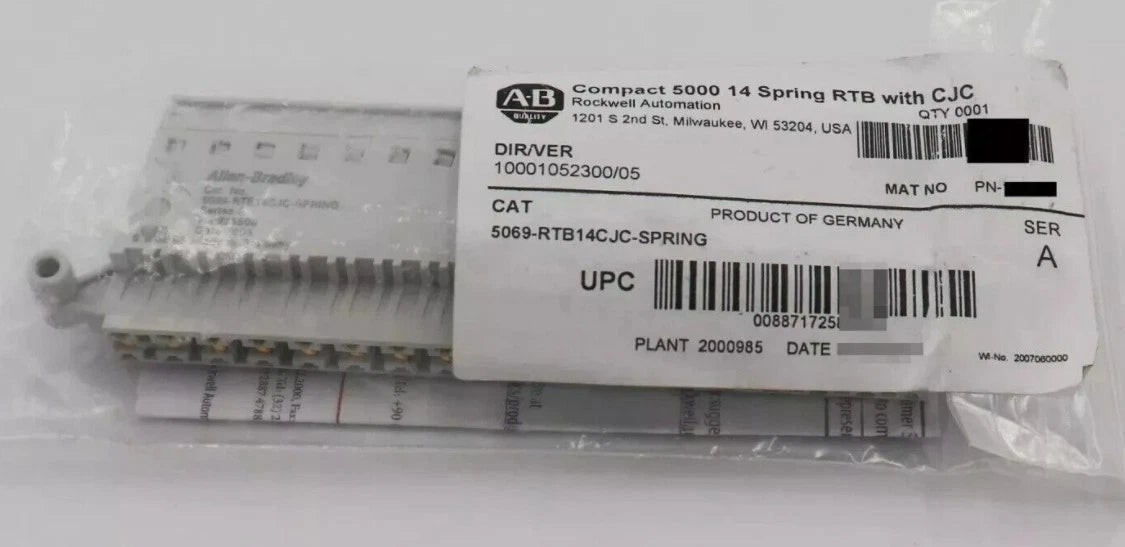

The 5069-RTB14CJC-SPRING is a 14-pin removable terminal block designed for applicable Compact 5000 analog input applications.
Allen-Bradley 5069-RTB14CJC-SPRING Terminal Block 14-Pin CJC Spring 300V AC
Available in stock (400)
Regular price
$104.12
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-RTB14CJC-SPRING |
| Product Category | Terminal Block |
| Series | Compact 5000 |
| Product Type | Removable Terminal Block with CJC |
| Number of Pins | 14 |
| Terminal Type | Spring-Type |
| CJC | Embedded CJC Thermistors |
| CJC Sensors | 2 Thermistors |
| Maximum Voltage | 300 V AC |
| Maximum Current | 10 A |
| Wire Type | Solid or Stranded Copper |
| Wire Size | 0.5–1.5 mm² (22–16 AWG) |
| Maximum Insulated Wire Diameter | 2.9 mm (0.11 in.) |
| Maximum Wire Strip Length | 10 mm (0.39 in.) |
Key Features
Embedded CJC Thermistors
The terminal block incorporates two cold-junction compensation thermistors for thermocouple measurement applications.
Spring-Type Terminals
The RTB uses spring-type field wiring connections and supports 0.5 to 1.5 mm², or 22 to 16 AWG, copper conductors.
Thermocouple Mode Support
Rockwell Automation documents the embedded CJC sensors for use with compatible Compact 5000 universal analog input modules when operating in thermocouple mode.
300V AC and 10A Ratings
The documented RTB ratings include a maximum voltage of 300 V AC and a maximum current of 10 A.
Compact 5000 Platform
The removable terminal block provides a field wiring interface within the Allen-Bradley 5069 Compact 5000 I/O platform.
Applications
- Compact 5000 analog input systems
- Thermocouple temperature measurement
- Cold-junction compensation circuits
- Industrial temperature monitoring
- Process instrumentation systems
- Machine automation equipment
- PLC control panels
- Industrial field signal wiring
Purchase Information
We support online purchase of the Allen-Bradley 5069-RTB14CJC-SPRING Terminal Block. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-RTB14CJC-SPRING?
The 5069-RTB14CJC-SPRING is a 14-pin spring-type removable terminal block with embedded cold-junction compensation thermistors for the Compact 5000 platform.
How many pins does 5069-RTB14CJC-SPRING have?
The terminal block has 14 pins.
What does CJC mean in this terminal block?
CJC refers to cold-junction compensation. The RTB incorporates two thermistors used to provide CJC sensing for thermocouple measurement applications.
What terminal connection does 5069-RTB14CJC-SPRING use?
It uses spring-type terminals for field wiring.
What is the maximum voltage rating?
Rockwell Automation documents a maximum voltage rating of 300 V AC for the spring-type RTB specification.
What is the maximum current rating?
The documented maximum current rating is 10 A.
What wire sizes can be used?
The documented conductor range is 0.5 to 1.5 mm², equivalent to 22 to 16 AWG, solid or stranded copper wire rated at 105 °C or greater.
What is the maximum wire stripping length?
The documented maximum stripping length for the spring-type terminal is 10 mm, or 0.39 inch.
What is the maximum insulated conductor diameter?
The documented maximum conductor diameter including insulation is 2.9 mm, or 0.11 inch.
Can this RTB be used for thermocouple measurements?
Yes. The embedded CJC thermistors are specifically documented for thermocouple mode with applicable Compact 5000 analog input modules.
Can 5069-RTB14CJC-SPRING replace an 18-pin RTB?
It can be considered only after the connected module, required terminal count, thermocouple mode, CJC requirements and wiring configuration have been checked.
What should be checked before ordering 5069-RTB14CJC-SPRING?
Check the complete module catalog number, requirement for 14 pins, spring-terminal configuration, thermocouple and CJC requirements, conductor size and Compact 5000 system configuration.
