16 Relay Outputs
The 5069-OW16 provides 16 Form A normally open relay outputs arranged as two groups of eight channels.

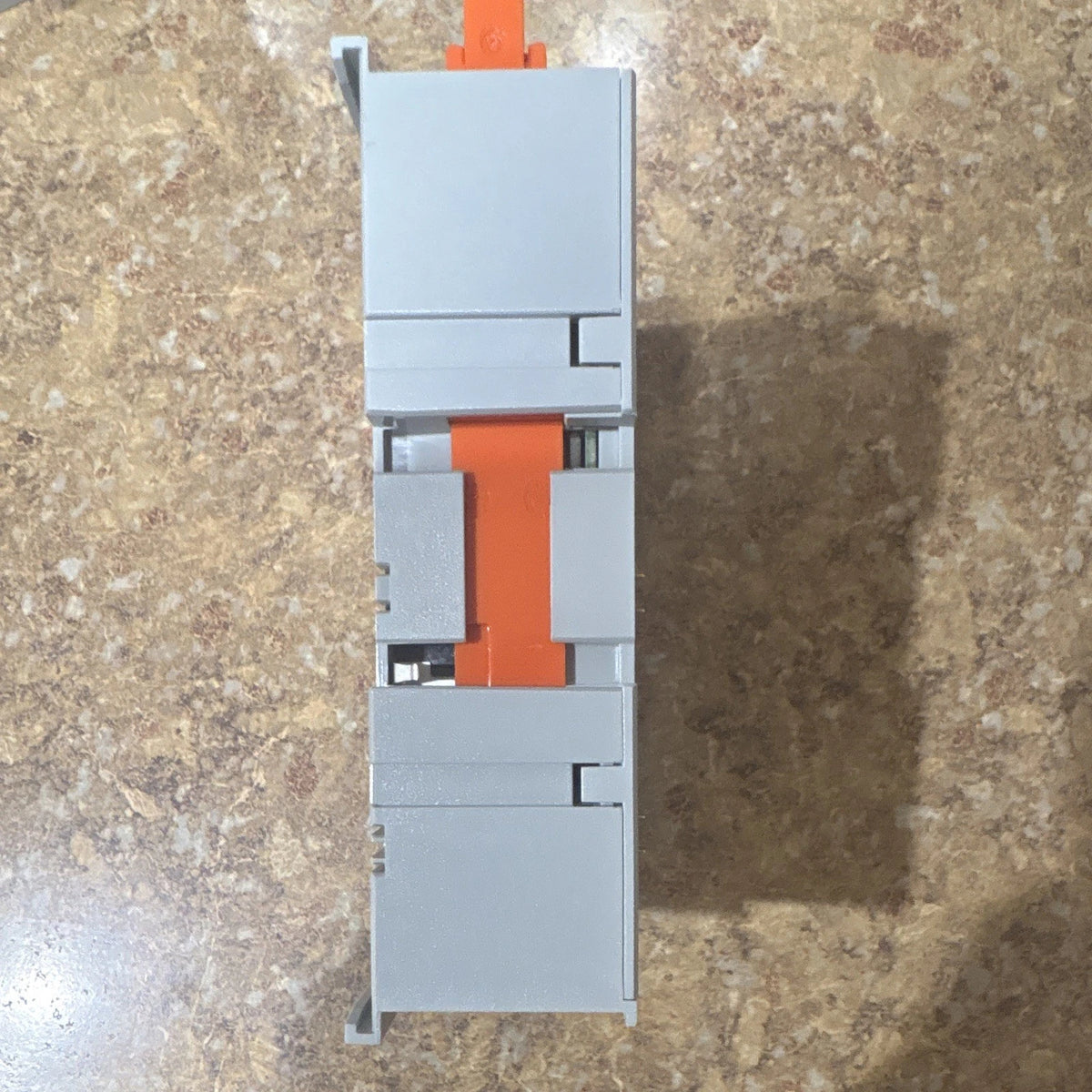

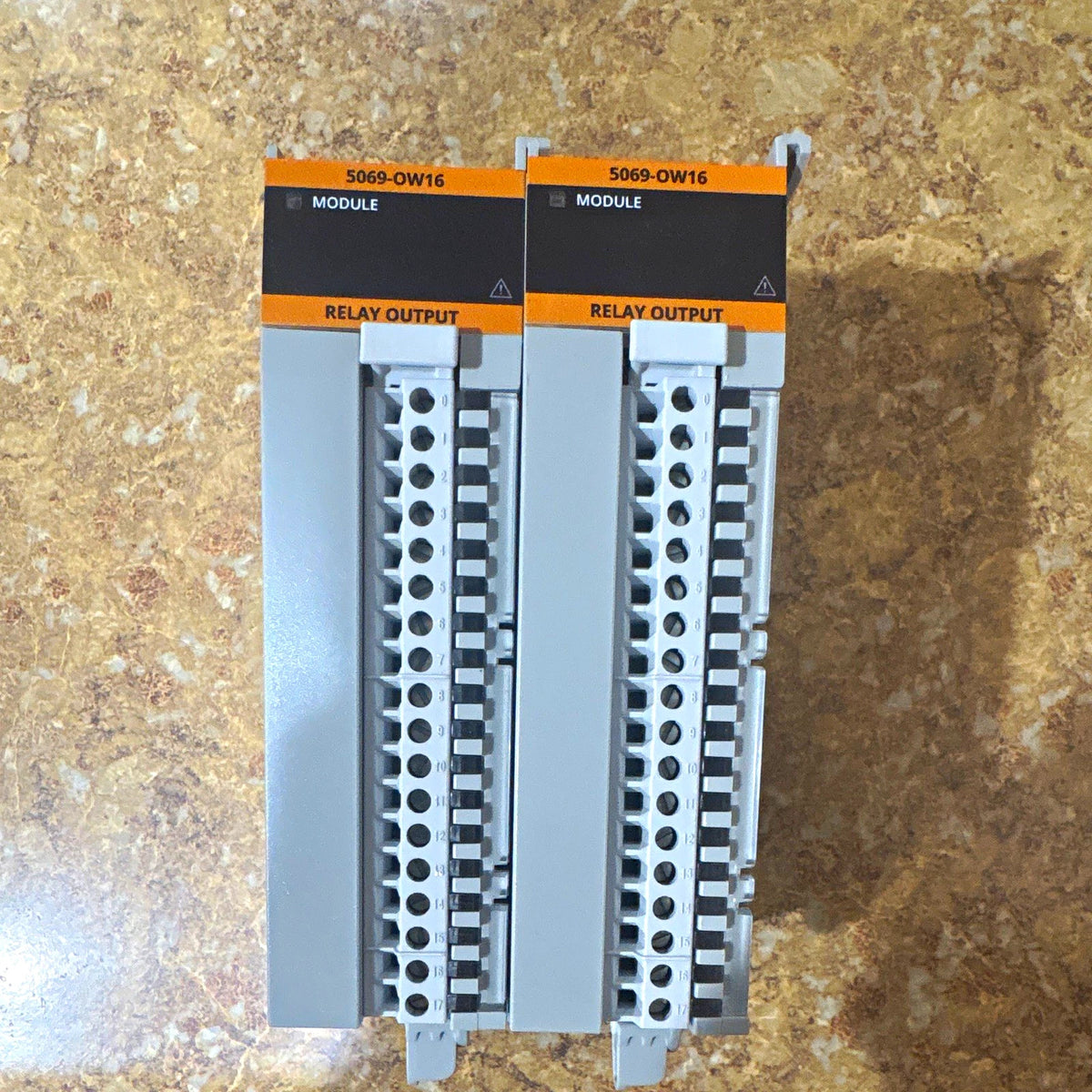

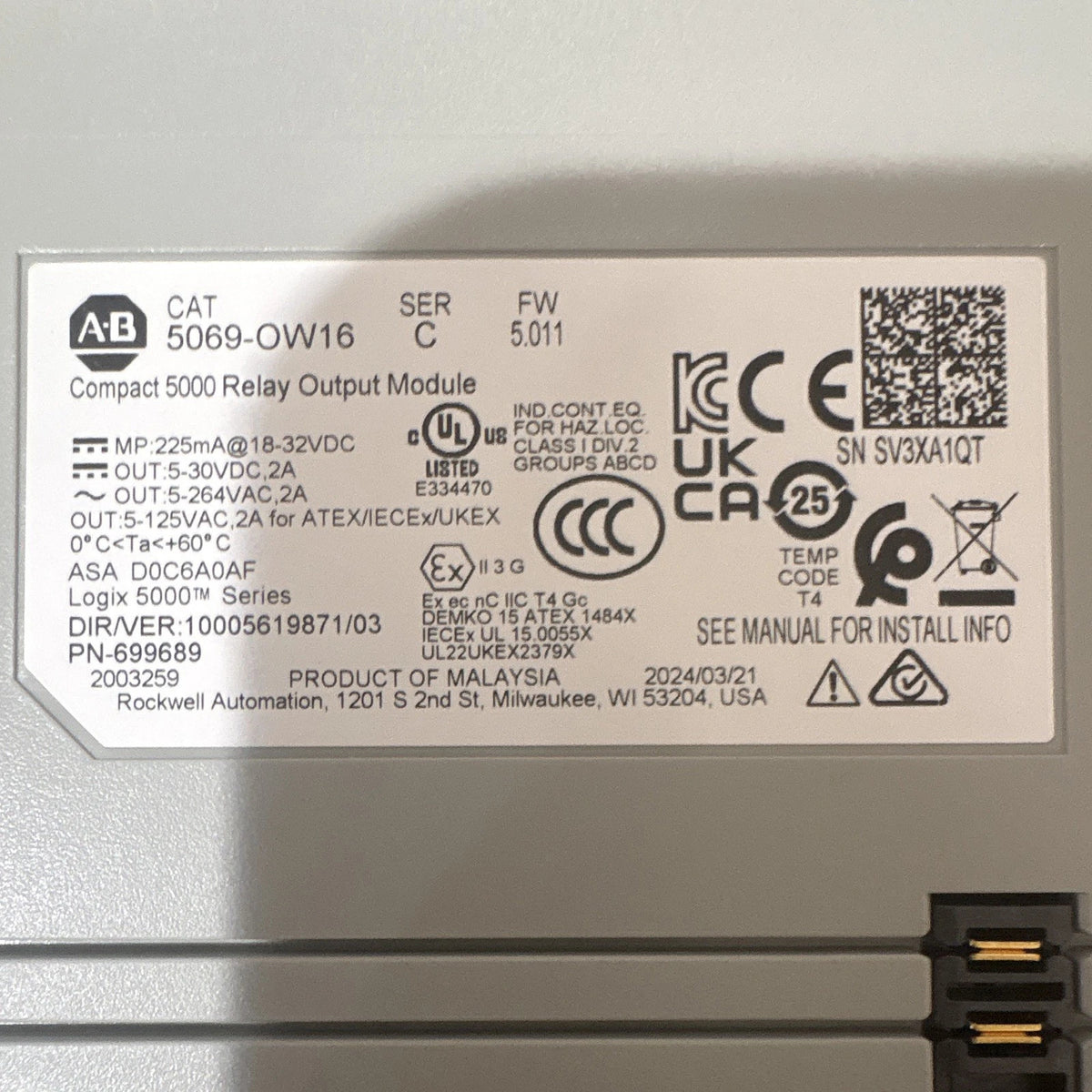

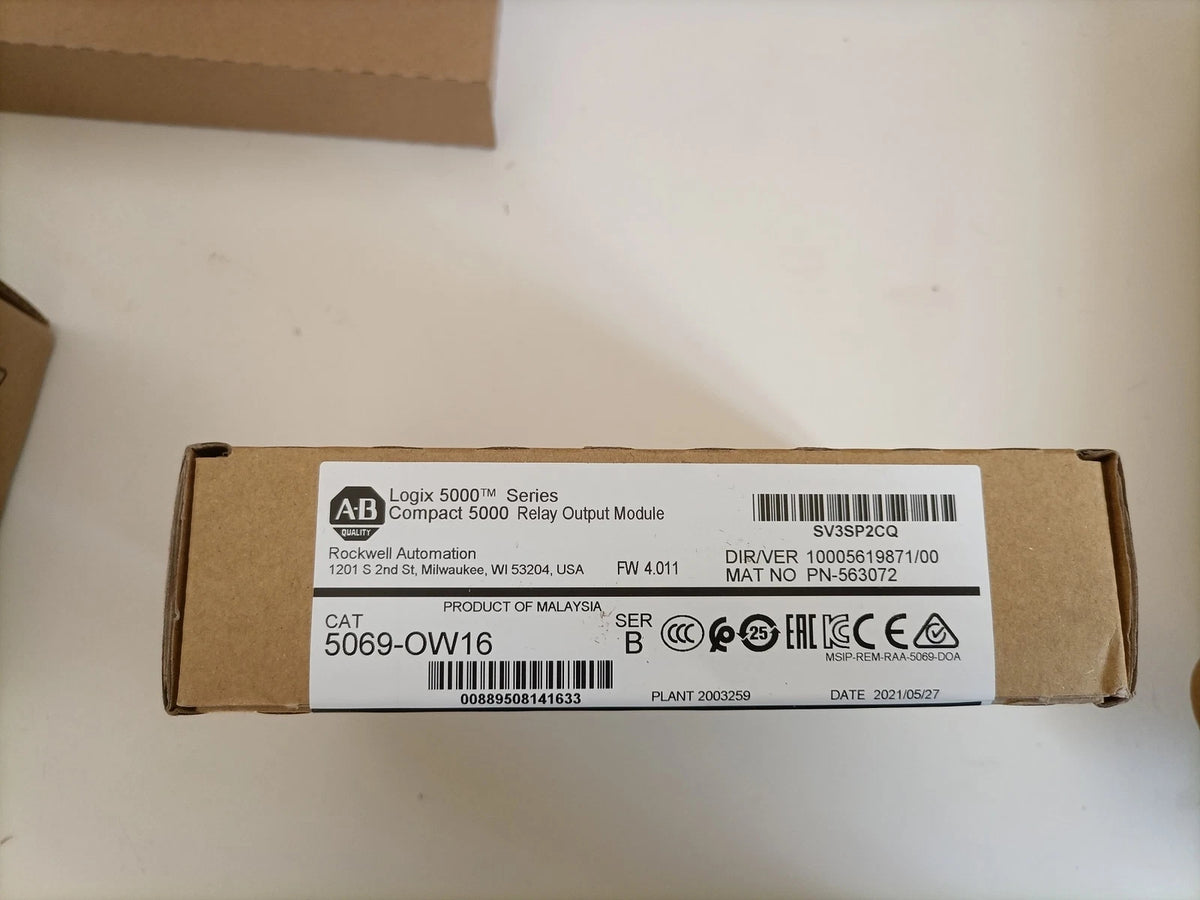

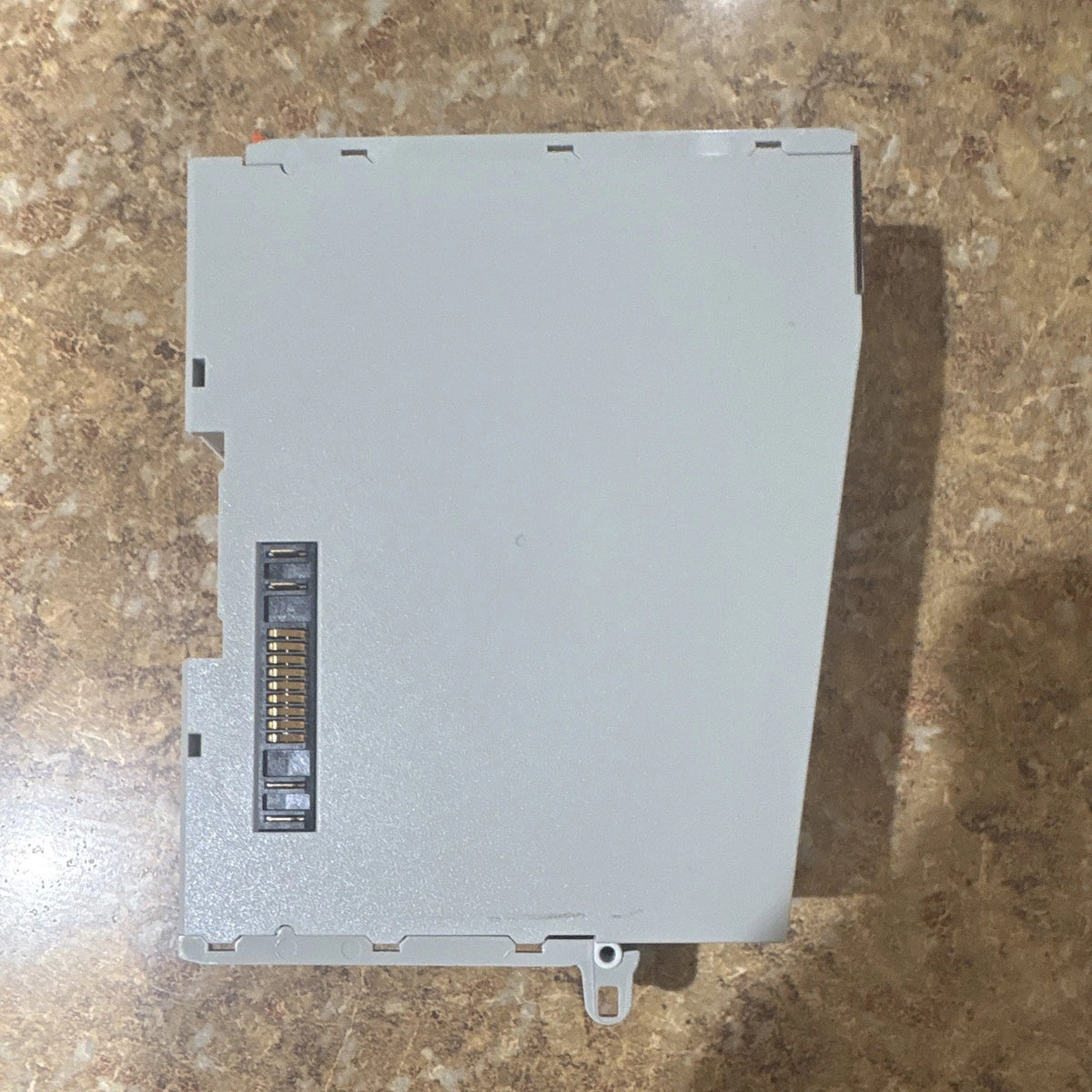

Allen-Bradley 5069-OW16 Output Module 16-Point Relay 5-264V AC
Available in stock (400)
Regular price
$486.13
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-OW16 |
| Product Category | Output Module |
| Series | Compact 5000 |
| Product Type | Digital Relay Output Module |
| Number of Outputs | 16, Two Groups of 8 |
| Contact Configuration | Form A, Normally Open |
| Channel Isolation | Non-Isolated Between Individual Channels |
| Output Voltage Range | 5–125 V DC; 5–264 V AC |
| Relay Rating, Resistive | 2 A per Channel at 5–30 V DC; 2 A per Channel at 5–264 V AC, 50/60 Hz |
| General Use Rating | 2 A per Channel at 5–250 V AC, 50/60 Hz |
| Output Current per Group | 8 A Maximum |
| Output Current per Module | 16 A Maximum |
| Minimum Load Current | 1 mA |
| Output Delay | 10 ms Maximum, Off-to-On and On-to-Off |
| Switching Frequency | 0.3 Hz at Rated Load |
| Power Dissipation | 3.0 W Maximum |
| Thermal Dissipation | 10.2 BTU/hr Maximum |
| Isolation Voltage | 250 V Continuous, Basic Insulation Type |
| Status Indicators | 1 Module Status Indicator; 16 I/O Status Indicators |
Key Features
AC and DC Load Switching
The documented output range is 5 to 125 V DC and 5 to 264 V AC, allowing relay control of supported AC or DC field loads.
2A Resistive per Channel
Each channel is rated for up to 2 A resistive load at 5 to 30 V DC or 5 to 264 V AC, subject to group and module current limits.
Two Shared Commons
The module uses two commons, with Common 0 shared by Outputs 0–7 and Common 1 shared by Outputs 8–15.
Output Status Indication
Sixteen I/O status indicators provide channel-level output status, along with a separate module status indicator.
Compact 5000 Platform
The 5069-OW16 is designed for Compact 5000 I/O systems and can operate as local or remote I/O in supported Logix 5000 architectures.
Applications
- Industrial relay output control
- PLC and distributed I/O systems
- Solenoid and actuator switching
- Motor control interface circuits
- Machine automation systems
- Factory automation equipment
- Industrial control panels
- AC and DC field load switching
Purchase Information
We support online purchase of the Allen-Bradley 5069-OW16 Output Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-OW16?
The 5069-OW16 is a Compact 5000 digital 16-point normally open relay output module.
How many outputs does 5069-OW16 provide?
The module provides 16 relay outputs arranged as two groups of eight.
What contact configuration does 5069-OW16 use?
The outputs use Form A normally open relay contacts.
What output voltage range does 5069-OW16 support?
The documented output voltage range is 5 to 125 V DC and 5 to 264 V AC.
What is the resistive current rating per channel?
The documented resistive rating is 2 A per channel at 5 to 30 V DC and 2 A per channel at 5 to 264 V AC, 50/60 Hz.
What are the group and module current limits?
The maximum output current is 8 A per group and 16 A for the complete module.
Are the individual output channels isolated?
Rockwell Automation specifies no isolation between individual output channels. The module has two shared commons, each serving eight channels.
Can AC and DC devices be connected to 5069-OW16?
The module supports AC-type devices, DC-type devices, or a combination, but devices of different power types should not be connected to channels that share the same common.
What is the maximum output switching delay?
The documented maximum delay is 10 ms for both Off-to-On and On-to-Off switching.
What status indicators are available?
The module has one green/red module status indicator and 16 yellow/red I/O status indicators.
Can 5069-OW16 be used as local or remote I/O?
Rockwell Automation documents Compact 5000 I/O modules for local I/O in applicable CompactLogix and Compact GuardLogix systems and for remote I/O in supported Logix 5000 architectures.
What should be checked before ordering 5069-OW16?
Check the complete catalog number, required relay output count, AC or DC field voltage, load current, shared common arrangement, terminal block requirements and controller architecture.
