8 Analog Outputs
The 5069-OF8 provides eight non-isolated analog output channels for controlling compatible voltage or current input devices.

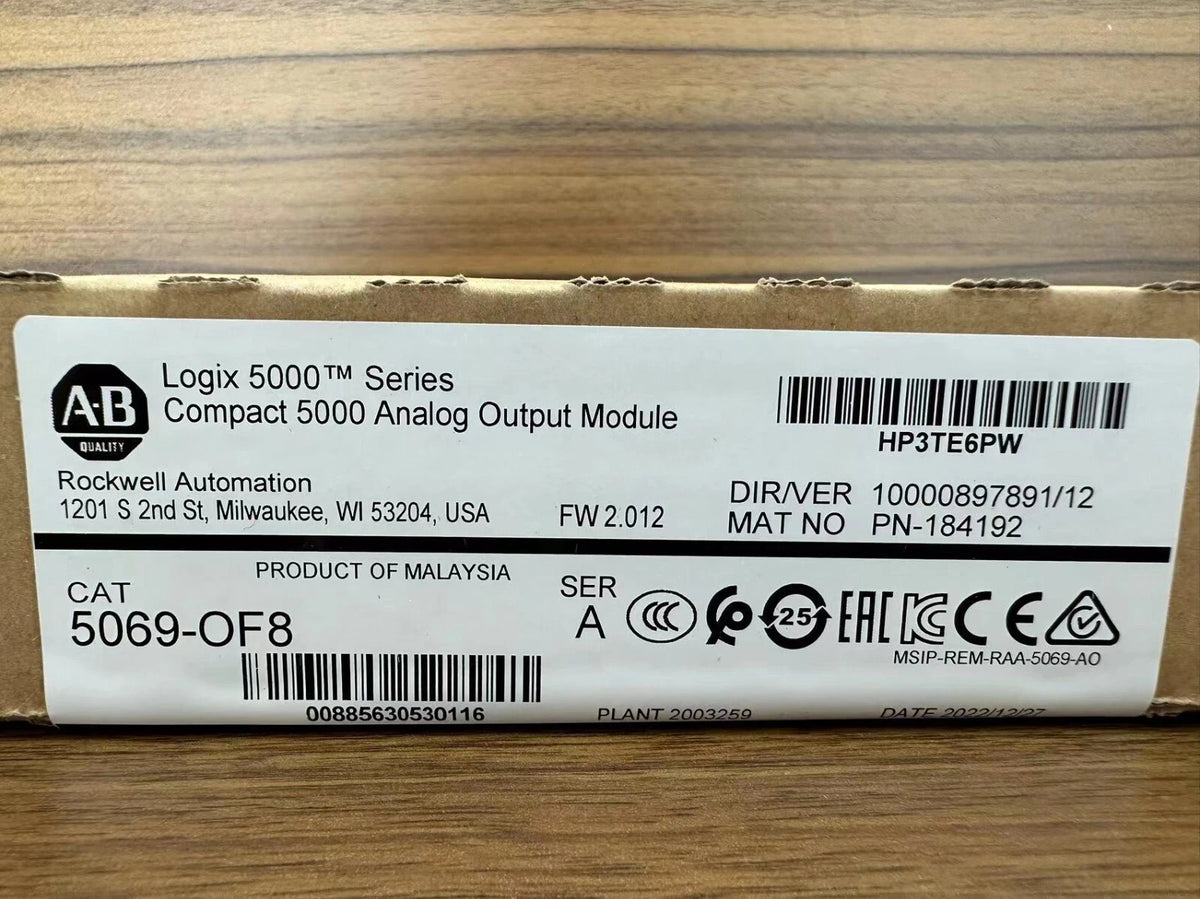

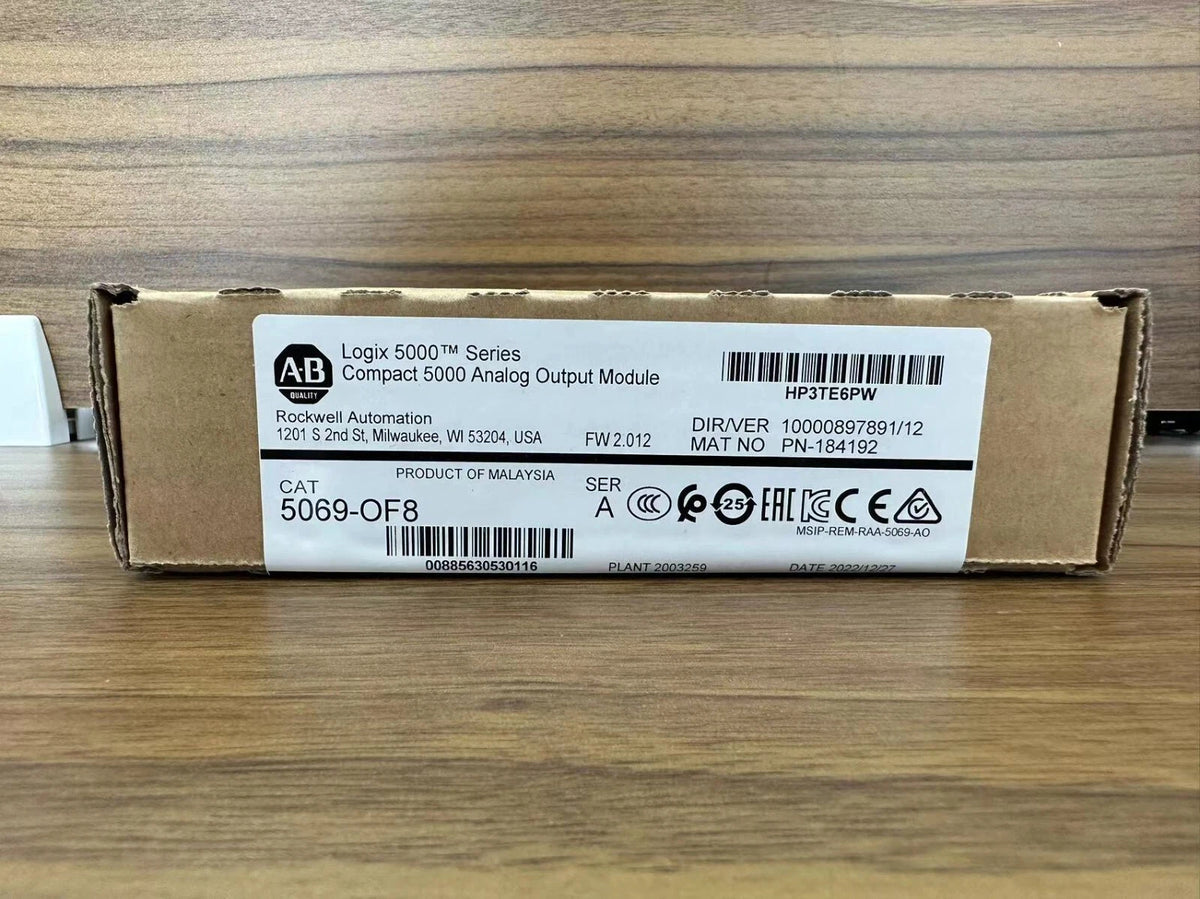

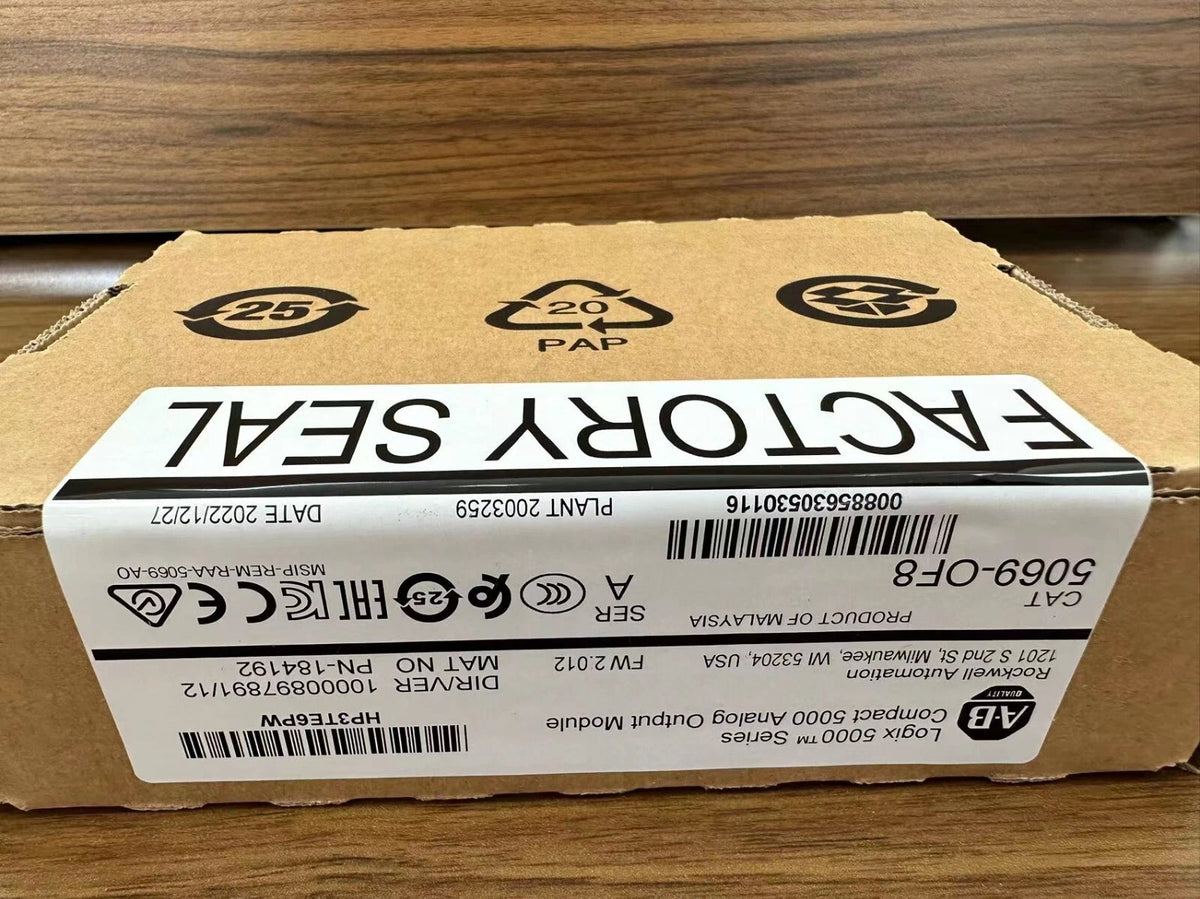

Allen-Bradley 5069-OF8 Analog Output Module 8-Channel ±10V 4-20mA
Available in stock (400)
Regular price
$984.75
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-OF8 |
| Product Category | Analog Output Module |
| Series | Compact 5000 |
| Product Type | Voltage/Current Analog Output Module |
| Number of Outputs | 8 |
| Output Types | Voltage or Current |
| Voltage Output Ranges | ±10 V; 0–10 V; 0–5 V |
| Current Output Ranges | 0–20 mA; 4–20 mA |
| Resolution | 16 Bit |
| Data Format | IEEE 32-Bit Floating Point |
| Conversion Time | 25 µs per Channel |
| Calibrated Accuracy at 25 °C | 0.10% Full Scale, Voltage and Current |
| Repeatability | 0.05% |
| Drive Capability | Voltage: 1000 Ω Minimum; Current: 500 Ω Maximum |
| Conversion Method | R-Ladder DAC |
| MOD Power | 75 mA at 18–32 V DC |
| SA Power | 250 mA at 18–32 V DC |
| Power Dissipation | 5.3 W Maximum |
| Thermal Dissipation | 18.1 BTU/hr Maximum |
| Dimensions | 144.57 × 22 × 105.42 mm (H × W × D) |
| Weight | 175 g |
| Required RTB | 5069-RTB18-SCREW or 5069-RTB18-SPRING |
Key Features
Voltage and Current Modes
Each channel supports configurable voltage or current operation with ±10 V, 0–10 V, 0–5 V, 0–20 mA and 4–20 mA output ranges.
16-Bit Resolution
The analog output circuitry provides 16-bit resolution across the documented voltage and current ranges.
25 µs Conversion
The module has a documented conversion time of 25 microseconds per channel for analog output processing.
Output Diagnostics
The module supports open-circuit detection in current mode and short-circuit detection in voltage mode for applicable channel diagnostics.
Compact 5000 Platform
The 5069-OF8 is part of the Allen-Bradley Compact 5000 I/O family and uses removable screw or spring terminal blocks for field wiring.
Applications
- 4–20 mA process control loops
- Analog actuator control
- Valve and positioner command signals
- Variable speed drive reference signals
- Industrial process automation
- Machine automation systems
- PLC and distributed I/O systems
- Voltage and current signal generation
Purchase Information
We support online purchase of the Allen-Bradley 5069-OF8 Analog Output Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-OF8?
The 5069-OF8 is a Compact 5000 eight-channel voltage/current analog output module that converts digital values into analog output signals.
How many analog outputs does 5069-OF8 provide?
The module provides eight non-isolated analog output channels.
What voltage output ranges does 5069-OF8 support?
The documented voltage ranges are ±10 V, 0 to 10 V and 0 to 5 V.
What current output ranges does 5069-OF8 support?
The documented current ranges are 0 to 20 mA and 4 to 20 mA.
What is the resolution of 5069-OF8?
The module provides 16-bit resolution across its documented analog output ranges.
What is the calibrated accuracy?
Rockwell Automation specifies calibrated accuracy of 0.10% of full scale at 25 °C for both voltage and current outputs.
What is the conversion time per channel?
The documented conversion time is 25 µs per channel.
Does 5069-OF8 provide output diagnostics?
Yes. The module supports open-circuit detection in current mode and short-circuit detection in voltage mode.
What load can the analog outputs drive?
Rockwell Automation specifies a minimum load of 1000 Ω for voltage mode and a maximum load of 500 Ω for current mode.
Which removable terminal blocks are used with 5069-OF8?
Rockwell Automation identifies the 5069-RTB18-SCREW and 5069-RTB18-SPRING terminal kits for this module.
Can 5069-OF8 be considered for 4–20 mA control applications?
Yes. The module includes a documented 4–20 mA current output range. The connected field device, wiring, load resistance and system configuration should be checked before selection.
What should be checked before ordering 5069-OF8?
Check the complete catalog number, required number of analog outputs, voltage or current ranges, field-device load requirements, RTB type, power requirements and Compact 5000 system configuration.
