16 DC Outputs
The 5069-OB16F provides 16 sourcing digital output channels for controlling compatible 18 to 32 V DC field devices in Compact 5000 I/O systems.

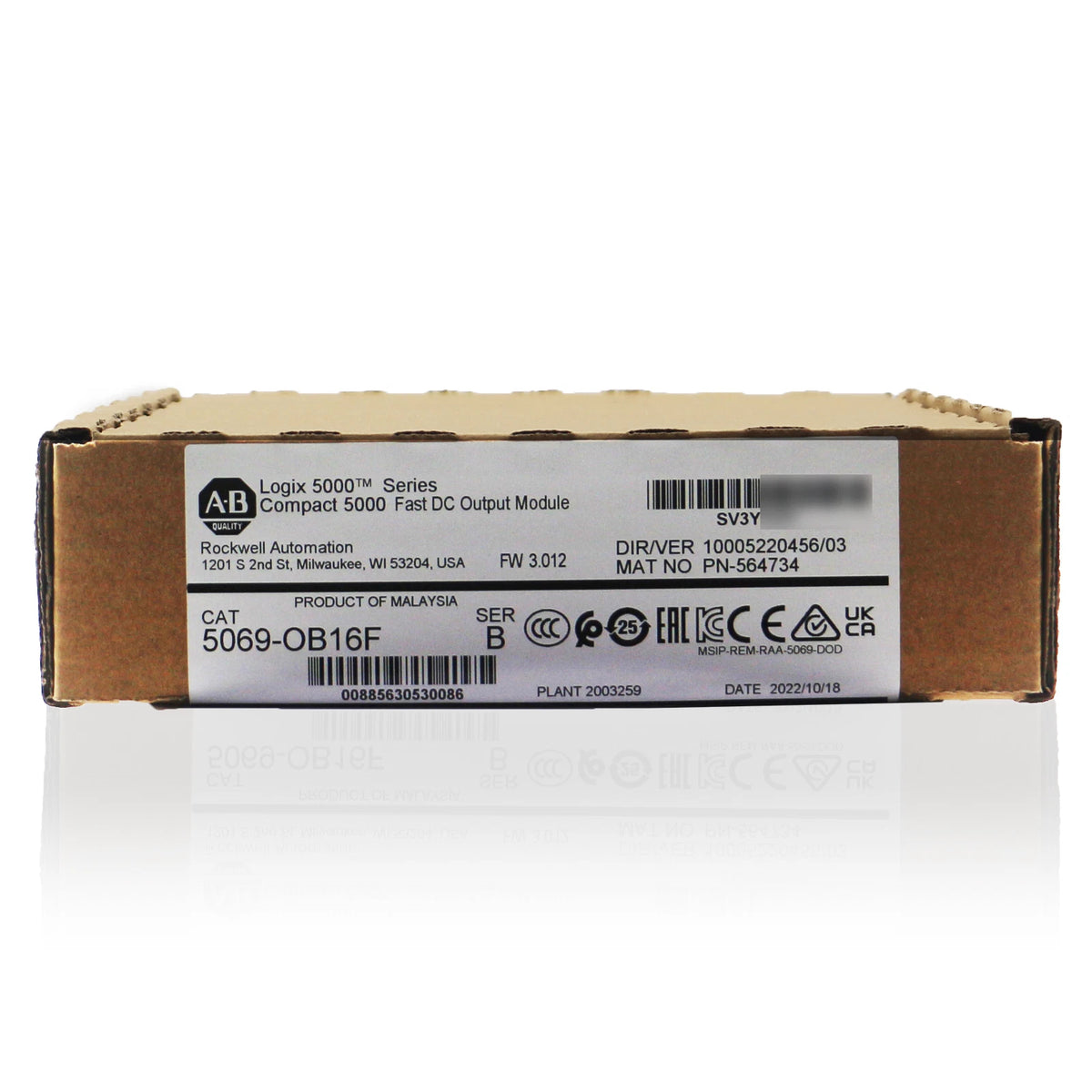

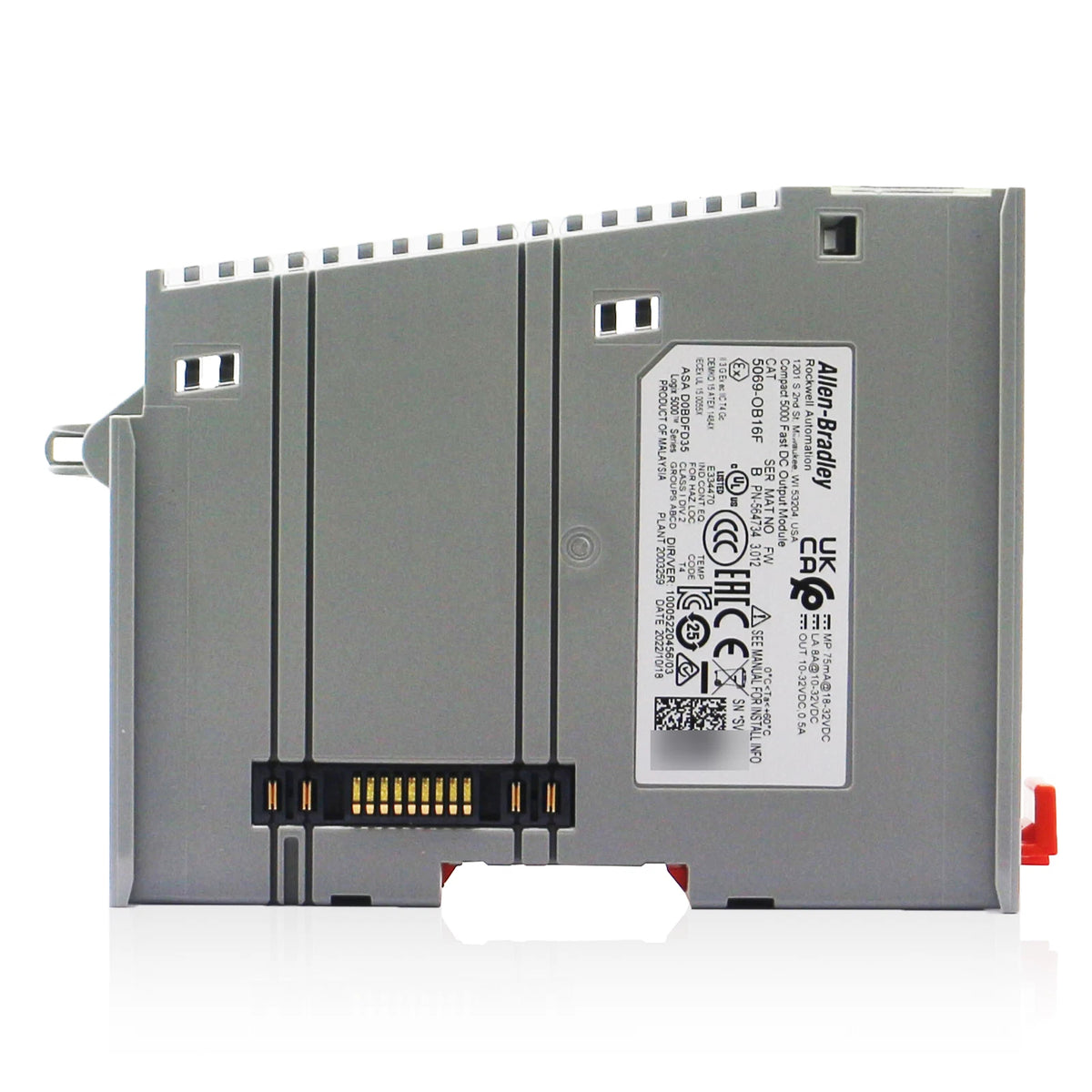

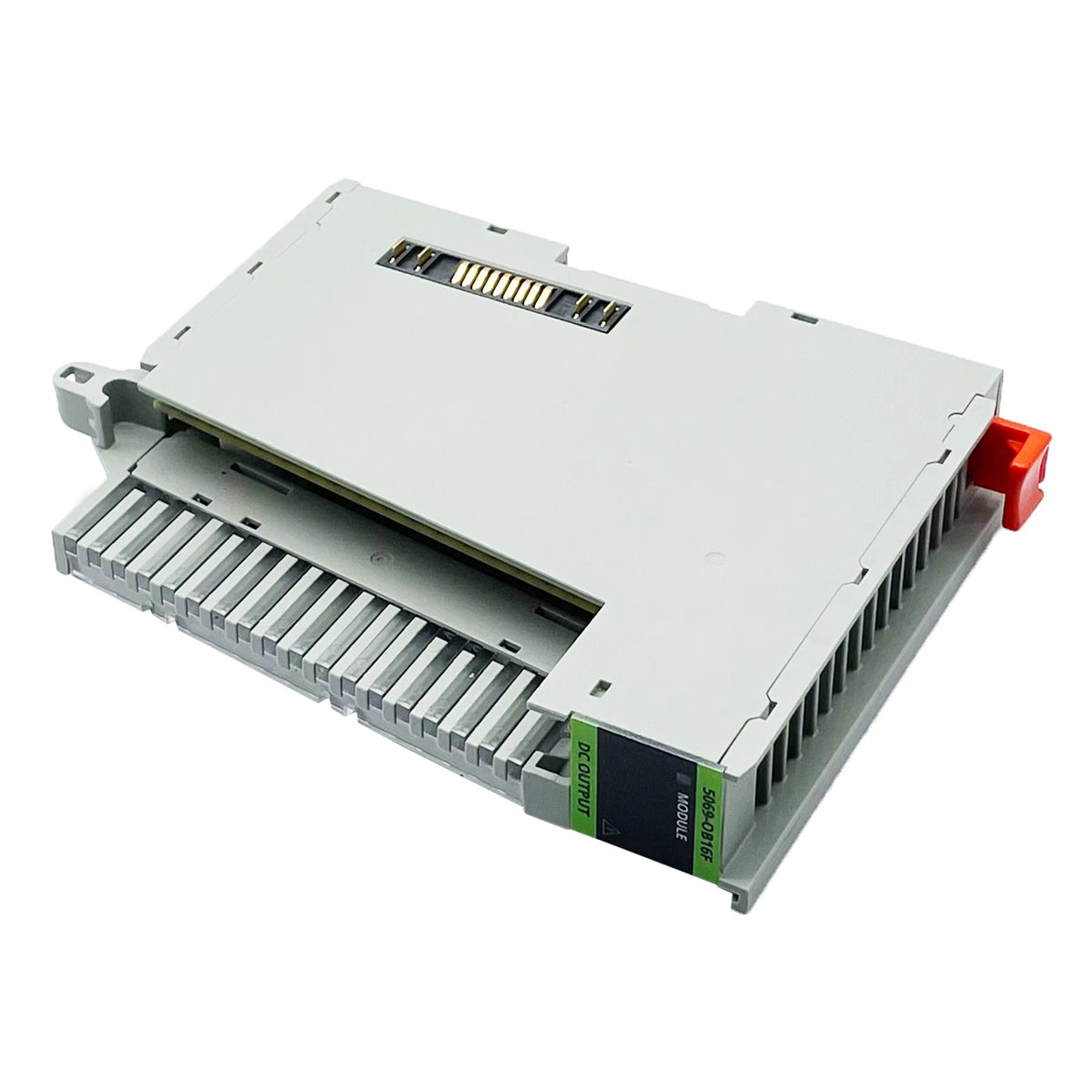

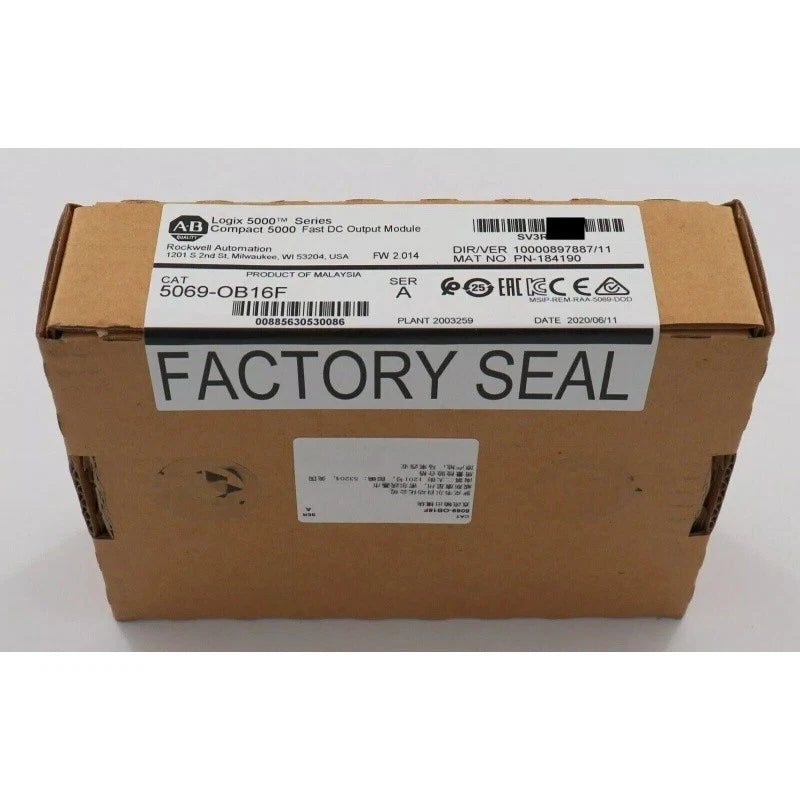

Allen-Bradley 5069-OB16F Output Module 16-Point 18-32V DC 0.5A
Available in stock (400)
Regular price
$364.81
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-OB16F |
| Product Category | Output Module |
| Series | Compact 5000 |
| Product Type | DC Digital Output Module |
| Number of Outputs | 16 |
| Output Type | Sourcing |
| Output Voltage Range | 18–32 V DC |
| Output Current per Channel | 0.5 A Maximum |
| Output Current per Module | 8 A Maximum |
| Minimum Load Current | 1 mA |
| On-State Voltage Drop | 0.2 V DC Maximum |
| Off-State Leakage Current | 0.1 mA Maximum |
| Output Delay, Off to On | 100 µs Maximum |
| Output Delay, On to Off | 200 µs Maximum |
| Scheduled Outputs | Supported |
| Output Short Circuit Protection | Electronically Protected |
| Power Dissipation | 4.2 W Maximum |
| Thermal Dissipation | 14.3 BTU/hr Maximum |
| Status Indicators | 1 Module Status Indicator; 16 I/O Status Indicators |
Key Features
0.5A per Channel
Each output channel supports up to 0.5 A, with a documented maximum aggregate output current of 8 A for the module.
Fast Output Response
The module provides output delays of up to 100 µs from Off to On and 200 µs from On to Off for responsive digital control applications.
Scheduled Output Capability
The 5069-OB16F supports scheduled outputs, allowing output events to be coordinated with system time in supported Logix architectures.
Electronic Output Protection
Output channels incorporate electronic short-circuit protection to support channel diagnostics and protection of the output circuitry.
Channel Status Indication
Sixteen I/O status indicators provide channel-level status information together with a separate module status indicator.
Applications
- 24 V DC solenoid control
- Industrial actuator switching
- Machine sequence control
- PLC distributed I/O systems
- Industrial control panels
- Factory automation equipment
- High-speed digital output control
- Scheduled machine control events
Purchase Information
We support online purchase of the Allen-Bradley 5069-OB16F Output Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-OB16F?
The 5069-OB16F is a Compact 5000 16-point sourcing DC digital output module for industrial automation systems.
How many outputs does 5069-OB16F provide?
The module provides 16 digital output channels.
What output voltage does 5069-OB16F support?
The documented output voltage range is 18 to 32 V DC.
Is 5069-OB16F a sourcing or sinking output module?
The 5069-OB16F uses sourcing outputs for compatible DC field devices.
What is the maximum current per output?
Each output channel is rated for a maximum of 0.5 A, subject to the module-level current limit.
What is the maximum output current for the module?
The documented maximum aggregate output current is 8 A.
What are the output switching delays?
The documented maximum delay is 100 µs from Off to On and 200 µs from On to Off.
Does 5069-OB16F support scheduled outputs?
Yes. Scheduled output capability is supported for time-coordinated output control in applicable Logix systems.
Does 5069-OB16F have short-circuit protection?
Yes. The module provides electronic short-circuit protection for its output circuitry.
What status indicators are provided?
The module provides one module status indicator and 16 individual I/O status indicators.
Can 5069-OB16F be considered for 24 V DC field devices?
Yes. Its documented 18 to 32 V DC output range covers typical 24 V DC control applications, but the field-device voltage, current and wiring requirements should be checked before selection.
What should be checked before ordering 5069-OB16F?
Check the complete catalog number, required output count, sourcing output requirement, field voltage, load current, switching requirements, terminal block and Compact 5000 system configuration.
