16 Fast DC Inputs
The 5069-IB16F provides 16 sinking digital input channels for detecting DC field-device state transitions in Compact 5000 I/O systems.

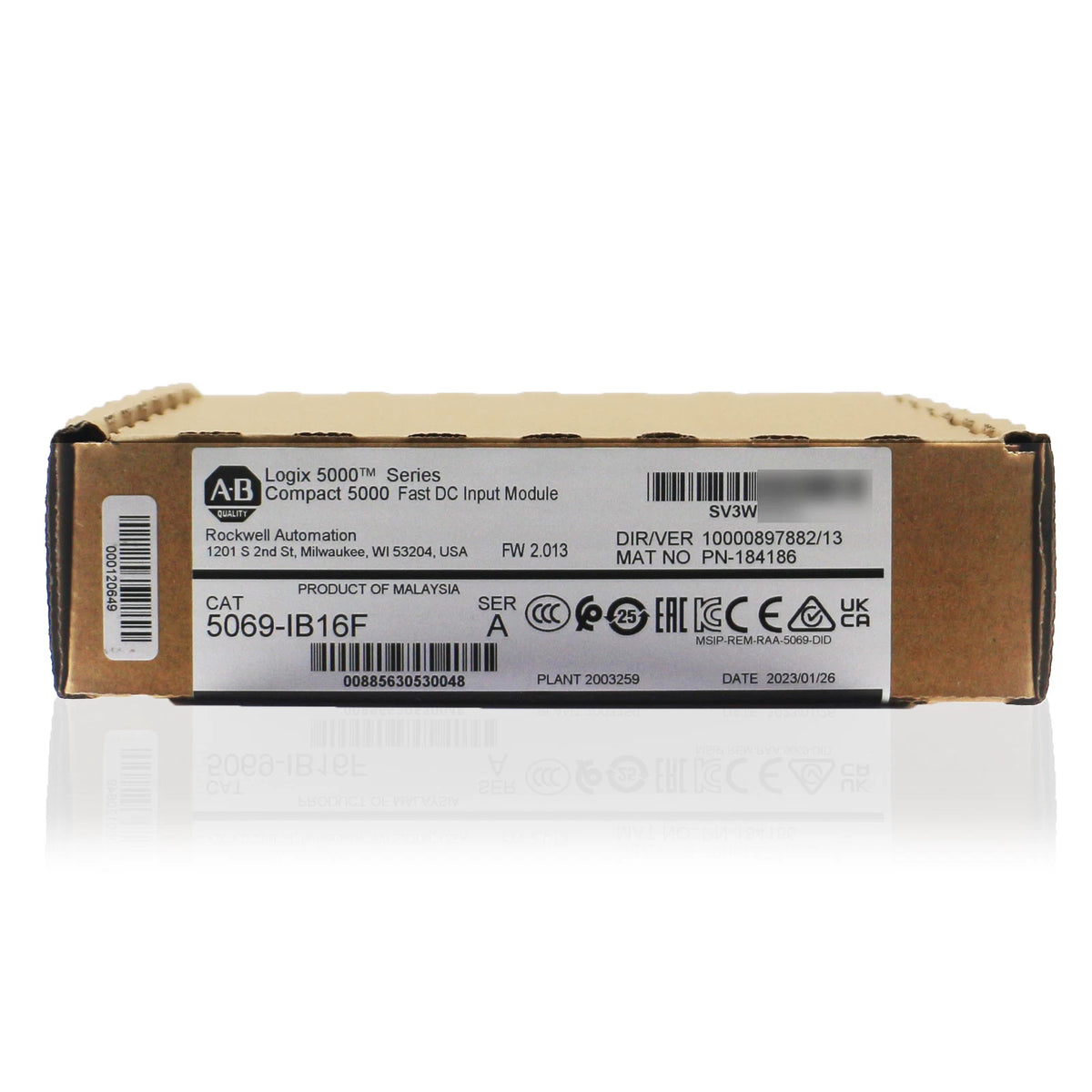

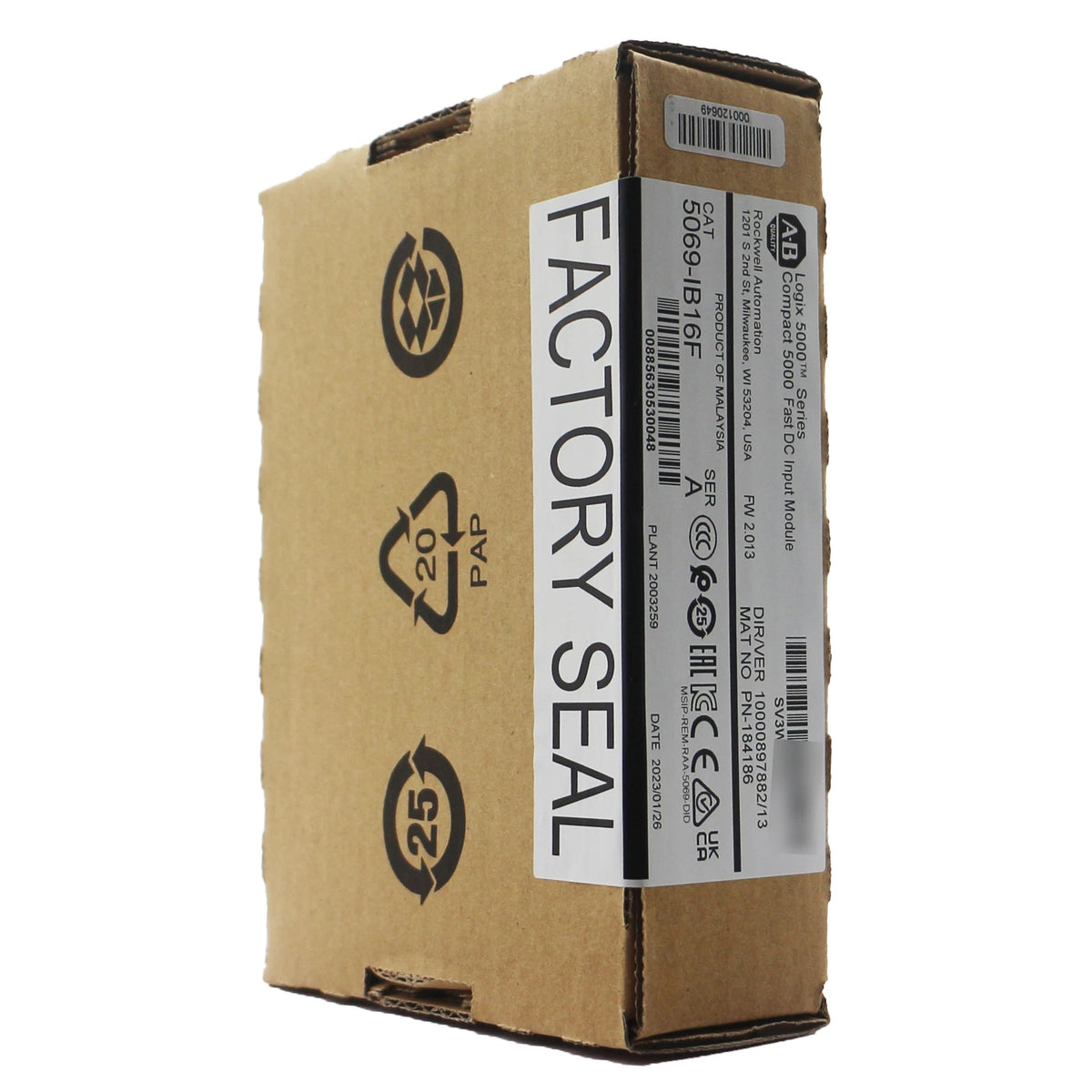

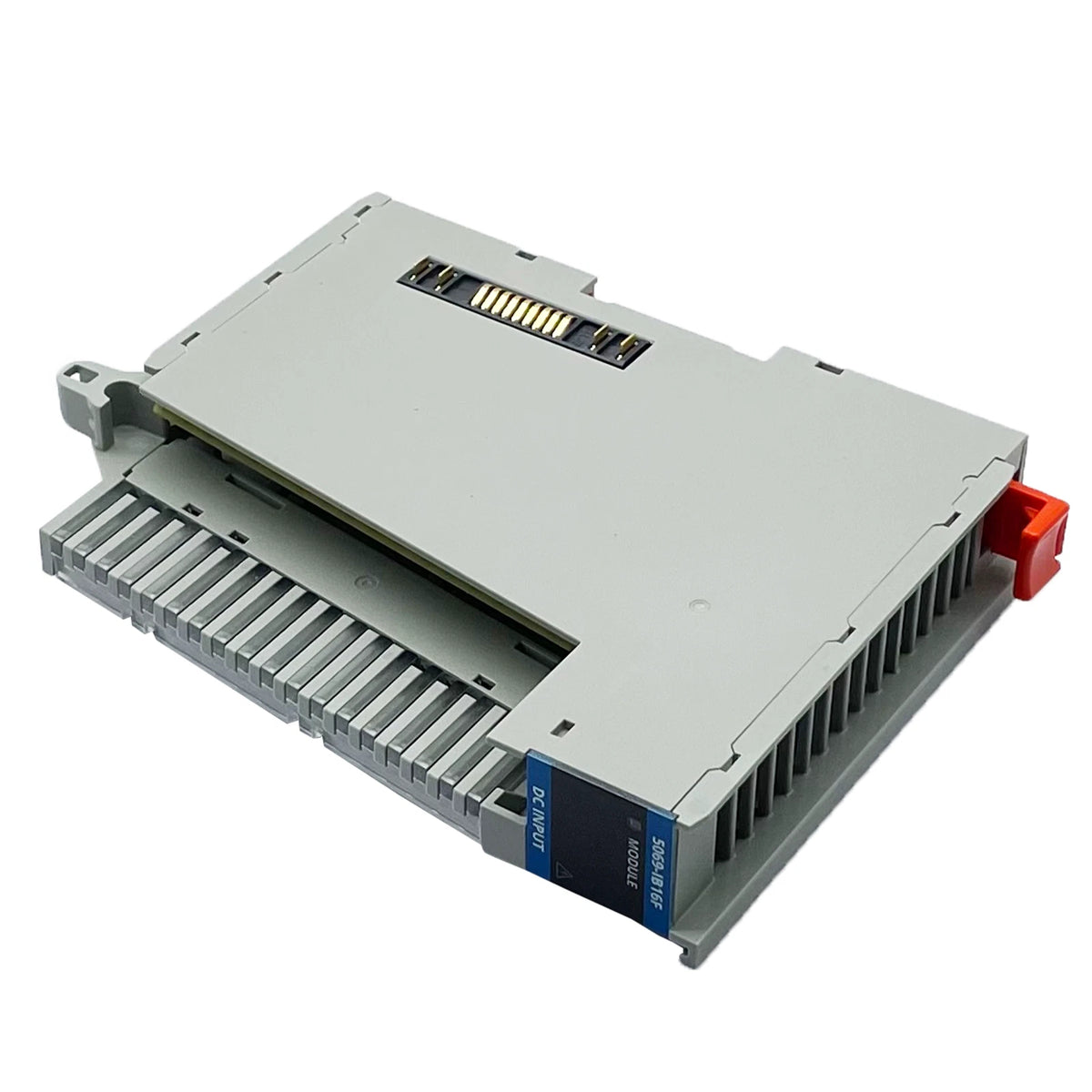

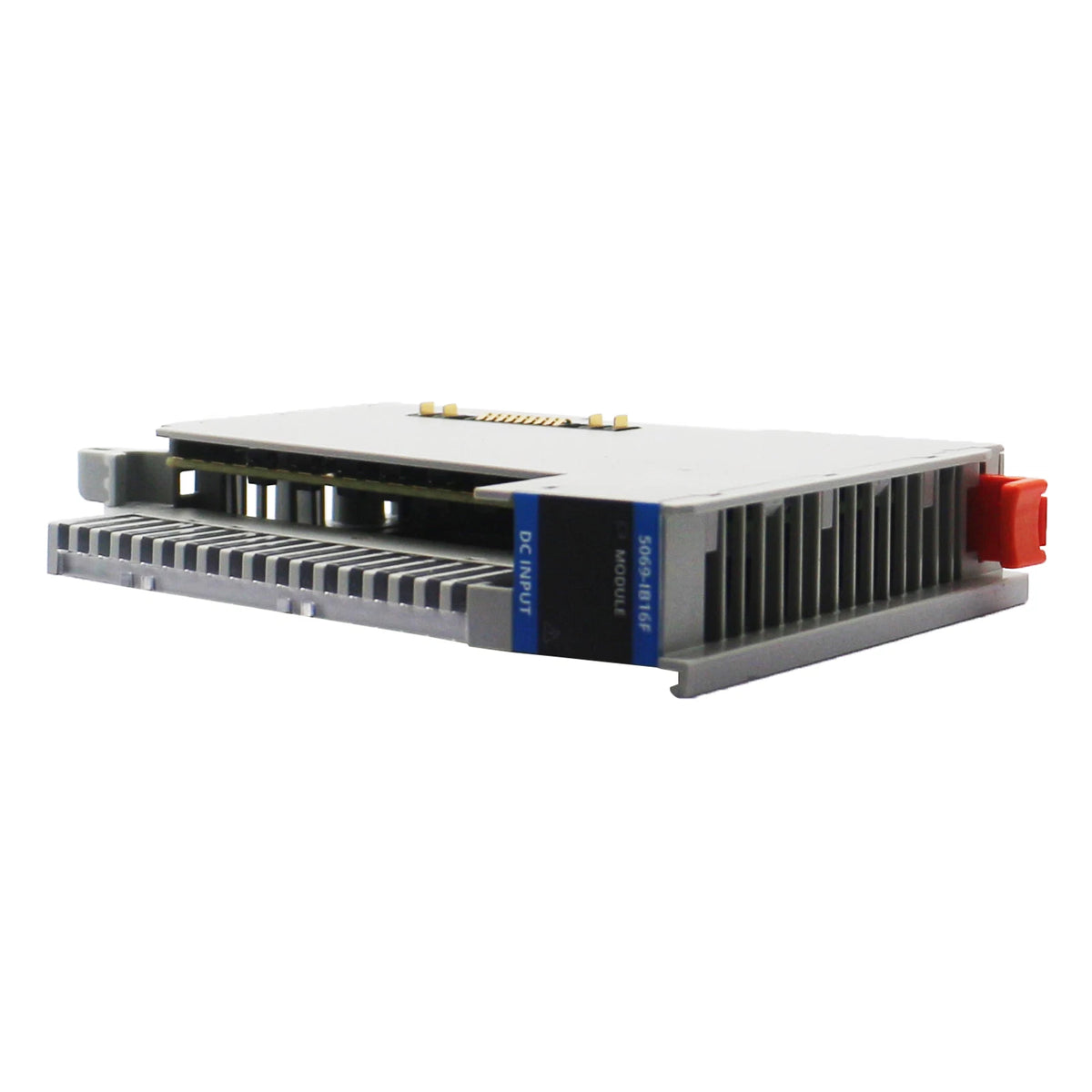

Allen-Bradley 5069-IB16F Input Module 16-Point Fast 10-32V DC 30kHz
Available in stock (400)
Regular price
$247.25
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-IB16F |
| Product Category | Input Module |
| Series | Compact 5000 |
| Product Type | Fast DC Digital Input Module |
| Number of Inputs | 16 |
| Input Type | Sinking |
| Voltage Category | 12/24 V DC Sink |
| Input Voltage Range | 10–32 V DC |
| Input Rating | 4–7.4 mA per Channel at 10–32 V DC |
| Minimum Input Pulse Width | 6 µs |
| Hardware Delay, Off to On | 2 µs + Filter Time |
| Hardware Delay, On to Off | 3 µs + Filter Time |
| User-Selectable Input Filter | 0–50 ms |
| Counter Frequency | 30 kHz Maximum |
| Simple Counters | 8 Maximum, Channels 0–7 |
| MOD Power | 75 mA at 18–32 V DC |
| SA Power | 200 mA at 10–32 V DC |
| Power Dissipation | 3.9 W Maximum |
| Thermal Dissipation | 13.3 BTU/hr Maximum |
| Isolation Voltage | 250 V Continuous, Basic Insulation Type |
| Overvoltage Protection | 36 V Maximum, Fuse Protected |
| Required Terminal Kit | 5069-RTB18-SCREW or 5069-RTB18-SPRING |
Key Features
10–32V DC Input Range
The module supports a 10 to 32 V DC input range and is categorized for 12/24 V DC sinking input applications.
Fast 6µs Pulse Detection
A minimum input pulse width of 6 µs supports applications requiring detection of faster input transitions than standard digital input modules.
30kHz Counter Capability
The 5069-IB16F supports simple counting at frequencies up to 30 kHz, with up to eight counters configurable on channels 0 through 7.
Adjustable Input Filtering
User-selectable input filtering from 0 to 50 ms allows input response characteristics to be configured for application requirements.
Compact 5000 Platform
The module is designed for the Compact 5000 I/O platform and uses an 18-position screw or spring removable terminal block.
Applications
- High-speed digital signal detection
- Machine sensor input monitoring
- Pulse counting applications
- Industrial proximity sensor inputs
- Packaging and assembly machinery
- Material handling systems
- PLC-based machine control
- Compact 5000 I/O systems
Purchase Information
We support online purchase of the Allen-Bradley 5069-IB16F Input Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-IB16F?
The 5069-IB16F is a Compact 5000 fast DC digital input module with 16 sinking input channels.
How many input channels does 5069-IB16F provide?
The module provides 16 digital input channels.
What is the input voltage range of 5069-IB16F?
The documented input range is 10 to 32 V DC, with a 12/24 V DC sink voltage category.
Is 5069-IB16F a sinking input module?
Yes. Rockwell Automation identifies the 5069-IB16F as a 16-channel sinking fast DC input module.
What is the minimum input pulse width?
The documented minimum pulse width for both Off-to-On and On-to-Off transitions is 6 µs.
What is the maximum counter frequency?
The 5069-IB16F supports simple counting at frequencies up to 30 kHz.
How many channels can be configured as simple counters?
Up to eight simple counters are supported, using channels 0 through 7.
Does 5069-IB16F support configurable input filtering?
Yes. The user-selectable input filter time can be configured from 0 to 50 ms.
What is the difference between 5069-IB16F and 5069-IB16?
The 5069-IB16F is the fast-input version. Its documented minimum pulse width is 6 µs and its counter frequency reaches 30 kHz, compared with 60 µs and 500 Hz for the standard 5069-IB16.
Which terminal blocks are used with 5069-IB16F?
The module uses either the 5069-RTB18-SCREW or 5069-RTB18-SPRING terminal kit.
Can 5069-IB16F be used for pulse-counting applications?
Yes. Its simple count function supports frequencies up to 30 kHz on configurable counter channels. The complete signal and application requirements should be checked before selection.
What should be checked before ordering 5069-IB16F?
Check the complete catalog number, 16-channel requirement, sinking input configuration, 10 to 32 V DC signal range, required input response, counter frequency, terminal block type and Compact 5000 system configuration.
