16 DC Input Channels
The 5069-IB16 provides 16 digital input channels in one sinking input group for Compact 5000 I/O control systems.

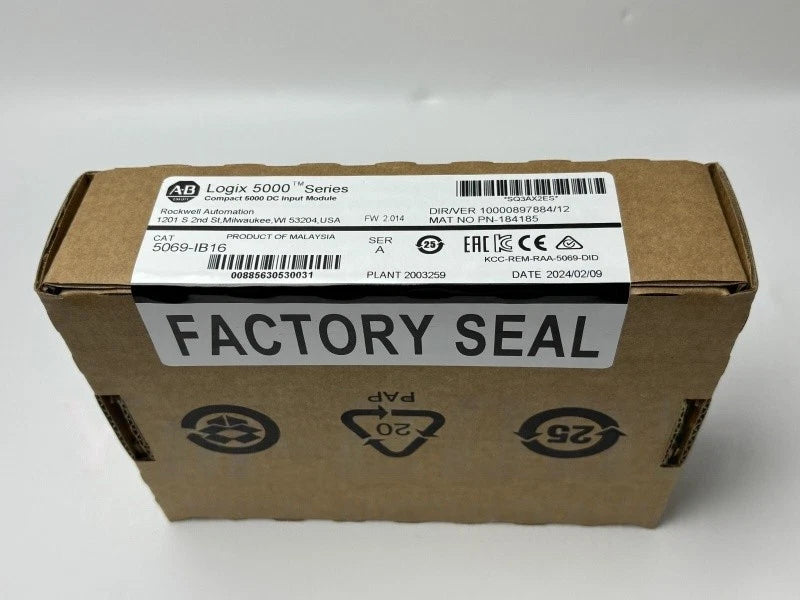

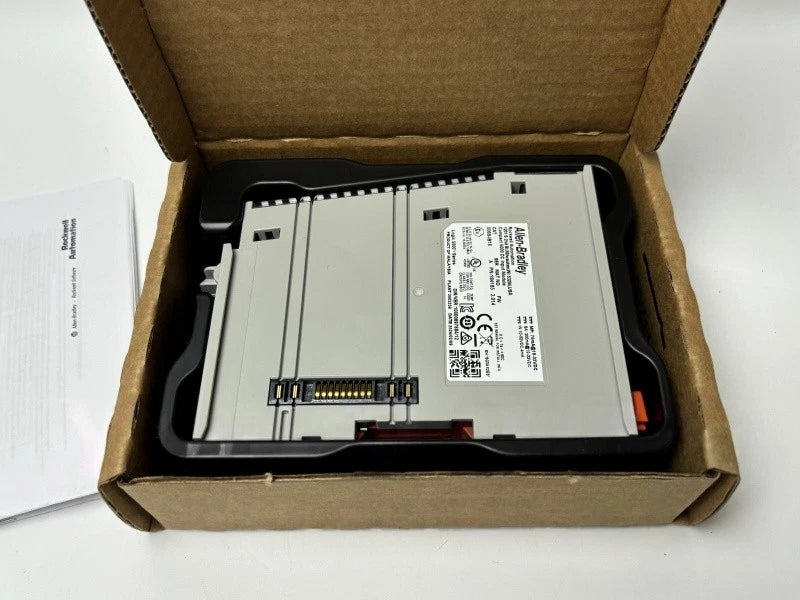

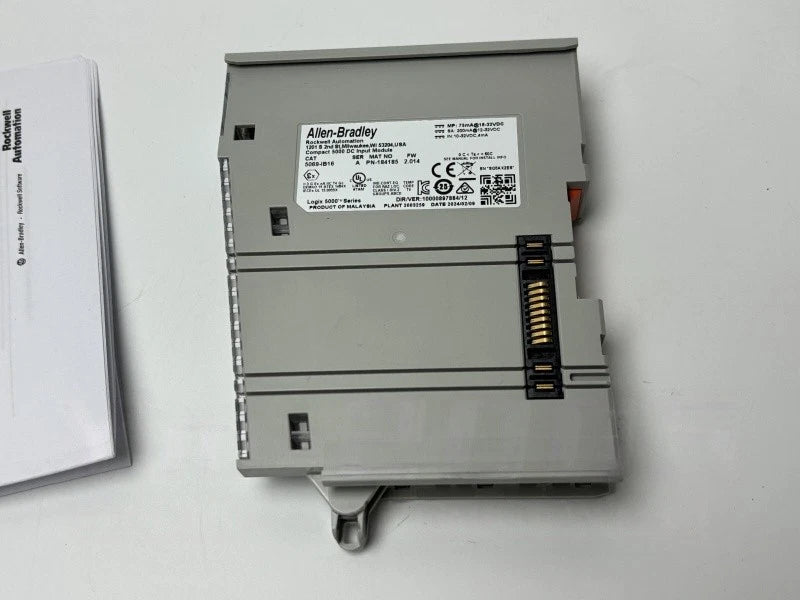

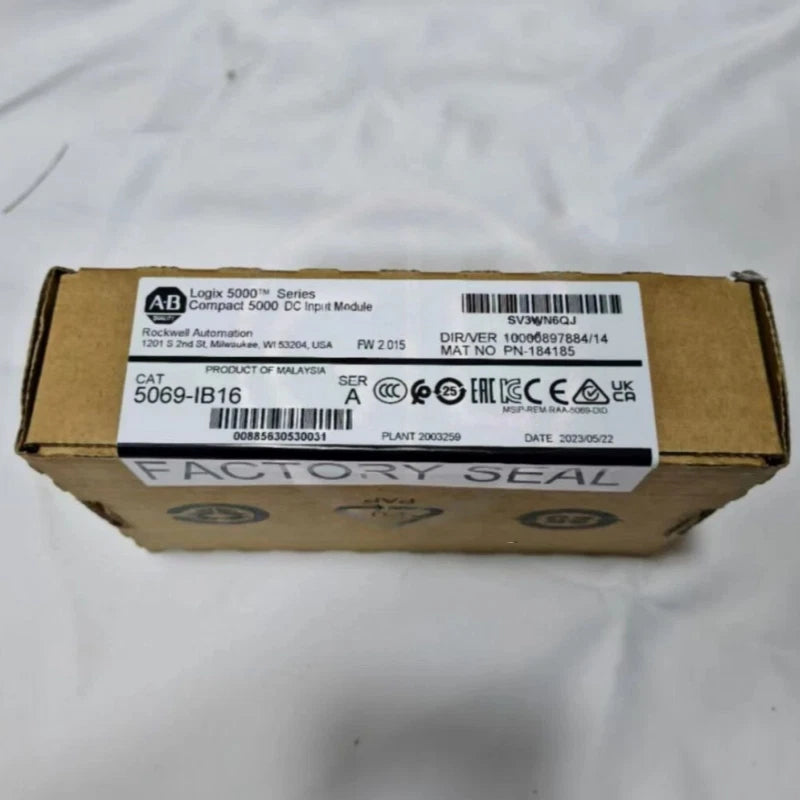

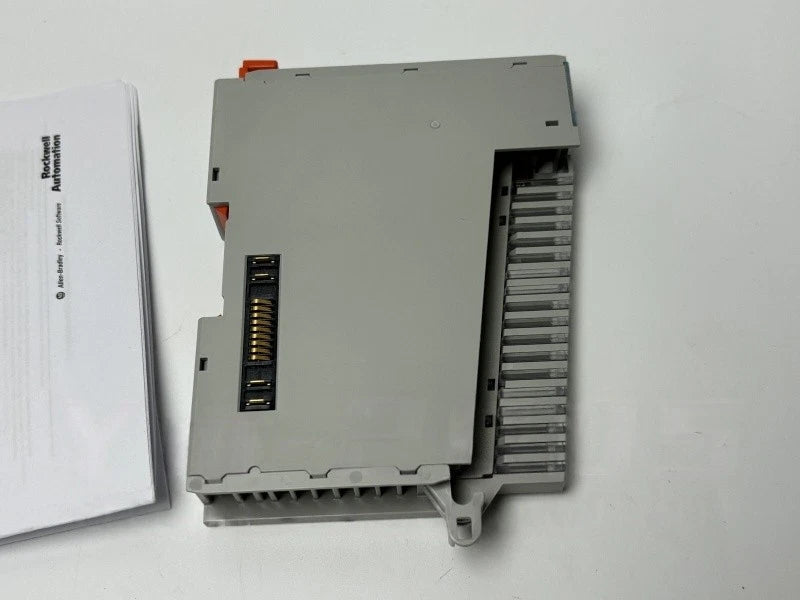

Allen-Bradley 5069-IB16 Input Module 16-Point 10-32V DC Sink
Available in stock (400)
Regular price
$214.01
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-IB16 |
| Product Category | Input Module |
| Series | Compact 5000 |
| Product Type | DC Digital Input Module |
| Number of Inputs | 16 |
| Input Configuration | 1 Group of 16, Sinking |
| Voltage Category | 12/24 V DC Sink |
| Input Voltage Range | 10–32 V DC |
| Nominal On-State Voltage | 24 V DC |
| Input Current | 4–7.4 mA per Channel at 10–32 V DC |
| MOD Power | 75 mA at 18–32 V DC |
| MOD Power Passthrough | 9.55 A at 18–32 V DC |
| SA Power | 200 mA at 10–32 V DC |
| SA Power Passthrough | 9.95 A at 10–32 V DC |
| Power Dissipation | 3.9 W Maximum |
| Thermal Dissipation | 13.3 BTU/hr Maximum |
| Isolation Voltage | 250 V Continuous, Basic Insulation Type |
| Channel Isolation | No Isolation Between Individual Input Ports |
| Status Indicators | 1 Green/Red Module Status; 16 Yellow/Red I/O Status |
| Required Terminal Kit | 5069-RTB18-SCREW or 5069-RTB18-SPRING |
Key Features
10–32V DC Input Range
The module supports a 10 to 32 V DC input range with a nominal 24 V DC on-state voltage for common industrial DC input signals.
Sinking Input Design
The 5069-IB16 is specified as a 12/24 V DC sinking input module for connection to compatible DC field devices.
16 Channel Status Indicators
Sixteen yellow/red I/O status indicators provide channel-level information together with a green/red module status indicator.
Compact 5000 Platform
The module is part of the Compact 5000 I/O family for supported Logix-based machine and industrial automation architectures.
Removable Terminal Block Options
The 5069-IB16 uses either the 5069-RTB18-SCREW or 5069-RTB18-SPRING terminal kit for field wiring connections.
Applications
- Industrial sensor signal monitoring
- Proximity switch input circuits
- Limit switch signal acquisition
- Machine status monitoring
- Packaging and assembly machinery
- Material handling systems
- PLC-based machine control
- Compact 5000 I/O systems
Purchase Information
We support online purchase of the Allen-Bradley 5069-IB16 Input Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-IB16?
The 5069-IB16 is a Compact 5000 16-channel 24 V DC sinking digital input module.
How many inputs does 5069-IB16 provide?
The module provides 16 digital input channels arranged as one group of 16.
What is the input voltage range of 5069-IB16?
The documented input voltage range is 10 to 32 V DC, with a nominal on-state voltage of 24 V DC.
Is 5069-IB16 a sinking input module?
Yes. Rockwell Automation specifies the 5069-IB16 as a 12/24 V DC sinking input module.
What is the input current per channel?
The documented input rating is 4 to 7.4 mA per channel across the 10 to 32 V DC input range.
What power does 5069-IB16 require?
The module specifications list 75 mA MOD power at 18 to 32 V DC and 200 mA SA power at 10 to 32 V DC.
Are the individual input channels isolated from each other?
No isolation is specified between individual input ports, and no isolation is provided between SA power and the input ports.
What status indicators are provided?
The module provides one green/red module status indicator and 16 yellow/red I/O status indicators.
What is the operating temperature range?
The documented operating temperature range is 0 to 60 °C, or 32 to 140 °F.
Which terminal blocks are used with 5069-IB16?
The module requires either a 5069-RTB18-SCREW or 5069-RTB18-SPRING terminal kit.
What is the difference between 5069-IB16 and 5069-IB16F?
The 5069-IB16 is the standard 16-point sinking DC input module, while the 5069-IB16F is the fast-input version intended for applications requiring faster input response and high-speed counting functions.
What should be checked before ordering 5069-IB16?
Check the complete catalog number, 16-channel requirement, sinking input configuration, 10 to 32 V DC signal range, field-device electrical characteristics, terminal block type and Compact 5000 system configuration.
