New SA Power Bus
The 5069-FPD breaks the existing field-side power distribution and establishes a new SA power bus for Compact 5000 I/O modules installed to its right.

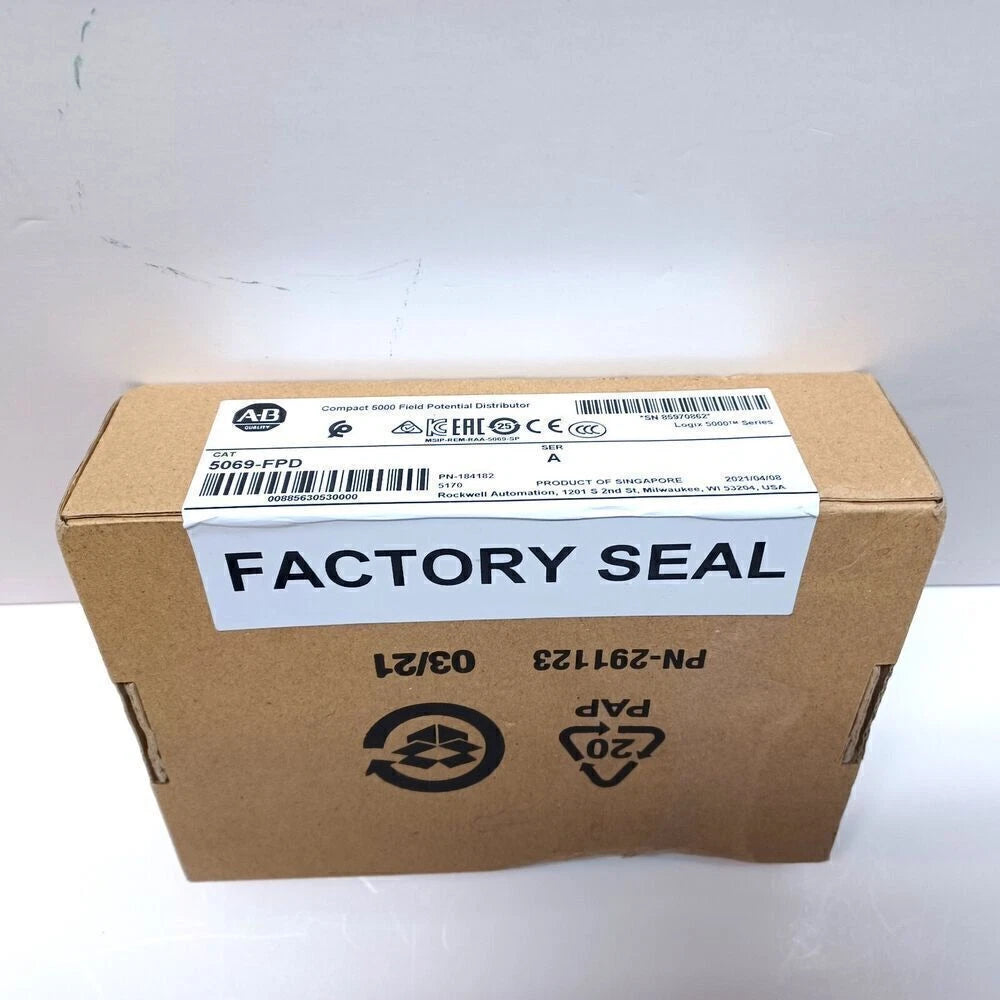

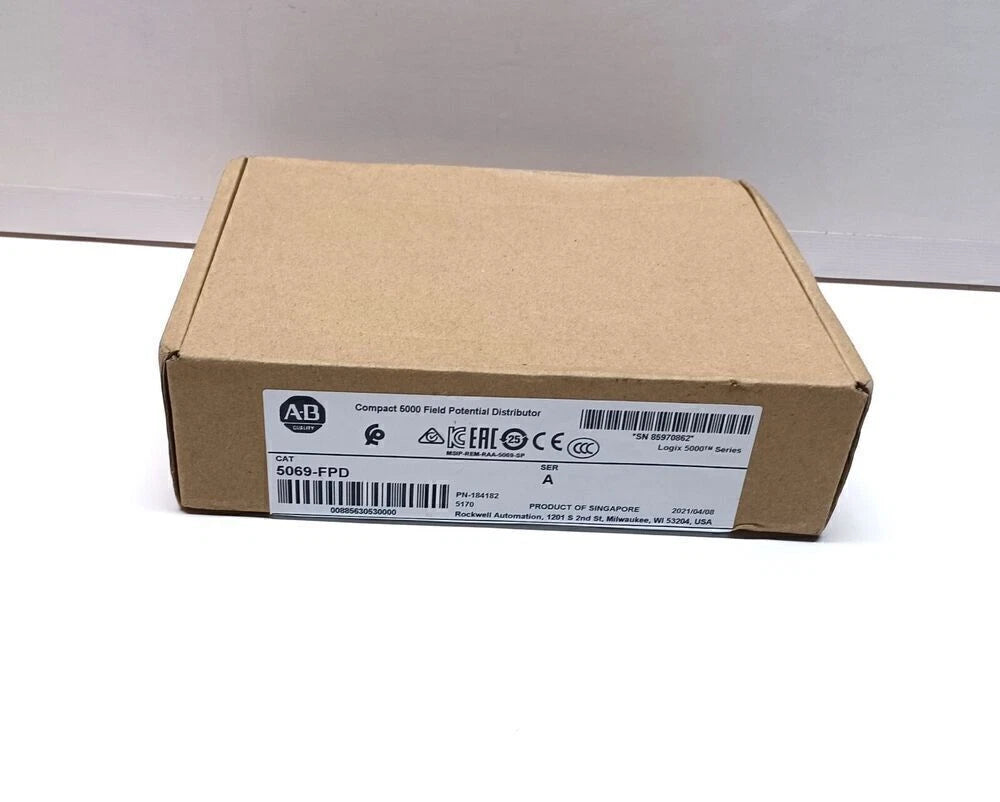

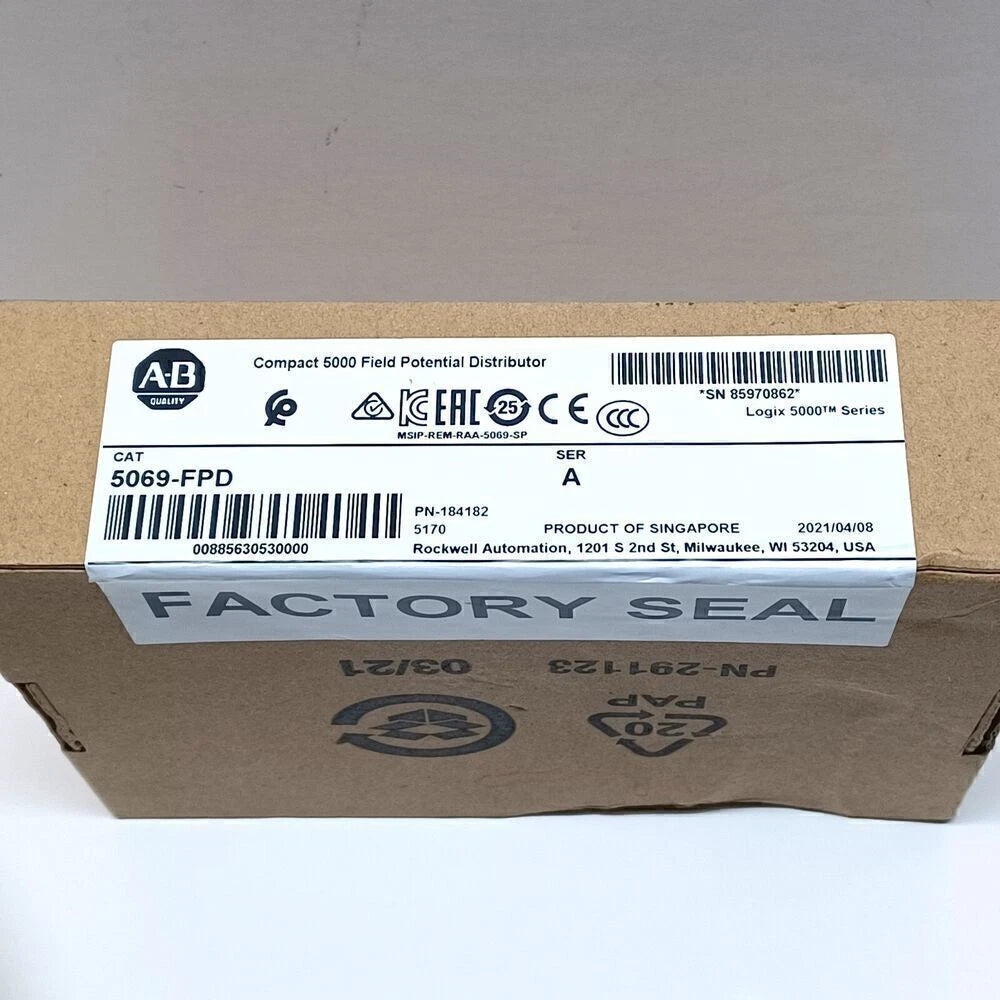

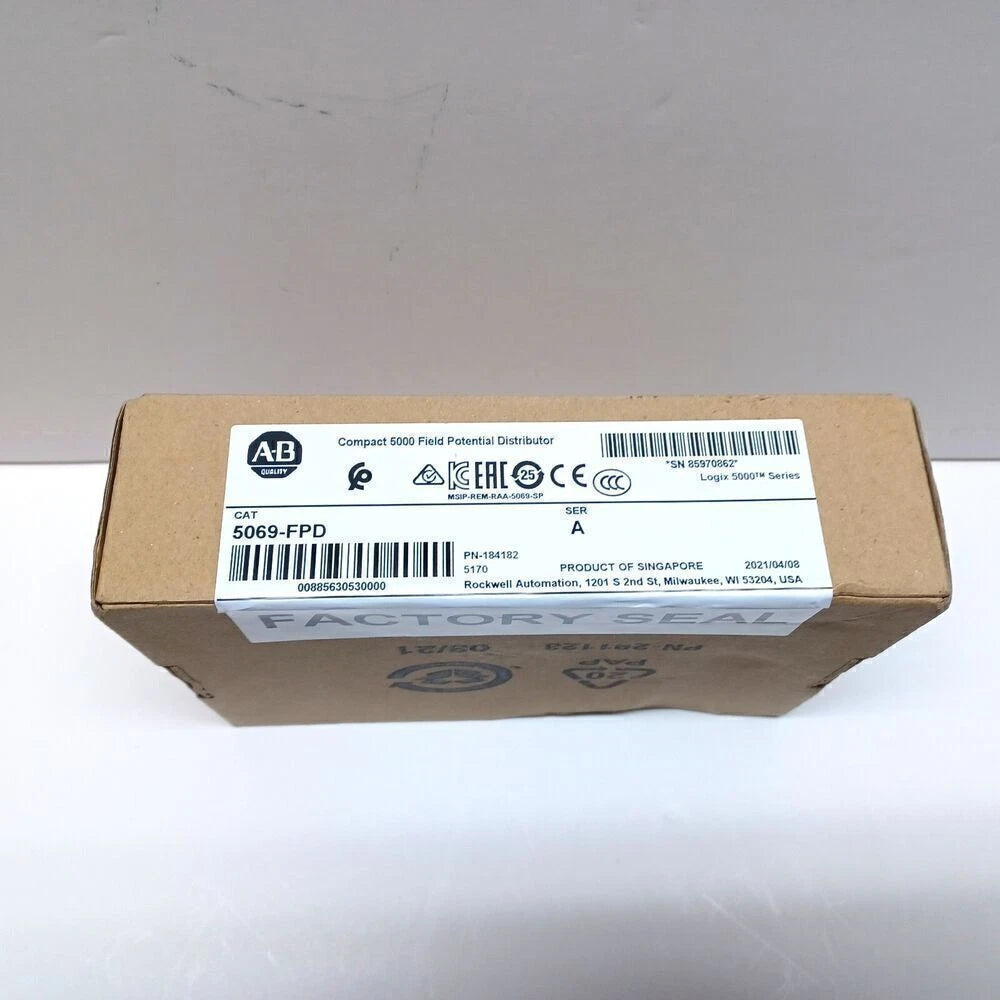

Allen-Bradley 5069-FPD Field Potential Distributor 32V DC 240V AC 10A
Available in stock (400)
Regular price
$117.66
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 5069-FPD |
| Product Category | Field Potential Distributor |
| Series | Compact 5000 |
| Function | Creates a New SA Power Bus |
| SA Power, DC | 10 mA at 0–32 V DC |
| SA Power, AC | 25 mA at 0–240 V AC, 47–63 Hz |
| SA Power Passthrough, DC | 9.99 A at 0–32 V DC |
| SA Power Passthrough, AC | 9.975 A at 0–240 V AC, 47–63 Hz |
| MOD Power Passthrough | 9.55 A at 18–32 V DC |
| Isolation Voltage | 300 V Continuous, Basic Insulation Type |
| Power Dissipation | 4 W Maximum |
| Enclosure Type | Open-Style |
| Height | 145 mm (5.69 in) |
| Depth | 105 mm (4.15 in) |
| Wire Size | 0.5–1.5 mm² (22–16 AWG) |
| Required Terminal Kit | 5069-RTB6-SCREW or 5069-RTB6-SPRING |
Key Features
AC and DC Power Separation
The module enables AC-type and DC-type Compact 5000 I/O modules to operate on separate SA power buses when required by the system architecture.
24V DC or 120/240V AC Supply
An external 24 V DC or 120/240 V AC power supply can be connected to establish the new field-side SA power bus.
Up to 10A SA Bus
The external SA power source is limited to a maximum of 10 A, with documented passthrough ratings of 9.99 A DC and 9.975 A AC.
MOD Power Passthrough
The 5069-FPD passes the MOD power bus through to the next module while isolating the new SA power bus from the SA power bus on its left.
Compact 5000 Platform
The field potential distributor is designed for Compact 5000 I/O architectures and supported CompactLogix and Compact GuardLogix control systems.
Applications
- Compact 5000 I/O power distribution
- Creating additional SA power buses
- Separating AC and DC I/O groups
- Industrial control panel power segmentation
- CompactLogix 5380 control systems
- CompactLogix 5480 control systems
- Compact GuardLogix 5380 systems
- Distributed Compact 5000 I/O systems
Purchase Information
We support online purchase of the Allen-Bradley 5069-FPD Field Potential Distributor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 5069-FPD?
The 5069-FPD is a Compact 5000 Field Potential Distributor that breaks an existing field-side power distribution segment and establishes a new SA power bus.
What is the main function of 5069-FPD?
It blocks the SA power bus from the left and establishes a separate SA power bus for Compact 5000 I/O modules installed to its right.
Can 5069-FPD be used with DC field power?
Yes. A 24 V DC external supply can be connected, and the documented SA power specification covers 0 to 32 V DC.
Can 5069-FPD be used with AC field power?
Yes. A 120/240 V AC external supply can be connected, with documented SA power specifications up to 240 V AC at 47 to 63 Hz.
What is the maximum SA power bus current?
The external SA power source must be limited to 10 A maximum. The documented passthrough ratings are 9.99 A for DC and 9.975 A for AC.
Does 5069-FPD pass MOD power through?
Yes. MOD power passes through to the next module, with a documented passthrough rating of 9.55 A at 18 to 32 V DC.
Why is 5069-FPD used between AC and DC I/O modules?
Compact 5000 AC-type and DC-type modules must operate on separate SA power buses. The 5069-FPD can end one SA power bus and establish another for the second module group.
Can 5069-FPD add SA power capacity?
Yes. It can establish an additional SA power bus when the I/O modules in a system collectively require more current than one SA power bus can provide.
What is the operating temperature range?
The documented operating temperature range is 0 to 60 °C, or 32 to 140 °F.
Which terminal blocks are used with 5069-FPD?
The module uses either the 5069-RTB6-SCREW or 5069-RTB6-SPRING removable terminal block, ordered separately.
What wire size is specified for the terminal block?
Rockwell Automation specifies 0.5 to 1.5 mm², or 22 to 16 AWG, solid or stranded copper wire for the supported RTBs.
What should be checked before ordering 5069-FPD?
Check the complete catalog number, AC or DC SA power requirements, total SA bus current, I/O module grouping, MOD power arrangement and required 5069-RTB6 terminal block type.
