Integrated Latch

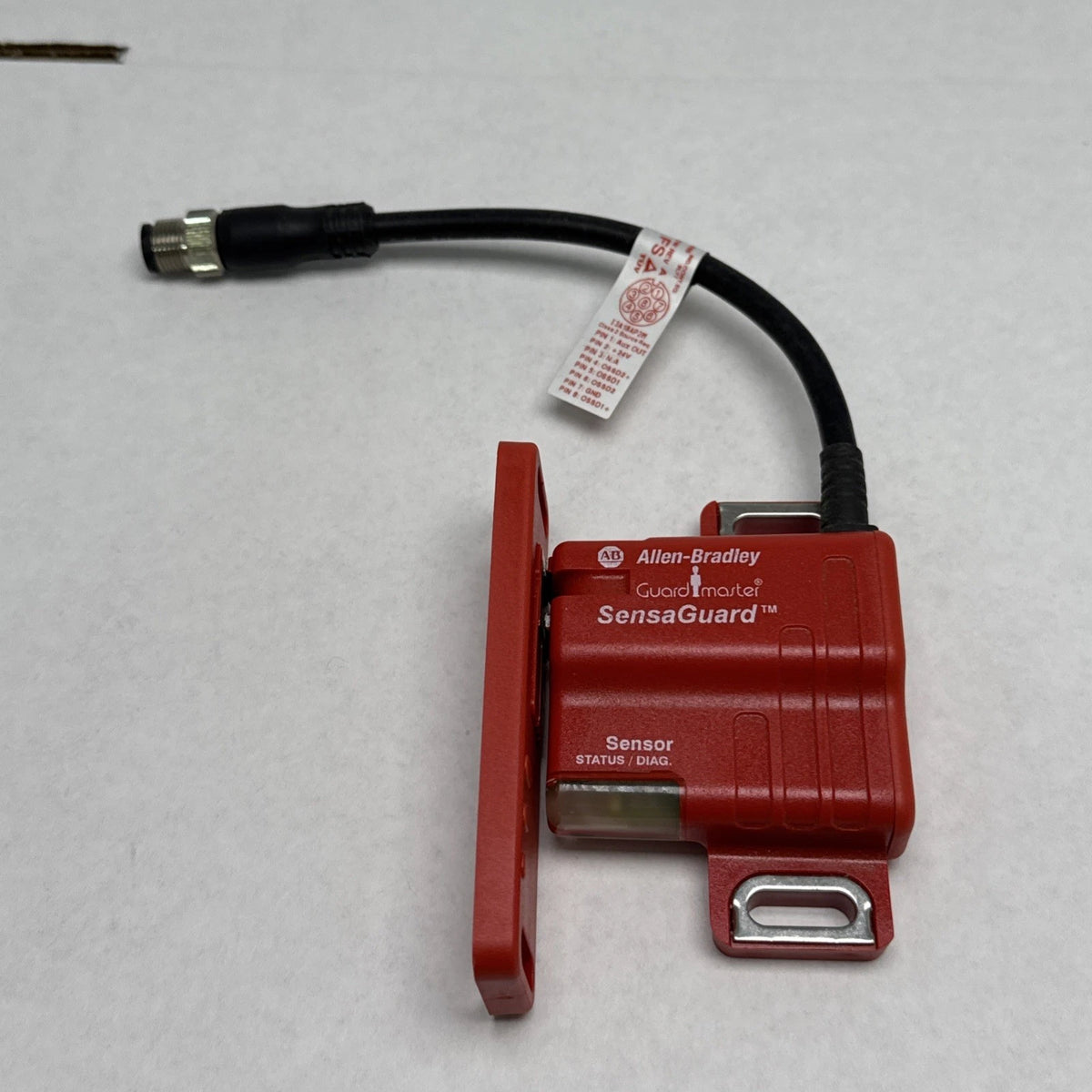

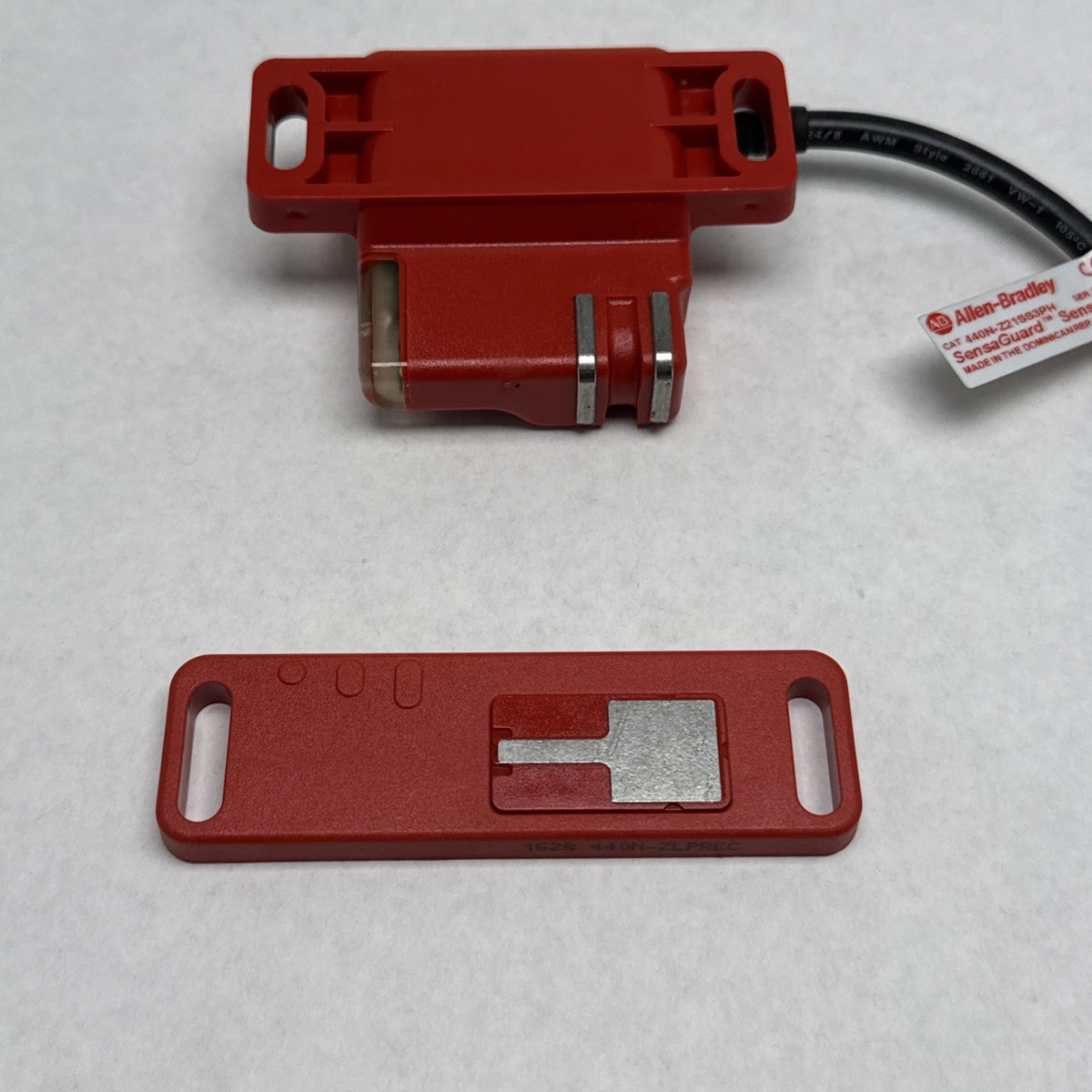

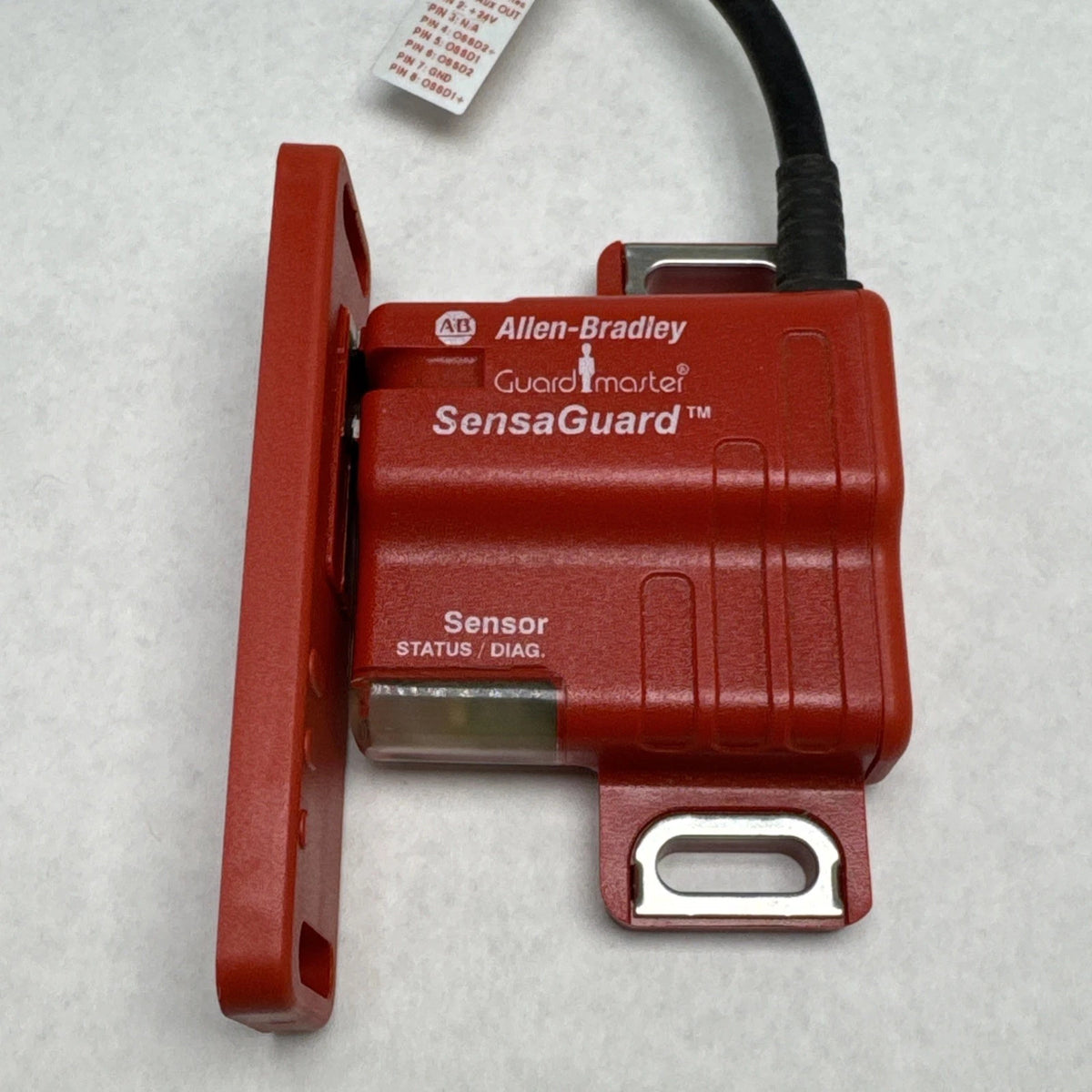

The SensaGuard 440N-Z21SS3PH uses a rectangular plastic housing with an integrated latch and standard coded actuator.
Allen-Bradley 440N-Z21SS3PH Non-Contact Safety Switch 24VDC 8-Pin M12
Available in stock (400)
Regular price
$157.13
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 440N-Z21SS3PH |
| Product Category | Non-Contact Safety Switch |
| Product Family | SensaGuard |
| Style | Plastic Housing with Integrated Latch - Series B |
| Housing | Rectangular Plastic Housing with Integrated Latch and Rectangular Plastic Standard Coded Actuator |
| Actuator Type | Standard Code Integrated Contact Latched Actuator - Series B |
| Assured Sensing Distance | Contact / Latched |
| Safety Outputs | 2 x PNP, 0.2A max |
| Auxiliary Output | 1 x PNP, 0.2A max |
| LED Indication | Door Status and Troubleshooting |
| Connection | 6 inch Pigtail with 8-Pin Micro (M12) Connector |
| Supply Voltage | 24 VDC |
Key Features
2 PNP Safety Outputs
The documented safety output configuration provides two PNP outputs rated at 0.2A maximum.
PNP Auxiliary Output
The switch includes one PNP auxiliary output rated at 0.2A maximum.
8-Pin M12 Connection
The connection is specified as a 6 inch pigtail with an 8-pin Micro M12 connector.
LED Indication
LED indication is provided for door status and troubleshooting functions.
Contact Latched Design
The documented assured sensing arrangement for this integrated-latch configuration is contact and latched.
Applications
- Machine guard monitoring
- Safety gate monitoring
- Guard door interlock systems
- Non-contact safety sensing
- Machine access-point monitoring
- Industrial safeguarding systems
- Integrated-latch safety applications
- Machine safety control systems
Purchase Information
We support online purchase of the Allen-Bradley 440N-Z21SS3PH Non-Contact Safety Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 440N-Z21SS3PH?
Allen-Bradley 440N-Z21SS3PH is a SensaGuard non-contact safety switch with an integrated latch and standard coded actuator.
What supply voltage is specified for 440N-Z21SS3PH?
Published Rockwell Automation product information identifies a 24 VDC supply for this SensaGuard configuration.
What safety outputs does 440N-Z21SS3PH provide?
The switch provides two PNP safety outputs rated at 0.2A maximum.
Does 440N-Z21SS3PH have an auxiliary output?
Yes. It provides one PNP auxiliary output rated at 0.2A maximum.
What connector does 440N-Z21SS3PH use?
The documented connection is a 6 inch pigtail with an 8-pin Micro M12 connector.
Does 440N-Z21SS3PH provide LED indication?
Yes. LED indication is specified for door status and troubleshooting.
What actuator coding does 440N-Z21SS3PH use?
Rockwell Automation identifies this catalog number as a standard coded configuration.
Does 440N-Z21SS3PH have an integrated latch?
Yes. It uses a plastic housing with an integrated latch and a contact-latched actuator configuration.
Can 440N-Z21SS3PH be considered for guard monitoring?
It can be considered after the complete catalog number, safety requirements and installation requirements have been checked against the application.
What should be checked before ordering 440N-Z21SS3PH?
Check the complete catalog number, 24 VDC supply, PNP output requirements, standard actuator coding, integrated-latch arrangement and 8-pin M12 connection before purchasing.
