Polarized Retroreflective Sensing
The 42EF-P2MPB-F4 uses polarized retroreflective sensing with a maximum documented sensing distance of 3 m.

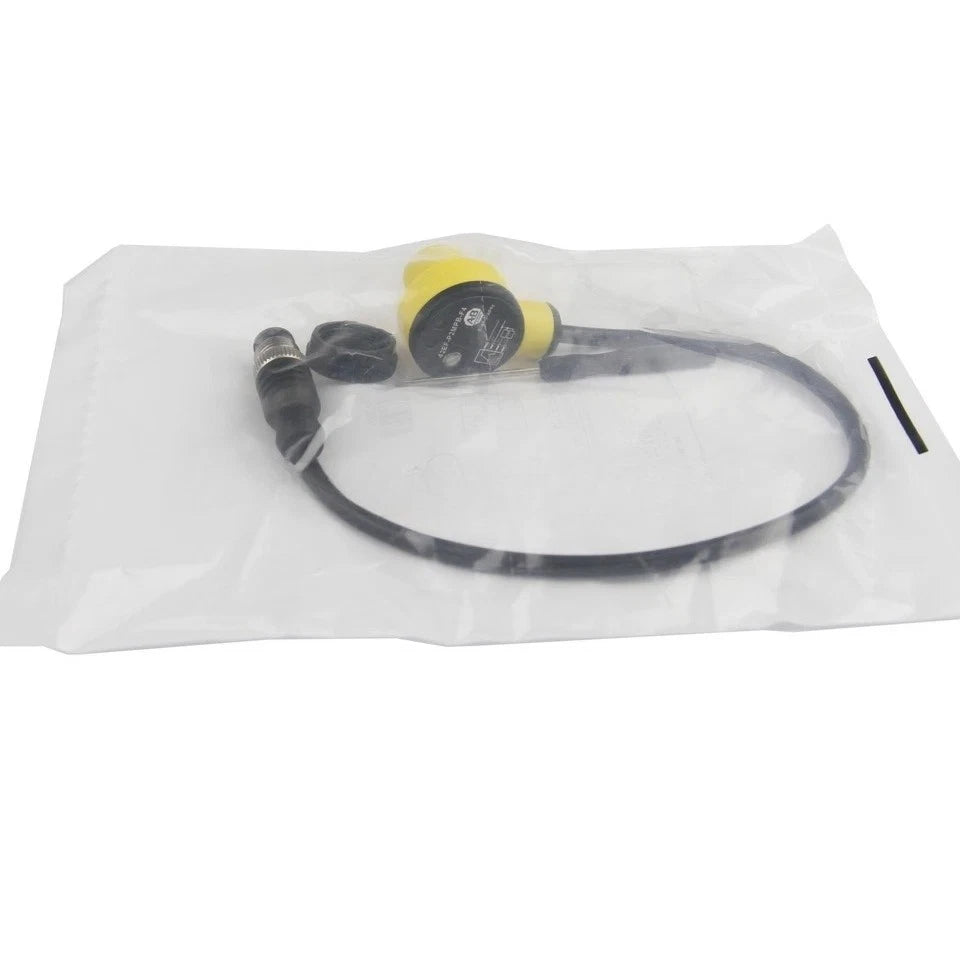

Allen-Bradley 42EF-P2MPB-F4 Photoelectric Sensor 10.8-30VDC PNP IO-Link
Available in stock (400)
Regular price
$22.12
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 42EF-P2MPB-F4 |
| Product Category | Photoelectric Sensor |
| Product Family | RightSight |
| Sensing Mode | Polarized Retroreflective |
| Maximum Sensing Distance | 3 m (9.8 ft) |
| Voltage Rating | 10.8-30 VDC |
| Output Type | Source (PNP) |
| Output Function | 2 Complementary LO/DO Outputs |
| IO-Link | Enabled |
| Light Source | Visible Red LED |
| Connection | 4-Pin DC Micro M12 QD on 152 mm (6 in) Pigtail |
| Response Time | 1 ms |
| Maximum Output Current | 100 mA |
| Degree of Protection | IP67 |
Key Features
Complementary PNP Outputs
The sensor provides two complementary light-operate and dark-operate source PNP outputs.
IO-Link Enabled
The 42EF-P2MPB-F4 supports IO-Link communication for applicable sensor integration and configuration.
4-Pin M12 Connection
Electrical connection is provided by a 4-pin DC Micro M12 quick-disconnect on a 152 mm pigtail.
1 ms Response Time
The documented sensor response time is 1 ms.
IP67 Protection
The sensor has a documented IP67 degree of protection.
Applications
- Object presence detection
- Conveyor product detection
- Packaging machinery sensing
- Material handling systems
- Automated production equipment
- Part position detection
- Machine automation sensing
- IO-Link sensor applications
Purchase Information
We support online purchase of the Allen-Bradley 42EF-P2MPB-F4 Photoelectric Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 42EF-P2MPB-F4?
Allen-Bradley 42EF-P2MPB-F4 is a RightSight polarized retroreflective photoelectric sensor.
What is the maximum sensing distance of 42EF-P2MPB-F4?
The documented maximum sensing distance is 3 m (9.8 ft).
What voltage does 42EF-P2MPB-F4 use?
The documented voltage rating is 10.8-30 VDC.
What output type does 42EF-P2MPB-F4 provide?
It provides source PNP outputs with two complementary LO/DO outputs.
Does 42EF-P2MPB-F4 support IO-Link?
Yes. IO-Link is enabled on this model.
What connection does 42EF-P2MPB-F4 use?
It uses a 4-pin DC Micro M12 quick-disconnect on a 152 mm (6 in) pigtail.
What is the response time of 42EF-P2MPB-F4?
The documented response time is 1 ms.
What is the protection rating of 42EF-P2MPB-F4?
The documented degree of protection is IP67.
What is the operating temperature range?
The documented operating temperature range is -25°C to +70°C.
What should be checked before ordering 42EF-P2MPB-F4?
Check the complete model number, polarized retroreflective sensing requirement, 10.8-30 VDC supply, PNP output requirements, IO-Link requirement and 4-pin M12 connection before ordering.
