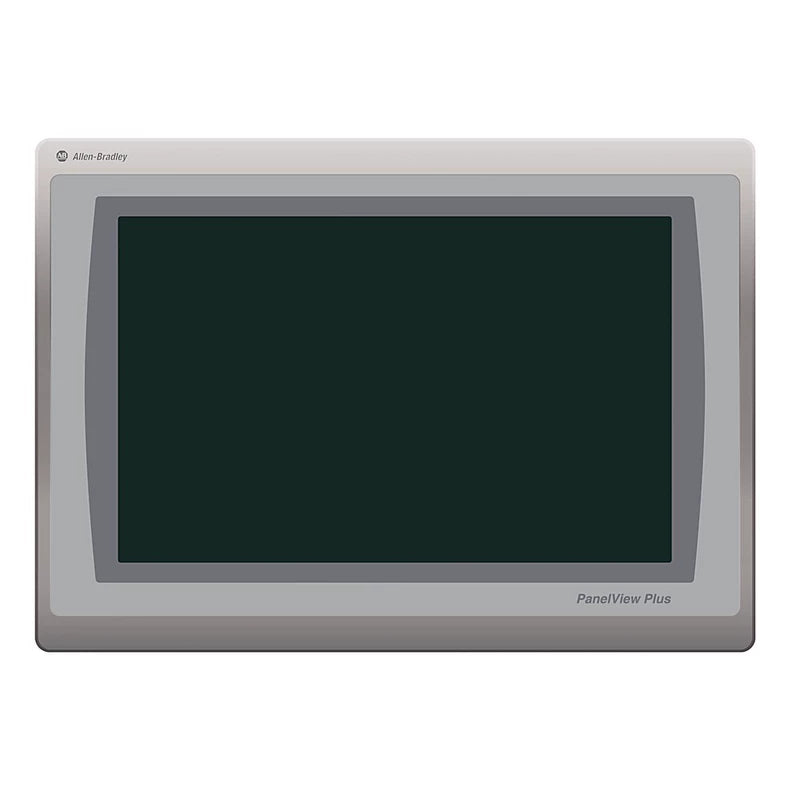

12.1-inch Wide Display
The 2711P-T12W22D9P uses a 12.1-inch widescreen TFT color display for operator interface and machine visualization applications.
Allen-Bradley 2711P-T12W22D9P HMI 12.1-inch 1280x800 24VDC
Available in stock (200)
Regular price
$2,421.99
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 2711P-T12W22D9P |
| Product Category | HMI |
| Product Family | PanelView Plus 7 Performance |
| Terminal Type | Touch Screen Terminal |
| Display Type | TFT Color |
| Display Size | 12.1-inch Wide Screen |
| Display Resolution | 1280 × 800 WXGA |
| Aspect Ratio | 16:10 |
| Viewing Area | 261 × 163 mm |
| Brightness | 300 cd/m² |
| Operator Input | Touch Screen |
| Communication | Ethernet DLR |
| Power Supply | 24 VDC |
Key Features
1280 × 800 WXGA
The documented display resolution is 1280 × 800 WXGA with a 16:10 widescreen aspect ratio.
Touch Screen Input
The PanelView Plus 7 Performance terminal provides touch screen operator input.
Ethernet DLR
The documented communication configuration supports Ethernet DLR for compatible industrial Ethernet network architectures.
300 cd/m² Brightness
The TFT display has a documented typical brightness of 300 cd/m².
24VDC Power
The documented terminal configuration uses a 24 VDC power supply.
Applications
- Industrial machine operator interfaces
- PLC system visualization
- Machine status monitoring
- Production equipment control panels
- Industrial process visualization
- Operator data entry interfaces
- Automation system monitoring
- Machine control and maintenance panels
Purchase Information
We support online purchase of the Allen-Bradley 2711P-T12W22D9P HMI. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 2711P-T12W22D9P?
Allen-Bradley 2711P-T12W22D9P is a PanelView Plus 7 Performance HMI terminal with a 12.1-inch widescreen TFT color touch display, Ethernet DLR communication and 24 VDC power.
What is the display size of 2711P-T12W22D9P?
The documented display size is 12.1 inches in a widescreen format.
What is the display resolution of 2711P-T12W22D9P?
The documented maximum resolution is 1280 × 800 WXGA.
What is the aspect ratio of 2711P-T12W22D9P?
The documented display aspect ratio is 16:10.
What operator input does 2711P-T12W22D9P use?
The terminal provides touch screen operator input.
What power supply does 2711P-T12W22D9P use?
The documented terminal configuration uses 24 VDC power.
Does 2711P-T12W22D9P support Ethernet DLR?
Yes. Ethernet DLR is included in the documented communication configuration.
What is the display brightness of 2711P-T12W22D9P?
The documented typical display brightness is 300 cd/m².
What is the viewing area of 2711P-T12W22D9P?
The documented viewing area is 261 × 163 mm.
What applications can 2711P-T12W22D9P be considered for?
It can be considered for machine operator interfaces, process visualization, equipment monitoring and industrial control-panel applications after system requirements have been checked.
What should be checked before ordering 2711P-T12W22D9P?
Check the complete catalog number, display requirements, 24 VDC power requirements, Ethernet network requirements, mounting requirements and application requirements before ordering.
What should be verified before using 2711P-T12W22D9P in an existing system?
Electrical, communication, mechanical, software and installation requirements should be checked against the existing system documentation before use.
