PowerFlex 525 Platform
The 25B-D010N104 is a PowerFlex 525 AC drive with embedded EtherNet/IP communication and integrated safety.

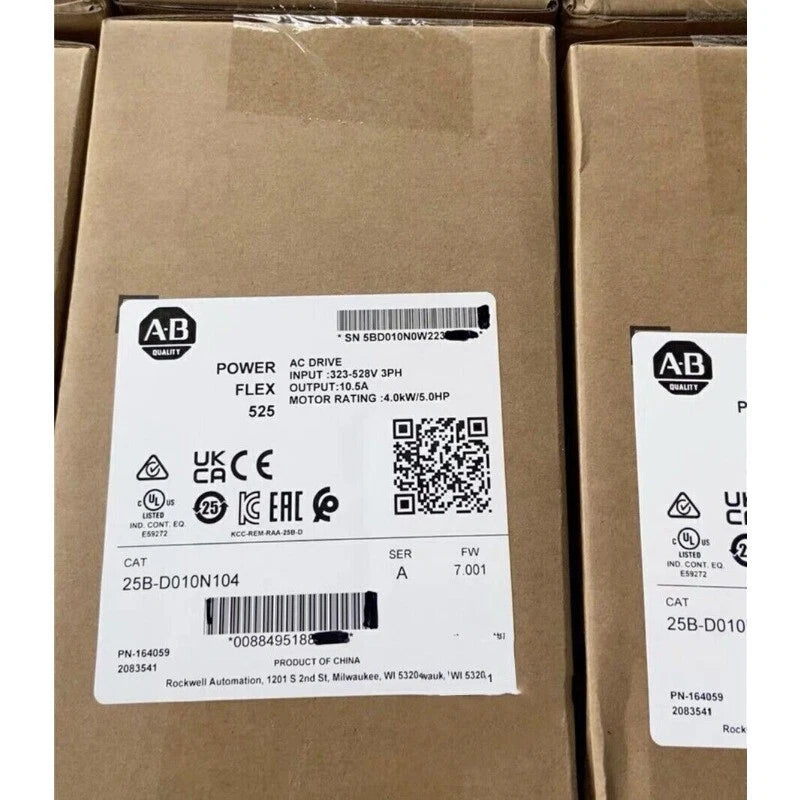

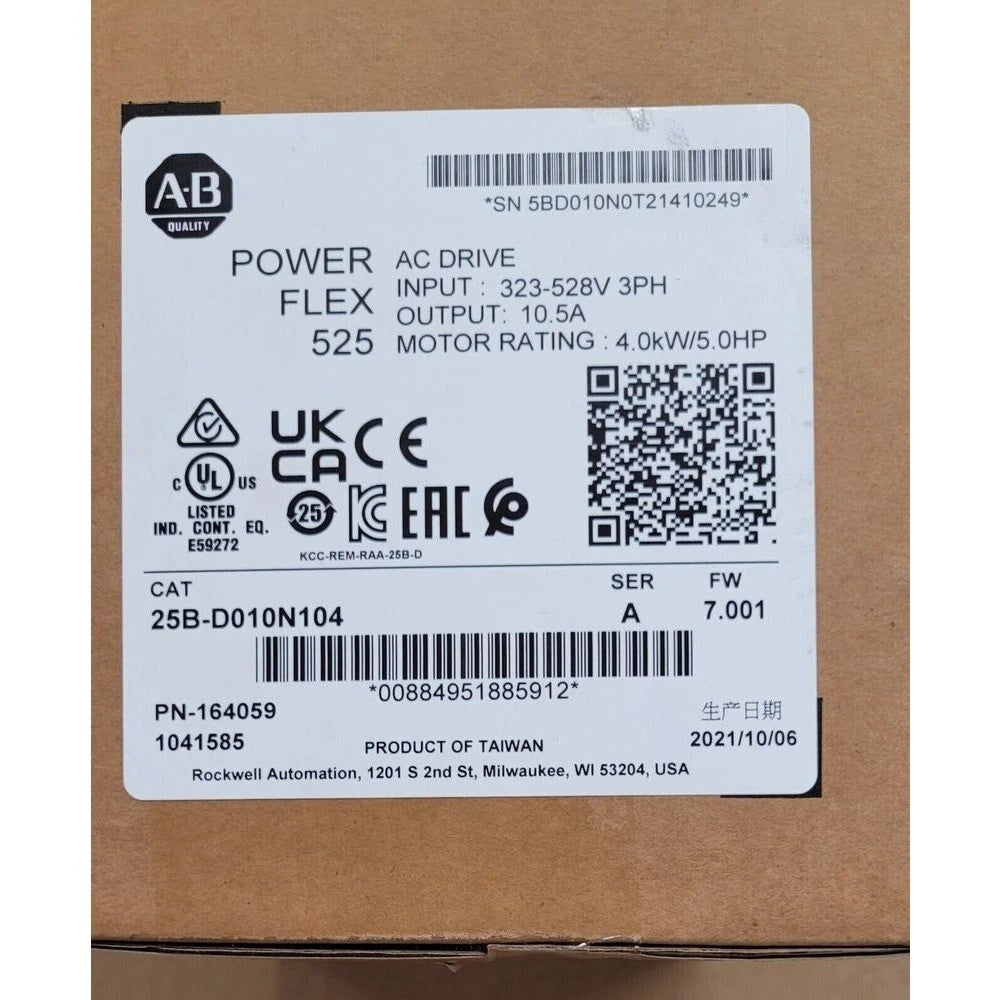

Allen-Bradley 25B-D010N104 PowerFlex 525 AC Drive 4kW 10.5A 380-480VAC
Available in stock (400)
Regular price
$442.26
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 25B-D010N104 |
| Product Category | AC Drive |
| Product Family | PowerFlex 525 |
| Voltage Class | 380-480 VAC, 3 Phase |
| Output Current | 10.5 A |
| Normal Duty Power | 4 kW / 5 HP |
| Heavy Duty Power | 4 kW / 5 HP |
| Communication | Embedded EtherNet/IP |
| Safety | Integrated Safety |
| Frame Size | Frame B |
| Enclosure Type | IP20 NEMA / Open Type |
| EMC Filtering | No Filter |
| Interface Module | Standard |
| Brake IGBT | Included |
| Frequency Rating | 50-60 Hz |
| Input Voltage Rating | 480 VAC |
| Power Factor | 0.98 |
| User Interface | Integral Keypad with Potentiometer and LED Display |
Key Features
4 kW Motor Rating
The drive is rated at 4 kW / 5 HP for both normal-duty and heavy-duty operation.
380-480 VAC Input
This catalog configuration is specified for 380-480 VAC three-phase power.
10.5 A Output
The documented output current rating for the 25B-D010N104 is 10.5 A.
Embedded EtherNet/IP
Embedded EtherNet/IP communication supports connection to applicable industrial automation networks.
No EMC Filter
This Frame B configuration uses an IP20 NEMA / Open Type enclosure and is specified without an EMC filter.
Applications
- Variable-speed motor control
- Conveyor drive systems
- Packaging machinery
- Material handling equipment
- Production machinery
- Automated machine systems
- EtherNet/IP drive networks
- 380-480 VAC three-phase motor applications
Purchase Information
We support online purchase of the Allen-Bradley 25B-D010N104 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 25B-D010N104?
Allen-Bradley 25B-D010N104 is a PowerFlex 525 AC drive.
What is the power rating of 25B-D010N104?
The drive is rated at 4 kW / 5 HP for both normal-duty and heavy-duty operation.
What voltage class does 25B-D010N104 use?
The documented voltage class is 380-480 VAC, three phase.
What is the output current of 25B-D010N104?
The documented output current rating is 10.5 A.
What communication does 25B-D010N104 provide?
The drive provides embedded EtherNet/IP communication.
What frame size does 25B-D010N104 use?
The documented frame size is Frame B.
What enclosure type does 25B-D010N104 use?
The drive is specified with an IP20 NEMA / Open Type enclosure.
Does 25B-D010N104 include an EMC filter?
No. This catalog configuration is specified without an EMC filter.
Can 25B-D010N104 be considered for an existing drive system?
It can be considered after the complete model number and technical requirements have been checked against the existing system requirements.
What should be checked before ordering 25B-D010N104?
Check the complete model number, 380-480 VAC three-phase supply, 10.5 A output rating, 4 kW / 5 HP motor requirements, EtherNet/IP communication, safety requirements, EMC filter configuration and installation requirements before ordering.
