4.2 A Output Current
The 22F-D4P2N103 is specified with an output current rating of 4.2 A.

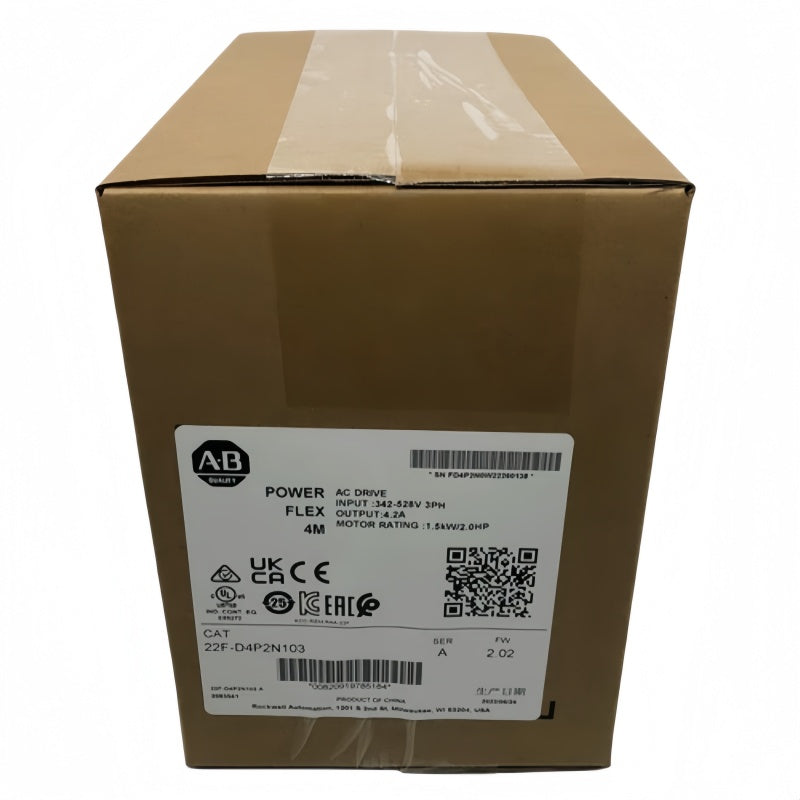

Allen-Bradley 22F-D4P2N103 PowerFlex 4M Variable Frequency Drive
Available in stock (200)
Regular price
$218.42
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 22F-D4P2N103 |
| Product Category | AC Drive |
| Product Family | PowerFlex 4M |
| Input Voltage | 480 VAC |
| Input Phases | 3 Phase |
| Output Current | 4.2 A |
| Motor Power | 1.5 kW |
| Motor Power | 2 hp |
| Frame Size | Frame Size A |
| Enclosure Style | IP20 Open |
| User Interface | LED Display, Fixed Digital Keypad |
Key Features
480 VAC Three-Phase Input
The documented input configuration is 480 VAC with three-phase power.
1.5 kW Motor Rating
The documented motor power rating is 1.5 kW or 2 hp.
Frame Size A
The 22F-D4P2N103 is documented as a Frame Size A PowerFlex 4M AC drive.
Fixed Digital Keypad
The documented human interface includes an LED display and fixed digital keypad.
IP20 Open Enclosure
The documented enclosure style for this catalog number is IP20 Open.
Applications
- Industrial motor speed control
- Machine automation drive systems
- Conveyor speed control
- Material handling machinery
- Pump speed control
- Fan speed control
- Industrial process machinery
- Variable frequency motor applications
Purchase Information
We support online purchase of the Allen-Bradley 22F-D4P2N103 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 22F-D4P2N103?
Allen-Bradley 22F-D4P2N103 is a PowerFlex 4M AC drive with a documented 480 VAC three-phase input, 4.2 A output current and 1.5 kW motor power rating.
What input voltage does 22F-D4P2N103 use?
The documented input voltage rating is 480 VAC.
Does 22F-D4P2N103 use a three-phase input?
Yes. The documented input configuration is three phase.
What output current is specified for 22F-D4P2N103?
The documented output current rating is 4.2 A.
What motor power is specified for 22F-D4P2N103?
The documented motor power rating is 1.5 kW or 2 hp.
What frame size is 22F-D4P2N103?
The documented frame size is Frame Size A.
What enclosure style is specified?
The documented enclosure style is IP20 Open.
What user interface does 22F-D4P2N103 include?
The documented configuration includes an LED display and fixed digital keypad.
Does 22F-D4P2N103 include a CE compliant EMC filter?
No. The documented configuration specifies no CE compliant filter.
Does 22F-D4P2N103 include a brake drive?
No. The documented configuration specifies no brake drive.
What applications can 22F-D4P2N103 be considered for?
It can be considered for variable-frequency motor control applications after the motor, electrical and installation requirements have been checked.
What should be checked before ordering 22F-D4P2N103?
Check the complete 22F-D4P2N103 catalog number, 480 VAC three-phase supply, 4.2 A output current requirement, 1.5 kW motor requirement, Frame Size A installation and EMC requirements before purchasing.
