PowerFlex 4M Platform
The 22F-D013N114 is a PowerFlex 4M AC drive rated for variable-frequency motor-control applications.

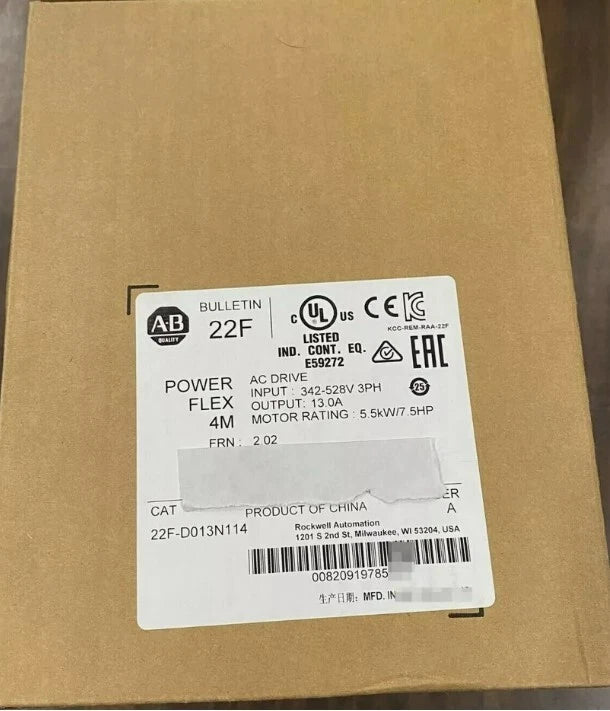

Allen-Bradley 22F-D013N114 PowerFlex 4M AC Drive 5.5kW 13A 480VAC
Available in stock (400)
Regular price
$438.83
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 22F-D013N114 |
| Product Category | AC Drive |
| Product Family | PowerFlex 4M |
| Input Voltage | 480 VAC, 3 Phase |
| Frequency | 50-60 Hz |
| Output Current | 13 A |
| Motor Power | 5.5 kW / 7.5 HP |
| Frame Size | Frame C |
| Enclosure Type | IP20 / Open Type |
| Human Interface | LED Display, Fixed Digital Keypad |
| EMC Filtering | Internal CE Compliant Filter |
| Communication | RS485 |
| Brake IGBT | Included |
Key Features
5.5 kW Motor Rating
The drive is rated at 5.5 kW / 7.5 HP with a documented output current of 13 A.
480 VAC Three Phase
This catalog configuration is specified for 480 VAC three-phase input at 50-60 Hz.
Operator Interface
The drive includes an LED display and fixed digital keypad for local operator interaction.
RS485 Communication
The documented internal communication interface for this model is RS485.
Filtered Frame C Design
This Frame C model has an IP20 open enclosure, internal CE compliant filter and included Brake IGBT.
Applications
- Variable-speed motor control
- Conveyor drive systems
- Packaging machinery
- Material handling equipment
- Production machinery
- Automated machine systems
- General-purpose AC motor control
- 480 VAC three-phase motor applications
Purchase Information
We support online purchase of the Allen-Bradley 22F-D013N114 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 22F-D013N114?
Allen-Bradley 22F-D013N114 is a PowerFlex 4M AC drive.
What is the motor power rating of 22F-D013N114?
The documented motor power rating is 5.5 kW / 7.5 HP.
What input voltage does 22F-D013N114 use?
The drive is specified for 480 VAC three-phase input at 50-60 Hz.
What is the output current of 22F-D013N114?
The documented output current rating is 13 A.
What frame size does 22F-D013N114 use?
The documented frame size is Frame C.
What enclosure type does 22F-D013N114 use?
The drive is specified with an IP20 open-type enclosure.
What operator interface does 22F-D013N114 have?
It is equipped with an LED display and fixed digital keypad.
Does 22F-D013N114 include an EMC filter?
Yes. This configuration includes an internal CE compliant filter.
What communication interface does 22F-D013N114 use?
The documented communication interface is RS485.
Does 22F-D013N114 include a Brake IGBT?
Yes. The documented configuration includes a Brake IGBT.
What should be checked before ordering 22F-D013N114?
Check the complete model number, 480 VAC three-phase supply, 13 A output rating, 5.5 kW / 7.5 HP motor requirements, Frame C enclosure, filter, RS485 interface and installation requirements before ordering.
